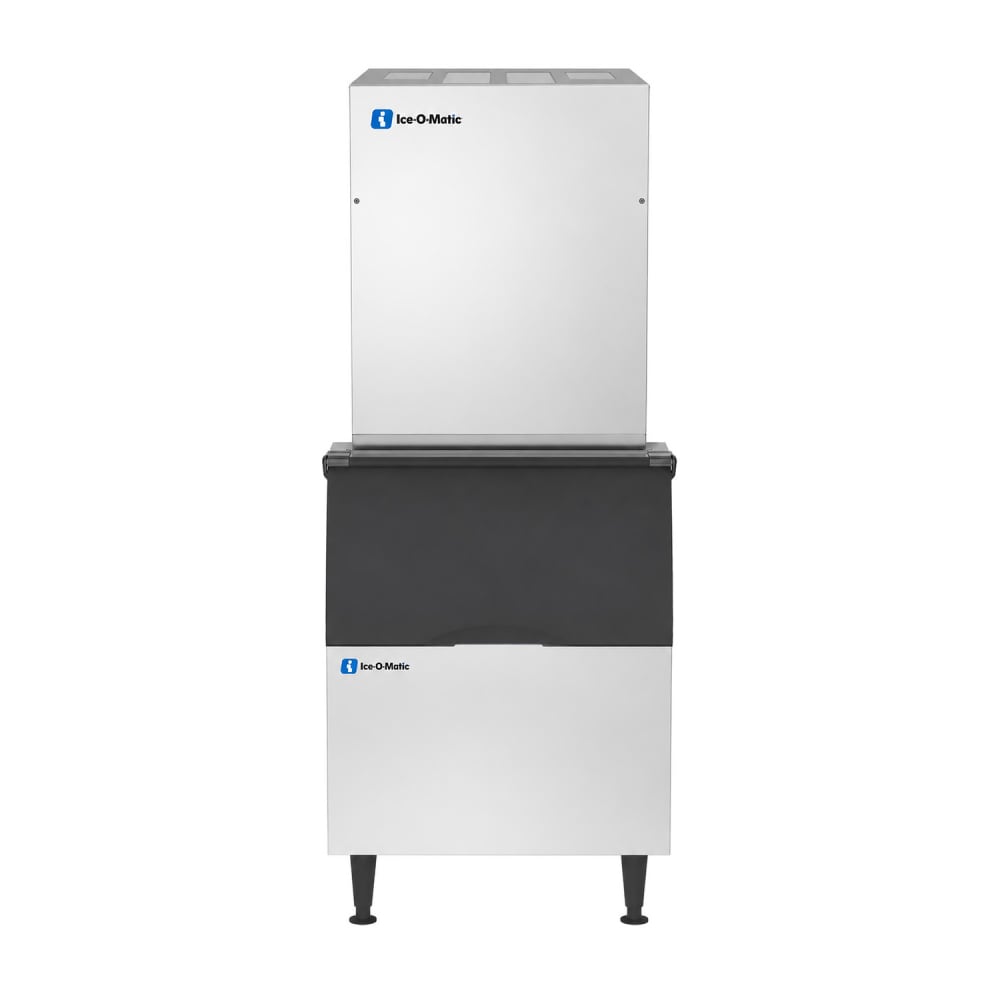

Ice-O-Matic MFI0800A/B40PS 900 lb Flake Ice Machine w/ Bin - 344 lb Storage, Air Cooled, 115v

Requiring less setup work and expense than water- and remote-cooled options, the Ice-O-Matic MFI0800A/B40PS ice maker head and bin is an air-cooled system. It makes flake ice, which is excellent for grocery stores and hospitals, as they can use flake ice to pack in food trays in refrigerated display cases or create ice packs for patients. Made for extended use in water, the head features a sturdy and resilient stainless steel auger and evaporator.

The Ice-O-Matic MFI0800A/B40PS ice machine and bin’s door is top-hinged, which means it opens upward and out of the way while users are retrieving ice from the bin. It has an aluminum exterior that holds up well against corrosion, such as from cleaning chemicals in the machine’s surroundings, and the unit has 6-inch legs that can be repositioned to compensate for uneven floors.

Ice Maker Details

• 900-lb. maximum daily ice production
• 665-lb. daily ice production at 90 degrees F air, 70 degrees F water
• Air-cooled system
• Produces flake ice
• Stainless steel finish
• Heavy-duty gearbox and industrial-grade roller bearings
• Auger and evaporator made of durable stainless steel
• Low-water sensor
• SystemSafe feature detects complications and deactivates head
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-120 PSI
• 7,400-BTU heat transfer capacity

Product Features

Ice Bin Details

• 344-lb. bin capacity
• Polyethylene interior
• Corrosion-resistant aluminum exterior
• Foam insulation minimizes chill loss
• Top-hinged, sloped door
• 6-in. legs are adjustable for sloped floors

Dimensions & Utilities

• Ice machine head: 21 in. W x 24 in. D x 27 in. H
• Ice bin: 30 in. W x 31 in. D x 37¹⁄₂ in. H
• 21 A, 3.8 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

Ice Maker, flake-style, air-cooled, self-contained condenser, approximately 900 lb/408 kg production/24 hours, stainless steel finish, cULus, NSF, CE; Ice Bin w/ Bin Top: 344 lb storage capacity, 30"W x 31"D x 37-1/2"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Compressor Parts

Ice-O-Matic MFI0800A/B40PS Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Installation Guide

Certifications
