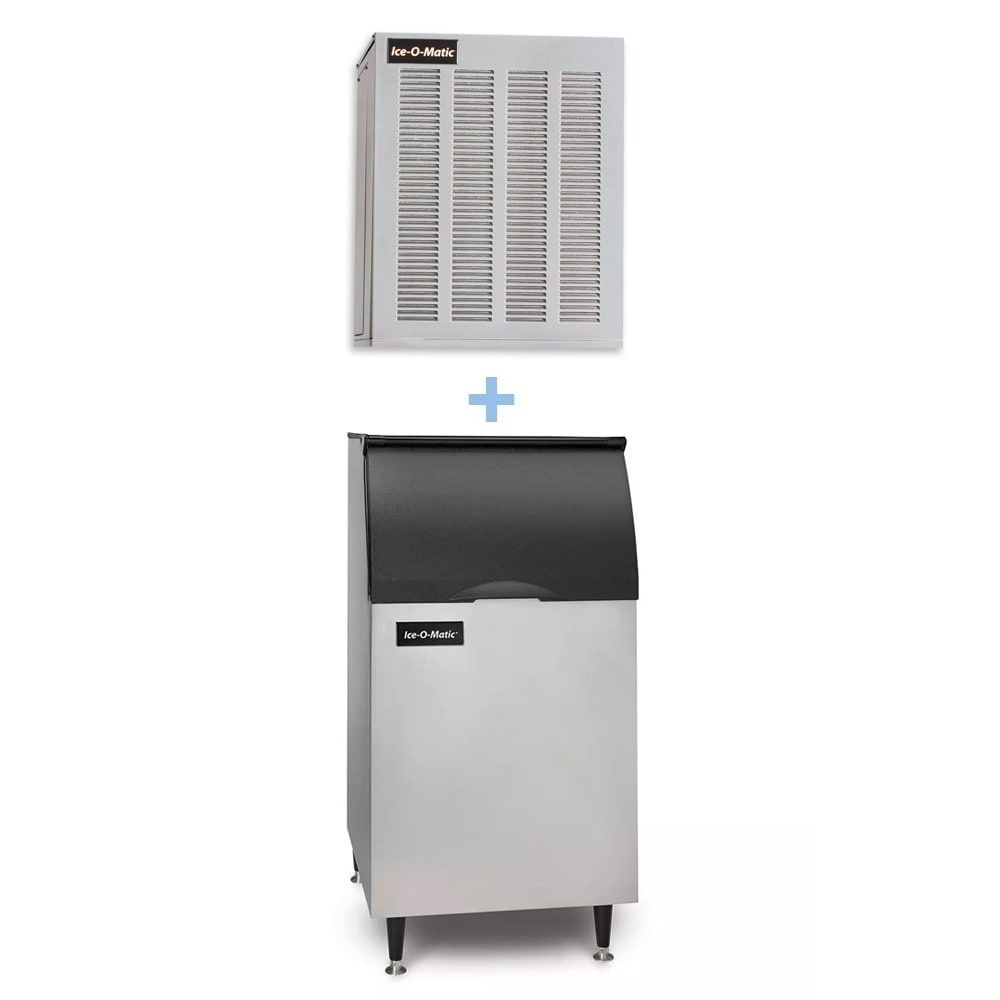

Ice-O-Matic MFI0500A/B42PS 540 lb Flake Ice Machine w/ Bin - 351 lb Storage, Air Cooled, 115v

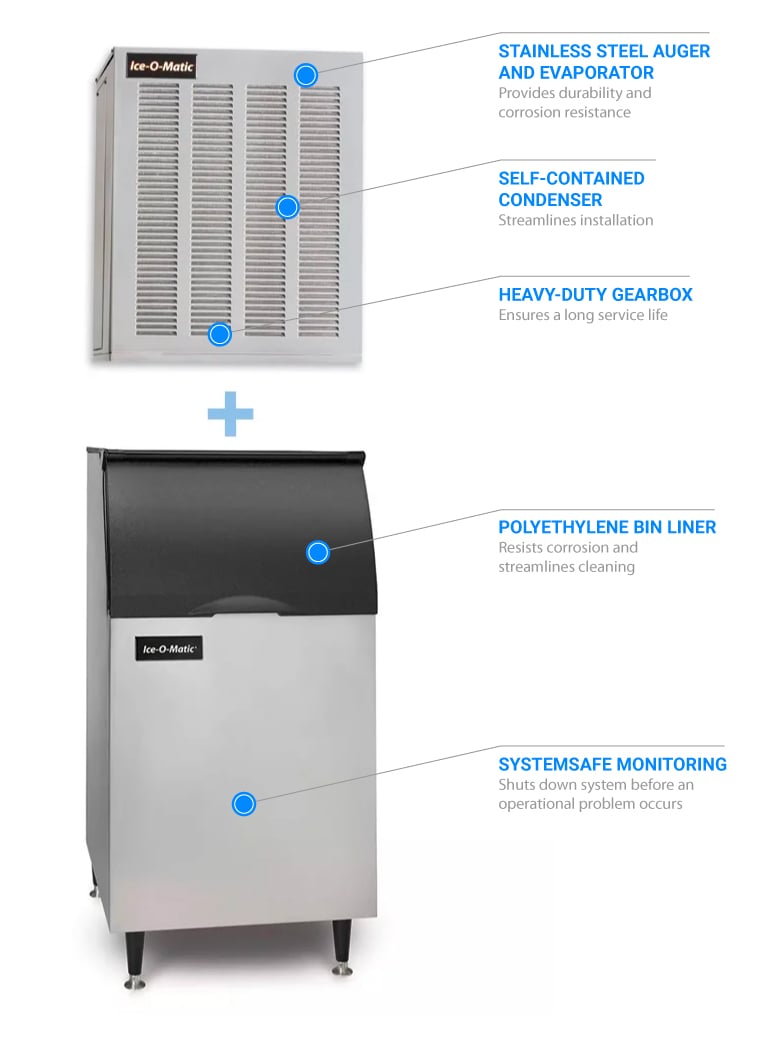

To reduce the risk of costly damage, the Ice-O-Matic MFI0500A/B42PS ice maker and bin uses a SystemSafe monitoring feature to shut down the unit when an issue arises. It uses R404A refrigerant and an air-cooled self-contained condenser to produce a maximum of 540 pounds of ice per day in optimal conditions. Both the auger and evaporator are made of corrosion-resistant stainless steel to ensure a long service life.

The Ice-O-Matic MFI0500A/B42PS ice machine’s bin features a resilient aluminum exterior with a polyethylene interior liner to streamline cleaning. Mounted on 6-inch legs, it stands at a total height of 50 inches. This bin has a holding capacity of 351 pounds, and operators can access its contents through a sloped, top-hinged front door.

Ice Maker Details

• 540-lb. maximum daily ice production
• Makes flake-style ice
• SystemSafe monitors gearbox to shut down system before damage occurs
• Stainless steel exterior finish
• Air cooled
• Heavy-duty gearbox and industrial-grade roller bearings support rigorous use
• Water sensor reduces risk of damage from low water
• Auger and evaporator made of resilient stainless steel
• Self-contained condenser
• Uses R404A refrigerant
• Ideal incoming water pressure: 20-120 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F
• 5,600-BTU heat transfer capacity

Product Features

Ice Bin Details

• 351-lb. application capacity
• Sloped, top-hinged front door
• Durable aluminum exterior
• Sanitary polyethylene interior liner
• Mounted on 6-in. legs
• Foam insulation lengthens life of ice

Dimensions & Utilities

• Ice maker: 21 in. W x 24 in. D x 27 in. H
• Ice bin: 22 in. W x 31 in. D x 50 in. H
• 16 A, 4.5 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

Ice Maker w/ Bin, flake-style, air-cooled, self-contained condenser, approximately 540 lb/245 kg production/24 hours, stainless steel finish, 115v/60/1, 16.0 amps, cULus, NSF, ENERGY STAR®; Ice Bin w/ Bin Top: 351 lb storage capacity, 22"W, 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6" legs, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Compressor Parts

Ice-O-Matic MFI0500A/B42PS Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Installation Guide

Certifications
