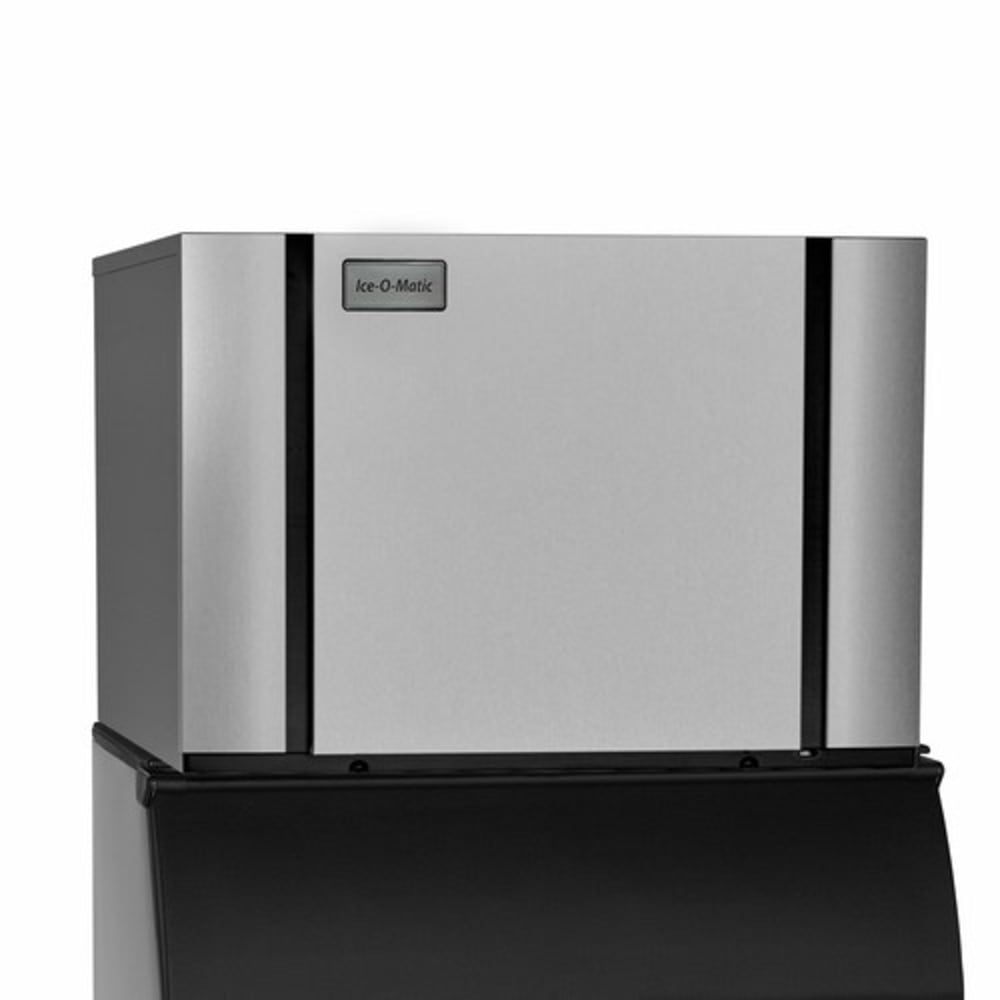

Ice-O-Matic ICE1406HW 48" ICE Series™ Half Cube Ice Machine Head - 1386 lb/24 hr, Water Cooled, 208/230v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 159-ICE1406HW • MPN: ICE1406HW
Ships Free

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Price: $4,951.00

Image may not depict product color, inclusions or accessories.

Ice-O-Matic ICE1406HW Description


This ice machine head from Ice-O-Matic makes half-cube ice with dimensions of 38 inches by 78 inches by 78 inches. The ICE1406HW uses water-cooled refrigeration and can produce up to 1,386 pounds of ice each day, allowing you to keep up with high-volume ice needs. The Harvest Assist feature uses a mechanical pin in addition to heat to remove the ice from the evaporator plate, ensuring that ice production remains constant while reducing energy consumption.

The ICE1406HW is made to be durable and easy to maintain. Stainless steel construction and nickel-plated evaporator plates ensure durability for a unit with a long life. The machine has no air filter, so maintenance is made easier by eliminating the need to clean or replace that component. While regular cleaning is still necessary to ensure you're serving a sanitary product, the machine's Pure Ice® antimicrobial protection helps slow the growth of bacteria, slime, and fungus inside the machine.

Product Details

  • Part of the ICE Series™ by Ice-O-Matic
  • Water-cooled ice machine head
  • Makes up to 1,386 lbs. of half-cube ice daily
  • Pure Ice® antibacterial protection reduces they risk of ice contamination by bacteria or fungus
  • Energy-efficient Harvest Assist uses a mechanical pin to harvest ice quickly and efficiently
  • Nickel-plated evaporator plates are durable and long-lasting
  • Exterior is made of stainless steel and fingerprint-proof plastic
  • 38 in. FPT water inlet; 34 in. FPT water outlet
  • 38 in. FPT condenser water inlet; 12 in. FPT condenser water outlet
  • No air filter to clean or replace
  • Compatible with the IFQ2 water filter system (sold separately)

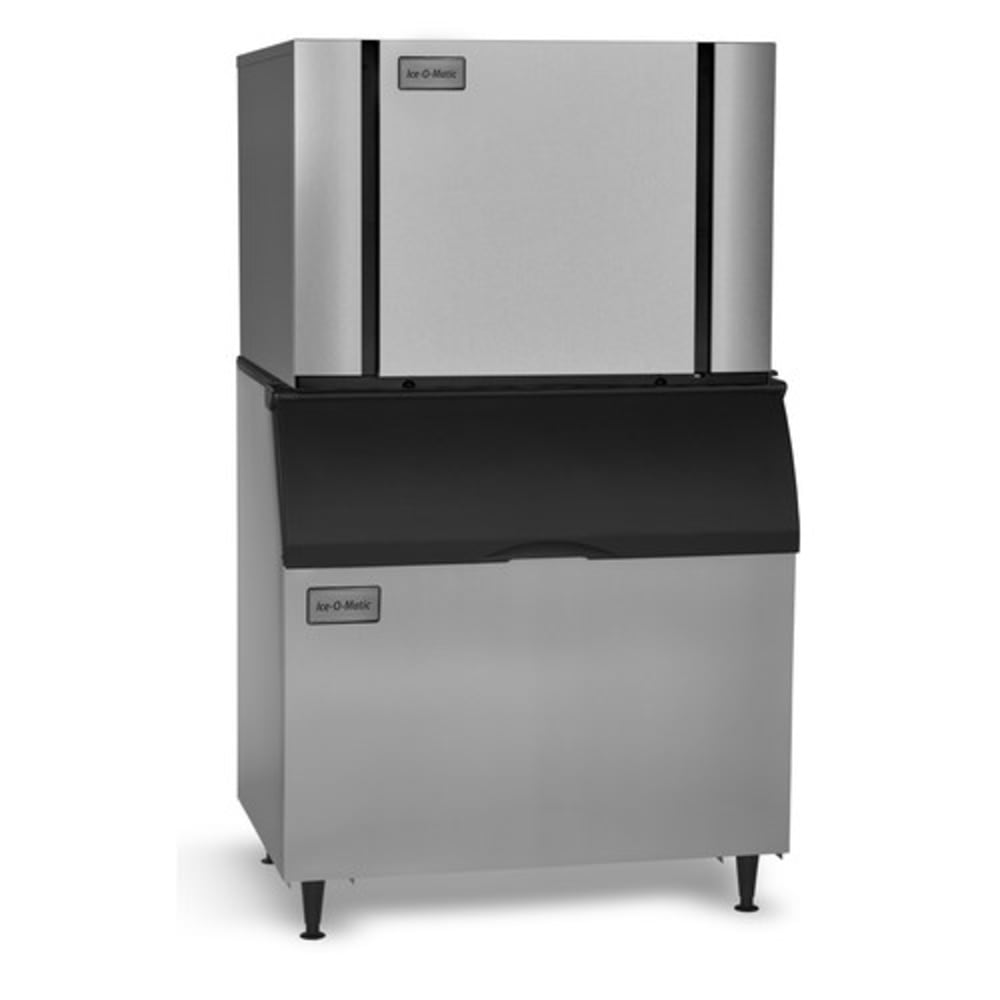

  • Can be used with the B100 ice bin (sold separately) without an adapter kit
  • 208-230 V/60 Hz/1 ph, 17.8 A
  • Ice Dimensions: 38 in. W x 78 in. D x 78 in. H
  • Overall Dimensions: 4814 in. W x 2414 in. D x 26 in. H
  • cULus and CE Listed; NSF Certified

ICE Series™ Modular Cube Ice Maker, water-cooled, approximately 1386 lb production/24 hours, half-size cube, filter-free air, PURE ICE built-in antimicrobial protection, Harvest assist produces Ice consistently/reduces operating cost, 208-230v/60/1-ph, 17.8 amps, cULus, NSF, CE

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Ice-O-Matic ICE1406HW Specifications

PDF Spec Sheet
Manufacturer Ice-O-Matic
Warranty 3-yr. Parts & Labor; 5-yr. Evaporator; 5-yr. Compressor Parts
Product Ice Machine Head
Compressor Type Water Cooled
Series ICE Series™
Width (in) Range 40 - 49
Made in USA Yes
Production Range (per day) 1000-1499 lb
Phase 1
24 Hr. Production (lbs) 1386
Depth (in) 24.25
Height (in) 26.06
Ice Type Half Cube
Width (in) 48.25
Voltage 208/230
Hertz 60
Product Type Ice Makers & Bins
Recommended Bins B25PP, B40PS, B55PS, B110PS, B700-30, B1000-48, B1300-48, B1325-60, B1600-60, IOD200, IOD250, CD40030, CD40130
Special Features PURE ICE Antimicrobial
Weight 280.00
Ice-O-Matic ICE1406HW Certifications
  • UL
  • NSF
