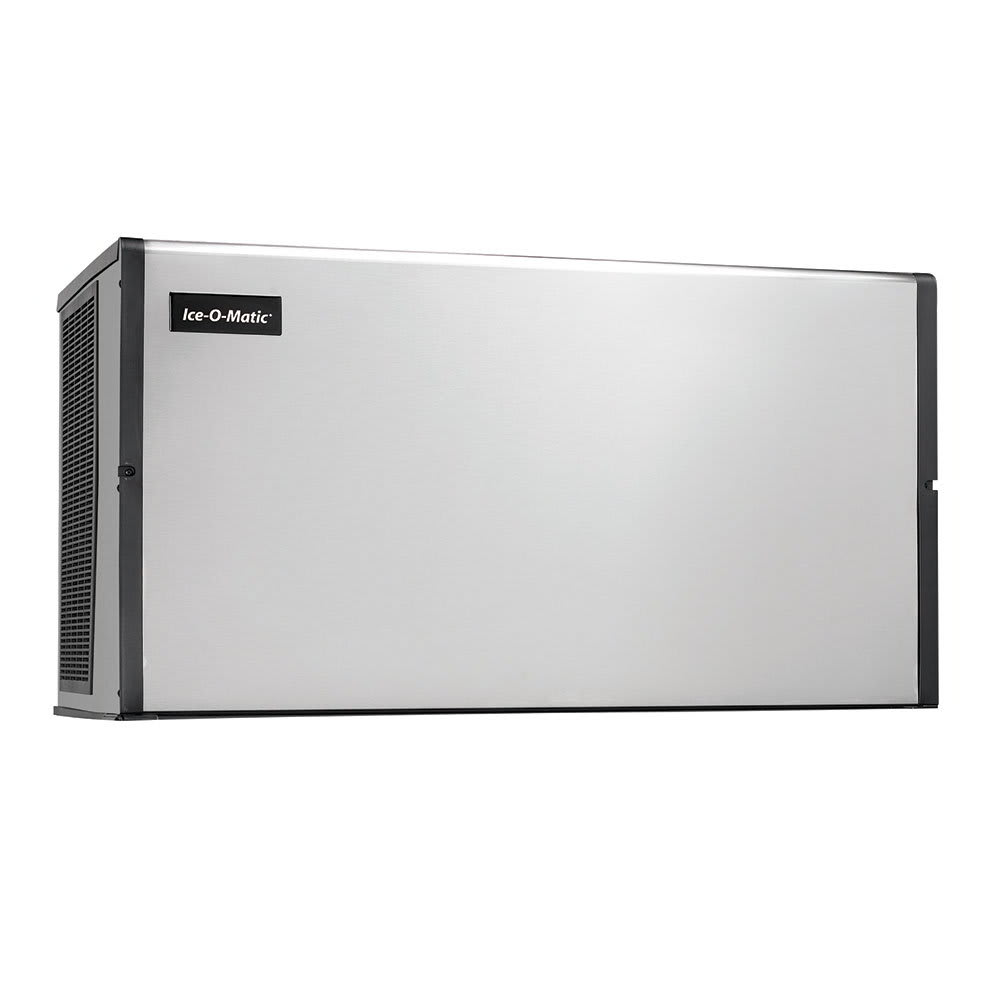

Ice-O-Matic ICE1406HA 48" ICE Series™ Half Cube Ice Machine Head - 1469 lb/24 hr, Air Cooled, 208 230v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 159-ICE1406HA • MPN: ICE1406HA
Ships Free

Typically ships within 9 - 13 business days

(0 reviews)Write a Review
Price: $4,855.00

Image may not depict product color, inclusions or accessories.

Ice-O-Matic ICE1406HA Description


The Ice-O-Matic ICE1406HA ice machine head produces half-cube ice, with a maximum daily production of 1,469 pounds. This unit is air-cooled, meaning it needs 6 inches of clearance on each side to allow for air flow, but the use of air allows for water conservation. The Harvest Assist feature, which uses a mechanical pin to separate completed ice cubes from the evaporator plate, is more energy efficient than the traditional ice harvesting, contributing to the unit's ENERGY STAR certification.

The ICE1406HA has Ice-O-Matic's Pure Ice® antimicrobial protection, which helps slow the spread of bacteria and fungus on internal equipment parts. For additional protection, the unit is compatible with the IFQ2 water filtration system (sold separately). This system filters impurities out of incoming water and will also help prevent the buildup of scale, protecting the ice machine from damage. The exterior of the machine is made of stainless steel and fingerprint-proof plastic, and the evaporator plates are nickel-plated to ensure durability.

Product Details

  • Part of Ice-O-Matic's ICE Series™
  • Air-cooled ice machine head
  • Produces up to 1,469 lbs. of half-cube ice daily
  • Compatible with the B100 ice bin (sold separately) without an adapter kit
  • Antibacterial protection slows bacterial and fungal growth on interior surfaces
  • Harvest Assist applies mechanical force to harvest ice for consistent ice production and improved energy efficiency
  • Includes nickel-plated evaporator plates for durability
  • Exterior is constructed of corrosion-resistant stainless steel and fingerprint-proof plastic
  • 38 in. FPT water inlet; 34 in. FPT water outlet
  • Use with the IFQ2 water filter system (sold separately) to prevent scale buildup
  • No air filter means no replacement or filter cleaning necessary
  • 6-in. clearance needed for air intake and discharge
  • 208-230 V/60 Hz/1 ph, 25 A
  • Ice Dimensions: 38 in. W x 78 in. D x 78 in. H
  • Overall Dimensions: 4814 in. W x 2414 in. D x 26 in. H
  • cULus and CE Listed; NSF and ENERGY STAR Certified

ICE Series™ Modular Cube Ice Maker, air-cooled, approximately 1469 lb production/24 hours, half-size cube, filter-free air, PURE ICE built in antimicrobial protection, Harvest assist produces Ice consistently/reduces operating cost, 208-230v/60/1, 26.1 amps, cULus, NSF, CE, ENERGY STAR®

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Ice-O-Matic ICE1406HA Specifications

PDF Spec Sheet
Manufacturer Ice-O-Matic
24 Hr. Production (lbs) 1469 lbs
Compressor Type Air Cooled
Depth (in) 24
Height (in) 26
Ice Type Half Cube
Specialty Options Antimicrobial System
Width (in) 48
Warranty 3 years parts & labor/5 years evaporator & compressor
Production Range (per day) 900-1499 lb
Voltage 208/230
Phase 1
Hertz 60
Product Type Ice Machines
Product Ice Machine Head
Weight 310.00
Ice-O-Matic ICE1406HA Certifications
  • UL
  • NSF
  • Energy Star
