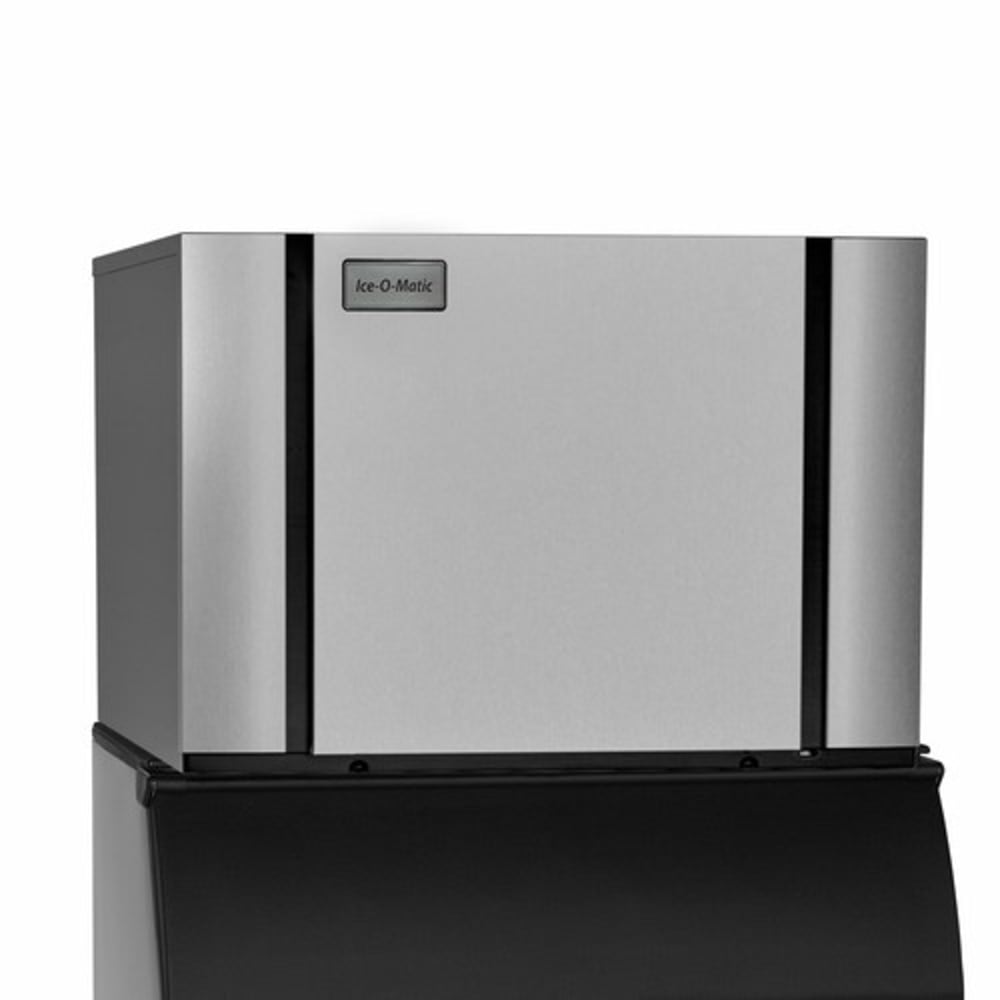

Ice-O-Matic ICE1406FW 48" Cube Ice Machine Head - 1386-lb/24-hr, Water Cooled, 208-230v/1ph

KaTom #: 159-ICE1406FW • MPN: ICE1406FW
free-shipping

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Retail Price: $5,162.00

Ice-O-Matic ICE1406FW Description

The Ice-O-Matic ICE1406FW ice machine head makes full-cube ice that is 78 inches square at a rate of up to 1,386 pounds per day. The ice machine is water-cooled, requiring an extra water connection and drain for the condenser inlet and outlet, though that water does not need to be potable. The exterior of the ice machine is made of corrosion-resistant stainless steel and fingerprint-proof plastic.

The ICE1406FW ice maker features Ice-O-Matic's Pure Ice® antimicrobial protection, which helps prevent bacteria, slime, and fungus from growing on internal components. The ice is harvested with a combination of heat and pins, which results in a faster harvest for more reliable ice production. The evaporator plates are plated with nickel to add durability, and the machine has no air filter, which reduces the amount of maintenance required for the ice machine's upkeep.

Product Details

  • Part of Ice-O-Matic's ICE Series™
  • Water-cooled ice machine head
  • Produces up to 1,386 lbs. of full-cube ice per day
  • Full-cube ice is 78-in. square

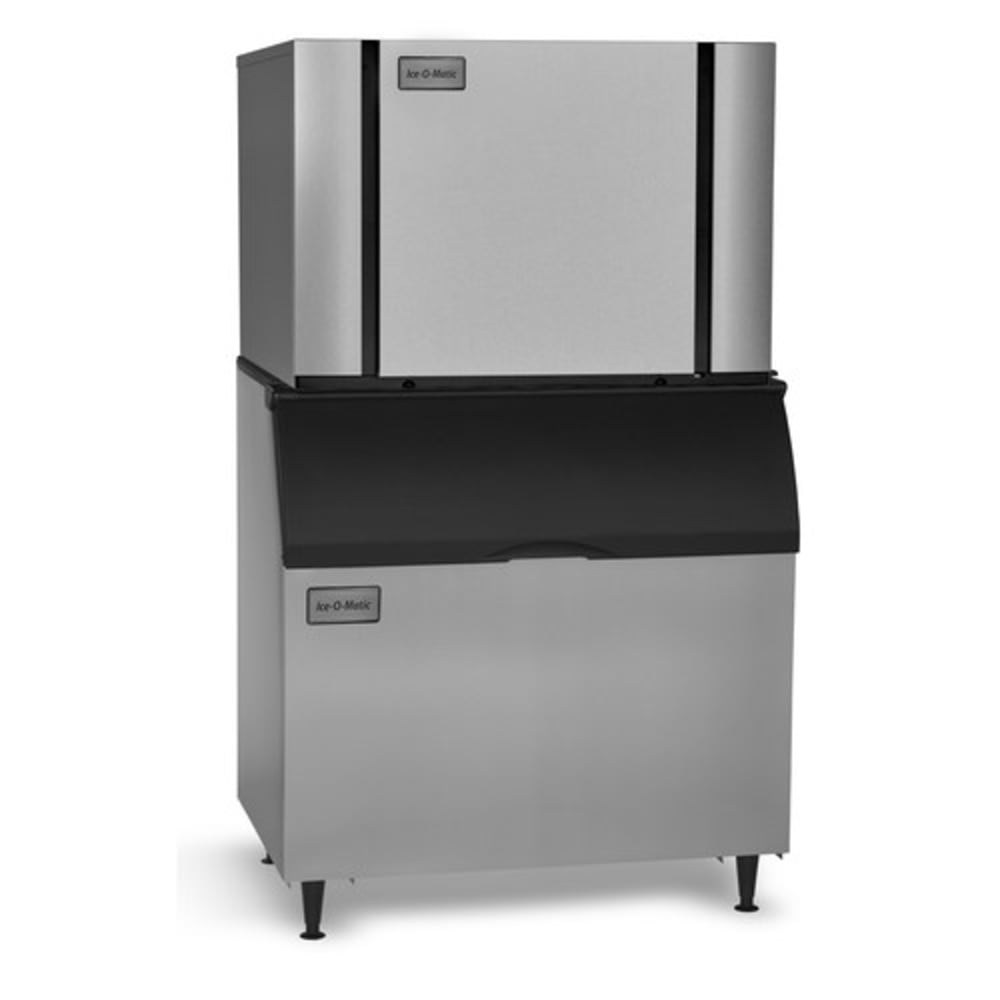

  • Fits the B100 bin (sold separately) without an adapter kit
  • Pure Ice antimicrobial protection inhibits the growth of bacteria and fungus
  • Harvest Assist design ensures fast ice harvests for reliable ice production
  • Stainless steel and fingerprint-proof plastic exterior
  • Evaporator plates are nickel plated for added durability
  • Compatible with the IFQ2 water filter manifold (sold separately)
  • Water connections:
    • Potable ice water inlet: 38-in. FPT
    • Potable ice water outlet: 34-in. FPT
    • Condenser water inlet: 38-in. FPT
    • Condenser water outlet: 12-in. FPT
  • No air filter required
  • 208-230 V/60 Hz/1 ph, 17.8 A
  • Overall Dimensions: 4814 in. W x 2414 in. D x 26 in. H
  • cULus and CE Listed; NSF Certified

ICE Series™ Modular Cube Ice Maker, water-cooled, approximately 1386 lb production/24 hours, full-size cube, filter-free air, PURE ICE built in antimicrobial protection, Harvest assist produces Ice consistently/reduces operating cost, 208-230v/60/1-ph, 17.8 amps

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Ice-O-Matic ICE1406FW Specifications

PDF Spec Sheet
Manufacturer Ice-O-Matic
24 Hr. Production 1386 lbs
Compressor Type Water Cooled
Depth (in) 24
Height (in) 26
Ice Style Full Cube
Ice Type Cube
Specialty Options Antimicrobial System
Voltage 208-230/60/1
Width (in) 48
Warranty 3 years parts & labor/5 years evaporator & compressor
Weight 280.00
Ice-O-Matic ICE1406FW Certifications
  • UL
  • NSF
