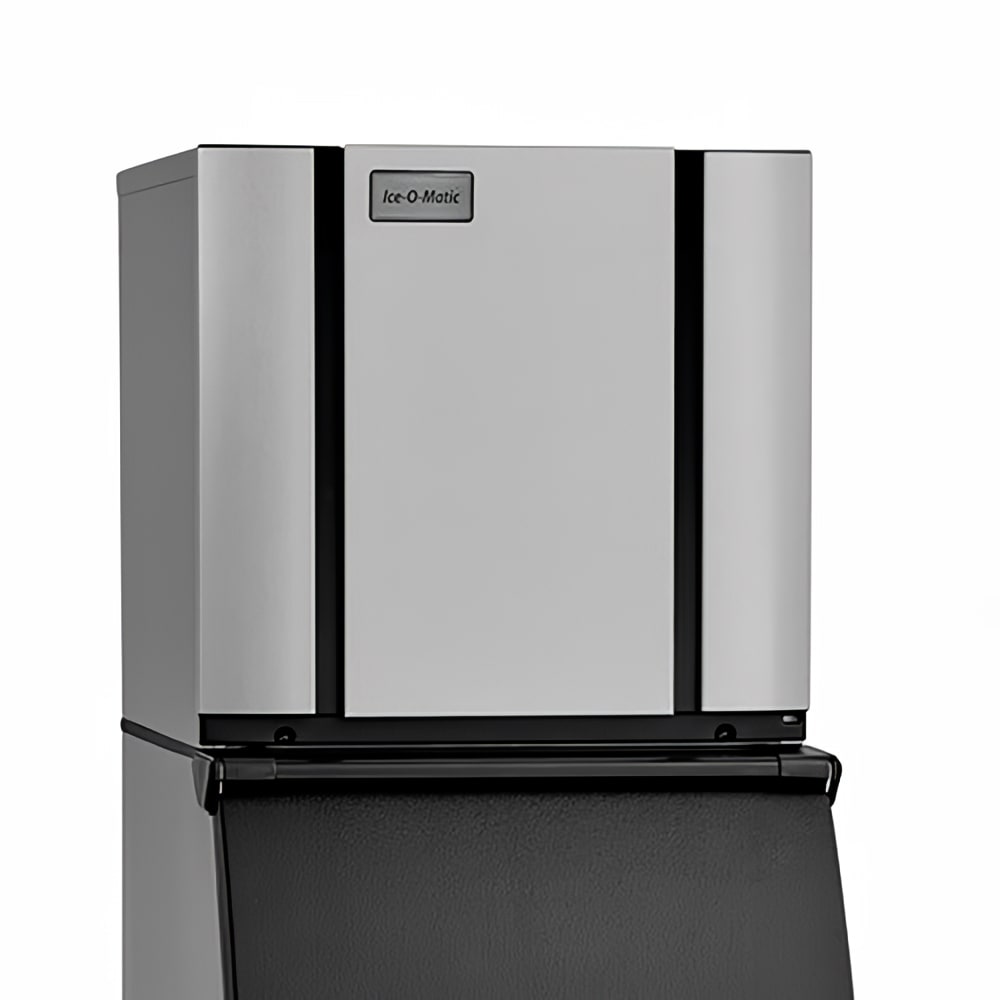

Ice-O-Matic ICE0806HR 30" Cube Ice Machine Head - 913-lb/24-hr, Remote Cooled, 208-230v/1ph

KaTom #: 159-ICE0806HR • MPN: ICE0806HR

This item is no longer available

(0 reviews)Write a Review
Retail Price: $3,901.00
Product Discontinued

Ice-O-Matic ICE0806HR Description

The Ice-O-Matic ICE0806HR is an ice machine head that uses a remote condenser. The VRC remote condenser and a pre-charged line set, each of which is sold separately, is required for this unit to operate. The remote condenser is located away from the ice machine, usually on the roof, giving you ice production without the drawback of the heat and noise a condenser puts out. This model can produce up to 913 pounds of half-cube ice each day.

This ice machine head features an exterior made of stainless steel and plastic, both durable and corrosion-resistant for commercial use. The evaporator plates are made of nickel-plated copper, a combination that allows for superior conductivity while strengthening the part to ensure a long life. Harvest Assist heats this evaporator plate and uses pins to harvest ice quickly, which helps keep ice production regular. Use of the IFQ1 water filter (sold separately) can help improve the taste of this ice and prevent scale buildup, and the unit's Pure Ice® antibacterial compound is built into several internal components to help prevent the spread of fungus and bacteria.

Product Details

  • Remote-cooled ice machine head that produces up to 913 lbs. of half-cube ice per day
  • Requires a VRC2061 remote condenser and pre-charged line set for operation, both sold separately
  • 30-in. wide for high production in a small space
  • Exterior is made of durable and corrosion-resistant stainless steel and fingerprint-proof plastic
  • Copper evaporator plates are nickel-plated to ensure the part has a long life
  • The growth of fungus and bacteria inside the unit is slowed by Pure Ice antimicrobial compound
  • Harvest Assist ensures reliable production by using heat and pins to speed harvesting
  • Less maintenance required due to the lack of an air filter
  • Compatible with the IFQ1 water filter assembly (sold separately), which assures clean water for better-tasting ice
  • Water in: 38 in. FPT
  • Water out: 34 in. FPT
  • 208-230 V/60 Hz/1 ph, 14.7 A
  • Ice Cube Dimensions: 38 in. W x 78 in. D x 78 in. H
  • Overall Dimensions: 30.13 in. W x 24.25 in. D x 26.06 in. H
  • cULus and CE Listed; NSF Certified

ICE Series™ Modular Cube Ice Maker, air-cooled, remote condenser, approximately 913 lb production/24 hours, half-size cube, filter-free air, PURE ICE built in antimicrobial protection, Harvest assist produces Ice consistently/reduces operating cost, 208-230v/60/1-ph, 14.7 amps

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Ice-O-Matic ICE0806HR Specifications

PDF Spec Sheet
Manufacturer Ice-O-Matic
24 Hr. Production 913 lbs
Compressor Type Air Cooled
Depth (in) 24
Height (in) 26
Ice Type Half Cube
Specialty Options Antimicrobial System
Specialty Options Remote Compressor
Voltage 208-230/60/1
Width (in) 30
Warranty 3 years parts & labor/5 years evaporator & compressor
Weight 220.00
Ice-O-Matic ICE0806HR Certifications
  • UL
  • NSF
  • Energy Star
