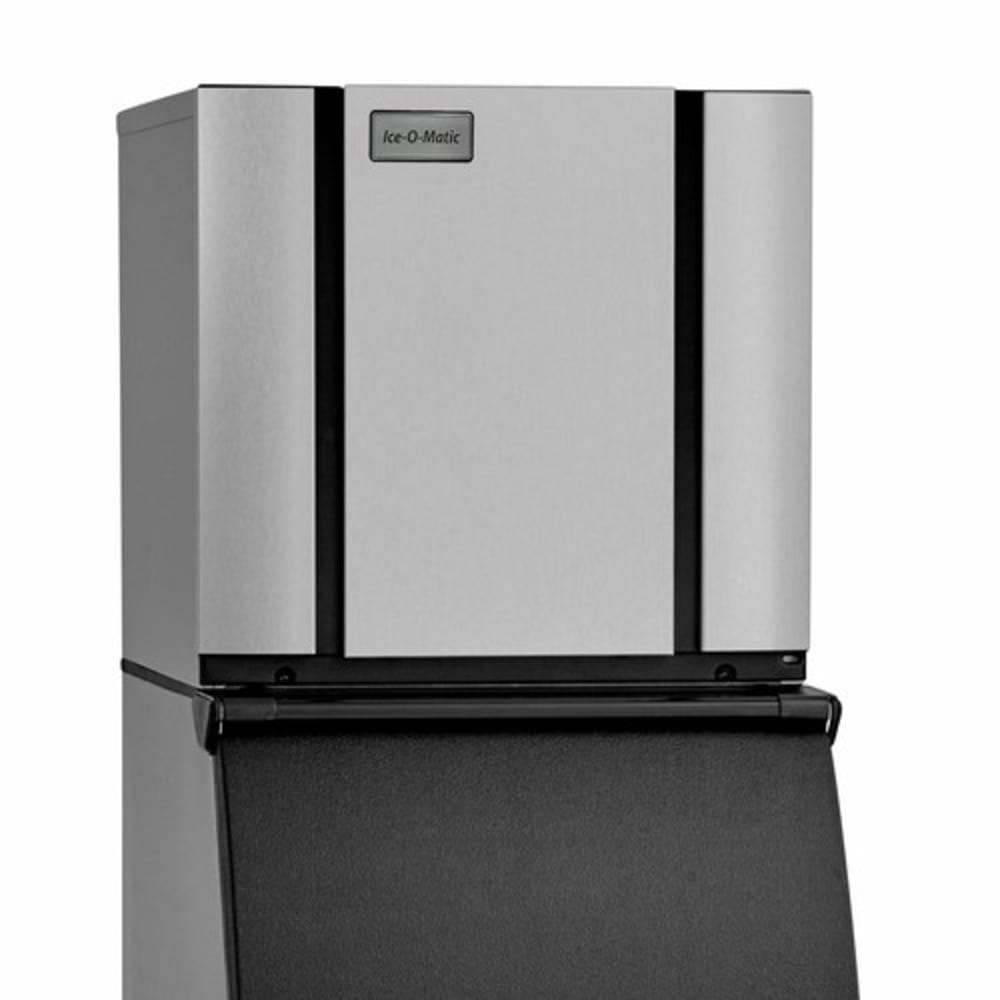

Ice-O-Matic ICE0520HW 22" ICE Series™ Cube Ice Machine Head - 527-lb/24-hr, Water Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 159-ICE0520HW • MPN: ICE0520HW

Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $2,797.00

Image may not depict product color, inclusions or accessories.

Ice-O-Matic ICE0520HW Description


Ice-O-Matic has replaced its ICE Series models with the CIM series, which is designed to be more user friendly, easier to clean, and more efficient. As part of this roll-out, this model has been replaced by the CIM0520HW, which can produce 586 pounds of half-cube ice per day.

Ice-O-Matic's ICE0520HW water-cooled ice machine is capable of producing as much as 527 pounds of ice in a 24 hour period. It includes harvest assist technology that speeds the ice harvest cycle, increasing its capacity and reducing its overall energy and water consumption compared to traditional ice makers. Many of the plastic components inside the machine's food zone are molded with antimicrobial components that impede the growth of bacteria and other harmful microorganisms like yeast, mold, and slime.

The Ice-O-Matic ICE0520HW machine is cooled by water, meaning it requires a constant supply of cool water to remove heat from the machines condenser. A supply of approximately 169 gallons of water is required for every 100 pounds of ice the machine produces. That connection is made to the 38-in. FPT fitting provided. A drain line must also be connected to handle spent water.

Product Details

  • Narrow 22-in. width conserves space
  • Produces as much as 527-lbs. of ice per day when installed where ambient air temperatures are 70 degrees F or cooler and incoming water temperatures are 50 degrees F or cooler
  • Half-size cubes measure 38 in. x 78 in. x 78 in.
  • Stainless steel and fingerprint-proof plastic construction resists damage in high-traffic settings
  • Harvest assist technology improves ice maker efficiency and production capacity by speeding the ice harvest cycle
  • Antimicrobial compound is built into food zone components to resist the growth of bacteria and keep the interior the ice machine more sanitary between cleanings
  • Requires an incoming water connection to cool the machine's condenser, which uses approximately 169 gallons of water for every 100 pounds of water produced
  • Overall Dimensions: 22.34 in. W x 24.46 in. D x 23.18 in. H
  • 115 V/60 Hz/1 ph, 11.8 A
  • cULus and CE Listed; NSF Certified

ICE Series™ Modular Cube Ice Maker, water-cooled, approximately 527 lb production/24 hours, half-size cube, filter-free air, PURE ICE built in antimicrobial protection, Harvest assist produces Ice consistently/reduces operating cost, 115v/60/1-ph, 11.8 amps, cULus, NSF, CE

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Ice-O-Matic ICE0520HW Specifications

PDF Spec Sheet
Manufacturer Ice-O-Matic
24 Hr. Production (lbs) 527 lbs
Compressor Type Water Cooled
Depth (in) 24
Height (in) 23
Ice Type Half Cube
Specialty Options Antimicrobial System
Voltage 115/60/1
Width (in) 22
Specialty Options Top Air Discharge
Warranty 3 years parts & labor/5 years evaporator & compressor
Production Range 300-899 lb
Weight 175.00
Ice-O-Matic ICE0520HW Certifications
  • UL
  • NSF
  • Energy Star
