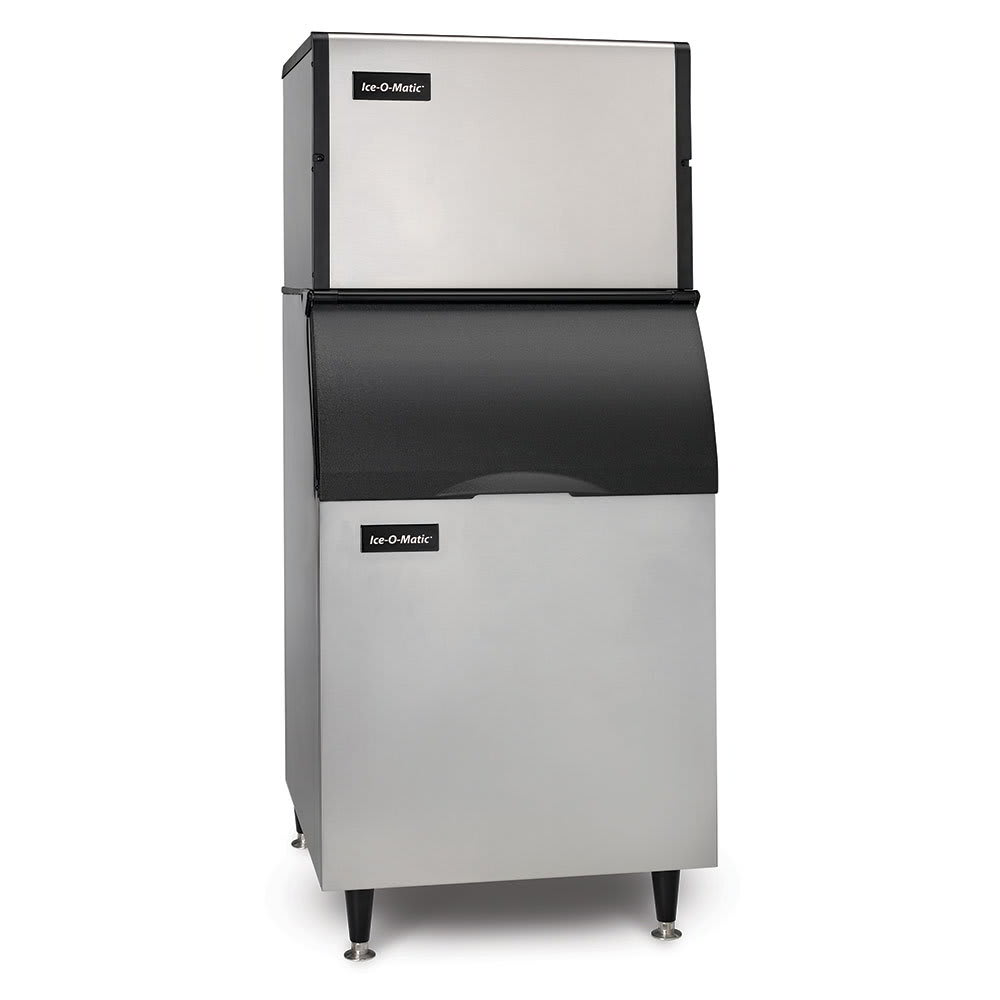

The Ice-O-Matic ICE0400HAB55PS ice machine head and bin combo produces and holds half-cube ice that measures 3⁄8 in. x 7⁄8 in. x 7⁄8 in., dimensions that are ideal for serving soft drinks, tea, water, and crushing and blending for making frozen drinks and smoothies. A daily production capacity of 505 pounds can be achieved, thanks to a harvest assist mechanism that mechanically pushes completed ice from the evaporator plate to shorten the harvest cycle and increase the machine's overall energy efficiency.
This machine's bin holds 510 pounds of ice to help get you through your busiest rush periods. A polyethylene foam liner slows the transfer of heat from outside the bin to maximize ice holding times. 6-inch legs provide room to thoroughly clean underneath the bin and are adjustable so the machine can be installed level for optimum performance. A sloped bin front and hinged door gives users quick and convenient access to the Ice-O-Matic ICE0400HAB55PS ice maker's supply of ice, helping to create an efficient drink service.
- Produces as much as 505 lbs. of ice every 24 hr.
- Narrow 30-in. width conserves space in small kitchens
- Interior surfaces are made with a Pure Ice antimicrobial compound that impedes the growth of bacteria to keep the ice machine more sanitary between cleanings
- Evaporator plate is plated with nickel to resist corrosion and wear and tear
- Ice maker exterior is finished in rugged stainless steel and a textured plastic that's designed not to show fingerprints
- To ensure that you're serving the freshest ice possible and to protect your machine from harmful limescale buildup, connect this machine to a water supply that's been filtered with the IFQ1 manifold system or the IFI4C/IFI8C system, each of which is sold separately.
- Note: Production estimates are based on 70 degree F ambient air and 50 degree F incoming water.
- 115 V/60 Hz/1 ph, 17.1 A
- Ice Machine Head Dimensions: 30.13 in. W x 24.25 in. D x 20 in. H
- Ice Bin Dimensions: 30 in. W x 31 in. D x 50 in. H
- cULus and CE Listed; NSF Certified
Spacious, Low-Profile B55PS Ice Bin
- Holds up to 510-lbs. ice
- Lined with polyethylene insulation to maximize ice holding times
- Slim 31-in. depth doesn't hog space in walkways and kitchens
- Sloped front provides unimpeded access to ice for user comfort and efficiency
- 6-in. legs are adjustable for level installation and provide space to clean underneath the machine
- Rugged stainless steel finish for a long life
ICE Series™ Modular Cube Ice Maker, air-cooled, approximately 505 lb production/24 hours, half-size cube, filter-free air, PURE ICE built in antimicrobial protection, Harvest assist produces Ice consistently/reduces operating cost, 115v/60/1-ph, 17.1 amps, cULus, NSF, CE, ENERGY STAR® with ice bin, 510 lb storage capacity, top-hinged front-opening door, durable stainless finish exterior, molded plastic door
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Ice-O-Matic ICE0400HA/B55PS 115V SpecificationsPDF Spec Sheet
|Access Type||Lift Up Door|
|Compressor Type||Air Cooled|
|Ice Type||Half Cube|
|Specialty Options||Antimicrobial System|
|Warranty||3 years parts & labor/5 years evaporator & compressor|
