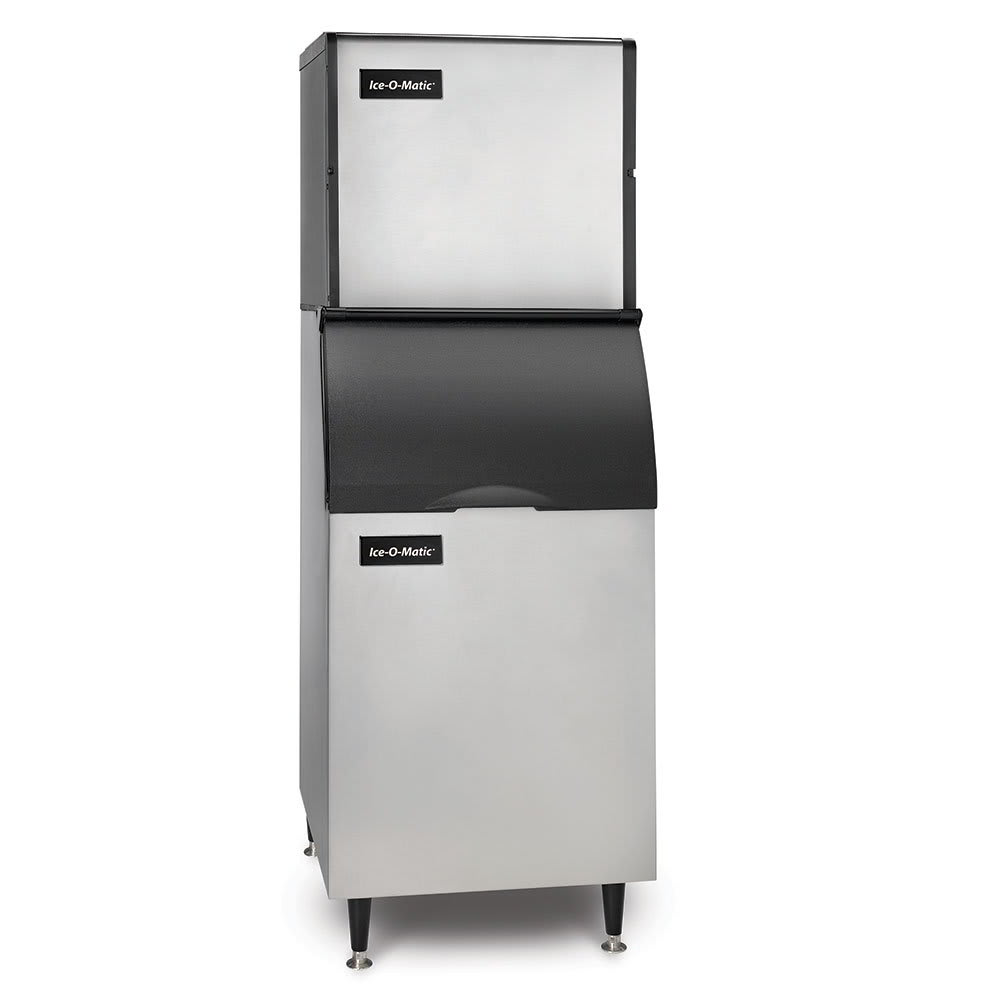

Ice-O-Matic ICE0320HAB42PS 334-lb/Day Half Cube Ice Maker w/ 351-lb Bin, Air Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 159-ICE0320HAB42PS • MPN: ICE0320HA/B42PS

Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $7,528.00

Image may not depict product color, inclusions or accessories.

Ice-O-Matic ICE0320HAB42PS Description


The Ice-O-Matic ICE0320HAB42PS ice machine and bin combo is capable of producing as much as 334 pounds of half-cube ice every 24 hours. As much as 351 pounds can be stored in the bin, which prevents ice from melting quickly with its thick polyethylene insulation foam. The machine's 22-inch width is designed to save space in venues that don't have much room to dedicate. A mechanical harvest assist feature increases the machine's capacity and reduces its energy consumption compared to similar machines with tradition ice harvest technology.

This ice machine and bin combo is built with rugged, long-lasting materials, including its stainless steel exterior and fingerprint-proof plastic. Inside the ice machine, Pure Ice antimicrobial slows the growth of bacteria on many of the machines surfaces to keep ice cleaner and safer between cleanings. The Ice-O-Matic ICE0320HAB42PS is also built with an evaporator that's been plated with corrosion-resistant nickel for a long life.

Product Details

  • 22-in. width is designed to save space in small kitchens
  • Produces as much as 334-lbs. of ice daily when installed where ambient air temperatures are 70 degrees F or cooler and incoming water temperatures are 50 degrees F or cooler
  • Half-cube ice measures 38 in. x 78 in. x 78 in.
  • Mechanical harvest assist technology speeds the harvest cycle to increase the machine's daily production capacity and reduce its energy consumption compared to machines with traditional harvest methods
  • Pure Ice antimicrobial slows the growth of harmful bacteria on interior surfaces
  • Evaporator plate is protected from corrosion and wear and tear by a durable nickel plating
  • Machine exterior is built from corrosion-resistant stainless steel and smudge-proof textured plastic
  • To protect this machine from damage from dissolved minerals in water, connect it to an IFQ1 manifold filter system or a IFI4C/IFI8C inline filter.
  • 115 V/60 Hz/1 ph, 13.2 A
  • Ice Maker Dimensions: 22.34 in. W x 24.46 in. D x 23.18 in. H
  • Ice Bin Dimensions: 22 in. W x 31 in. D x 50 in. H
  • cULus and CE Listed; NSF Certified

351-Pound Ice Bin

  • Holds as much as 351 lbs. of ice for high-volume establishments
  • Polyethylene foam liner slows the melting of ice to extend ice holding times
  • 31-in. depth is designed to conserve space
  • Sloped front provides quick and easy access to ice
  • 6-in. NSF-approved legs provide easy cleaning underneath the bin and are adjustable for level installation
  • Stainless steel finish resists corrosion and damage in busy venues
  • 34 in. FPT drain outlet

ICE Series™ Modular Cube Ice Maker, air-cooled, approximately 334 lb production/24 hours, half-size cube, filter-free air, PURE ICE built in antimicrobial protection, Harvest assist produces Ice consistently/reduces operating cost, 115v/60/1-ph, 13.2 amps, cULus, NSF, CE

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Ice-O-Matic ICE0320HAB42PS Specifications

PDF Spec Sheet
Manufacturer Ice-O-Matic
Access Type Lift Up Door
Bin Capacity 351
Compressor Type Air Cooled
Depth (in) 31
Height (in) 73.18
Ice Type Half Cube
Production 334
Specialty Options Antimicrobial System
Voltage 115/60/1
Width (in) 22.34
Specialty Options Top Air Discharge
Warranty 3 years parts & labor/5 years evaporator & compressor
Capacity Range 280-479 lb
Production Range 200-549 lb
Weight 280.00
Ice-O-Matic ICE0320HAB42PS Certifications
  • UL
  • NSF
