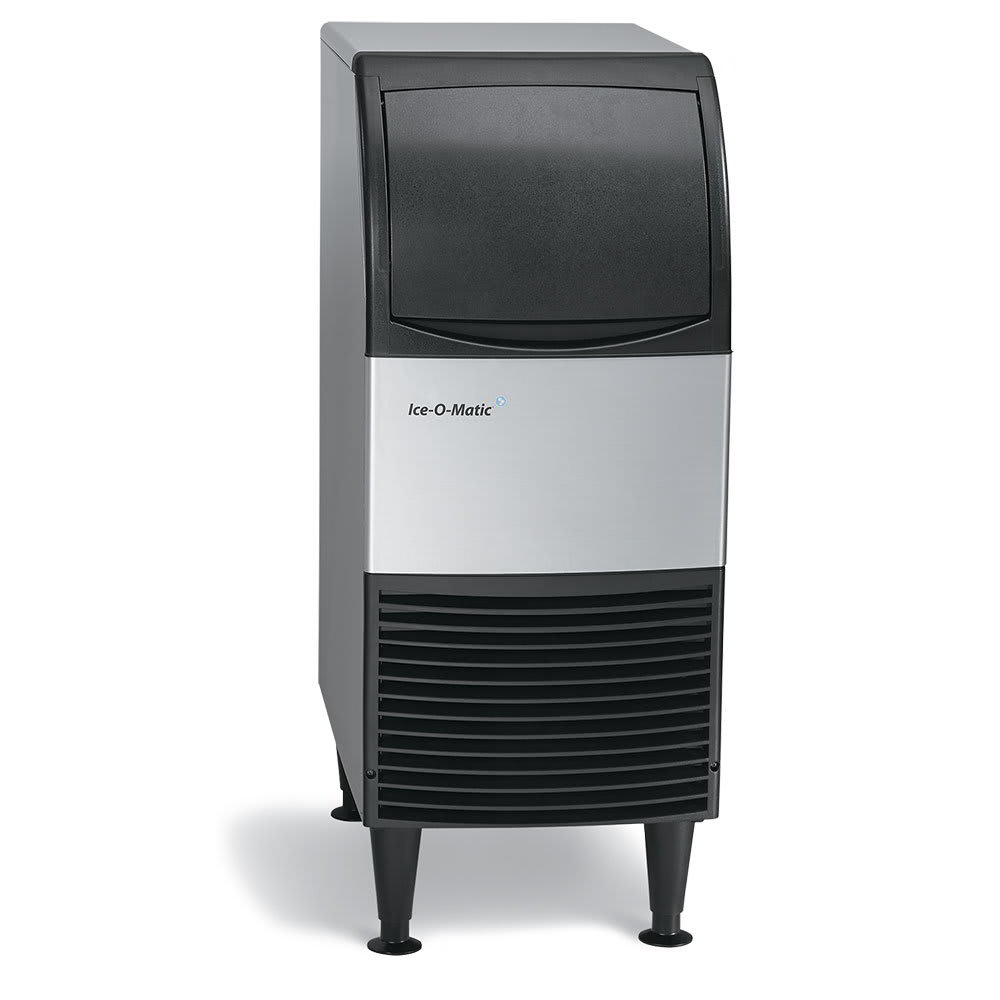

Ice-O-Matic HISU050FA Undercounter Cube Ice Maker- 60-lbs/day, Air Cooled, 115v

KaTom #: 159-HISU050FA • MPN: HISU050FA

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Retail Price: $1,476.00
Product Discontinued

Ice-O-Matic HISU050FA Description

The Ice-O-Matic HISU050FA ice machine is part of the Horizontal Ice System line of ice machines, which feature horizontal evaporators and integrated ice makers and storage bins. In optimal conditions of 70 degree Fahrenheit ambient air and with 50 degree Fahrenheit incoming water, this self-contained model can produce up to 60 pounds of full cube ice per day. The storage bin will help users keep up with demand by storing as much as 36 pounds of ice stored and the large bin opening with a sliding door, located at the top of the front of the unit, provides easy access for retrieving ice at a comfortable height.

The Ice-O-Matic HISU050FA ice machine uses an air-cooled condenser with a front-located air intake and discharge, but does not require the use of an air filter. The unit is constructed with stainless steel and molded plastic and includes a nickel-plated evaporator made with a copper core for added durability. For operator convenience, this ice machine includes a control panel, ice scoop, and 6-inch adjustable legs, and can be made ADA compliant with the KADA-15 floor mount kit.

Product Details

  • Self-contained cube ice maker
  • Designed with a thin width for small spaces
  • Produces up to 60 lbs. of ice per day
  • Total storage capacity of 36 lbs. of ice
  • Air-cooled model that does not use an air filter
  • Front air exchange facilitates installation under counters
  • Large bin opening is located at a comfortable height on the front of the unit
  • Evaporator has a copper core and nickel plating to resists ice and water damage
  • Operators can make adjustments with a control panel
  • Stainless steel and molded plastic construction
  • Ice scoop and 6-in. adjustable legs are included
  • Can be made ADA compliant with floor-mount kit KADA-15
  • Optimal ambient air temperature is 70 degrees F
  • Optimal incoming water temperature is 50 degrees F
  • Full Cube Dimensions: 78 in. W x 78 in. D x 78 in. H
  • 115 V/60 Hz/1 ph, 3.6 A, 12 kWh per 100 lbs. of ice
  • Overall Dimensions: 15 in. W x 23.7 in. D x 37.5 in. H
  • CE and cULus Listed; NSF Certified

HIS Series™ Cube Ice Maker, cube-style, undercounter, air-cooled, self-contained condenser, approximately 60 lb production/24 hours, 36 lb. built-in bin, full-size cube, 115v/60/1

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Ice-O-Matic HISU050FA Specifications

PDF Spec Sheet
Manufacturer Ice-O-Matic
Bin Capacity 36 lbs
Height (in) 37.5
Ice Style Full Cube
Ice Type Cube
Voltage 115/60/1
Width (in) 15
Compressor Air Cooled
Warranty 3 years parts & labor
24 Hr. Production 60 lbs
Weight 102.00
Ice-O-Matic HISU050FA Certifications
  • UL
  • NSF
