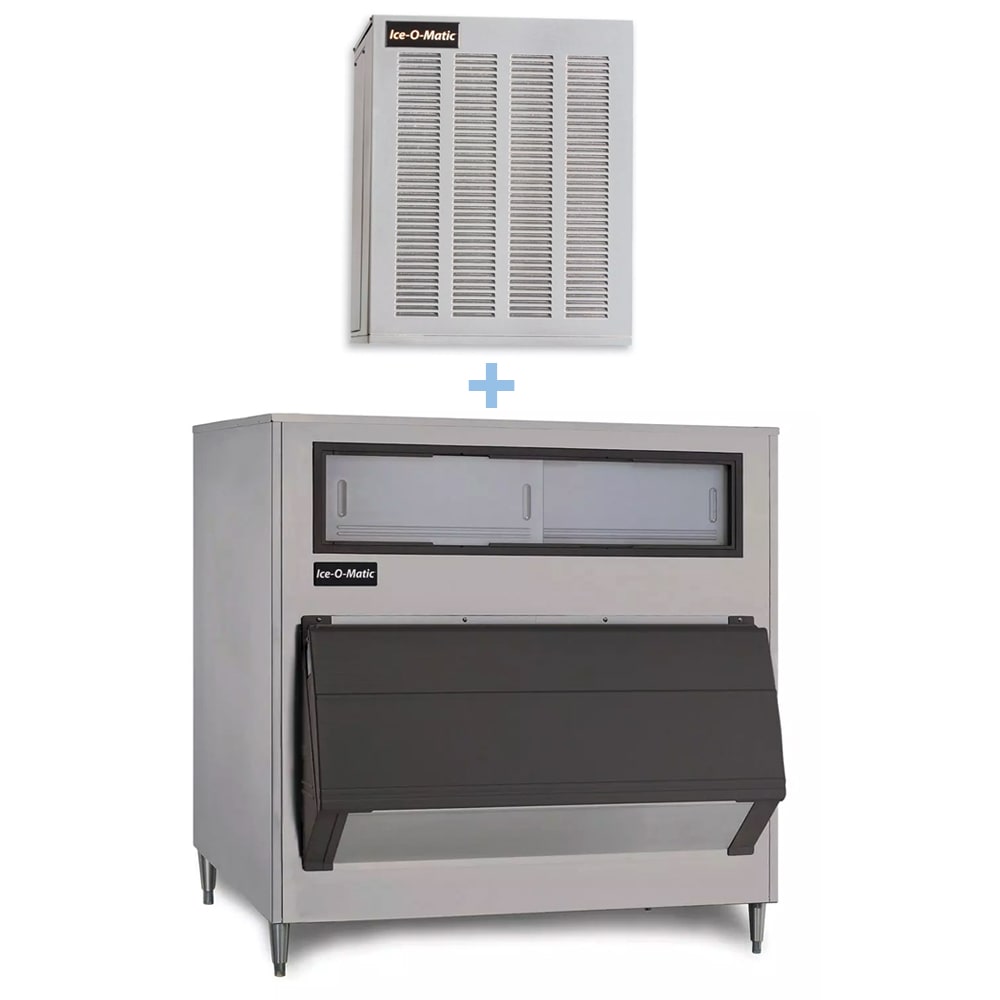

Ice-O-Matic GEM0450A/B1300-48 464 lb Pearl Ice® Nugget Ice Machine w/ Bin - 1320 lb Storage, Air Cooled, 115v

The Ice-O-Matic GEM0450A/B1300-48 ice machine and storage bin’s nugget ice is popular at fast casual restaurants, where customers enjoy it for its small size and easy chewing. Holding up against rust, corrosion, and scratching, the maker head features a stainless steel evaporator and auger that offer increased durability. SystemSafe functionality monitors operations in the maker and deactivates it if problems develop.

The Ice-O-Matic GEM0450A/B1300-48 ice maker’s bin holds as much as 1,320 pounds of ice—a sizable quantity for dining establishments. Avoiding dents, scrapes, and corrosion, its stainless steel construction strengthens the bin and increases its service life. The bin’s ice shield catches and contains ice to limit spills and decrease cleanup labor for staff.

Ice Maker

• Part of the Pearl Ice® series
• 464-lb. maximum daily ice production
• 354-lb. daily ice production at 90 degrees F air and 70 degrees F water
• Air-cooled system
• Produces nugget ice
• Nugget-cube size: ³⁄₈ in. dia. x ¹⁄₂ in. H
• Stainless steel auger and evaporator resist corrosion, rusting, and scratching
• Durable gearbox and industrial-grade roller bearings
• Narrow design
• SystemSafe monitoring system detects problems and deactivates maker
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-120 PSI
• 5,600-BTU heat transfer capacity

Product Features

Ice Bin

• 1,320-lb. bin capacity
• 41.9-cu.-ft. holding capacity
• Poly bin liner
• Ice shield regulates ice flow
• Made of rust- and scrape-resistant stainless steel
• Stay-open door optimizes ice retrieval
• Includes universal adapter kit

Dimensions & Utilities

• Ice maker: 21 in. W x 24 in. D x 27 in. H
• Ice bin: 48 in. W x 31 in. D x 65 in. H
• 16 A, 5.31 kW
• 115 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic GEM0450A/B1300-48 within the 48 contiguous states.

From The Manufacturer

Pearl Ice® Maker, soft, chewable ice crystals, air-cooled, self-contained condenser, approximately 464 lb/210 kg production/24 hours, durable stainless finish, cULus, NSF, CE

Ice Bin, 1320 lb storage capacity, 48"W x 31"D x 65"H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty "stay open" door for easy one hand access, ice shield controls flow & reduces spills, includes universal adapter kit, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Compressor Parts

Ice-O-Matic GEM0450A/B1300-48 Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Installation Guide

Brochure
