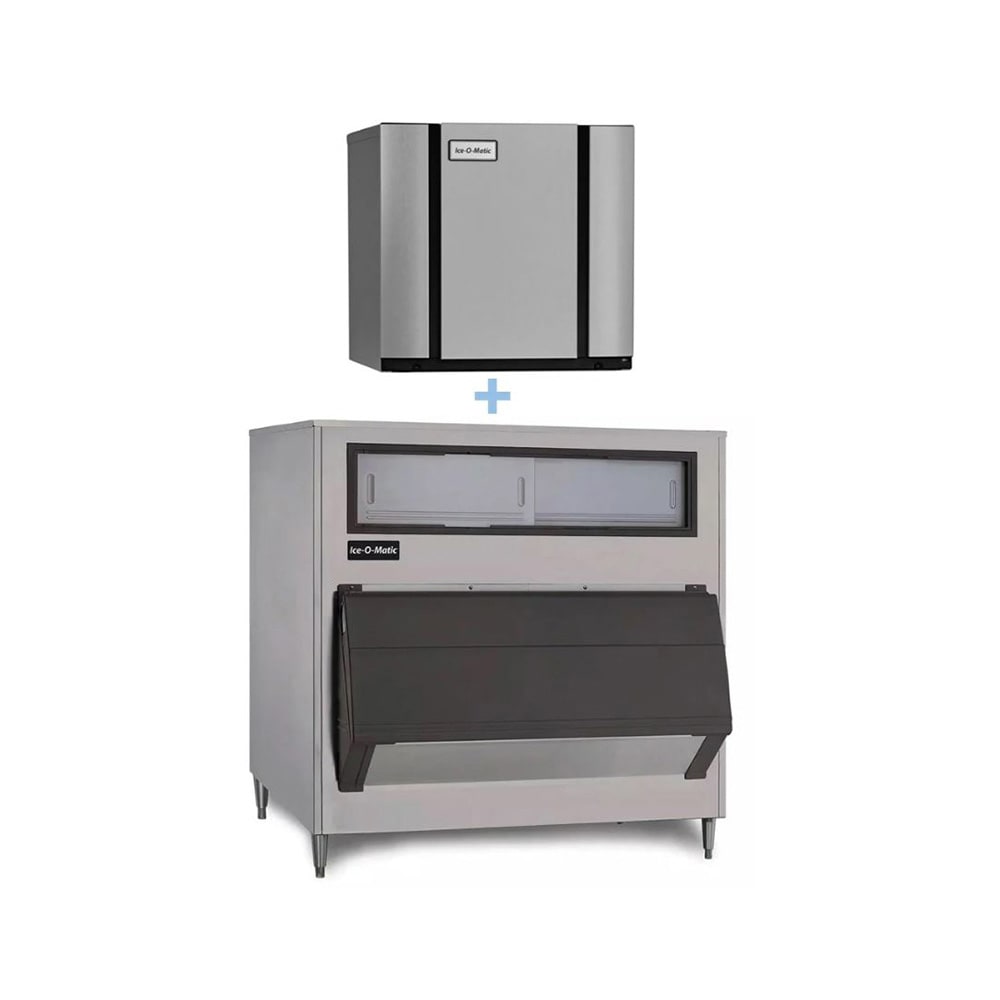

Ice-O-Matic CIM1446HW/B1325-60 1560 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 1325 lb Storage, Water Cooled, 208-230v

Enabling it to keep up with production needs in bars and quick-service restaurants, the Ice-O-Matic CIM1446HW/B1325-60 ice maker with bin can produce 1,560 pounds of ice under ideal conditions. It produces half-cube ice, a popular type of beverage ice since it quickly chills drinks. The machine vents hot air through exhaust ports on the top and side to reduce potential airflow blockage.

The Ice-O-Matic CIM1446HW/B1325-60 ice machine bin combo is constructed of stainless steel—a material that resists corrosion, rusting, and denting. Its poly bin liner simplifies cleaning for reduced labor, and the door has stay-open functionality so users can simply and effectively withdraw ice. It can hold as much as 1,325 pounds of ice altogether.

Ice Maker

• Part of the Elevation Series™
• Replaces ICE1406HW
• 1,560-lb. maximum daily ice production
• 1,440-lb. daily ice production at 90 degrees F air and 70 degrees F water
• Water-cooled system
• Produces half-cube ice
• Half-cube size: ³⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Compact design efficiently uses space
• Dual exhaust system counteracts exhaust obstruction
• LED status display
• PURE ICE® antimicrobial agent
• 1-touch descaling and sanitizing
• Dishwasher-safe food zone components
• Harvest Assist
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-60 PSI
• 22,000-BTU heat transfer capacity

Product Features

Ice Bin

• 1,325-lb. bin capacity
• 42-cu.-ft. holding capacity
• Poly bin liner
• Ice shield decreases ice spillage
• Rust- and corrosion-resistant stainless steel construction
• Stay-open door streamlines ice removal
• Comes with universal adapter kit

Dimensions & Utilities

• Ice Maker: 48¹/₄ in. W x 24¹/₄ in. D x 26⁴/₅ in. H
• Ice bin: 60 in. W x 31 in. D x 65 in. H
• 18.1 A, 3.72 kW
• 208-230 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic CIM1446HW/B1325-60 within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, dual exhaust top/side air discharge, 48-1/4" W, approximately 1560 lb production/24 hours at 70°/50° (1440 lb at 90°/70°), half size cube, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE (Replaces ICE1406HW)

Ice Bin, 1325 lb storage capacity, 60"W x 31"D x 56"H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty "stay open" door for easy one hand access, ice shield controls flow & reduces spills, includes universal adapter kit, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts
