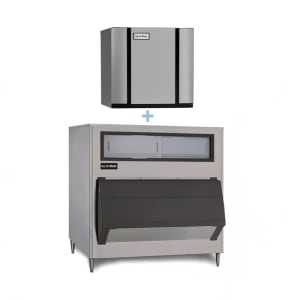

Ice-O-Matic CIM1446HA/B1325-60 1560 lb Half Cube Ice Machine w/ Bin - 1325 lb Storage, Air Cooled, 208-230v/1ph

To slow the growth of bacteria, the Ice-O-Matic CIM1446HA/B1325-60 half-cube ice maker is protected with built-in PURE ICE® antimicrobial. Made of plastic, the foodzone can be wiped clean; its components can be removed and washed in the dishmachine. At the push of a button, this unit performs sanitizing and descaling to keep ice clean. This unit is air cooled with a dual exhaust, producing anywhere from 1,210 to 1,560 pounds of ice daily, and because of its self-contained condenser, it's simple to install.

The Ice-O-Matic CIM1446HA/B1325-60 ice maker with bin has an LED display that provides updates about the system's status. Using Harvest Assist, ice is guided into the bin, which has a capacity of 1,325 pounds. It has a poly liner for protection against corrosion, and the exterior is made of durable, rust-resistant stainless steel. To control the flow of ice and prevent it from spilling, this unit has an ice shield, and ice is controlled on a first-in, first-out basis for fresh product each time.

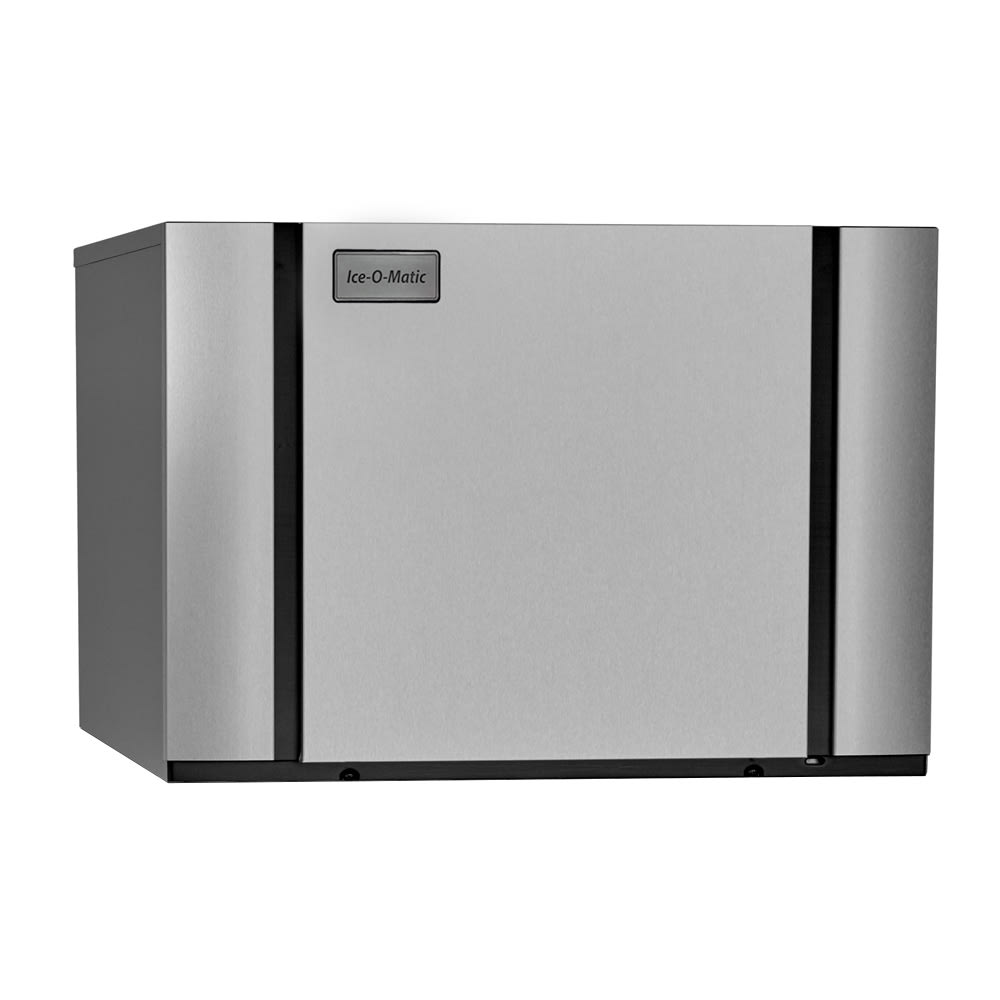

Ice Maker Details

• Part of the Elevation Series™
• 1,560-lb. maximum daily ice production
• 1,210-lb. AHRI-certified daily ice production
• Crafts half-size cubes
• Cube dimensions: ³⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Air-cooled, self-contained condenser
• Dual exhaust
• Durable nickel-plated evaporator
• Harvest Assist pushes ice into the bin
• LED status display
• 1-push sanitizing and descaling
• Foodzone made of plastic with removable, dishwasher-safe components
• PURE ICE antimicrobial inhibits the growth of bacteria
• Made of stainless steel
• Ideal incoming water pressure: 20-60 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient air temperature: 50-100 degrees F
• 16,000-BTU heat transfer capacity

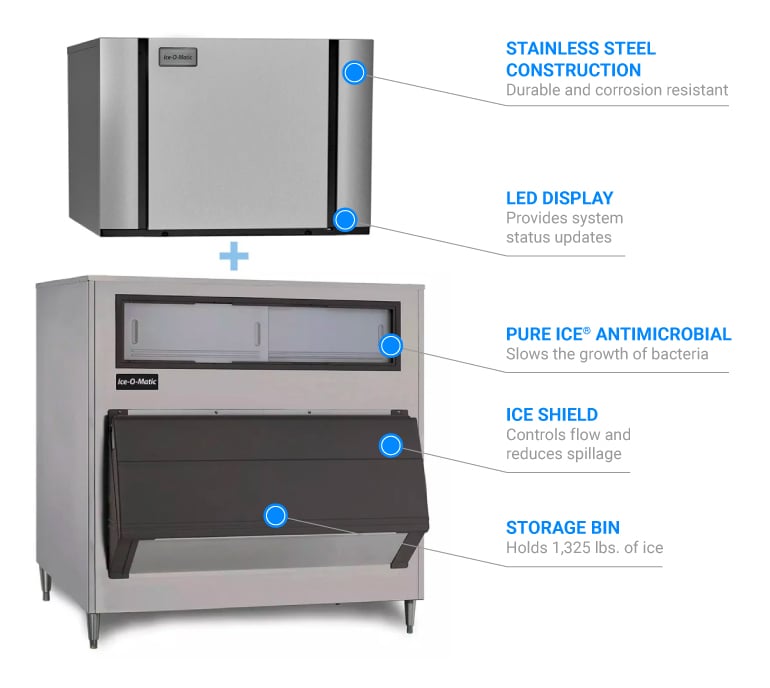

Product Features

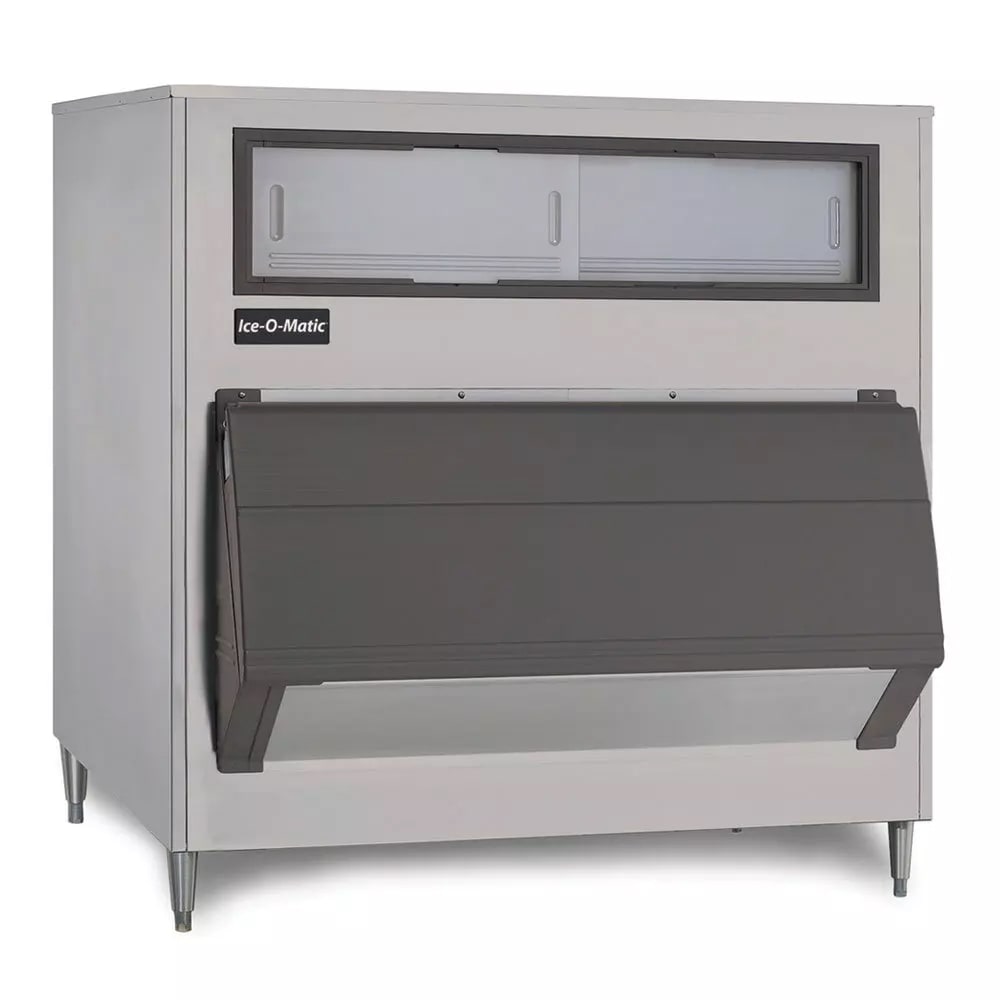

Ice Bin Details

• 1,325-lb. application capacity
• Stay-open door opened with 1 hand
• Poly liner is rust resistant
• Made of resilient stainless steel
• Ice shield ensures minimal ice is wasted
• First-in, first-out ice management

Dimensions & Utilities

• Ice maker: 48.25 in. W x 24.25 in. D x 26 in. H
• Ice bin: 60 in. W x 31 in. D x 56 in. H
• 26.1 A, 4.4 kW
• 208-230 V/60 Hz/1 ph

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 48" W, approximately 1560 lb production/24 hours at 70°/50° (1210 lb at 90°/70°), half size cube, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 26.1 amps, cULus, NSF, CE; Ice Bin: 1325 lb storage capacity, 60"W x 31"D x 56"H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty "stay open" door for easy one hand access, ice shield controls flow & reduces spills, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts

Ice-O-Matic CIM1446HA/B1325-60 Specifications

Documents

Spec Sheet

Warranty

Manual

Brochure

Certifications
