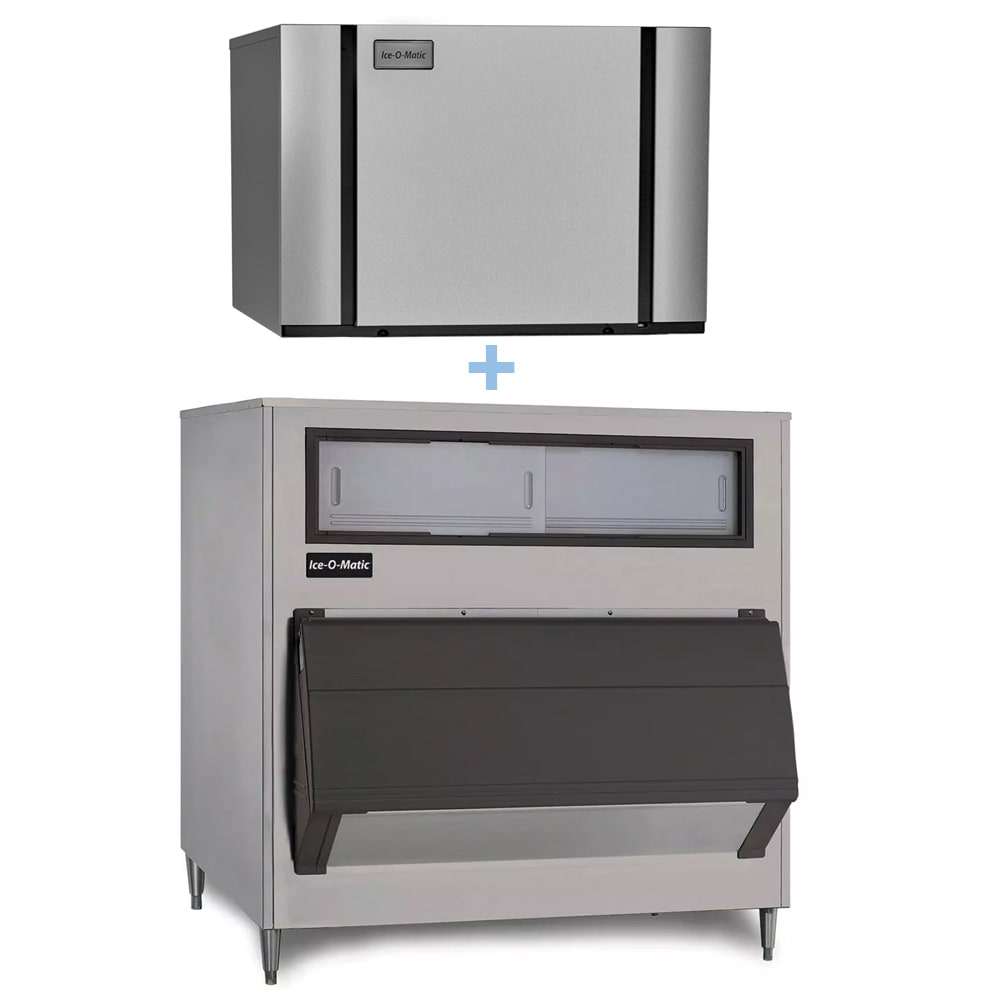

Ice-O-Matic CIM1446HA/B1000-48 1560 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 1000 lb Storage, Air Cooled, 208-230v

The Ice-O-Matic CIM1446HA/B1000-48 ice maker with bin has an air-cooled condenser that requires less water than water-cooled options, and it's self-contained to begin working as soon as it's plugged in. It can craft anywhere from 1,210 to 1,560 pounds of ice each day, subject to environmental conditions, and the bin can hold as much as 1,000 pounds of ice for use when it's needed. To access the bin, the door can be opened with one hand, and it stays open while ice is retrieved to prevent injuries caused by slamming. Preventing ice from spilling, ice flow is controlled with a shield.

To clean the Ice-O-Matic CIM1446HA/B1000-48 half-cube ice maker with bin, sanitizing and descaling is controlled when employees push a button, and the foodzone components snap out for dishwasher placement. Because the foodzone is made of plastic and has no seams that bacteria can get stuck in, it can be wiped clean. PURE ICE® antimicrobial slows the growth of microbes and the bin has a poly liner for sanitary storage.

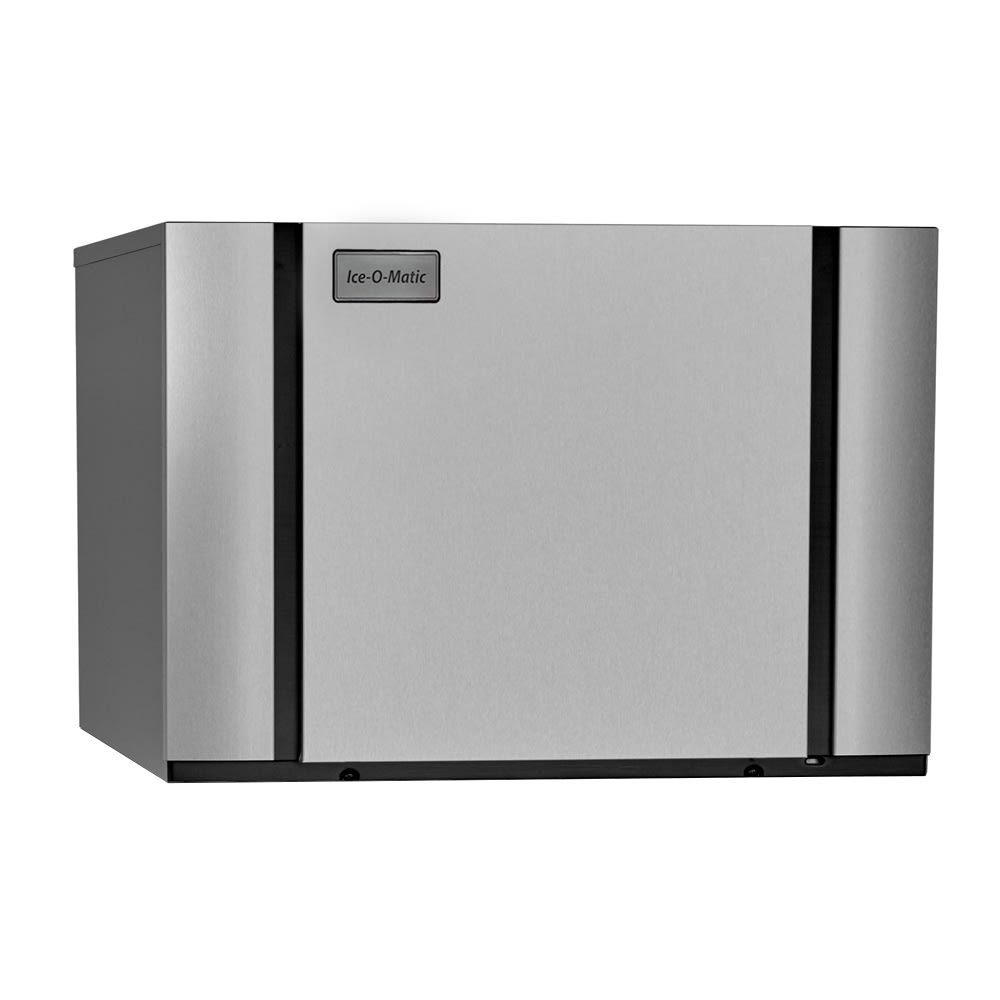

Ice Maker Details

• Part of the Elevation Series™
• 1,560-lb. maximum daily ice production
• 1,210-lb. AHRI-certified daily ice production
• Produces half-size cubes
• Cube dimensions: ³⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Air-cooled, self-contained condenser with dual exhaust
• Nickel-plated evaporator
• Ice guided into the bin with Harvest Assist
• LED status display
• 1-push sanitizing and descaling
• Foodzone made of easy-to-clean plastic
• Foodzone components can be removed and cleaned in a dishwasher
• PURE ICE antimicrobial slows germ growth
• Heavy-duty stainless steel construction
• Ideal incoming water pressure: 20-60 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient air temperature: 50-100 degrees F
• 16,000-BTU heat transfer capacity

Product Features

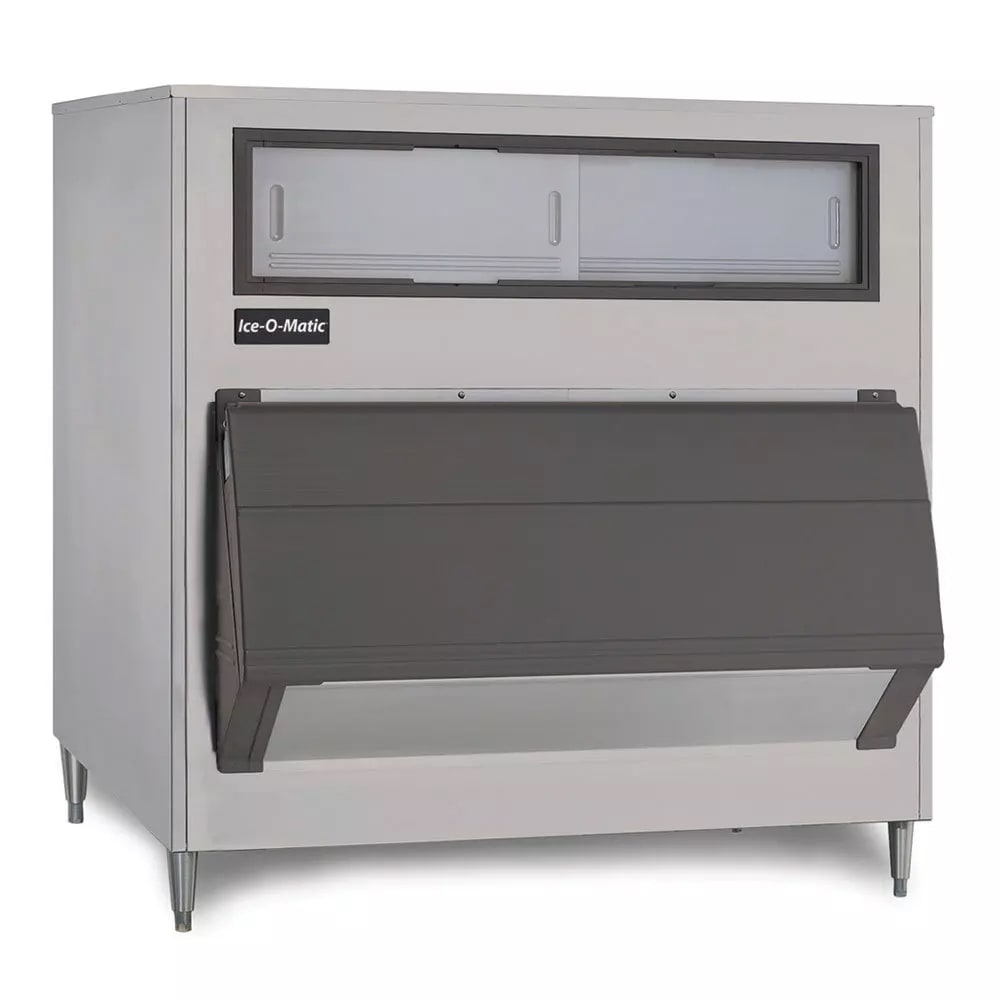

Ice Bin Details

• 1,000-lb. application capacity
• First-in, first-out ice control ensures ice is fresh
• Spillage reduced with flow controlling ice shield
• Sanitary storage with a poly liner
• Heavy-duty door enables 1-handed access
• Durable stainless steel construction

Dimensions & Utilities

• Ice Maker: 48¹/₄ in. W x 24¹/₄ in. D x 26 in. H
• Ice bin: 48 in. W x 31 in. D x 56 in. H
• 26.1 A, 4.4 kW
• 208-230 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic CIM1446HA/B1000-48 within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 48-1/4" W, approximately 1560 lb production/24 hours at 70°/50° (1210 lb at 90°/70°), half size cube, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE (Replaces ICE1406HA)

Ice Bin, 1000 lb storage capacity, 48"W x 31"D x 56"H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty "stay open" door for easy one hand access, ice shield controls flow & reduces spills, includes universal adapter kit, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts

Ice-O-Matic CIM1446HA/B1000-48 Specifications

Documents

Spec Sheet

Warranty

Manual

Brochure
