Ice-O-Matic CIM1136FA 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 932 lb/24 hr, Air Cooled, 208-230v/1ph

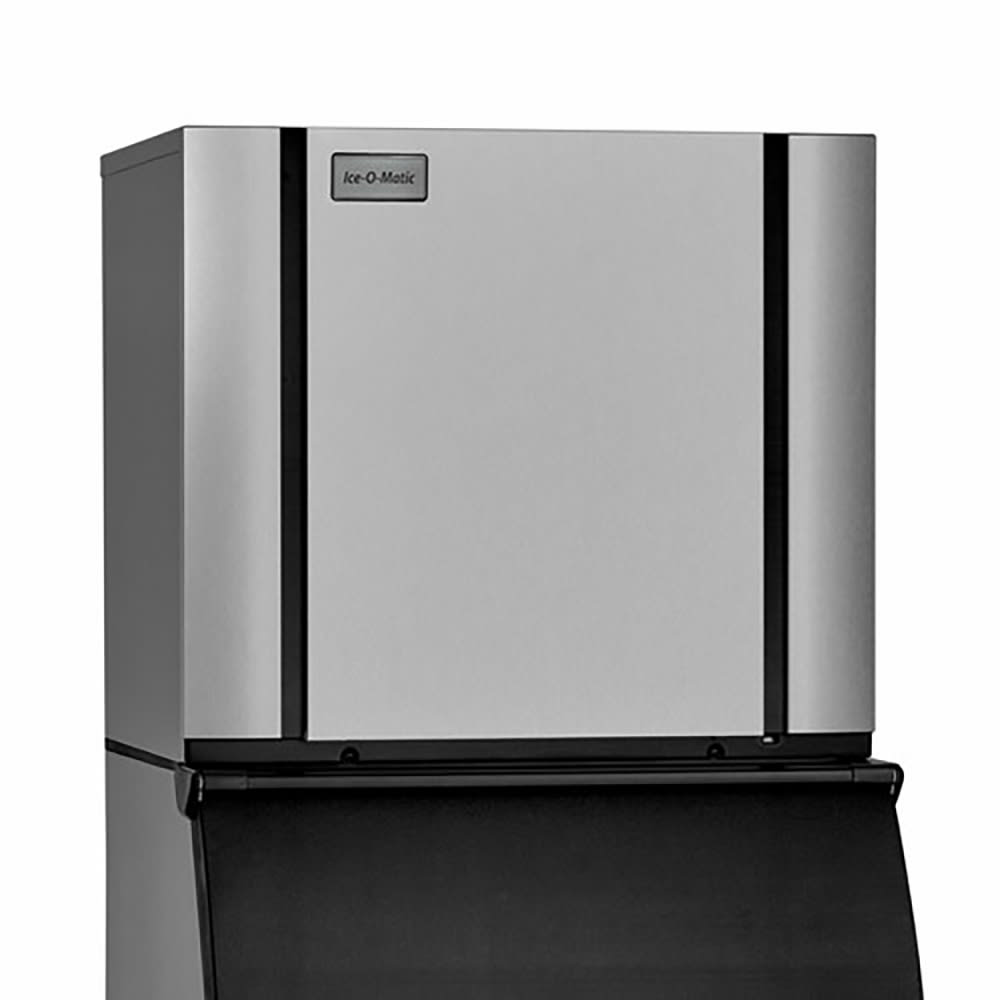

To inhibit the growth of bacteria, the Ice-O-Matic CIM1136FAS full-cube ice machine head includes built-in PURE ICE® antimicrobial and a SafeIce UV light. The unit's maintenance status is provided with an LED display, alerting users that cleaning is needed. To sanitize and descale it, this machine has one-touch controls. It makes full-size ice cubes that are useful for serving cocktails and soft drinks in bars and casual restaurants. The air-cooled condenser is self-contained to streamline installation.

The Ice-O-Matic CIM1136FAS ice machine head can be installed against a kitchen wall with dual-exhaust air discharge from the side and top. When operating temperatures are low enough, it produces 932 pounds of ice per day, but if conditions are less than ideal, it makes around 762 pounds of ice daily. To permit thorough cleaning, the plastic components of the food zone can be removed and washed in a dishmachine. This unit measures 30¹/₄ inches wide by 24¹/₄ inches deep by 26⁹/₁₀ inches high.

Product Details

• Part of the Elevation Series™
• SafeIce UV light sterilizes interior components
• Air-cooled refrigeration system
• Self-contained condenser
• 932-lb. maximum daily ice production
• 762-lb. AHRI-certified daily ice production
• Makes full-size cubes
• Full-size cube dimensions: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• LED status display
• Single-touch descaling and sanitizing
• Dishwasher-safe food zone components
• Side and top air exhaustion
• Plastic food zone can be wiped clean
• Integrated PURE ICE antimicrobial agent
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• 18,200-BTU heat transfer capacity
• Must be paired with an ice bin or dispenser (sold separately)

Product Features

Dimensions & Utilities

• Ice maker: 30¹/₄ in. W x 24¹/₄ in. D x 26⁹/₁₀ in. H
• 13.90 A, 5.10 kW
• 208-230 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic CIM1136FA within the 48 contiguous states.

From The Manufacturer

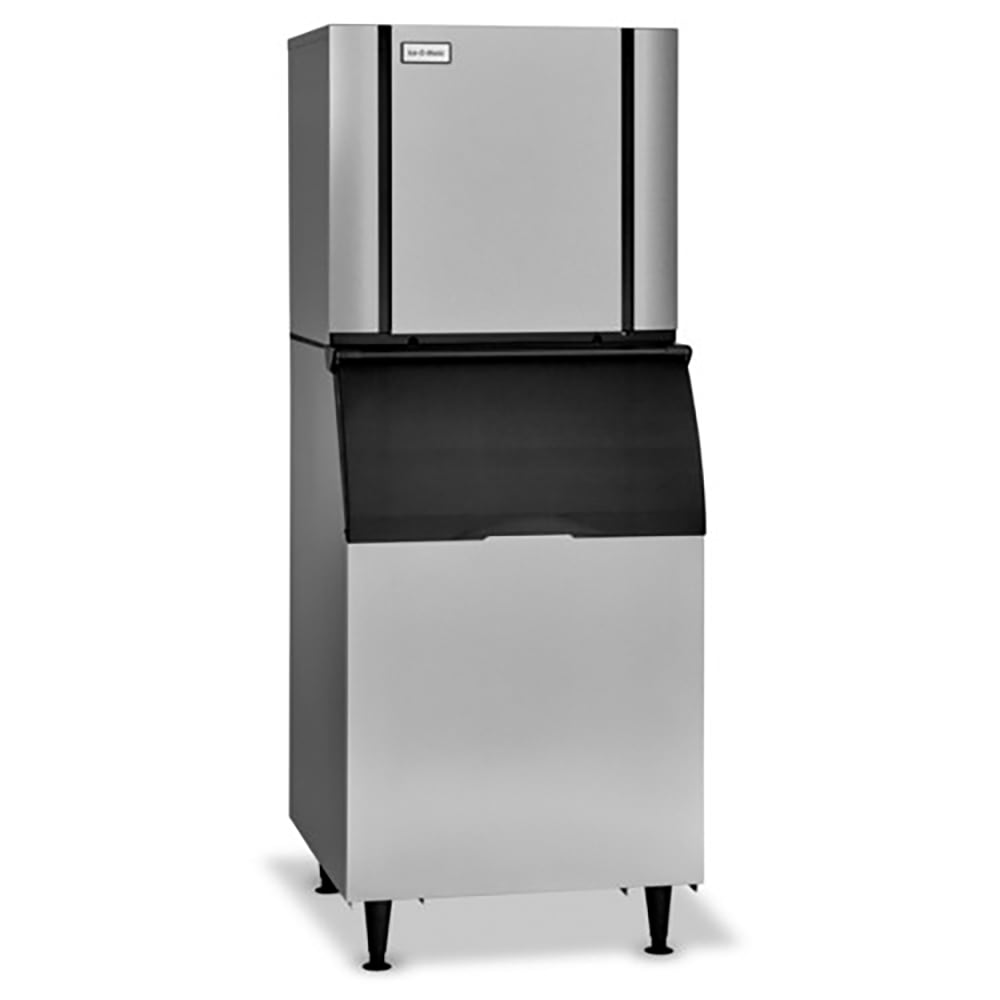

Elevation Series™ Modular Cube Ice Maker with SafeIce add-on, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30 1/4"W, approximately 932 lb production/24 hours at 70°/50° (762 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator & Compressor Parts

Ice-O-Matic CIM1136FA Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Product Info

Brochure
