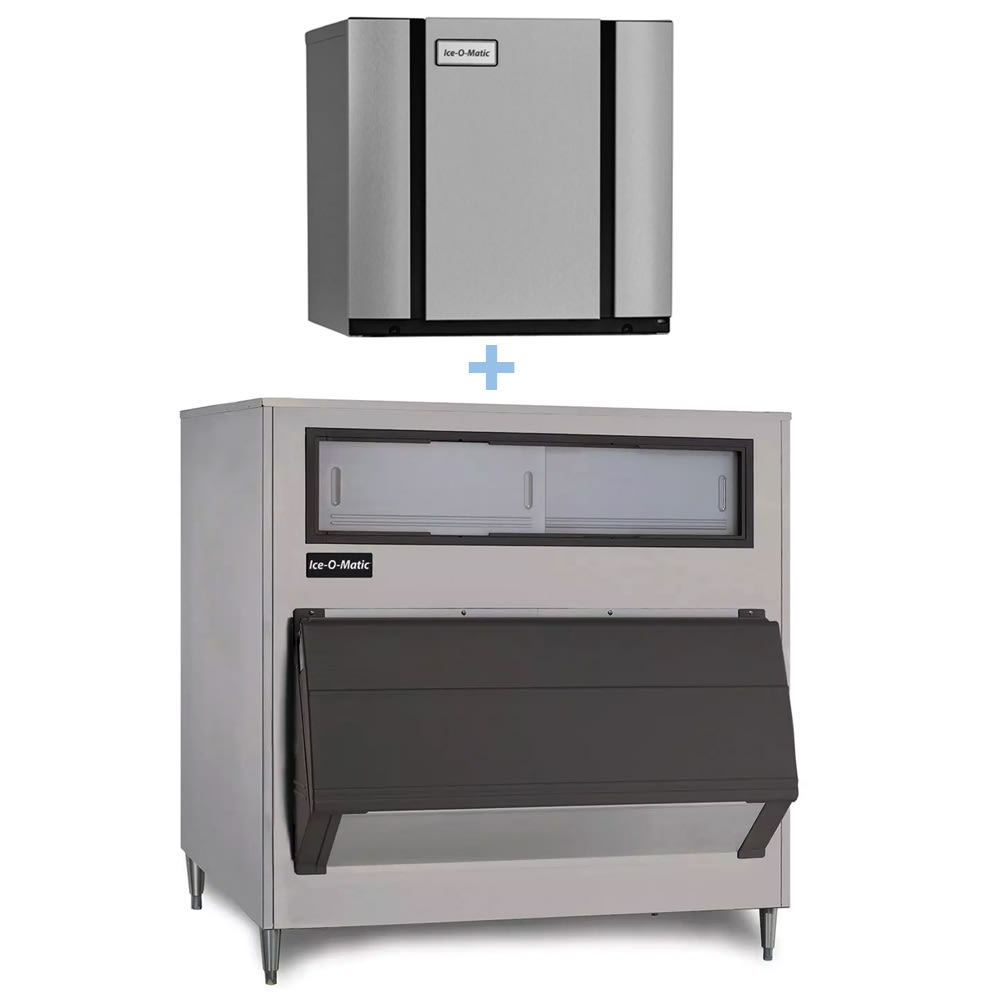

Ice-O-Matic CIM0836HA/B1325-60 896 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 1325 lb Storage, Air Cooled, 208-230v

The Ice-O-Matic CIM0836HA/B1325-60 ice maker with bin makes half-size cubes of ice, which are great for use in frozen beverages and soft drinks. It has an air-cooled, self-contained condenser, and it makes as much as 896 pounds of ice daily, depending on ambient conditions. This unit's bin can hold 1,325 pounds of ice, and while it’s being retrieved, the door can be propped open to stop it from slamming shut and causing injury. To control the flow of ice and prevent it from spilling out, this unit has an ice shield.

To prevent bacteria from getting stuck in any crevices, the Ice-O-Matic CIM0836HA/B1325-60 half-cube ice maker with bin has a seamless plastic food zone. The components of the food zone snap out and can be placed in the dishwasher to clean them, while the touch of a button can perform sanitizing and descaling. This bin has a poly liner that provides resistance against corrosion, and it's made of stainless steel to provide durability for commercial use.

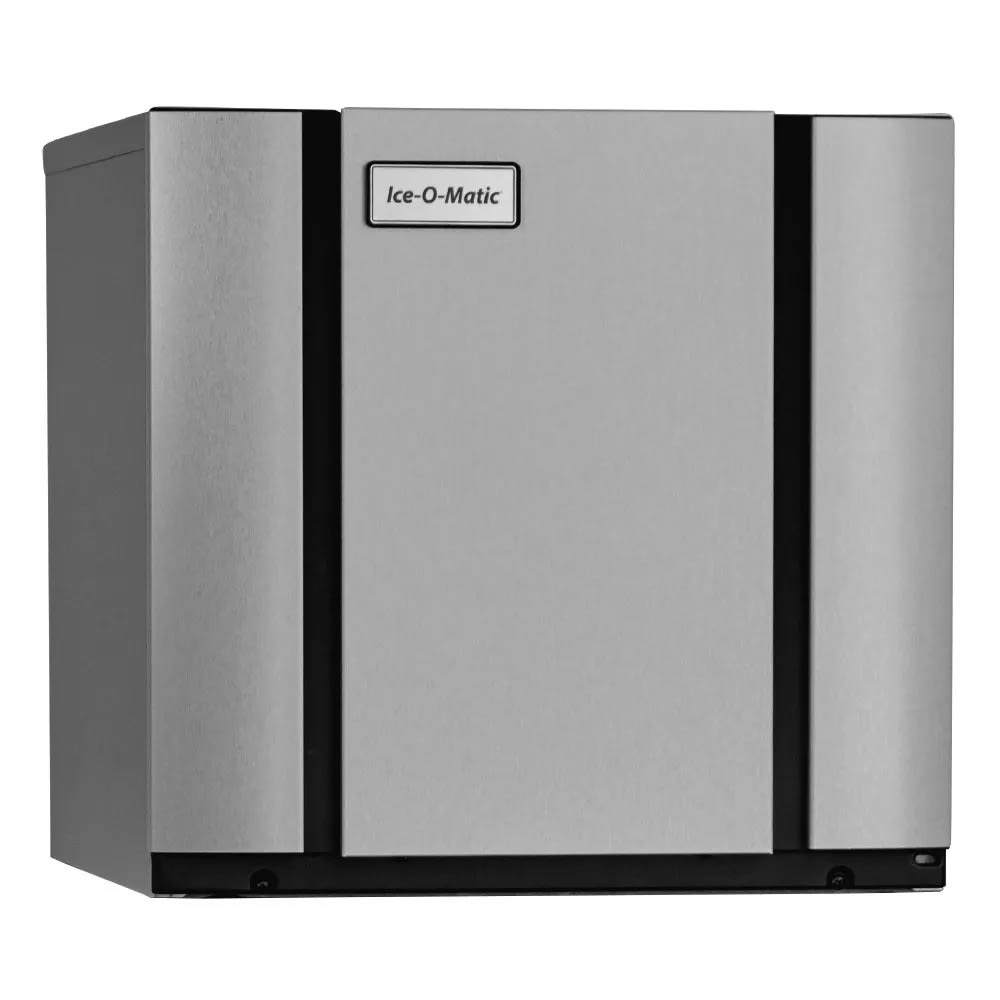

Ice Maker Details

• Part of the Elevation Series™
• 896-lb. daily ice production
• 711-lb. AHRI-certified daily ice production
• Makes half-size cubes of ice
• Half-size cube dimensions: ³⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• 1-button cleaning performs sanitizing and descaling
• Plastic food zone makes cleaning efficient
• Snap-out food zone components are dishwasher safe
• Protected with built-in PURE ICE antimicrobial
• LED status display provides updates
• Self-contained, air-cooled condenser
• Air discharges from the top and side
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient air temperature: 50-100 degrees F
• 15,100-BTU heat transfer capacity

Product Features

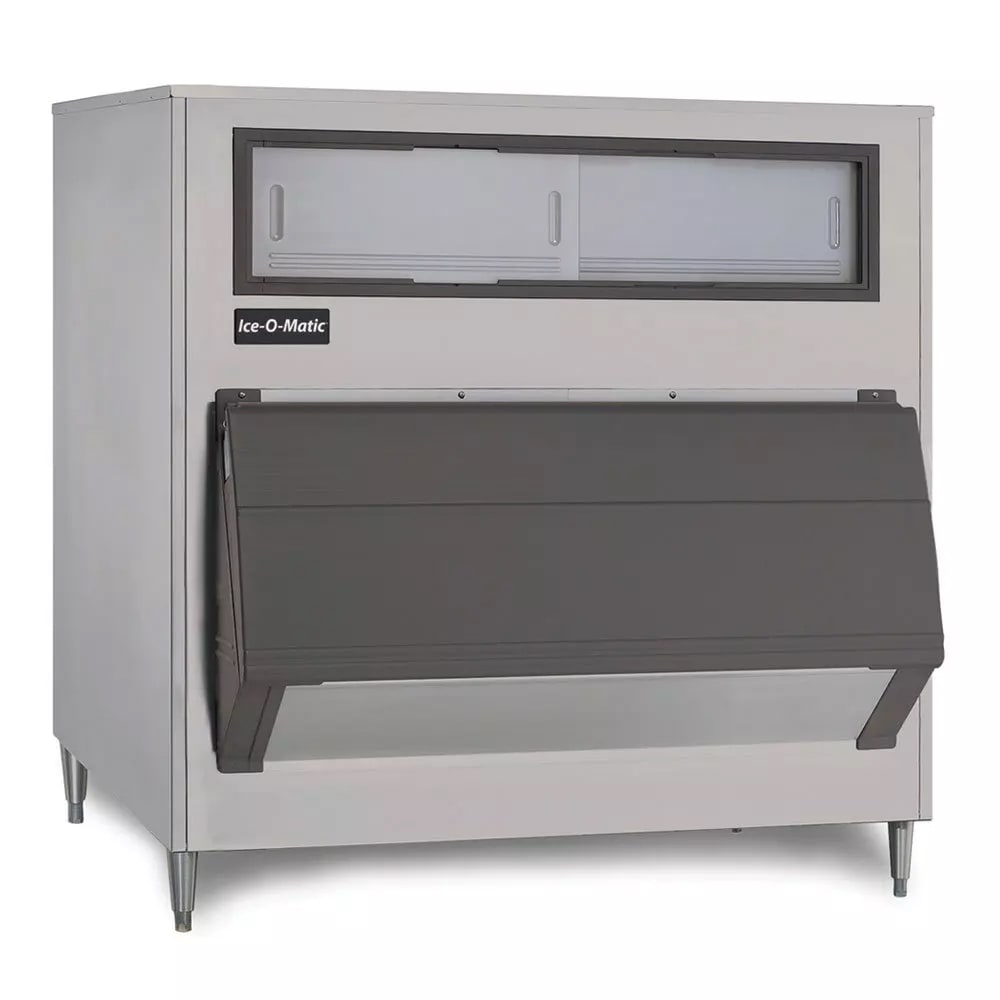

Ice Bin Details

• 1,325-lb. application capacity
• Spills reduced with a flow controlling ice shield
• Door stays open for 1-handed access
• Lined with corrosion-resistant poly
• Resilient stainless steel construction
• Ice controlled on a first-in, first-out basis

Dimensions & Utilities

• Ice maker: 30¹/₄ in. W x 24¹/₄ in. D x 26⁹/₁₀ in. H
• Ice bin: 60 in. W x 31 in. D x 56 in. H
• 11.8 A, 5 kW
• 208-230 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic CIM0836HA/B1325-60 within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30-1/4" W, approximately 896 lb production/24 hours at 70°/50° (711 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

Ice Bin, 1325 lb storage capacity, 60"W x 31"D x 56"H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty "stay open" door for easy one hand access, ice shield controls flow & reduces spills, includes universal adapter kit, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts
