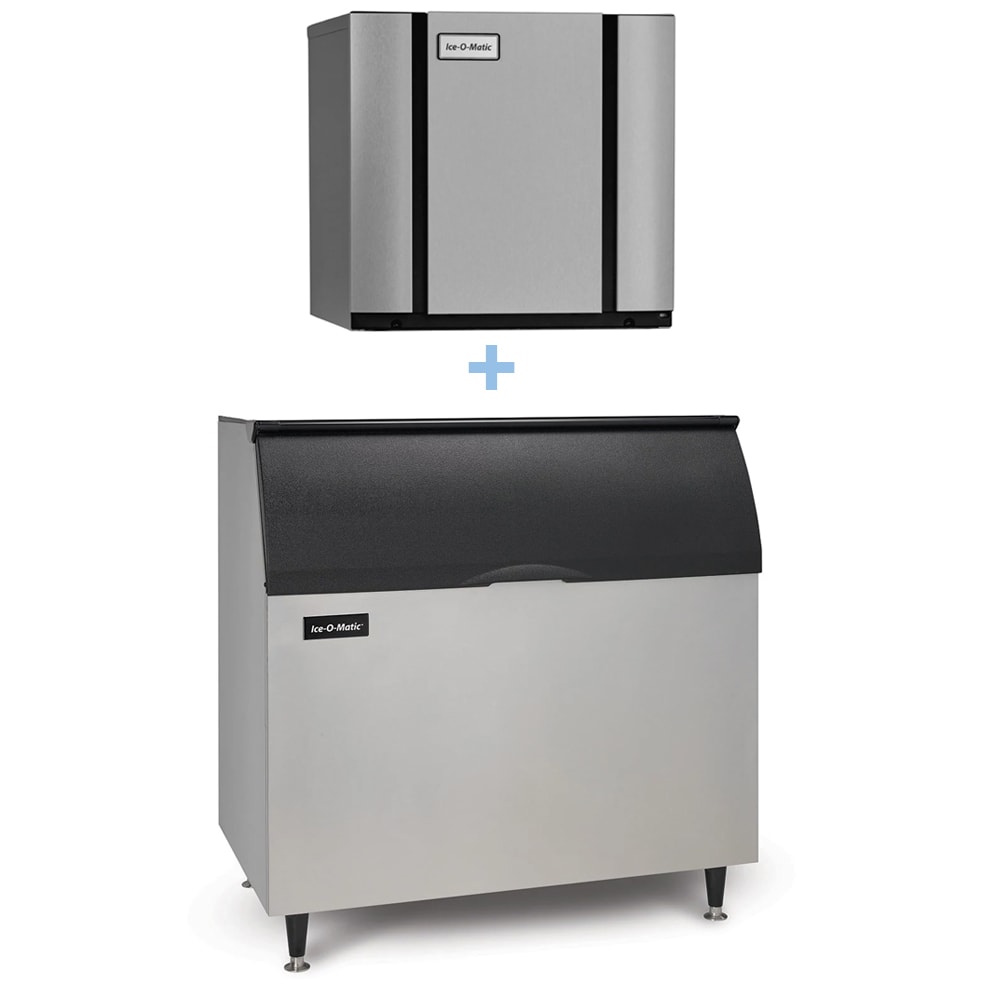

Ice-O-Matic CIM0836FA/B110PS/BPF-1 896 lb Elevation Series™ Full Cube Ice Machine w/ Bin - 854 lb Storage, Air Cooled, 208-230v

To streamline cleaning, the Ice-O-Matic CIM0836FA/B110PS ice maker with bin features a plastic food zone with components that can be safely washed in a dishmachine. Depending on various environmental conditions, it can produce a maximum of 896 pounds of ice in a 24-hour period. Treated with PURE ICE® antimicrobial, it optimizes sanitation by inhibiting the growth of mildew and bacteria. This unit is air cooled and features a self-contained condenser for simplified installation.

Made of aluminum, the exterior of the Ice-O-Matic CIM0836FA/B110PS ice machine’s accompanying bin is long lasting and corrosion resistant. Its interior is lined with easy-to-clean polyethylene and insulated with foam to prevent ice from melting prematurely. Suitable for high-volume environments, it can hold as much as 854 pounds of ice.

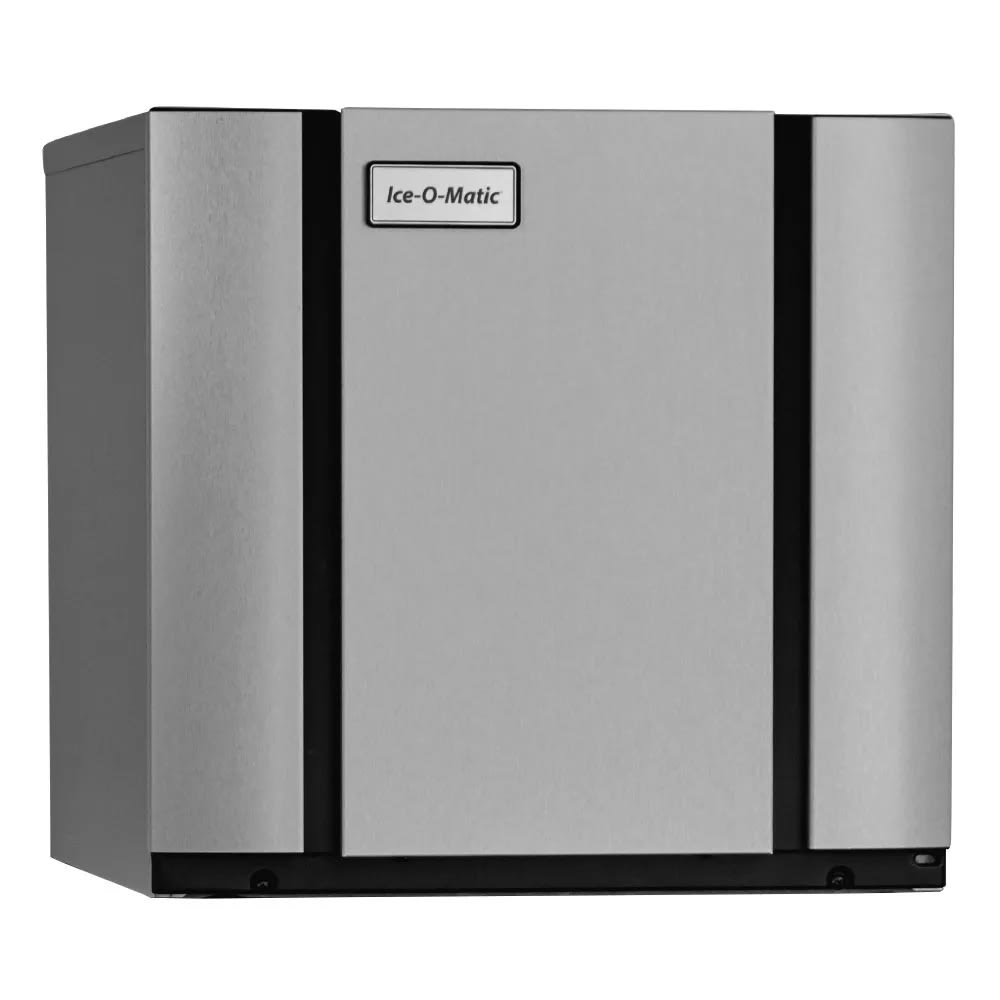

Ice Maker Details

• Part of the Elevation Series™
• 896-lb. maximum daily ice production
• 711-lb. AHRI daily ice production
• Makes full-size cubes
• Cube size: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• 1-touch sanitizing and descaling facilitates streamlined, thorough cleaning
• LED display indicates status updates
• PURE ICE antimicrobial agent defends against germ growth
• Plastic food zone with warewasher-safe components
• Air cooled
• Air is released from top and side with dual-exhaust system
• Self-contained condenser
• Cools with R404A refrigerant
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F
• 15,100-BTU heat transfer capacity

Product Features

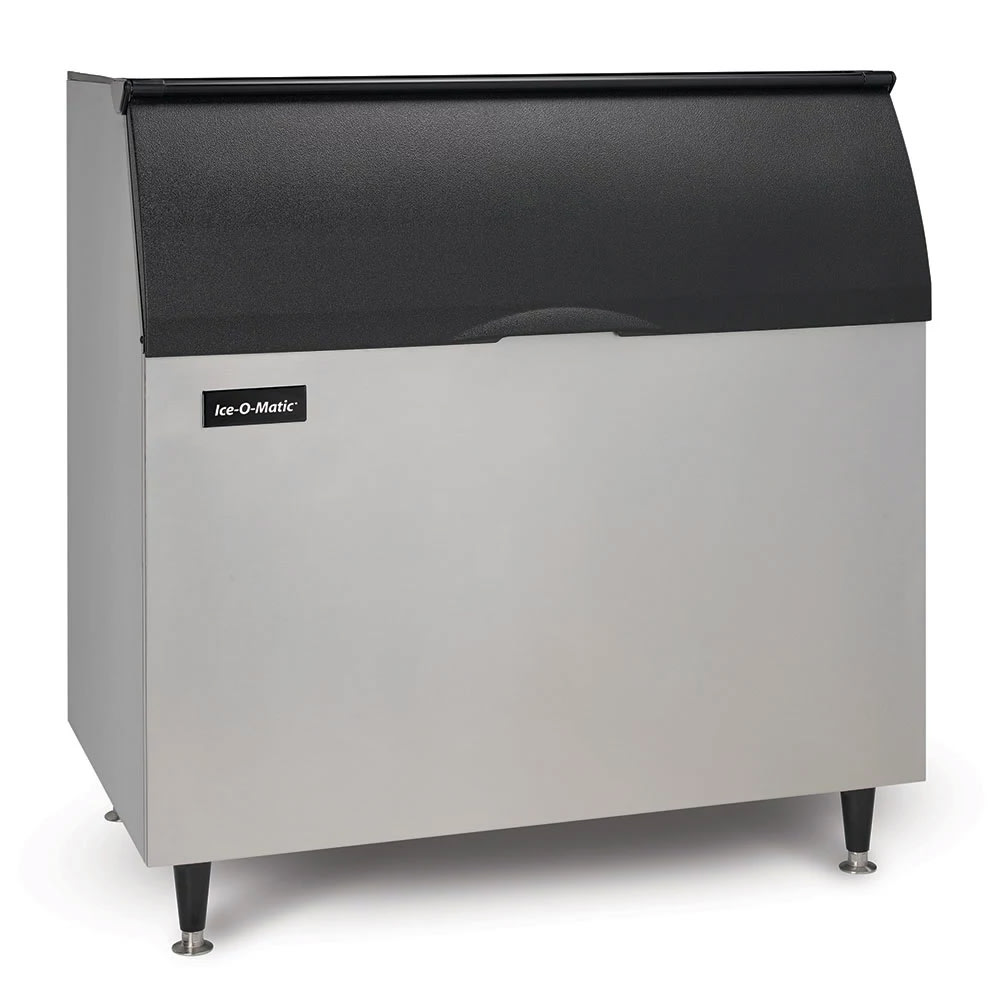

Ice Bin Details

• 854-lb. application capacity
• Foam insulation preserves ice
• Top-hinged, sloped front door
• Exterior made of corrosion-resistant aluminum
• Supported with 6-in. legs
• Interior lined with sanitary polyethylene

Dimensions & Utilities

• Ice maker: 30¹/₄ in. W x 24¹/₄ in. D x 26⁹/₁₀ in. H
• Ice bin: 48 in. W x 31 in. D x 50 in. H
• 11.8, 5 kW
• 208-230 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic CIM0836FA/B110PS/BPF-1 within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30-1/4" W, approximately 896 lb production/24 hours at 70°/50° (711 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 11.8 amps, cULus, NSF, CE

Ice Bin, 854 lb storage capacity, 48"W x 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6" legs, NSF; (BPF-1) Filler Panel Kit with 30” CIM, GEM, MFI & ICE Series™ Cube Ice Makers for B110 bins only

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts

Ice-O-Matic CIM0836FA/B110PS/BPF-1 Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure
