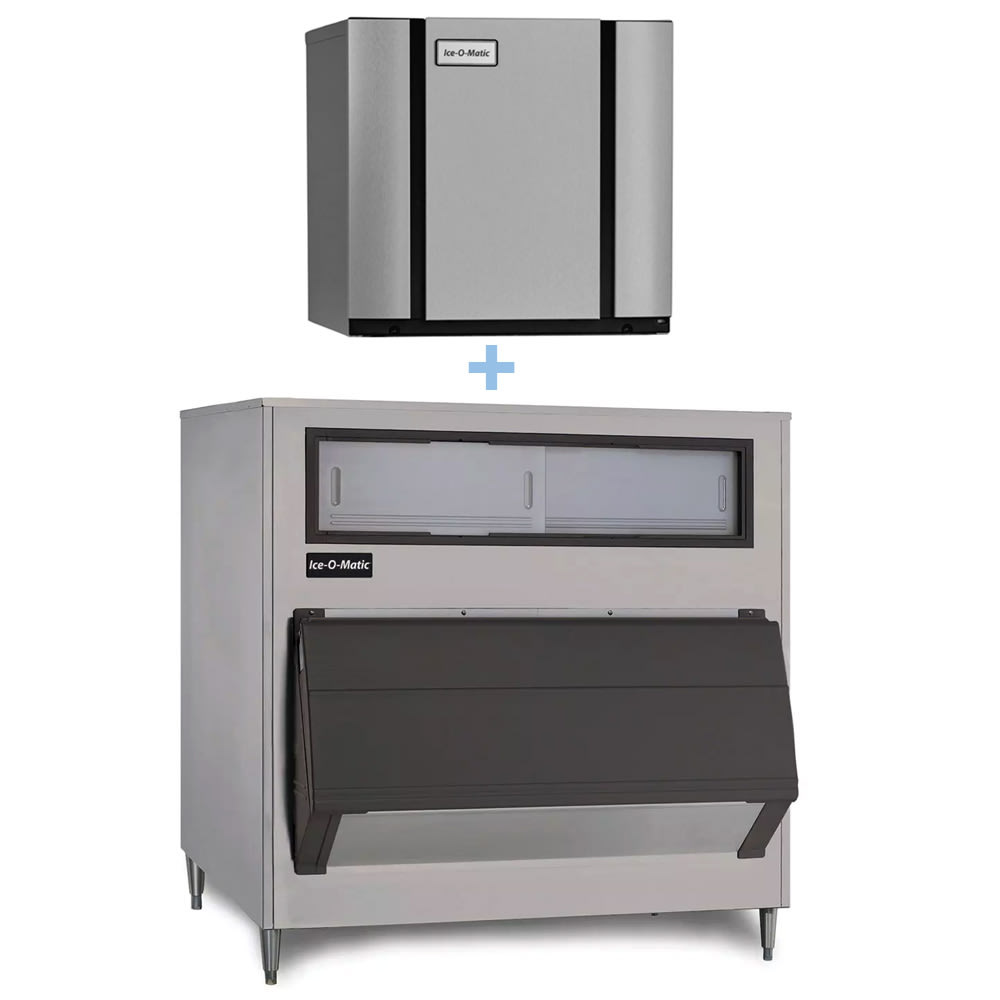

Ice-O-Matic CIM0836FA/B1000-48 896 lb Elevation Series™ Full Cube Ice Machine w/ Bin - 1000 lb Storage, Air Cooled, 208-230v

Users can monitor the operational status of the Ice-O-Matic CIM0836FA/B1000-48 ice maker/bin combo with a clear LED display. Because its dual-exhaust system discharges air from the side and top, it can be installed against a wall or in a corner without sustaining damage from overheating. Its PURE ICE® treatment inhibits the growth of microbes, such as mold, mildew, and bacteria, and its one-touch descaling and sanitizing optimizes performance and cleanliness. This unit can produce a maximum of 896 pound of ice per day if environmental conditions are ideal.

The Ice-O-Matic CIM0836FA/B1000-48 ice machine’s bin can house as much as 1,000 pounds of ice, making it an ideal choice for fast-paced, high-volume operations. Its first-in, first-out management system ensures ice remains consistently fresh, and its polyethylene liner won’t harbor dust or bacteria. Constructed of stainless steel, it can support heavy use without rusting, corroding, or scratching.

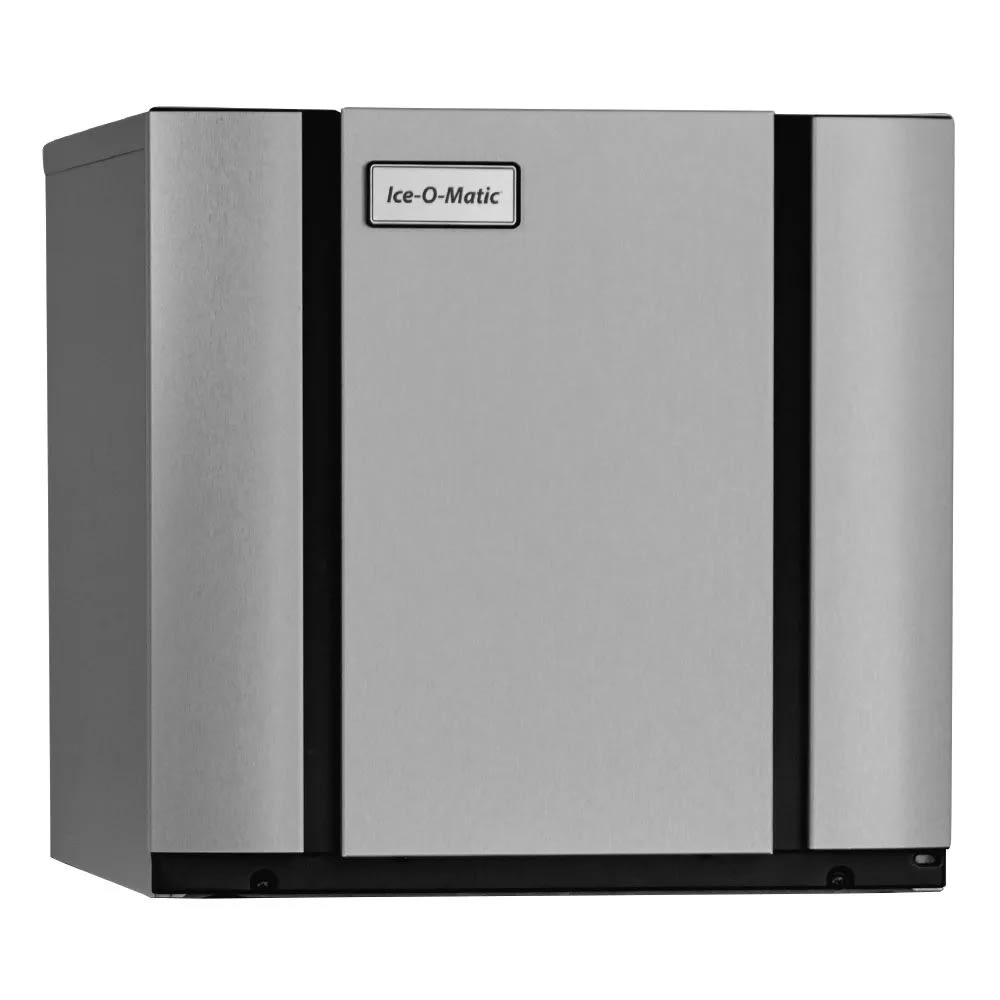

Ice Maker Details

• Part of the Elevation Series™
• 896-lb. maximum daily ice production
• 711-lb. AHRI daily ice production
• Makes full-size cubes
• Cube size: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Dishwasher-safe components in plastic food zone simplify cleaning
• Sanitizes and descales with 1 touch
• LED status display
• PURE ICE antimicrobial protection is built in to inhibit bacterial growth
• Air cooled
• Dual-exhaust system enables installation in a variety of settings
• Self-contained condenser
• Cools with R404A refrigerant
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F
• 15,100-BTU heat transfer capacity

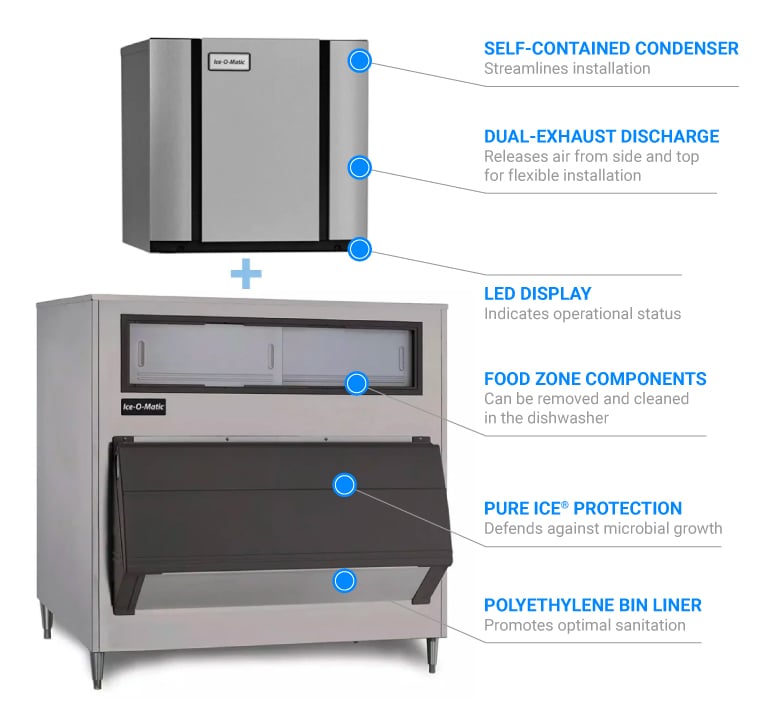

Product Features

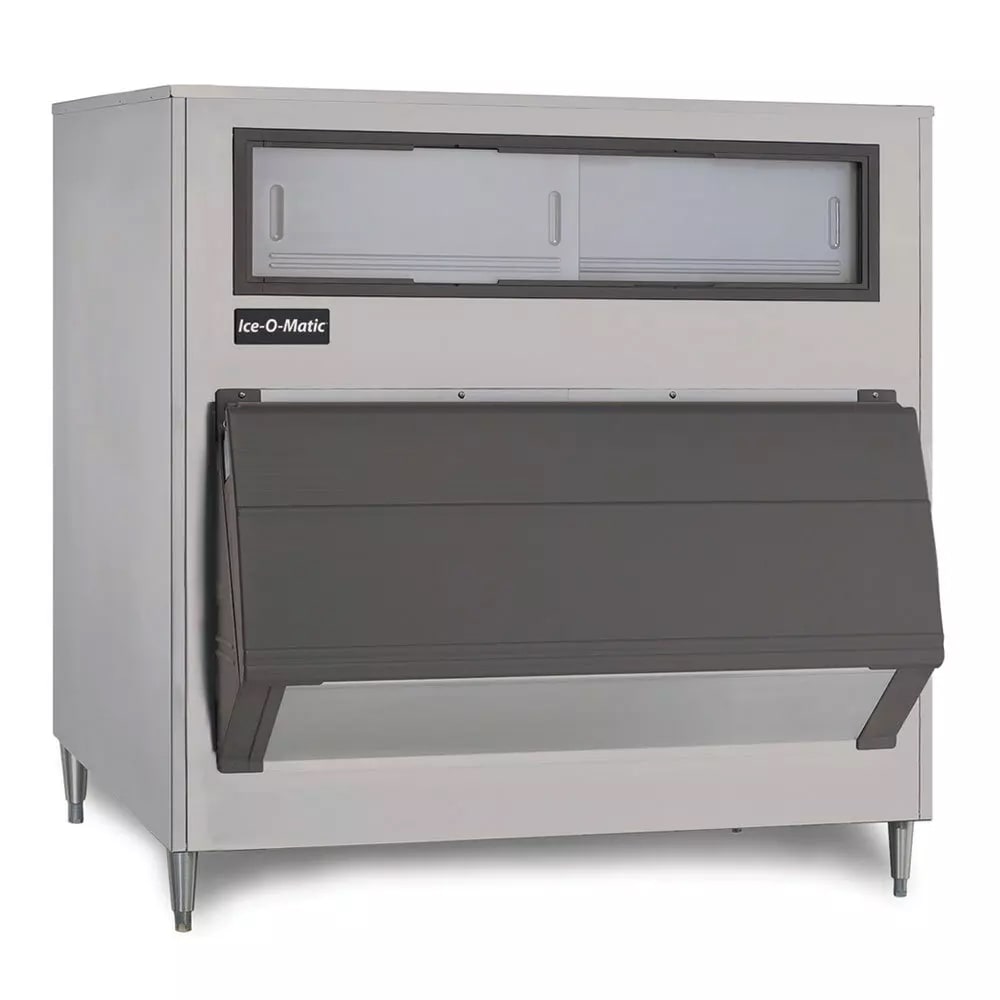

Ice Bin Details

• 1,000-lb. application capacity
• Corrosion-resistant polyethylene liner streamlines cleaning
• First-in, first-out management system for consistent freshness
• Stainless steel construction supports rigorous use
• Stay-open door enables one-handed ice access
• Ice shield reduces risk of wasteful spills

Dimensions & Utilities

• Ice maker: 30¹/₄ in. W x 24¹/₄ in. D x 26⁹/₁₀ in. H
• Ice bin: 48 in. W x 31 in. D x 56 in. H
• 11.8, 5 kW
• 208-230 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic CIM0836FA/B1000-48 within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30-1/4" W, approximately 896 lb production/24 hours at 70°/50° (711 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

Ice Bin, 1000 lb storage capacity, 48"W x 31"D x 56"H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty "stay open" door for easy one hand access, ice shield controls flow & reduces spills, includes universal adapter kit, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts

Ice-O-Matic CIM0836FA/B1000-48 Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure
