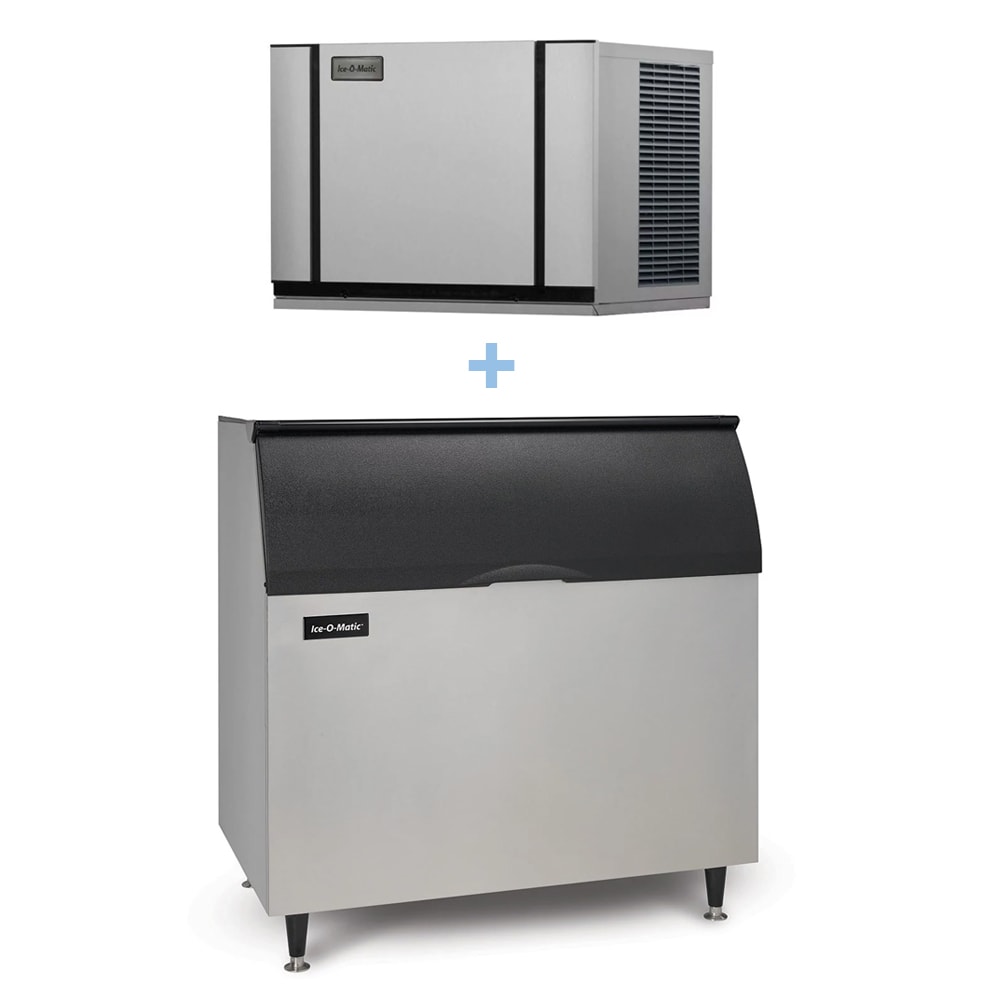

Ice-O-Matic CIM0636HA/B110PS/BPF-1 600 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 854 lb Storage, Air Cooled, 208-230v

The Ice-O-Matic CIM0636HA/B110PS ice maker with bin is an air-cooled unit that can produce a maximum of 435 pounds of ice a day in ideal environmental conditions. It produces half-size cubes that are great for chilling sodas, tea, or cocktails. To enable installation in a variety of settings, it features a dual-exhaust system that discharges air from the top and the side. One-touch controls facilitate thorough sanitizing and descaling, and an LED display keeps users aware of the unit’s status.

To preserve ice temperature for extended periods, the Ice-O-Matic CIM0636HA/B110PS ice machine's accompanying bin is insulated with foam. It can accommodate as much as 854 pounds of ice, which operators can access through a top-hinged, sloped front door. Built for durability and cleanliness, it features a corrosion-resistant aluminum exterior and a polyethylene interior liner.

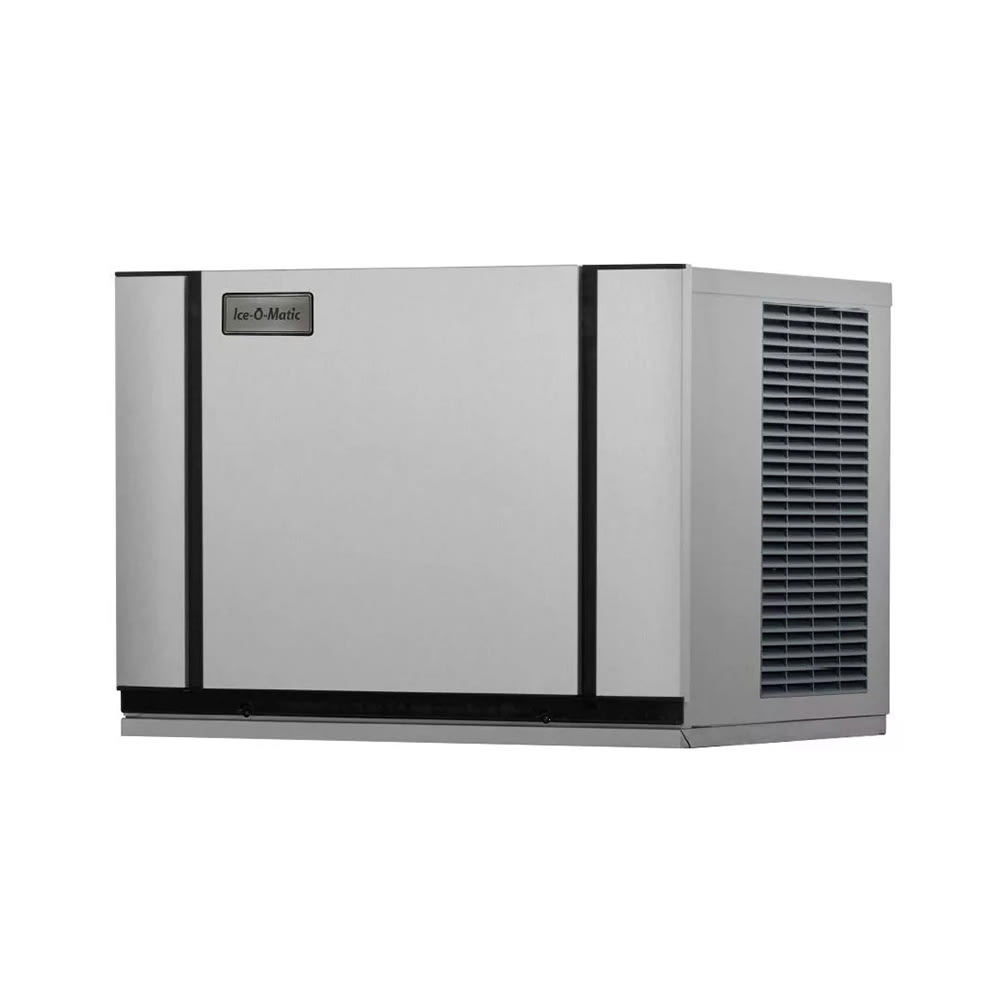

Ice Maker Details

• Part of the Elevation Series™
• 600-lb. maximum daily ice production
• 455-lb. AHRI daily ice production
• Makes half-size cubes
• Cube size: ³⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Dishwasher-safe components in plastic food zone streamline cleaning
• LED display indicates operational status
• 1-touch descaling and sanitizing optimizes performance
• PURE ICE® antimicrobial protection is built in to inhibit bacterial growth
• Air cooled
• Dual-exhaust discharges air from side and top
• Self-contained condenser
• Cools with R404A refrigerant
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F
• 8,600-BTU heat transfer capacity

Product Features

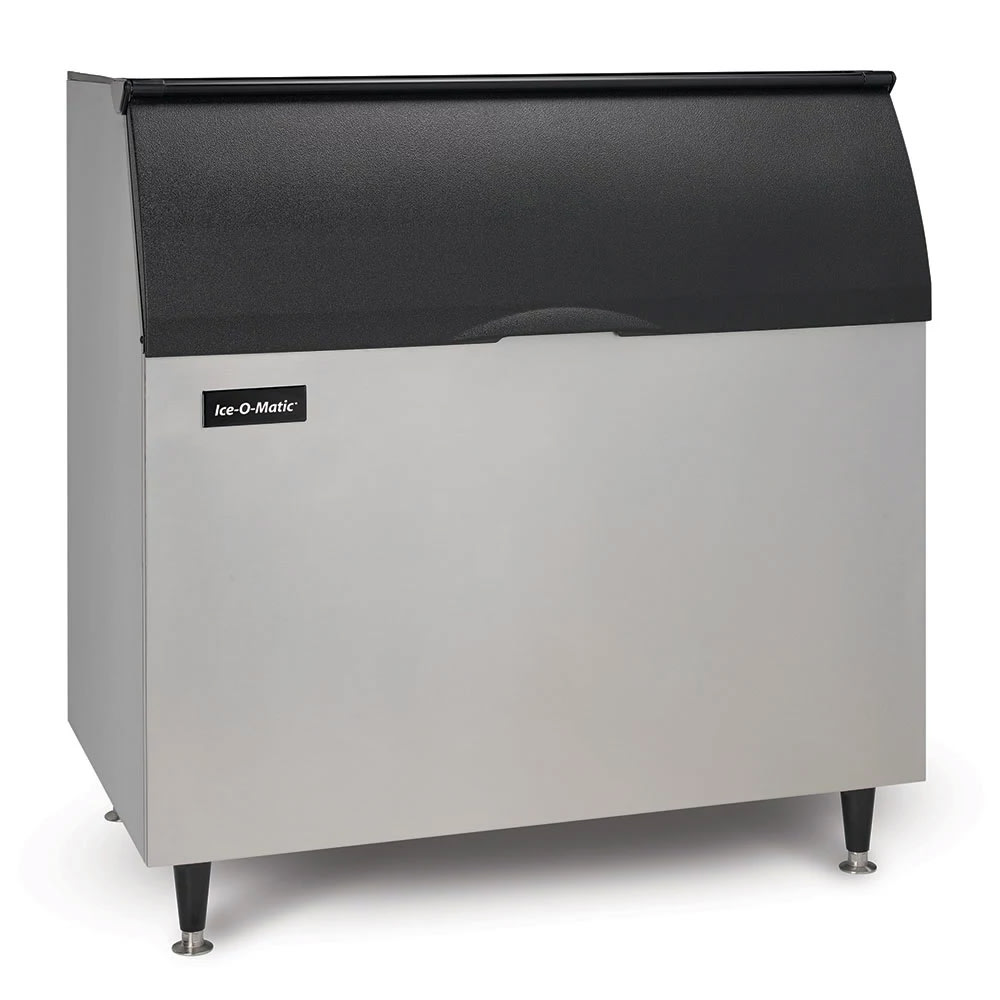

Ice Bin Details

• 854-lb. application capacity
• Top-hinged, sloped front door
• Exterior made of corrosion-resistant aluminum
• Foam insulation preserves ice temperature
• Rests on 6-in. legs
• Interior lined with sanitary polyethylene

Dimensions & Utilities

• Ice maker: 30¹/₄ in. W x 24¹/₄ in. D x 21¹/₄ in. H
• Ice bin: 48 in. W x 31 in. D x 50 in. H
• 9.2 A, 5.63 kW
• 208-230 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic CIM0636HA/B110PS/BPF-1 within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30-1/4" W, approximately 600 lb production/24 hours at 70°/50° (455 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 9.2 amps, cULus, NSF, CE

Ice Bin, 854 lb storage capacity, 48"W x 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6" legs, NSF; (BPF-1) Filler Panel Kit with 30” CIM, GEM, MFI & ICE Series™ Cube Ice Makers for B110 bins only

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts
