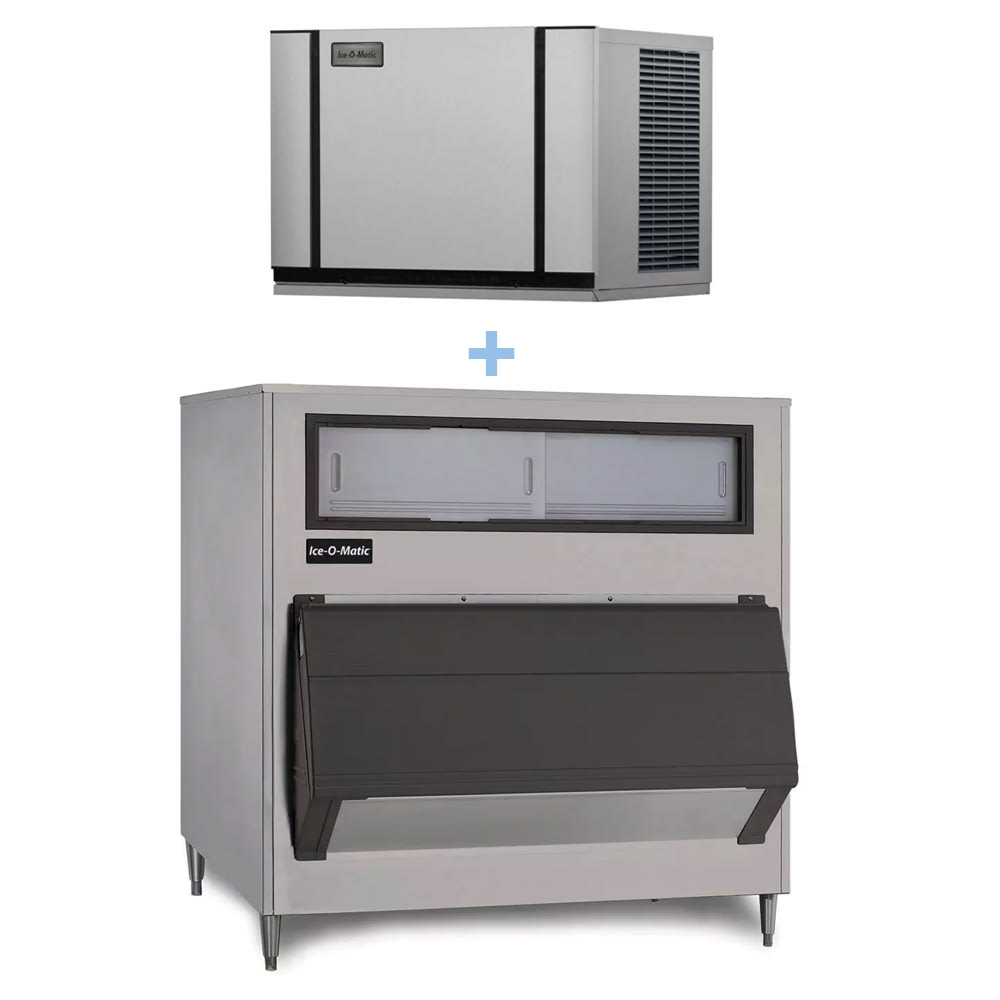

Ice-O-Matic CIM0636HA/B1000-48 600 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 1000 lb Storage, Air Cooled, 208-230v

The Ice-O-Matic CIM0636HA/B1000-48 half-cube ice maker with bin is air cooled and designed with a dual exhaust system that outputs heat from the top and side of the unit at the same time, reducing the likelihood of overheating. Built with a universal control board, the ice machine is simple to setup and operate, and has self-diagnostic functionality. When it's time to clean the machine, users can activate sanitation and descaling at the push of a button, and removable interior components are dishwasher safe for reduced labor.

The Ice-O-Matic CIM0636HA/B1000-48 ice machine head with bin produces versatile, half-cube ice. This type of ice encourages optimal product displacement when chilling liquid beverages such as tea and soda and is small enough to be blended into smoothies and margaritas without causing undue wear on chopping blades. With a maximum production capacity of 60 pounds of ice per day in beneficial ambient conditions, this unit is suitable for locations such as gas stations and cafes that produce medium to high volumes of iced beverages each day. To support service during periods of increased demand, the bin stores as much as 1,000 pounds of prepared ice.

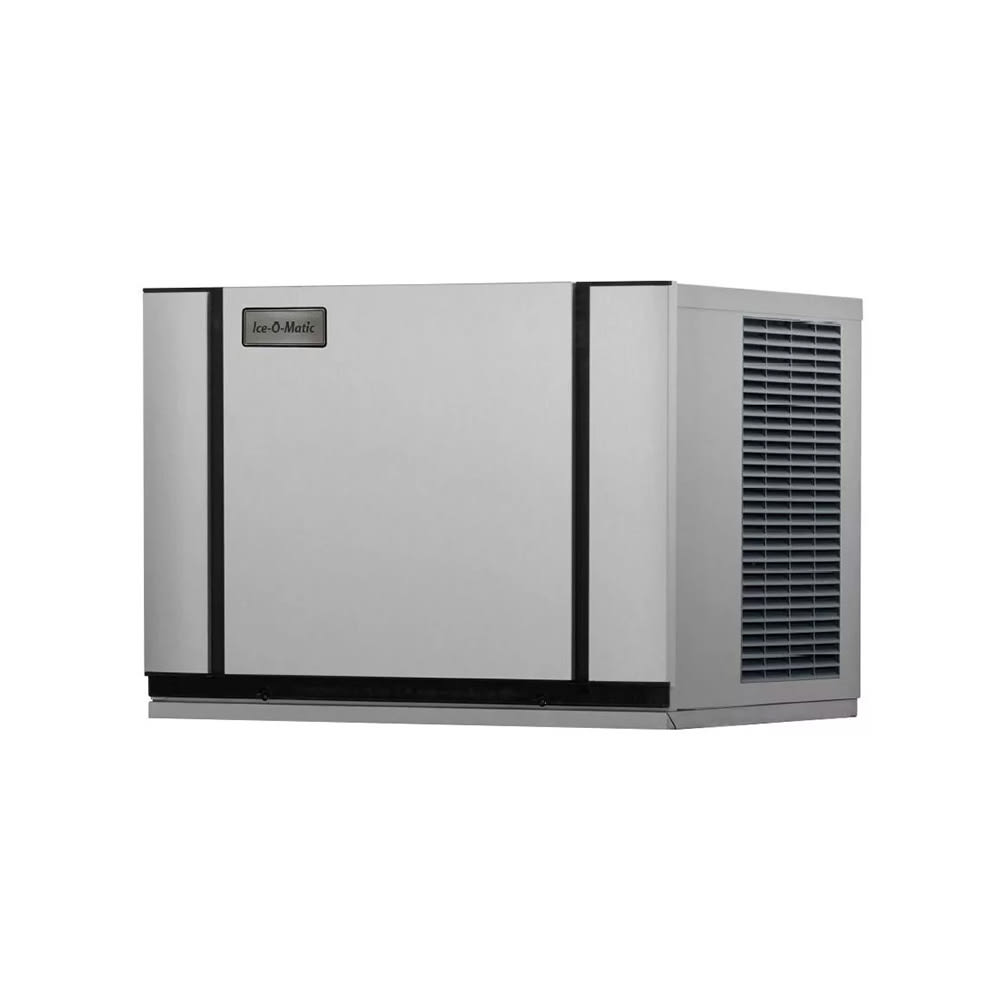

Ice Maker Details

• Part of the Elevation Series™
• 600-lb. maximum daily ice production
• 455-lb. AHRI-certified ice production
• Half-size ice cubes
• Cube dimensions: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Air cooled
• Condenser is self-contained to save space
• Dual exhaust system for effective heat diffusion
• Plastic foodzone interior doesn't shelter bacteria or fungal spores
• BPA-free, warewasher-safe parts can be removed to streamline cleaning
• Germ growth is restricted by PURE ICE® antimicrobial substance
• 1-touch controls for activation of sanitizing and descaling
• Smart LED light to notify users when maintenance is needed
• LED display equips users to monitor the machine effectively
• Simplified operation with Smart Harness™ universal control board
• Environmental impact is minimized with recyclable components
• Ideal ambient temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal water pressure: 20-80 PSIG
• 8,600-BTU heat transfer capacity

Product Features

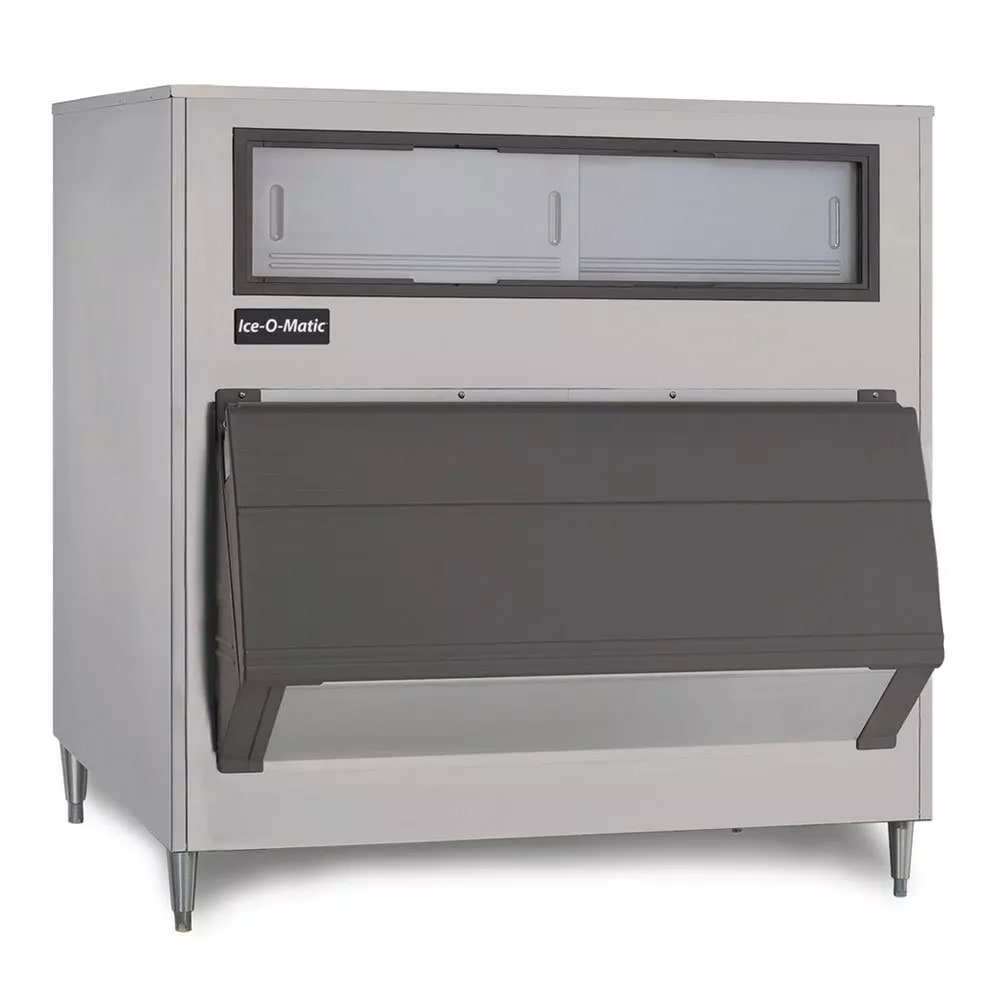

Ice Bin Details

• 1,000-lb. capacity
• 31.9-cu.-ft. storage space
• Scuff-resistant stainless steel exterior
• First-in, first-out (FIFO) ice management ensures fresh-tasting ice
• Interior poly bin liner resists corrosion
• Stay-open function prevents heavy-duty door from slamming during use
• Ice shield keeps ice from spilling
• 32-in. required door access

Dimensions & Utilities

• Ice maker: 30¹/₄ in. W x 24¹/₄ in. D x 21¹/₄ in. H
• Bin: 48 in. W x 31 in. D x 56 in. H
• 9.2 A, 5.63 kW
• 208-230 V/60 Hz/1 ph
• Ice maker potable water inlet: ³⁄₈-in. FPT
• Ice maker water outlet: ³⁄₄-in. FPT
• Electrical connection port: ⁷⁄₈-in. dia.
• Electrical connection junction box: ⁷⁄₈-in. dia.

*Free shipping on Ice-O-Matic CIM0636HA/B1000-48 within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30-1/4" W, approximately 600 lb production/24 hours at 70°/50° (455 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

Ice Bin, 1000 lb storage capacity, 48"W x 31"D x 56"H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty "stay open" door for easy one hand access, ice shield controls flow & reduces spills, includes universal adapter kit, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts
