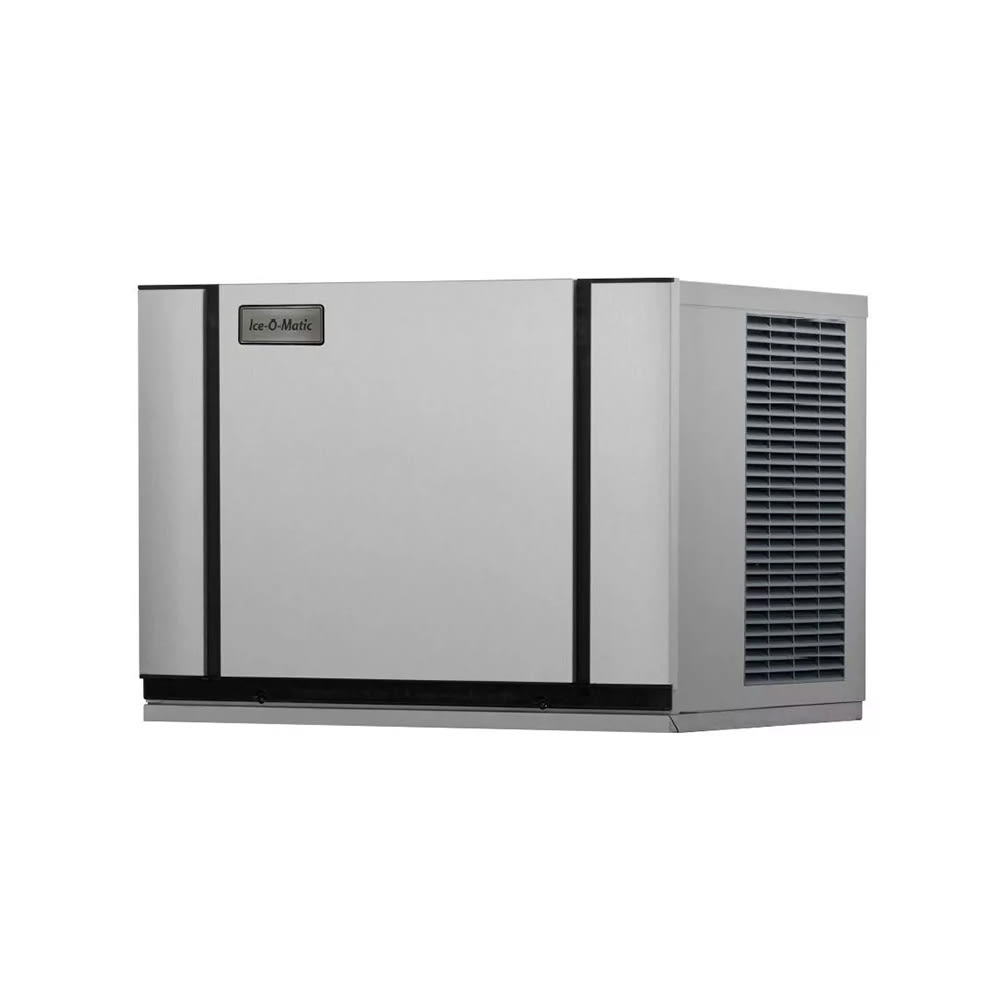

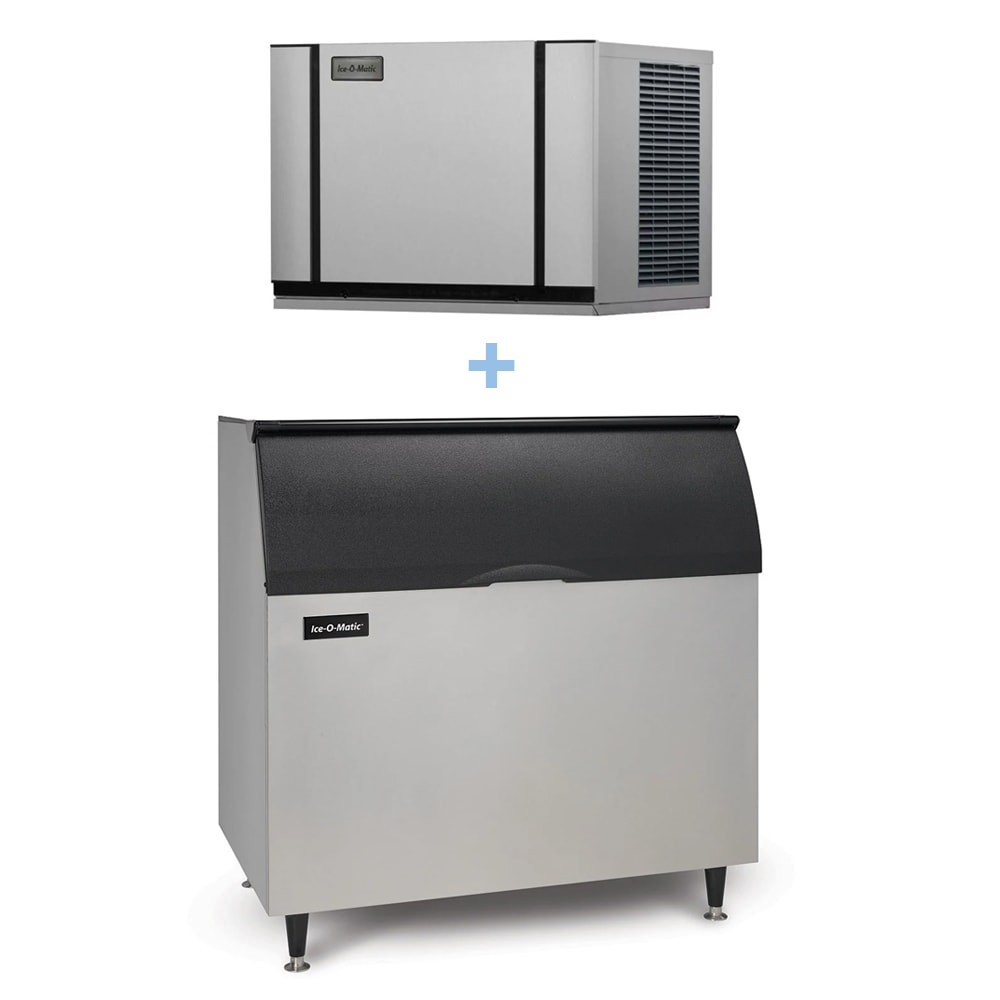

Ice-O-Matic CIM0530HA/B110PS/BPF-1 561 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 854 lb Storage, Air Cooled, 115v

Producing a consistent supply of fresh, sanitary ice, the Ice-O-Matic CIM0530HA/B110PS ice maker with bin creates half-cube ice. These measure ³⁄₈-inch by ⁷⁄₈-inch by ⁷⁄₈-inch and have a rhomboidal shape. This ice provides a high ice-to-water ratio and is optimal for serving soft drinks, smoothies, and frozen cocktails.

The Ice-O-Matic CIM0530HA/B110PS half-cube ice machine is great for filling fresh-food displays, serving ice to an entire dining room, or stocking satellite bins. This piece of equipment is an air-cooled unit that cools itself by moving fresh air across the condensers. Because its entire condenser is located inside the machine itself, it's simple to install and maintain. The unit produces as much as 520 pounds of ice in one full day.

Ice Machine Details

• Part of the Elevation Series™
• Maximum production capacity: 520 lbs. of ice per 24 hours
• AHRI production capacity: 390 lbs. of ice per 24 hours
• Produces half-cube ice
• Environmentally friendly design has recyclable parts and BPA-free plastic
• Plastic foodzone simplifies cleaning by eliminating nooks and crannies
• PURE ICE® antimicrobial protection inhibits bacterial growth
• Smart LED light signals when cleaning is required
• 1-touch controls facilitate sanitizing and descaling
• Snap-in-and-out components can be cleaned in dishwasher
• Hot air discharges from top and side to inhibit exhaust and enhance installation
• Universal Smart Harness™ control board streamlines servicing and installation
• Digital diagnostics deliver status of machine
• Common configuration and universal components
• Heat displacement: 6,252 BTU

Product Features

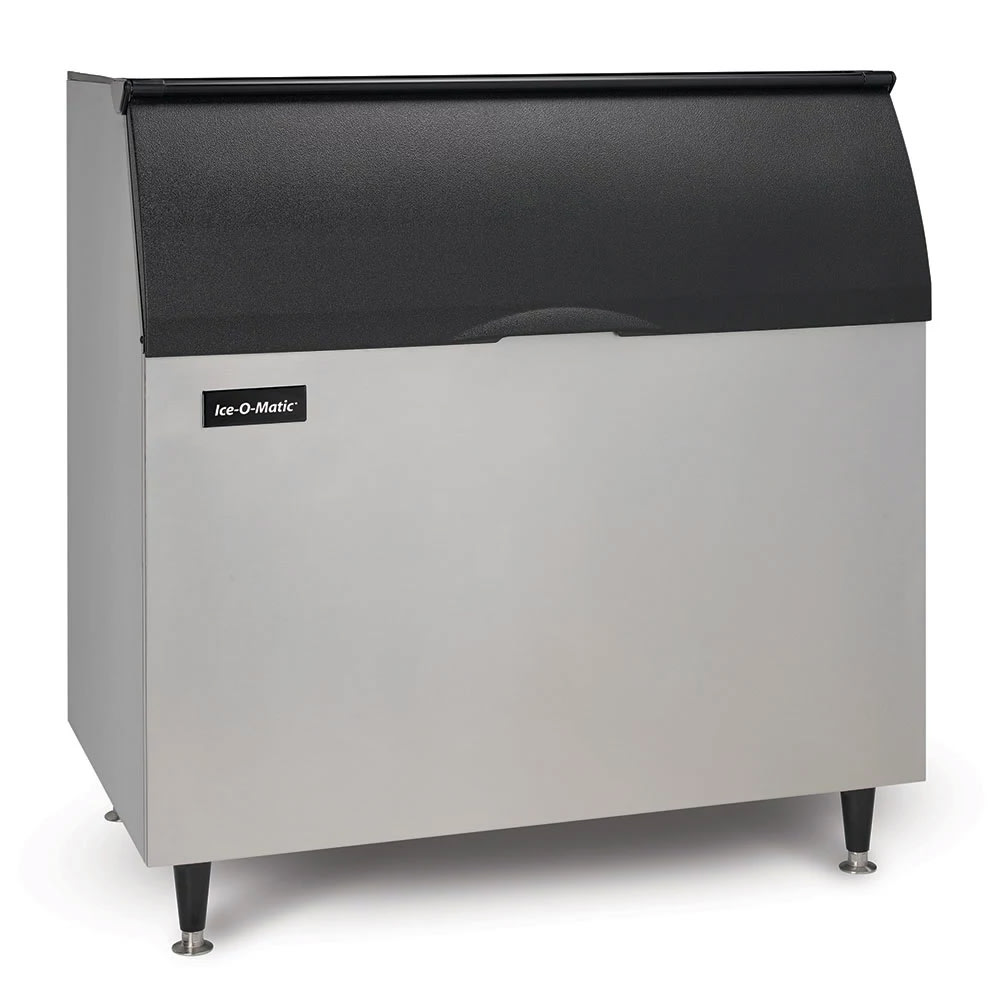

Ice Bin Details

• Includes BPF-1 bin panels for securely mounting 30-in.-wide modular ice cubers
• 854-lb. storage capacity
• Aluminum exterior resists corrosion
• Polyethylene bin liner insulated with foam
• Top-hinged door with sloped front
• Adjustable, 6-in. legs stabilize the unit

Dimensions & Utilities

• Ice machine head: 30¹/₄ in. W x 24¹/₄ in. D x 21¹/₄ in. H
• Ice bin: 48 in. W x 31 in. D x 50 in. H
• 17.8 A, 5.87 kW
• 115 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic CIM0530HA/B110PS/BPF-1 within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30-1/4" W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 17.8 amps, cULus, NSF, CE

Ice Bin, 854 lb storage capacity, 48"W x 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6" legs, NSF; (BPF-1) Filler Panel Kit with 30” CIM, GEM, MFI & ICE Series™ Cube Ice Makers for B110 bins only

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts
