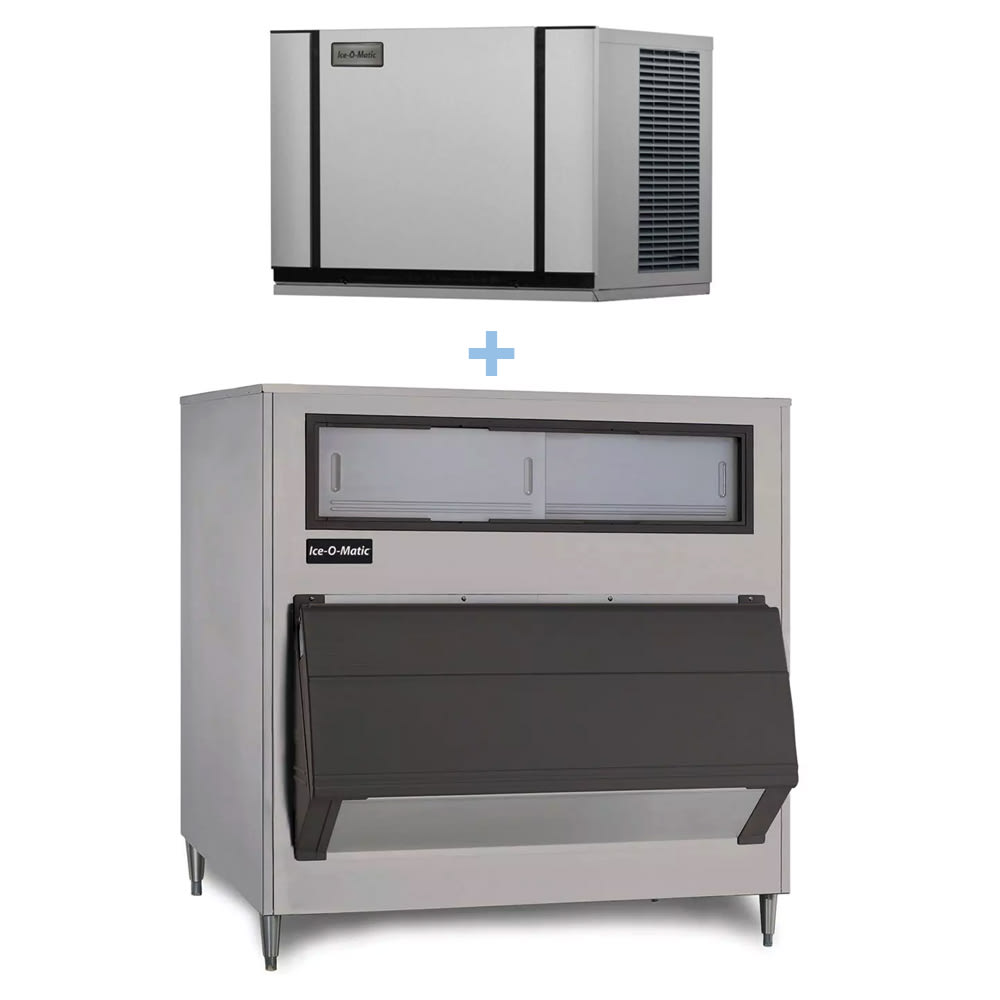

Ice-O-Matic CIM0530FA/B1325-60 561 lb Full Cube Ice Machine w/ Bin - 1325 lb Storage, Air Cooled, 115v

The Ice-O-Matic CIM0530FA/B1325-60 full-cube ice maker with bin provides a consistent supply of clean and fresh ice for optimal product sanitation and customer satisfaction. After gourmet ice, full cubes are the largest ice form. They measure ⁷⁄₈ of an inch in three dimensions and are optimal for serving liquor on the rocks or cocktails.

Suitable for filling satellite bins and fresh-food displays, the Ice-O-Matic CIM0530FA/B1325-60 modular cube ice maker with bin can serve ice to an entire dining room. This air-cooled piece of equipment features fans that move fresh air across the condenser, cooling down the machine. The unit is simple to install and maintain because its whole condenser is inside the machine—additional wiring isn't required.

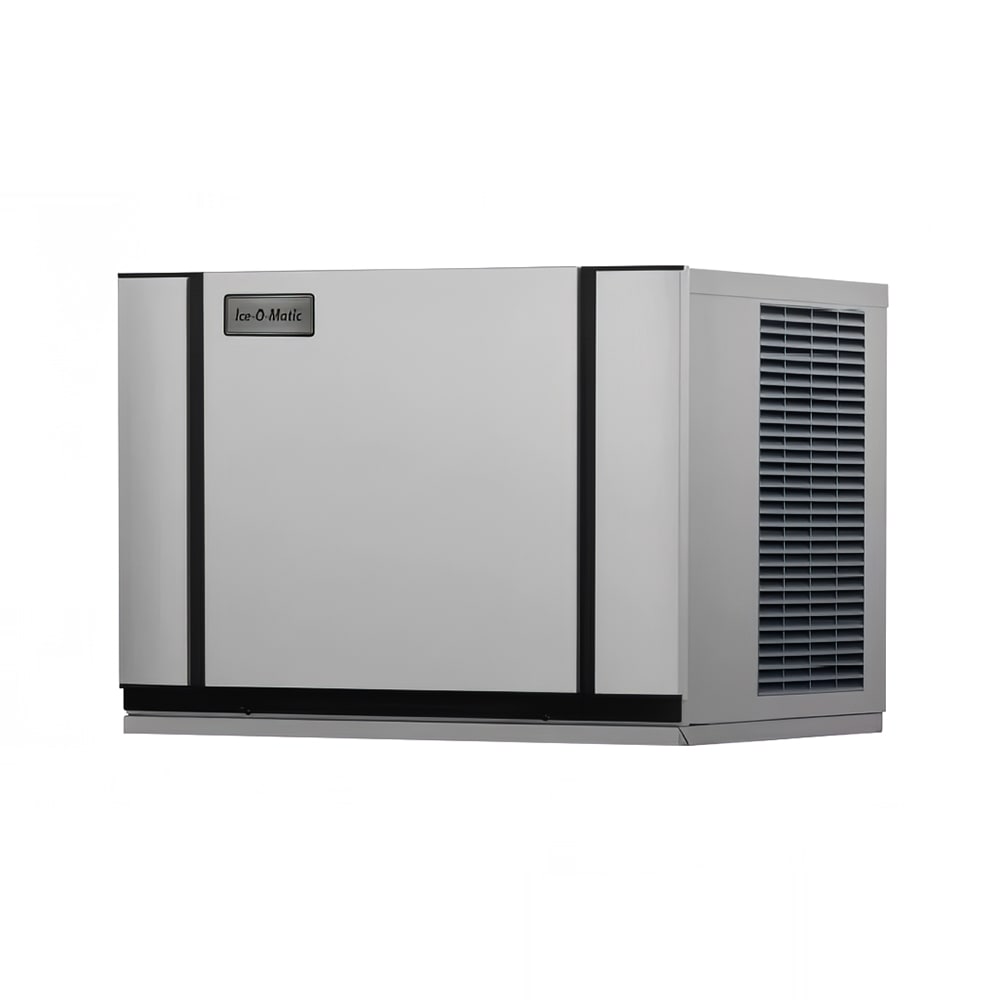

Ice Machine Details

• Part of the Elevation Series™
• Maximum production capacity: 561 lbs. of ice per 24 hours
• AHRI production capacity: 432 lbs. of ice per 24 hours
• Produces full-cube ice
• Eco-friendly construction incorporates BPA-free plastic and recyclable parts
• Plastic foodzone simplifies cleaning
• PURE ICE® antimicrobial protection inhibits bacterial growth
• Smart LED light tells operators when to clean unit
• 1-touch controls facilitate sanitization and descaling
• Dishmachine-safe components snap in and out for simplified cleaning
• Hot air discharges from side and top to inhibit exhaust and optimize installation
• Universal Smart Harness™ control board streamlines installation and servicing
• Digital diagnostics show machine status
• Universal components and common configuration
• Heat displacement: 6,252 BTU

Product Features

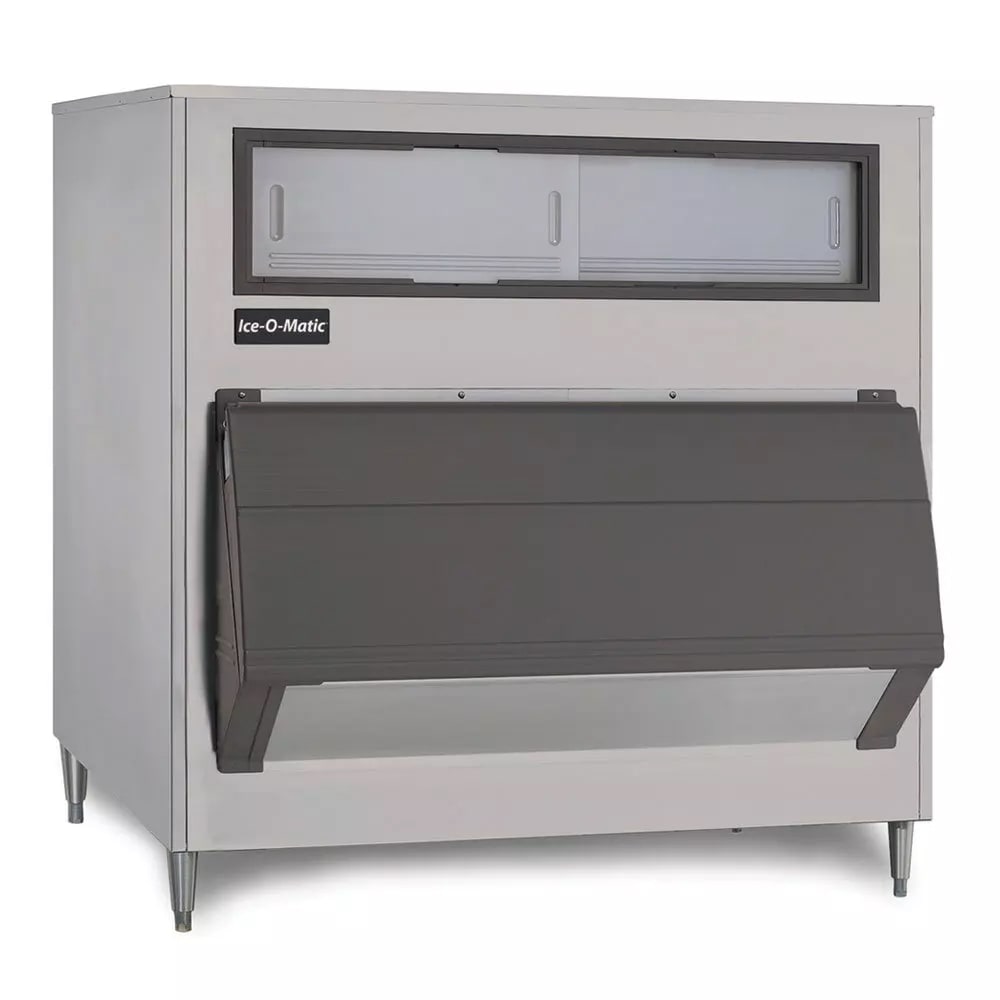

Ice Bin Details

• 1,325-lb. storage capacity
• Made of strong stainless steel
• First-in, first-out ice delivery system
• Poly bin liner designed with corrosion resistance
• Durable door stays open during use
• Ice shield prevents spills and controls flow

Dimensions & Utilities

• Ice machine head: 30.25 in. W x 24.25 in. D x 21.25 in. H
• Ice bin: 56 in. W x 31 in. D x 60 in. H
• 17.8 A, 5.87 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 17.8 amps, cULus, NSF, CE; Ice Bin: 1325 lb storage capacity, 60"W x 31"D x 56"H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty "stay open" door for easy one hand access, ice shield controls flow & reduces spills, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

BPA Free

Contains no chemical Bisphenol A (BPA)

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts

Ice-O-Matic CIM0530FA/B1325-60 Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure

Certifications
