Ice-O-Matic CIM0430HA 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 435 lb/24 hr, Air Cooled, 115v/1ph

To accommodate high-traffic fast food chains, restaurants, and cafes, the Ice-O-Matic CIM0430HAS Elevation Series™ half-cube ice maker can generate as much as 435 pounds of ice in 24 hours when ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit. Half-cube ice displaces a larger amount of liquid than full-cube ice, so it can save the operator money on beverages, and it also cools a drink faster than full-cube ice. To ensure it maintains the right temperatures for large volumes of ice production, it uses R404A refrigerant and is air cooled. For flexible installation, it releases hot air from the top and side.

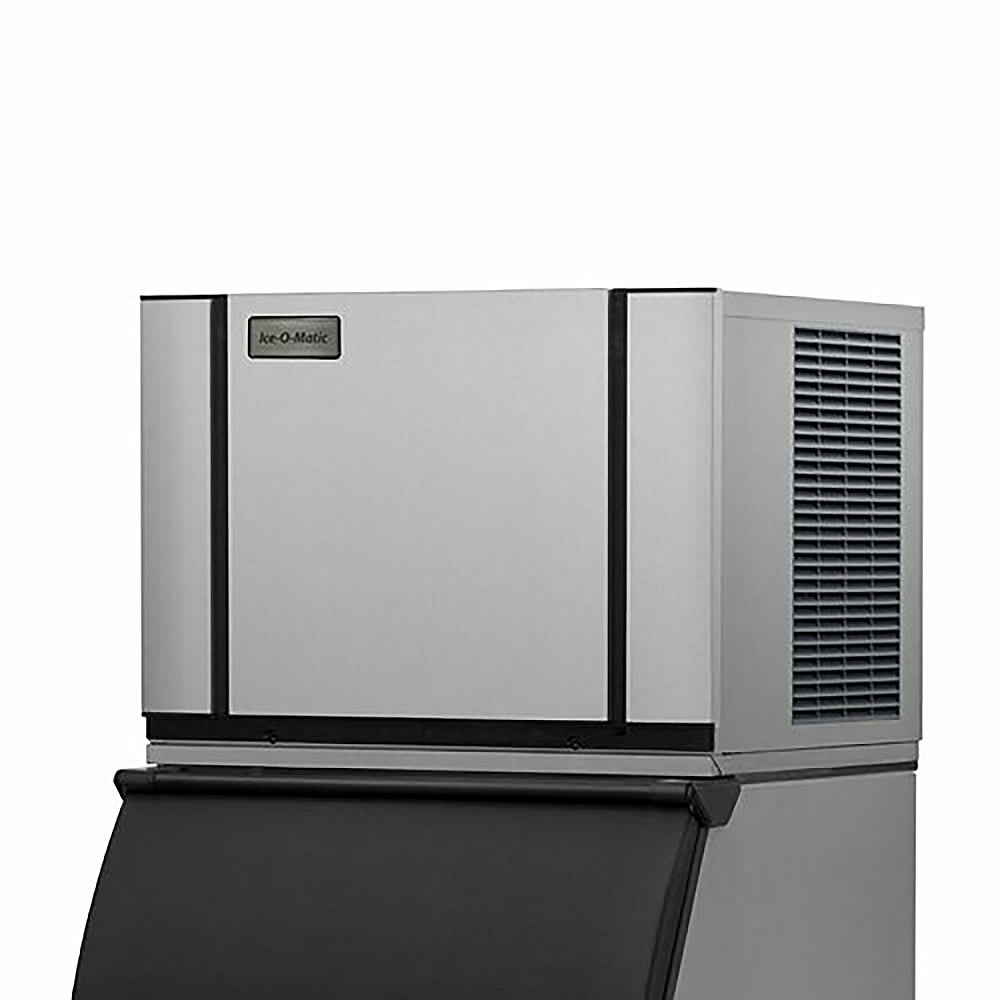

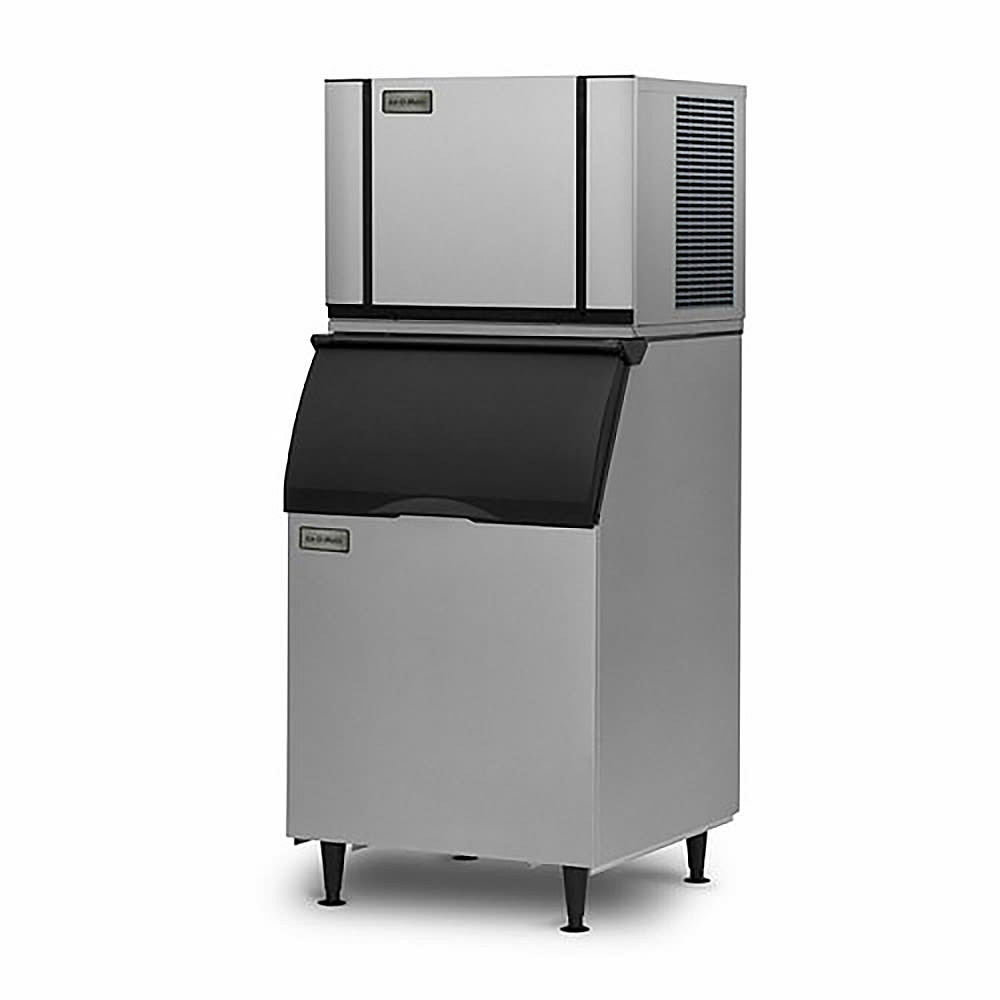

The Ice-O-Matic CIM0430HAS ice machine head measures 30.25 inches wide by 24.25 inches deep by 21.25 inches high to fit atop an ice storage bin (sold separately). To ensure internal components are sanitary, its smart LED light displays machine status and indicates when it needs to be cleaned. It can be sanitized and descaled with the one-touch control, while Agion® antimicrobial built into the key components slows bacterial growth until the next cleaning. Its components can be removed for washing in a dishmachine, and its plastic food zone can be wiped down quickly because it doesn't have any hard-to-reach corners. For simplified installation, it is a self-contained unit, and its Universal Smart Harness™ control board provides digital diagnostics to streamline servicing.

Product Details

• Maximum daily ice production: 435 lbs.
• AHRI-certified daily ice production: 320 lbs.
• Produces half-cube ice
• Half-cube ice dimensions: ³⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Self-contained condenser
• Air cooled with dual exhaust mechanism
• R404A refrigerant
• Smart LED light for machine status and cleaning requirements
• 1-touch controls for sanitization and descaling
• Built-in Agion antimicrobial protection
• Easy-to-clean plastic food zone
• Dishwasher-safe, BPA-free removable components in food zone
• Universal Smart Harness control board for diagnostics and installation information
• Ice bin sold separately
• Operating ambient temperature range: 50-100 degrees F
• Operating water temperature range: 40-100 degrees F
• Ice maker water pressure: 20-80 PSI
• 6-in. clearance required for air intake and exhaust
• 5,100-BTU heat transfer capacity

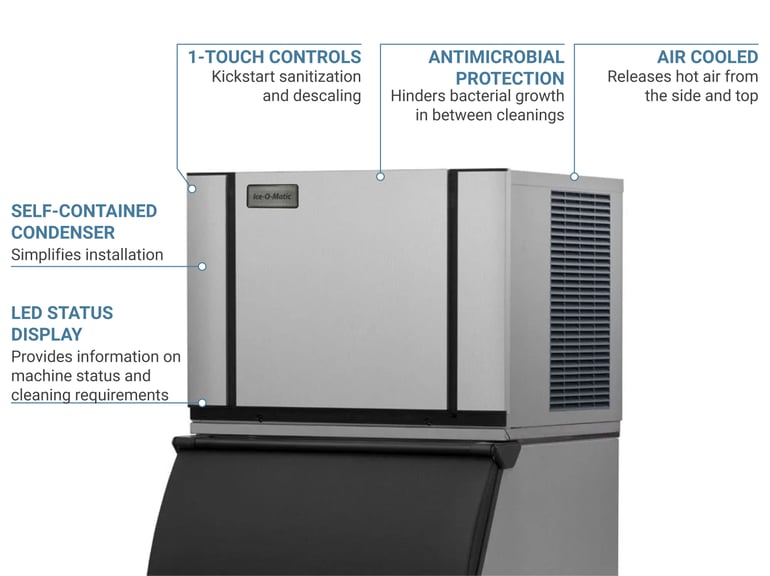

Product Features

Dimensions & Utilities

• 30¹/₄ in. W x 24¹/₄ in. D x 21¹/₄ in. H
• 11 A, 5.43 kW
• 115 V/60 Hz/1 ph
• Hole for electrical connections: ⁷⁄₈ in.
• Electrical connection junction box: ⁷⁄₈ in.

*Free shipping on Ice-O-Matic CIM0430HA within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker with SafeIce add-on, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30 1/4"W, approximately 435 lb production/24 hours at 70°/50° (320 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, ENERGY STAR®, BPA Free

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator & Compressor Parts
