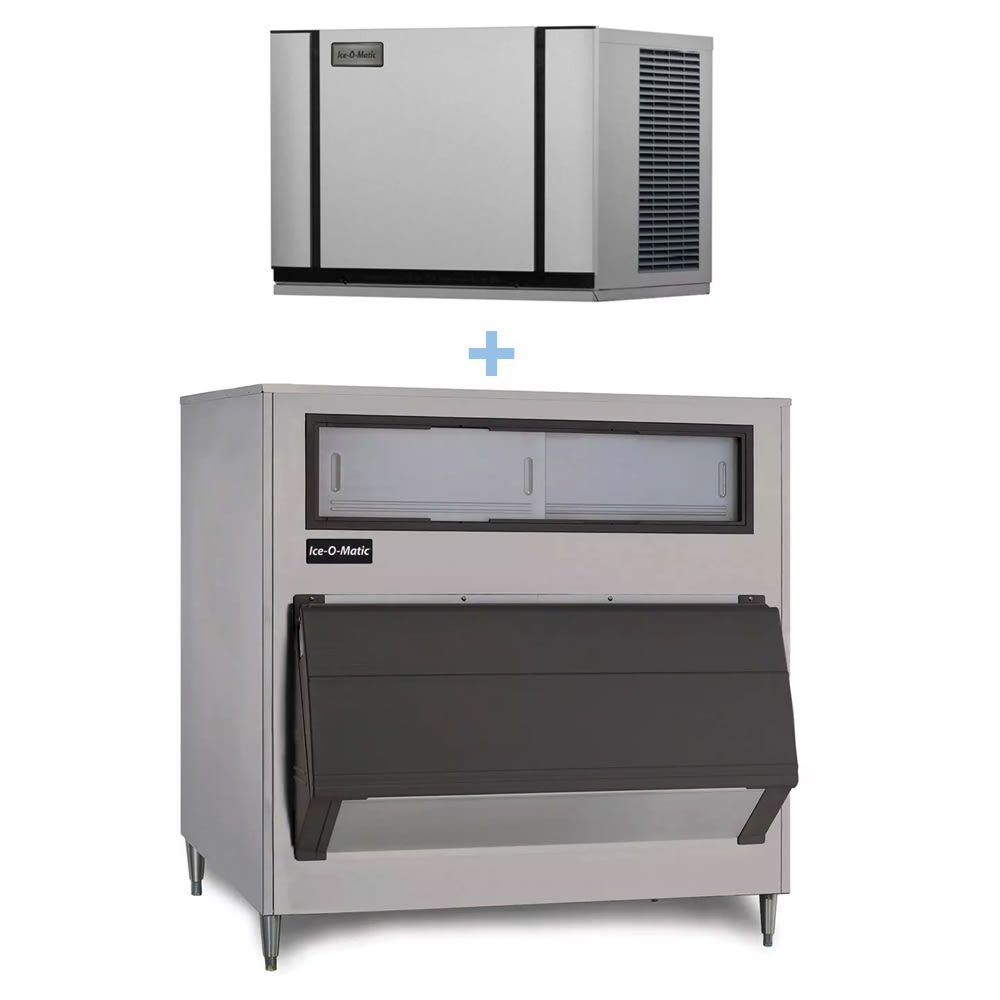

Ice-O-Matic CIM0430HA/B1600-60 435 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 1660 lb Storage, Air Cooled, 115v

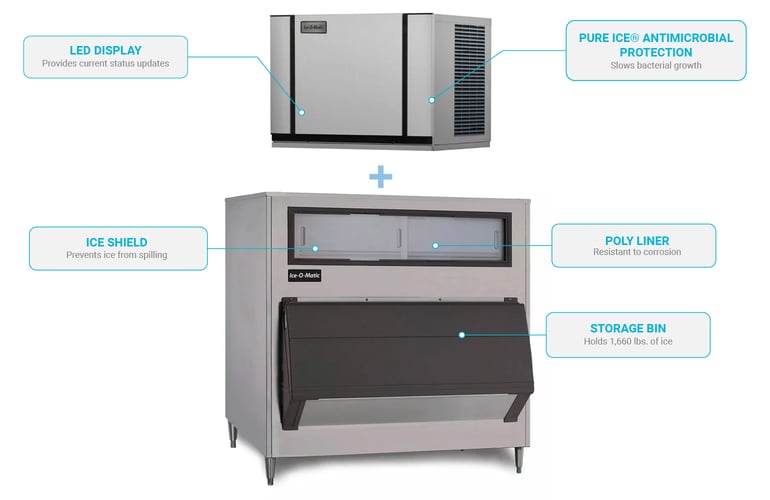

To streamline installation, the Ice-O-Matic CIM0430HA/B1600-60 ice maker with bin has an air-cooled, self-contained condenser. Monitoring is enabled on the LED display, which provides status updates throughout the day, and to descale and sanitize the unit, users simply push a button. slowing bacterial growth, the ice machine is protected with PURE ICE® antimicrobial. This unit makes as much as 435 pounds of half-cube ice per day.

The Ice-O-Matic CIM0430HA/B1600-60 half-cube ice machine with bin has a heavy-duty door and a durable, rust-resistant stainless steel construction. While employees retrieve ice, the door can be propped open, and the bin holds as much as 1,660 pounds. To prevent ice from spilling, an ice shield controls the flow, and to protect against corrosion, the bin has a poly liner. Made of stainless steel, this unit is durable enough for high-volume use.

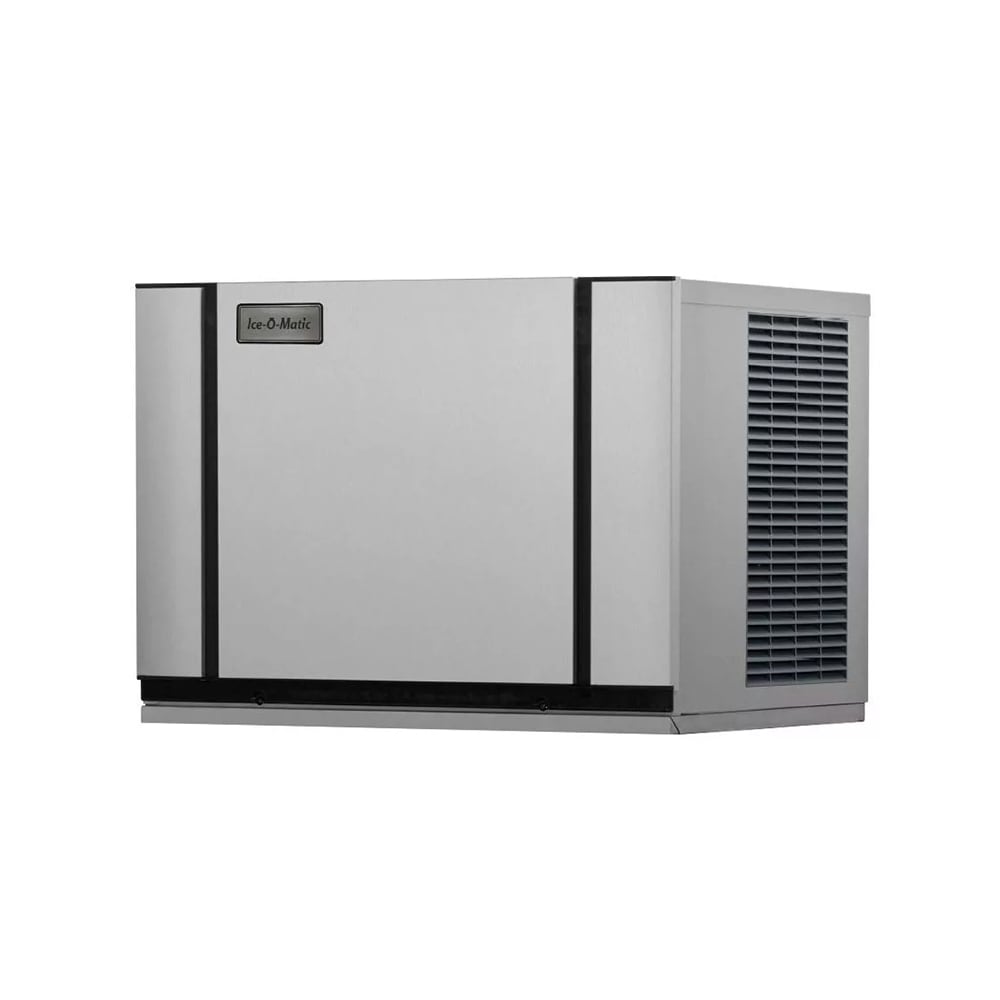

Ice Maker Details

• Part of the Elevation Series™
• 435-lb. daily ice production
• 320-lb. AHRI daily ice production at 70-90 degrees F
• Makes half-size cubes
• Half-size cube size: ³⁄₈ in. W x ⁷⁄₈ in. D x ⁷⁄₈ in. H
• PURE ICE antimicrobial slows germ spread
• LED status display can be monitored
• Sanitizing and descaling activated with 1 button
• Plastic food zone with removable, dishwasher-safe parts
• Self-contained condenser is air cooled
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F
• 5,100-BTU heat transfer capacity

Ice Bin Details

• 1,660-lb. application capacity
• Strong stainless steel construction
• Heavy-duty door stays open while ice is scooped
• Interior poly liner resists corrosion
• Ice shield reduces spillage
• First-in, first-out ice control
• Universal adapter kit

Dimensions & Utilities

• Ice maker dimensions: 30¹/₄ in. W x 24¹/₄ in. D x 21¹/₄ in. H
• Ice bin dimensions: 60 in. W x 31 in. D x 65 in. H
• 11 A, 5.43 kW
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Ice-O-Matic CIM0430HA/B1600-60 within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30-1/4" W, approximately 435 lb production/24 hours at 70°/50° (320 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, ENERGY STAR®, BPA Free

Ice Bin, 1660 lb storage capacity, 60"W x 31"D x 65"H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty "stay open" door for easy one hand access, ice shield controls flow & reduces spills, includes universal adapter kit, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts
