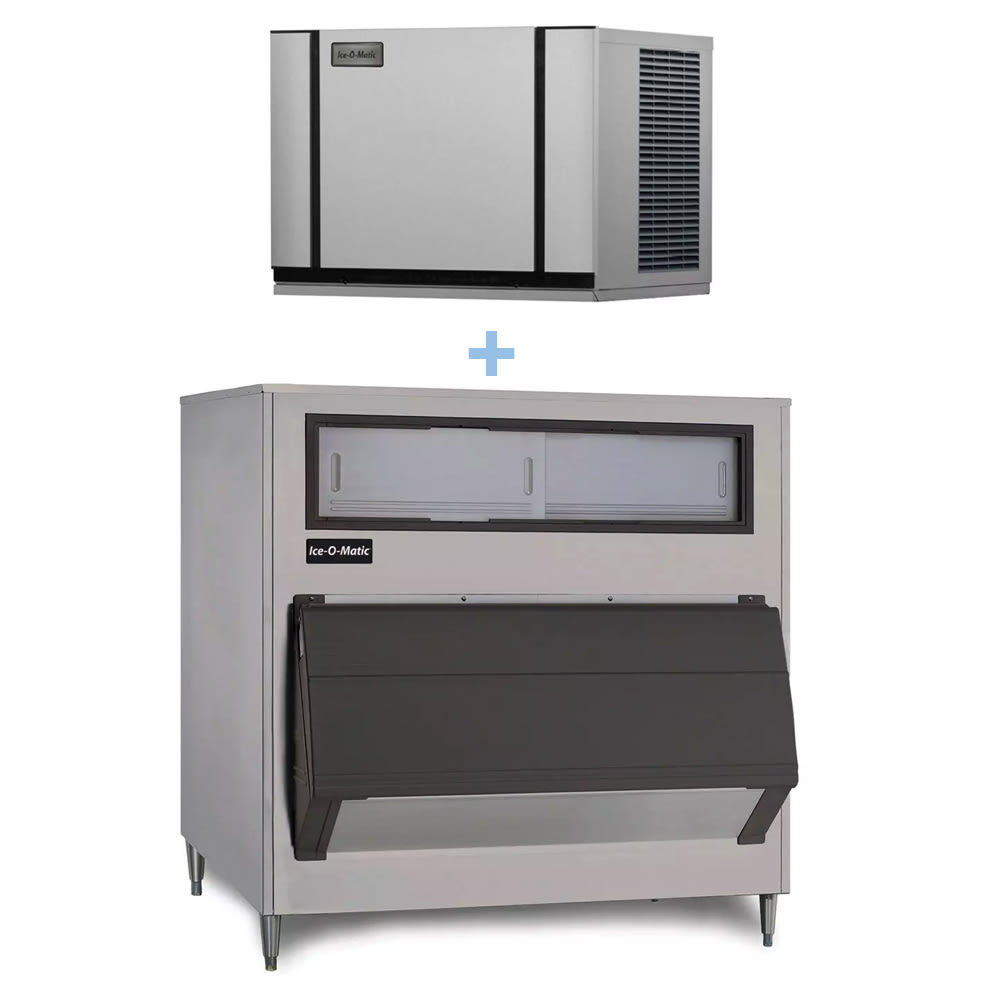

Ice-O-Matic CIM0430FA/B1000-48 435 lb Elevation Series™ Full Cube Ice Machine w/ Bin - 1000 lb Storage, Air Cooled, 115v

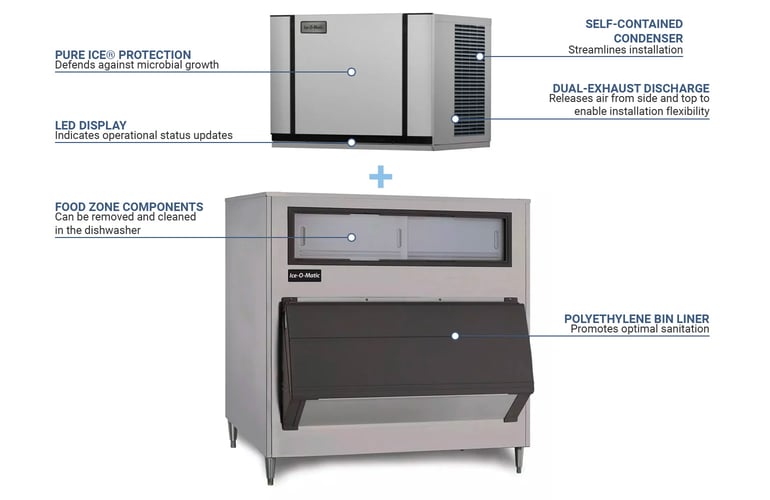

Operators can monitor the status of the Ice-O-Matic CIM0430FA/B1000-48 ice maker’s head on its clear LED display. With built-in PURE ICE® antimicrobial protection, it inhibits the growth of bacteria, mold, and other harmful microbes. To simplify cleaning and optimize performance, it features one-touch controls for descaling and sanitizing. This unit is air cooled and uses a simple-to-install, self-contained condenser.

Suitable for high-volume operations, the Ice-O-Matic CIM0430FA/B1000-48 ice machine’s bin can accommodate as much as 1,000 pounds of ice. Its shield manages flow to prevent spills, and its foam insulation slows melting to reduce waste. A durable unit, it’s made of long-lasting, corrosion-resistant stainless steel.

Ice Maker Details

• Part of the Elevation Series™
• 435-lb. maximum daily ice production
• 320-lb. AHRI daily ice production
• Makes full-size cubes
• Cube size: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• 1-touch descaling and sanitizing feature
• Monitoring enabled with LED status display
• Plastic food zone with dishwasher-safe components
• Antimicrobial PURE ICE protection
• Self-contained condenser
• Air cooled
• Dual-exhaust top/side air discharge
• Cools with R404A refrigerant
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F

Ice Bin Details

• 1,000-lb. application capacity
• Rust- and dent-resistant stainless steel construction
• Sanitary polyethylene interior liner
• Foam insulation slows ice melting
• Ice shield prevents overflow and reduces spills
• 1-handed access enabled with stay-open door
• First-in, first-out management system optimizes ice freshness

Product Features

Dimensions & Utilities

• Ice maker: 30¹/₄ in. W x 24¹/₄ in. D x 21¹/₄ in. H
• Ice bin: 48 in. W x 31 in. D x 56 in. H
• 11 A
• 115 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic CIM0430FA/B1000-48 within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30-1/4" W, approximately 435 lb production/24 hours at 70°/50° (320 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free, ENERGY STAR®

Ice Bin, 1000 lb storage capacity, 48"W x 31"D x 56"H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty "stay open" door for easy one hand access, ice shield controls flow & reduces spills, includes universal adapter kit, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts

Ice-O-Matic CIM0430FA/B1000-48 Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure
