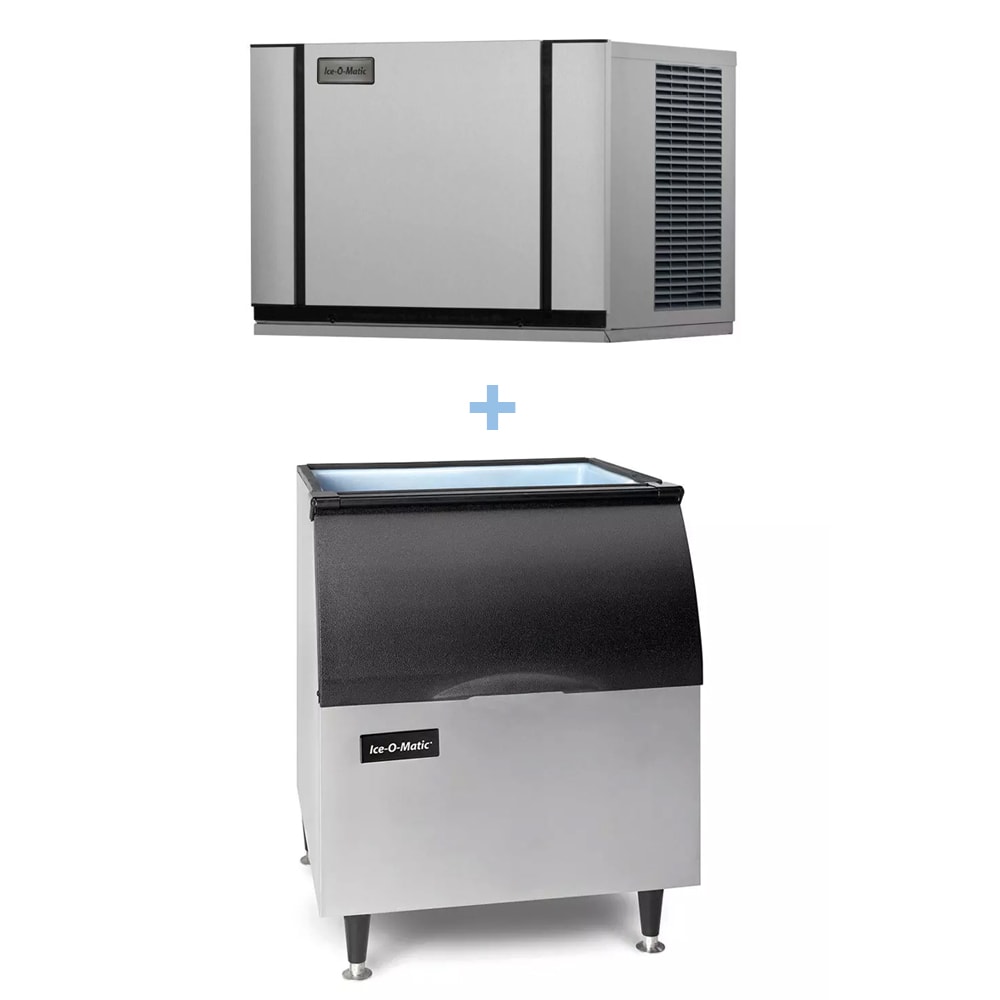

Ice-O-Matic CIM0330HA/B40PS 313 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 344 lb Storage, Air Cooled, 115v

An air-cooled unit, the Ice-O-Matic CIM0330HA/B40PS ice machine with bin features a quick-install, self-contained condenser. Its LED display alerts users of status updates, and its one-touch descaling and sanitizing controls optimize performance and cleanliness. To further streamline cleaning, its plastic food zone is equipped with removable, dishwasher-safe components.

To preserve cold air and lengthen the life of stored ice, the Ice-O-Matic CIM0330HA/B40PS ice maker’s bin is insulated with foam. Its aluminum exterior defends against corrosion, and its polyethylene interior liner can be quickly wiped clean. This unit accommodates as much as 344 pounds of ice and rests on 6-inch legs.

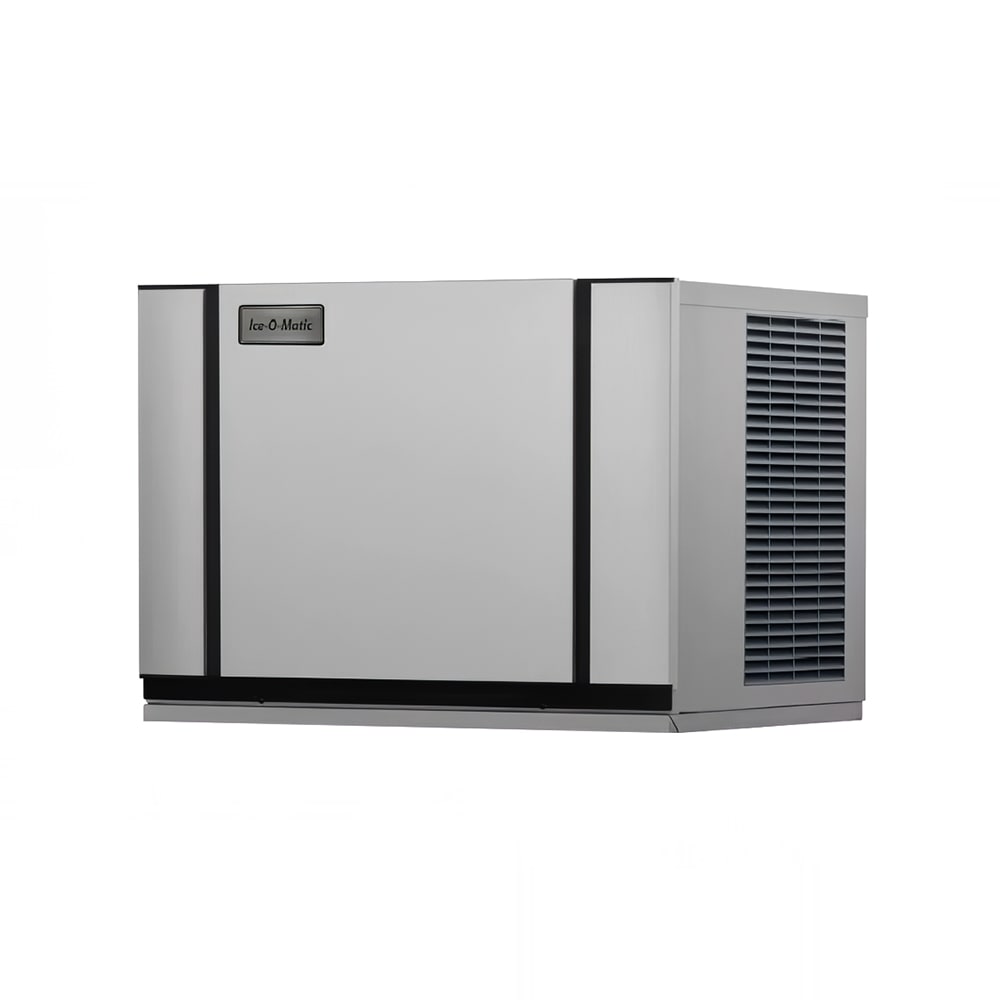

Ice Maker Details

• Part of the Elevation Series™
• 305-lb. maximum daily ice production
• 230-lb. AHRI daily ice production
• Makes half-size cubes
• Cube size: ³⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• 1-touch controls for sanitizing and descaling
• LED display alerts users of status updates
• Plastic food zone can be wiped clean
• Removable, dishmachine-safe food zone components
• Protected with antimicrobial PURE ICE
• Self-contained condenser
• Air cooled
• Dual-exhaust system discharges air from side and top
• Uses R404A refrigerant
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F

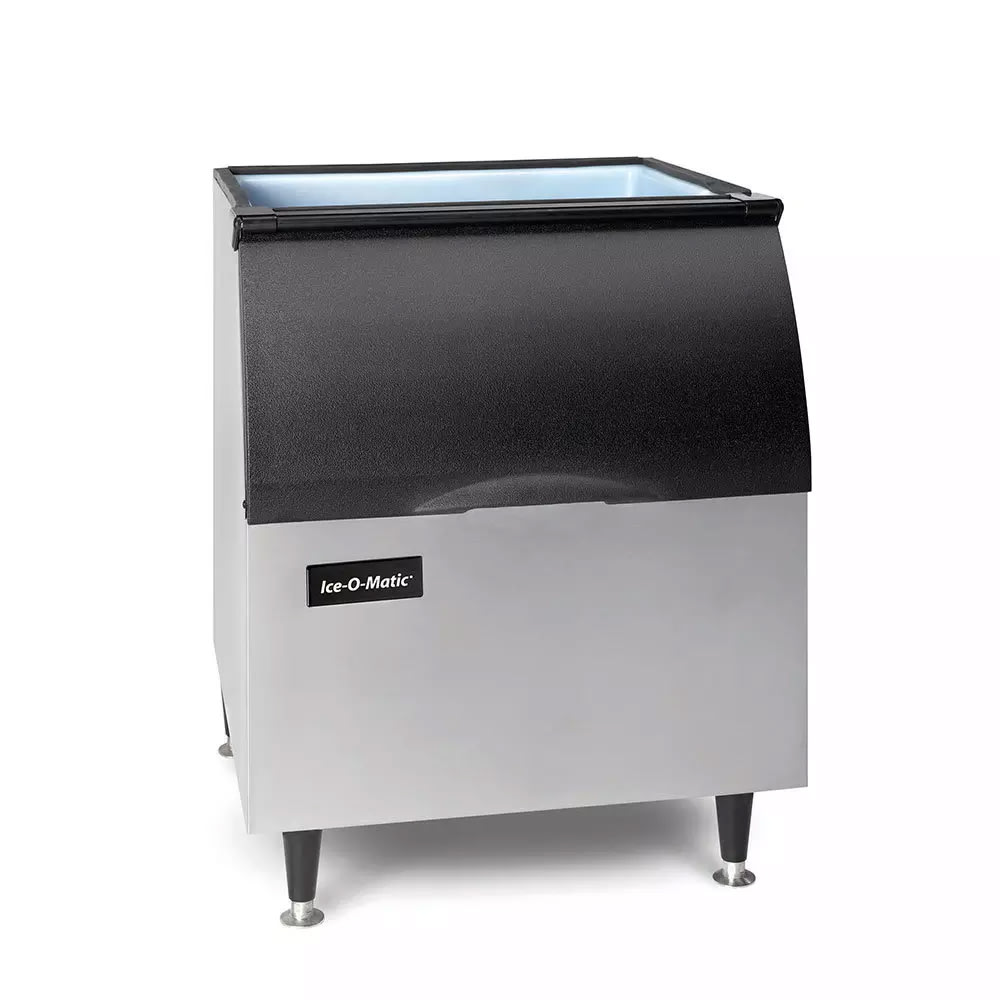

Ice Bin Details

• 344-lb. application capacity
• Foam insulation preserves temperatures
• Polyethylene interior liner streamlines cleaning
• Exterior is made of corrosion-resistant aluminum
• Sloped front door is top hinged
• Elevated on 6-in. legs

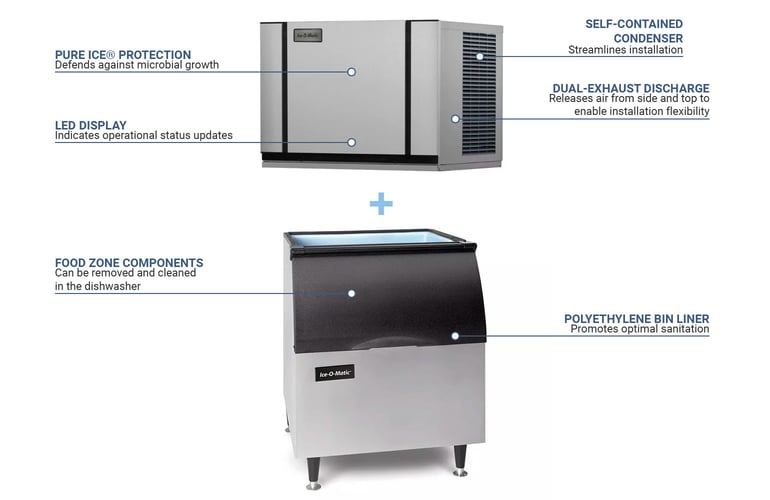

Product Features

Dimensions & Utilities

• Ice maker: 30¹/₄ in. W x 24¹/₄ in. D x 21¹/₄ in. H
• Ice bin: 30 in. W x 31 in. D x 37¹/₂ in. H
• 11 A
• 115 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic CIM0330HA/B40PS within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30-1/4" W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

Ice Bin, 344 lb storage capacity, 30"W x 31"D x 37-1/2"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts
