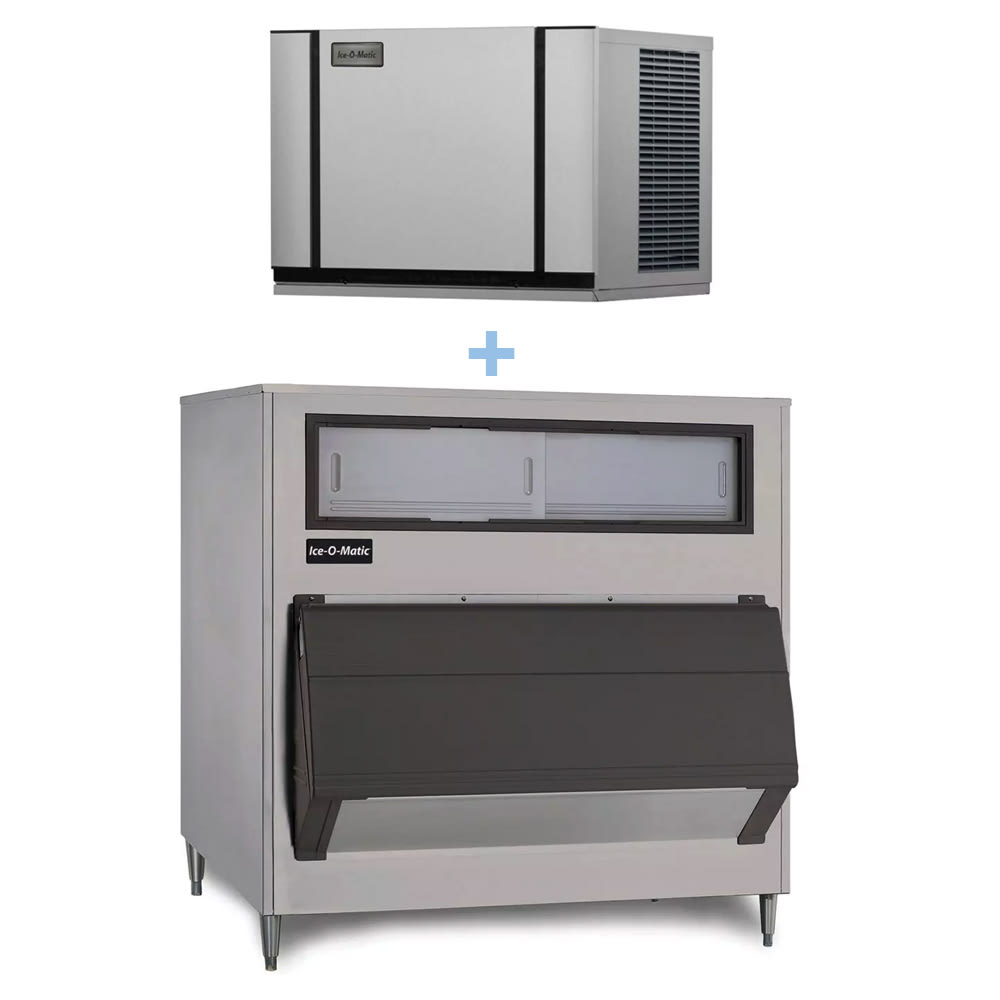

Ice-O-Matic CIM0330HA/B1000-48 313 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 1000 lb Storage, Air Cooled, 115v

Using R404A refrigerant and a self-contained condenser, the Ice-O-Matic CIM0330HA/B1000-48 ice maker bin combo produces a maximum of 230 to 305 pounds of ice per day. Its dual-exhaust system enables flexibility in installation, discharging air from the top as well as the side. To optimize cleanliness and performance, the unit features one-touch controls for sanitizing and descaling.

Made of rust- and scratch-resistant stainless steel, the Ice-O-Matic CIM0330HA/B1000-48 ice machine’s bin is suited for rigorous use. It utilizes a first-in, first-out management system to ensure ice remains fresh, and its ice shield controls flow to reduce the risk of wasteful spills. Accommodating as much as 1,000 pounds of ice, this bin feature a stay-open door to ease one-handed ice removal.

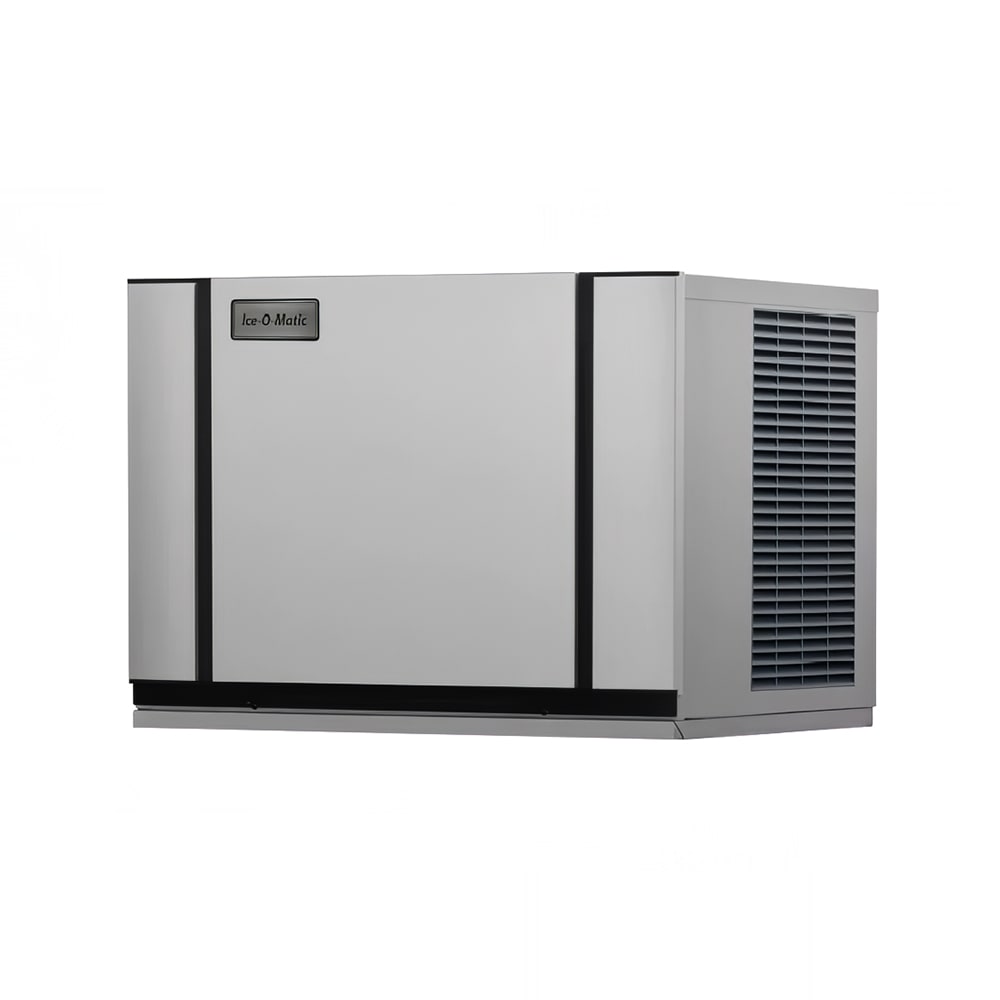

Ice Maker Details

• Part of the Elevation Series™
• 305-lb. maximum daily ice production
• 230-lb. AHRI daily ice production
• Makes half-size cubes
• Cube size: ³⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• LED status display
• 1-touch descaling and sanitizing feature
• Dishwasher-safe components in plastic food zone streamline cleaning
• Built-in PURE ICE® antimicrobial protection
• Air cooled
• Dual-exhaust discharges air from side and top
• Self-contained condenser
• Uses R404A refrigerant
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F

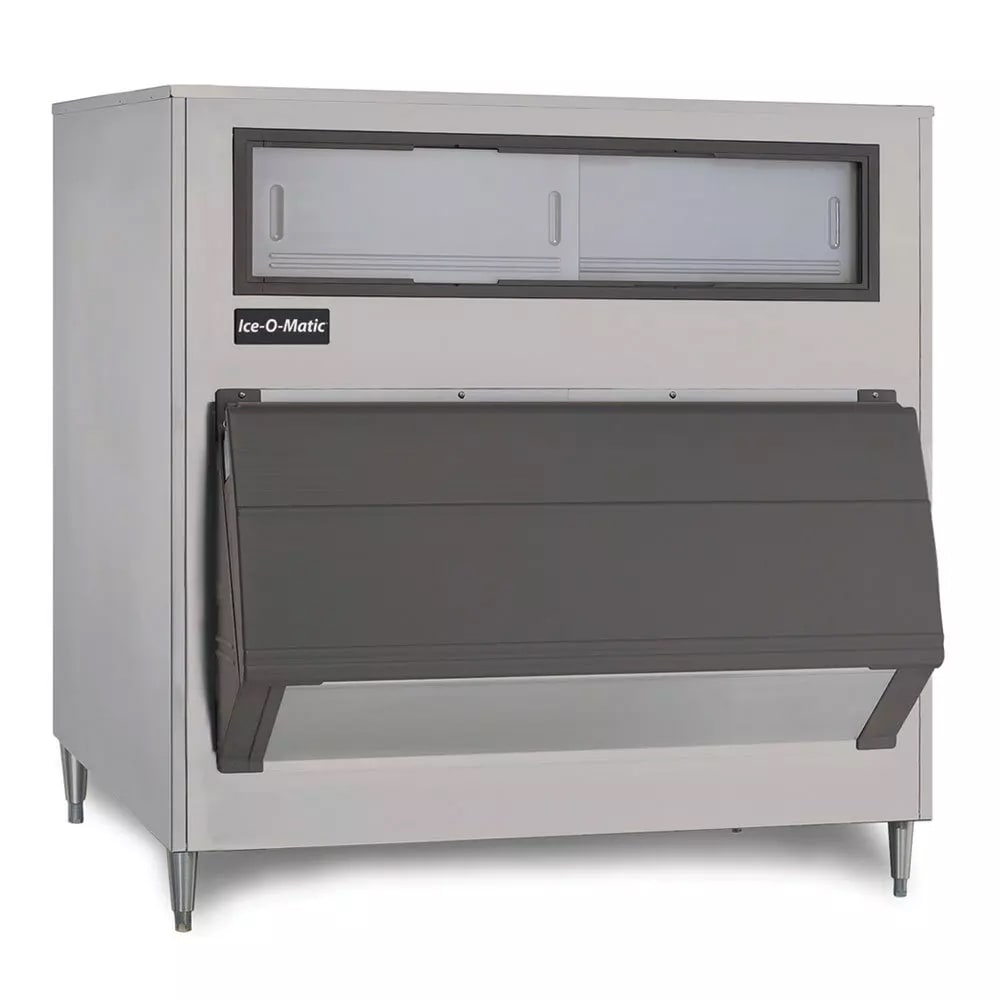

Ice Bin Details

• 1,000-lb. application capacity
• Stay-open door enables 1-handed access
• Resilient stainless steel construction
• Ice shield controls flow and reduces spills
• First-in, first-out management system maintains ice freshness
• Sanitary polyethylene interior liner resists corrosion

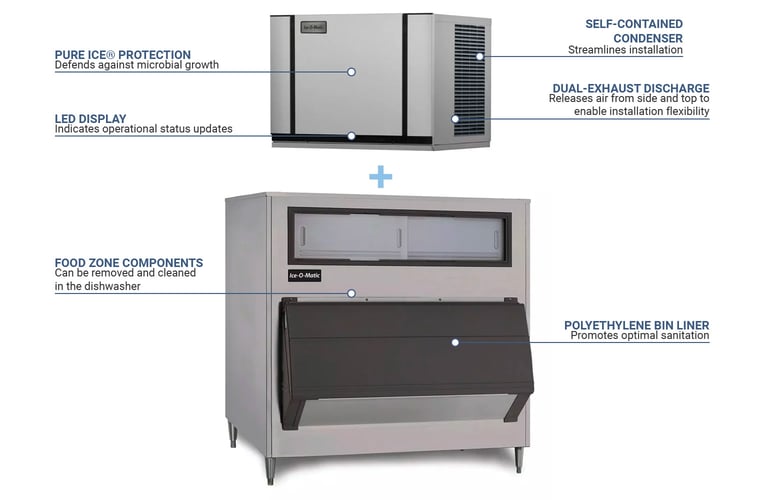

Product Features

Dimensions & Utilities

• Ice maker: 30¹/₄ in. W x 24¹/₄¹/₄ in. D x 21¹/₄ in. H
• Ice bin: 48 in. W x 31 in. D x 56 in. H
• 11 A
• 115 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic CIM0330HA/B1000-48 within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30-1/4" W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

Ice Bin, 1000 lb storage capacity, 48"W x 31"D x 56"H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty "stay open" door for easy one hand access, ice shield controls flow & reduces spills, includes universal adapter kit, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts
