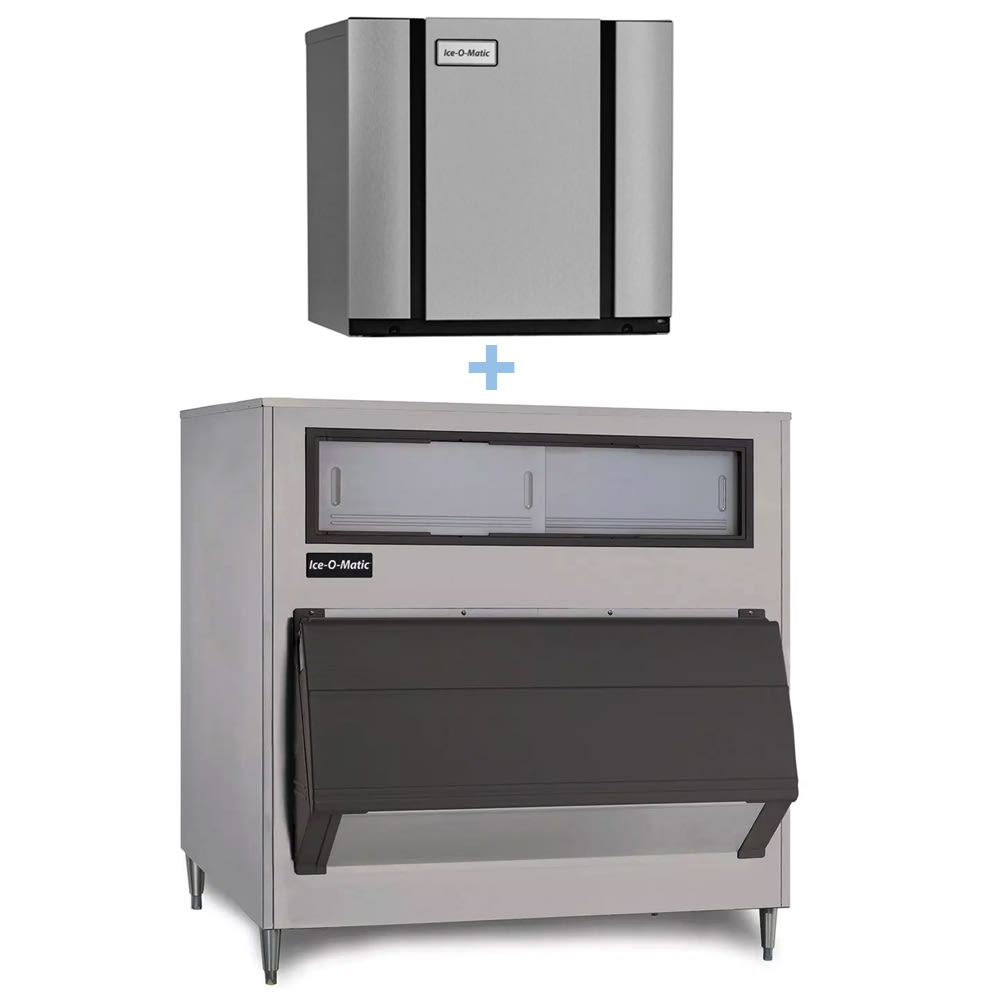

Ice-O-Matic CIM0320FA/B1325-60 313 lb Elevation Series™ Full Cube Ice Machine w/ Bin - 1325 lb Storage, Air Cooled, 115v

To facilitate installation, the Ice-O-Matic CIM0320FA/B1325-60 ice maker with bin has a self-contained condenser that reduces the risk of cross contamination. For a view of the current operating status, it has an LED display, and to slow the growth of microbes, the head is coated with PURE ICE® antimicrobial protection. The interior food zone components are removable for dishwasher use, and the unit itself can be sanitized with the push of a button.

The Ice-O-Matic CIM0320FA/B1325-60 full-cube ice maker with bin makes a maximum of 313 pounds of ice daily, and the bin can hold 1,325 pounds of ice. The heavy-duty door can be opened with a single hand, and it stays open to prevent it from slamming while employees retrieve ice. For corrosion resistance, the bin has a poly liner, and the exterior is made of stainless steel to resist dents, scratches, and scrapes.

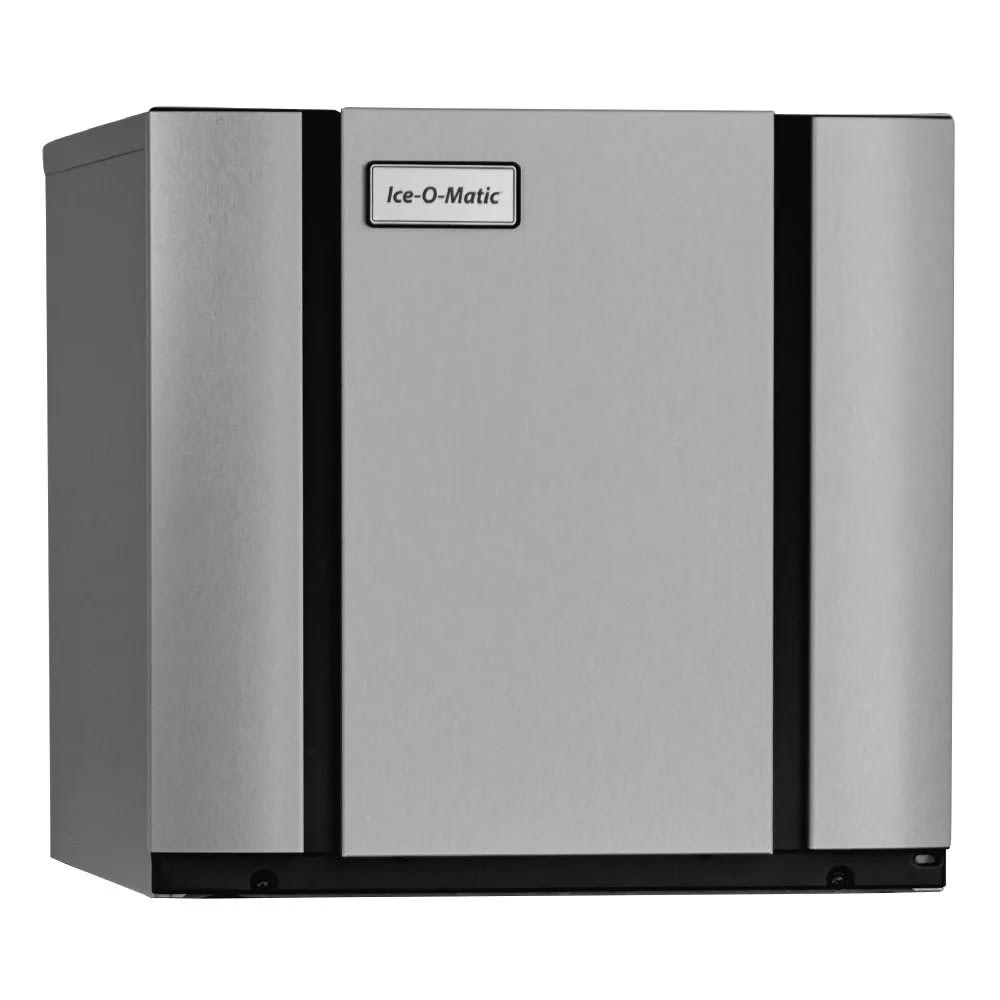

Ice Maker Details

• Part of the Elevation Series™
• 313-lb. maximum daily ice production
• 244-lb. daily ice production at 70-90 degrees F
• Makes full-size cubes
• Cube size: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Bacteria growth slowed with PURE ICE antimicrobial protection
• Self-contained, air-cooled condenser
• LED screen provides current status
• Sanitizing and descaling with 1 touch
• Food zone components are removable for dishwasher cleaning
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F

Product Features

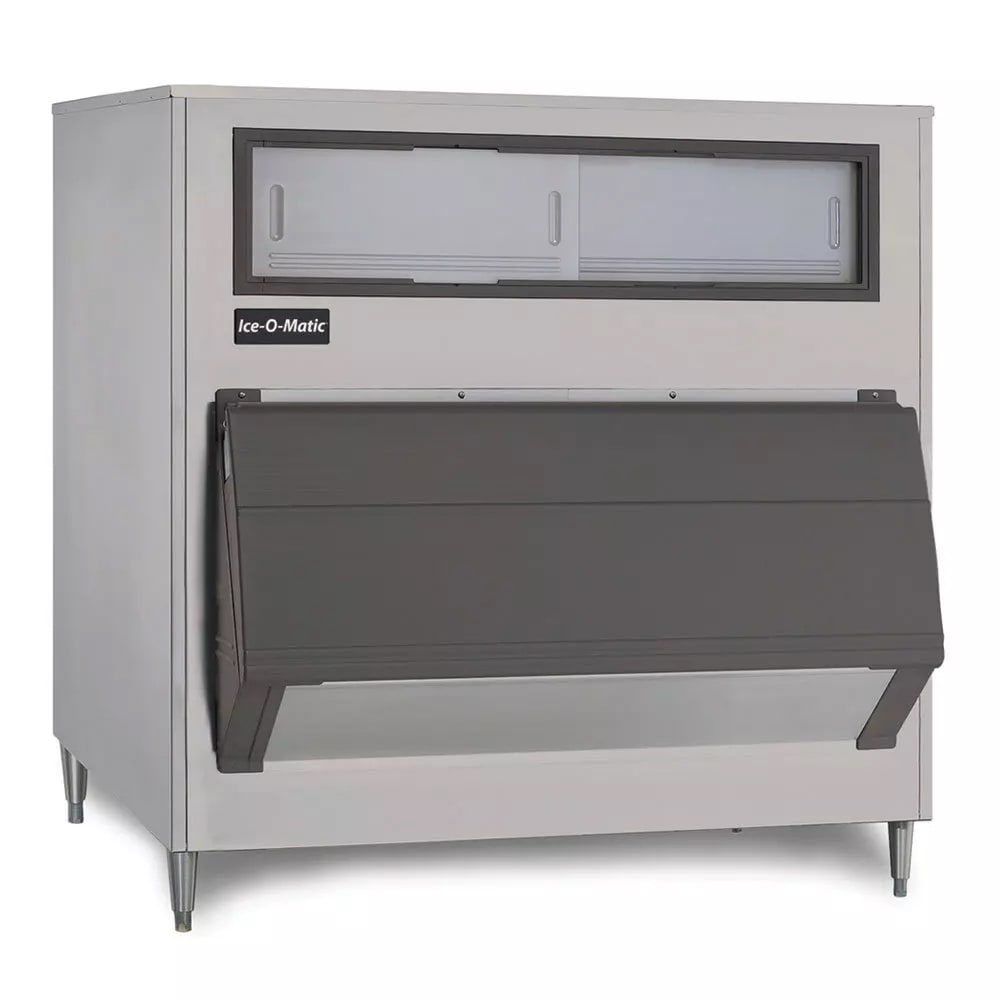

Ice Bin Details

• 1,325-lb. application capacity
• First-in, first-out ice control
• Corrosion-resistant poly liner
• Stay-open door facilitates ice retrieval
• Ice shield reduces spillage
• Made of rust-resistant stainless steel
• Universal adapter kit

Dimensions & Utilities

• Ice maker: 22¹/₂ in. W x 24¹/₄ in. D x 21¹/₄ in. H
• Ice bin: 60 in. W x 31 in. D x 56 in. H
• 11 A
• 115 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic CIM0320FA/B1325-60 within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22-1/4" W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), full-size cubes, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

Ice Bin, 1325 lb storage capacity, 60"W x 31"D x 56"H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty "stay open" door for easy one hand access, ice shield controls flow & reduces spills, includes universal adapter kit, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts
