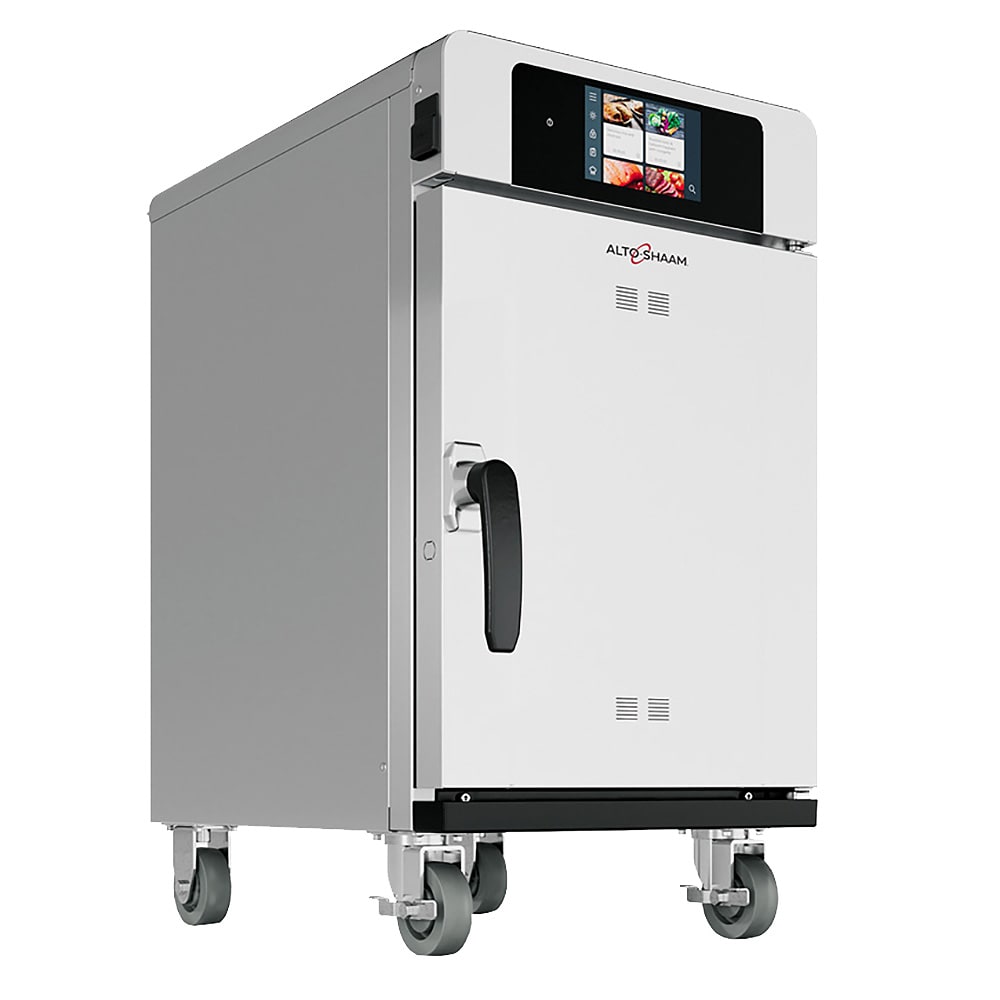

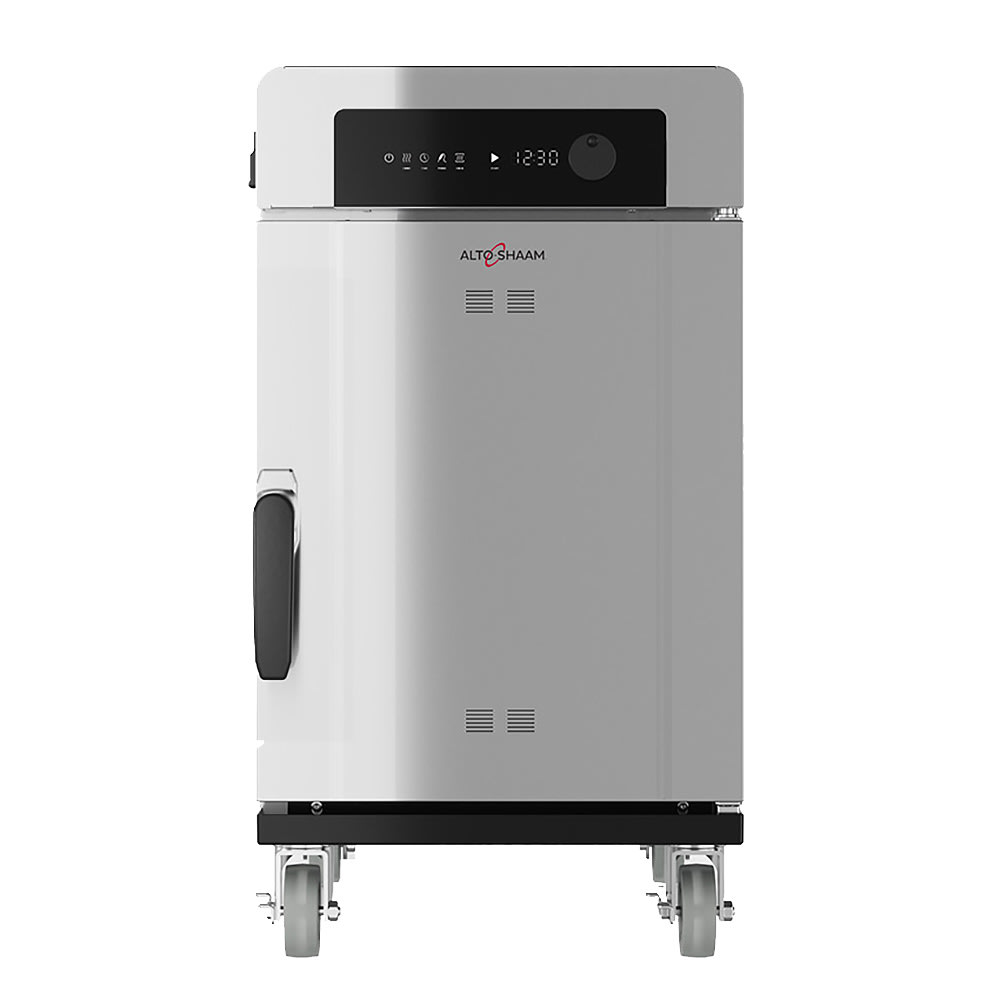

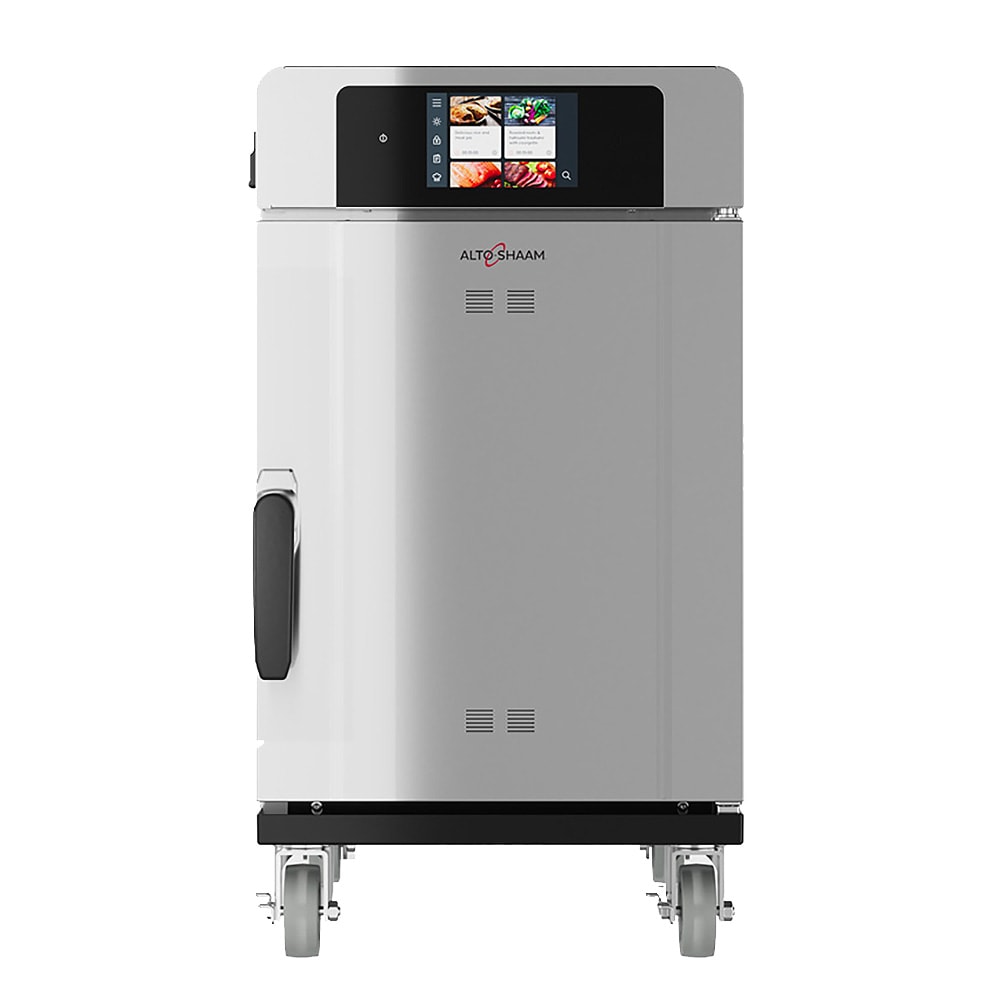

Alto-Shaam 500-TH-DLX Half Height Halo Heat® Cook and Hold Oven w/ Deluxe Controls, 120v
Typically ships in 3 - 4 weeks
$9,043.20 /Each
Login or add to cart for more information!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Alto-Shaam 500-TH-DLX Description
The Alto-Shaam 500-TH-DLX cook-and-hold oven's interior measures 143⁄8 inches wide by 211⁄2 inches deep by 201⁄16 inches high, while its three wire shelves can hold five full-size pans or 10 half-size pans. For even results, its gentle, radiant Halo Heat® technology surrounds food with warm air. In order to preserve food texture, this system doesn't use fans, high-heat elements, or added humidity. To accommodate many types of product, it generates and maintains temperatures between 200 and 325 degrees Fahrenheit and holding temperatures between 85 and 205 degrees Fahrenheit. Its single-point probe gauges internal product temperature, so if it falls within the programmed range, the unit converts automatically from cook mode to hold mode.
To streamline operation, the Alto-Shaam 500-TH-DLX cook-and-hold oven's deluxe controls enable users to manipulate temperatures, program recipes, collect HACCP data, and manage the oven via remote, cloud-based software. These controls also include SureTemp™ heat recovery, which compensates for heat loss when the door is open for short periods of time. The cabinet's 181⁄16-inch-wide by 281⁄2-inch-deep by 335⁄8-inch-tall structure is waterless and ventless, meaning it doesn't require a water hookup or traditional kitchen hood to simplify installation. Fitted with 31⁄2-inch casters, this stainless steel unit can be moved for serving, maintenance, and cleaning as needed.
Product Details
- Half-height, reach-in layout with 1 section
- Accommodates (5) 20-in. x 12-in. x 21⁄2-in. pans or (10) 10-in. x 12-in. x 21⁄2-in. pans
- Maximum weight: 40 lbs.
- Maximum volume: 30 qt.
- 3 wire shelves
- 2 stainless steel side racks with 11 pan positions spaced on 13⁄8-in. centers
- Cooking temperature range: 200-325 degrees F
- Holding temperature range: 85-205 degrees F
- Halo Heat technology system doesn't use fans, added humidity, or high-heat elements
- Deluxe controls with programmable touchscreen, HACCP data collection, SureTemp heat recovery, and ChefLinc™
- Straight, single-point probe is removable
- Durable, corrosion- and rust-resistant stainless steel construction
- Solid door
- 31⁄2-in. casters (2 swivel and brake and 2 are rigid)
- Interior drip tray and pan with drain
- Removable exterior drip tray
- 2-in. clearances required for top, left, and right
- 3-in. clearance required for rear
- 608 BTUs

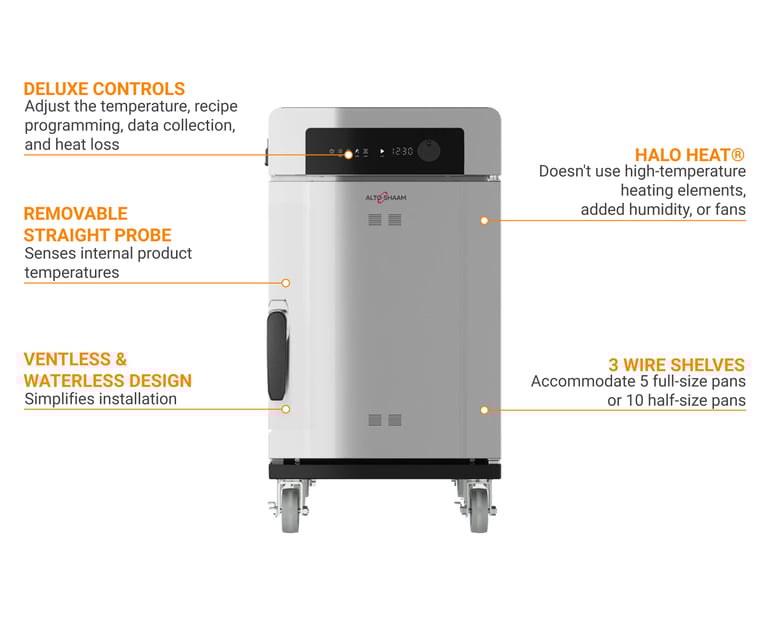

Product Features
Dimensions & Utilities
- Interior: 143⁄8 in. W x 211⁄2 in. D x 201⁄16 in. H
- Overall: 181⁄16 in. W x 281⁄2 in. D x 335⁄8 in. H
- 16 A, 1.9 kW
- 120 V/60 Hz/1 ph
*Free shipping on Alto-Shaam 500-TH-DLX within the 48 contiguous states.
From The Manufacturer
Halo Heat® Cook & Hold Oven, electric, low temperature, 40 lb. capacity - (5) 12" x 20" x 2-1/2" full-size pans, SureTemp heat recovery system, deluxe controls, probe, programmable recipes, (2) stainless steel side racks with (11) pan positions spaced at 1-3/8" centers, (1) exterior drip tray with removable pan, right-hinged solid door, 3-1/2" casters (2 rigid, 2 swivel with brake), EcoSmart®, cULus, UL EPH Classified, CE, IPX4, TUV NORD, EAC, N11942
*Image may not depict product color, inclusions or accessories.
Alto-Shaam 500-TH-DLX Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Alto-Shaam |
| Base | Casters |
| Capacity (lbs) | 40 |
| Capacity Rating | Low (Up to 100 lbs) |
| Cavities | 1 |
| Controls | Touch Screen |
| Depth (in) | 24.75 |
| Door Construction | Solid Only |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 27.88 |
| Hertz | 60 |
| Interior Configuration | Shelves |
| Interior Construction | Stainless Steel |
| kW | 1.9 |
| NEMA | 5-20P |
| No. of Doors | 1 |
| Pan Capacity | 5 |
| Phase | 1 |
| Product | Cook and Hold Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | Halo Heat® |
| Shelving Type | Wire |
| Size | Half Size |
| Special Features | Ventless |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor; Lifetime Heating Element |
| Width (in) | 17.81 |
| Weight | 250.00 |
