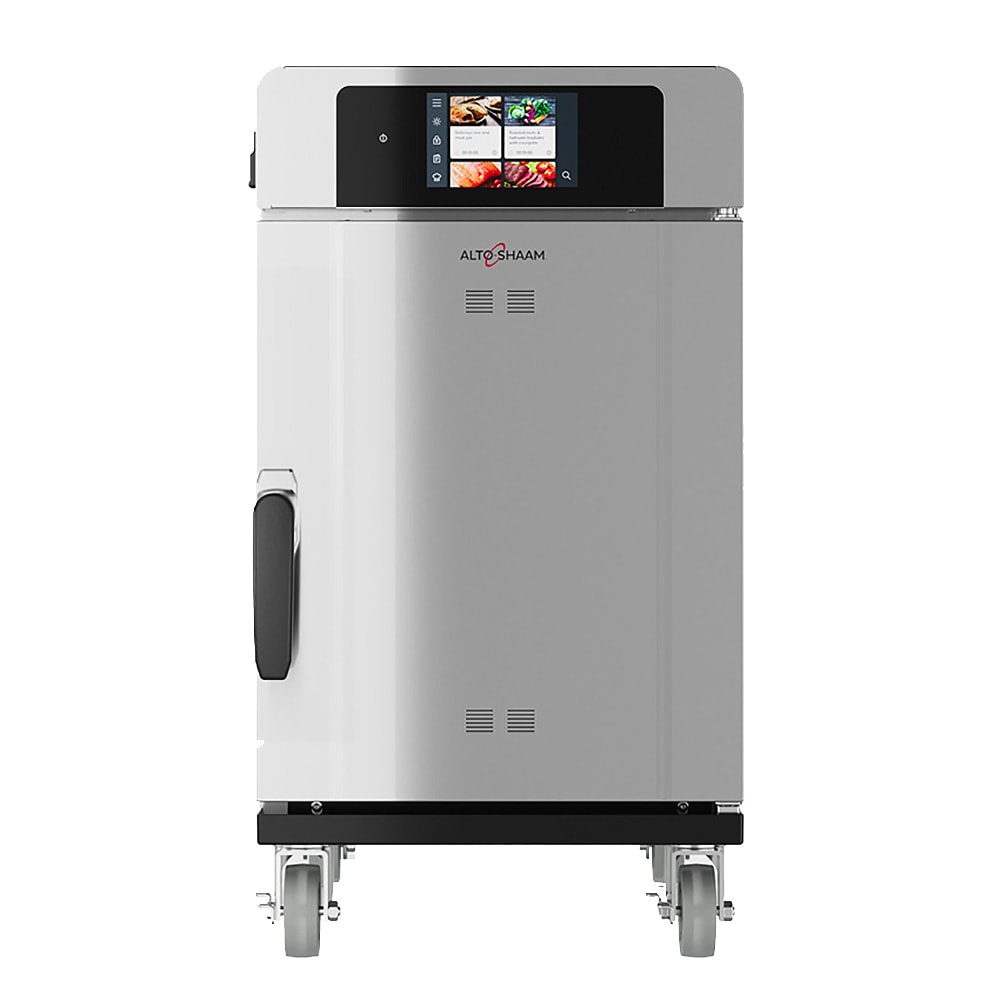

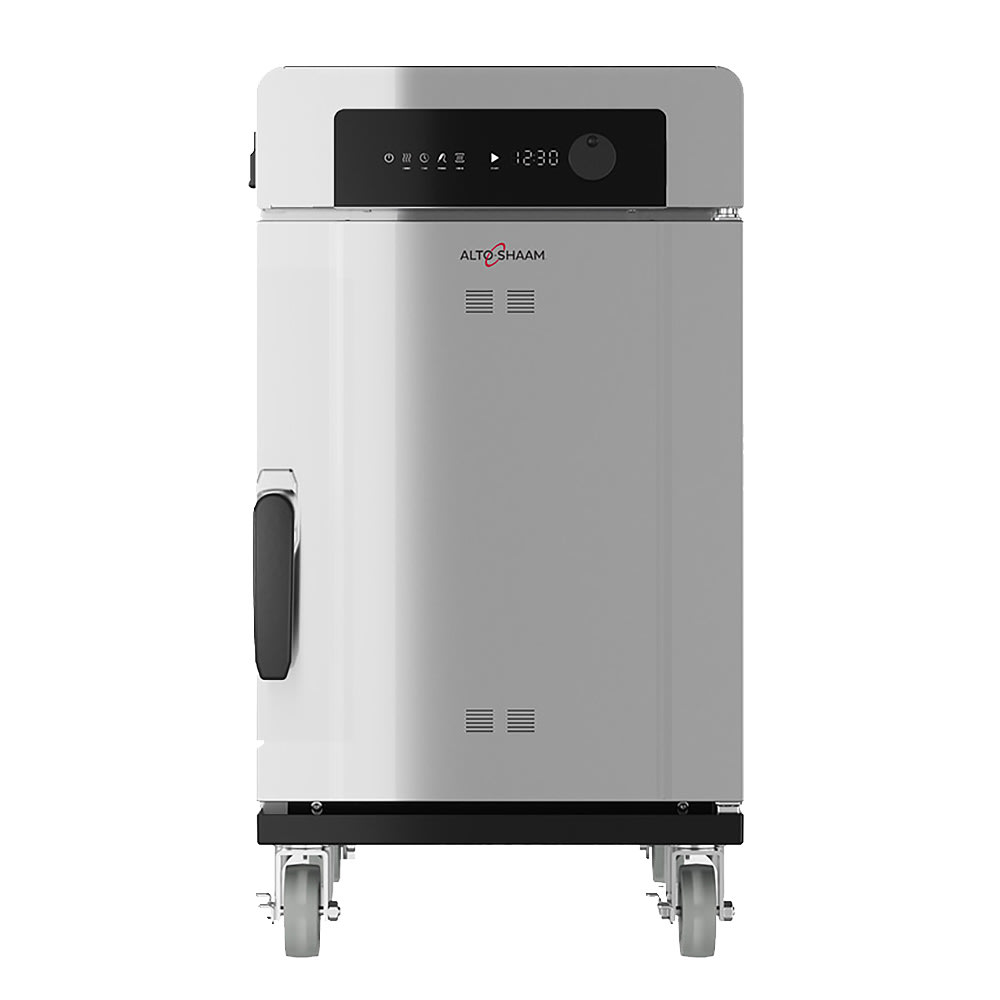

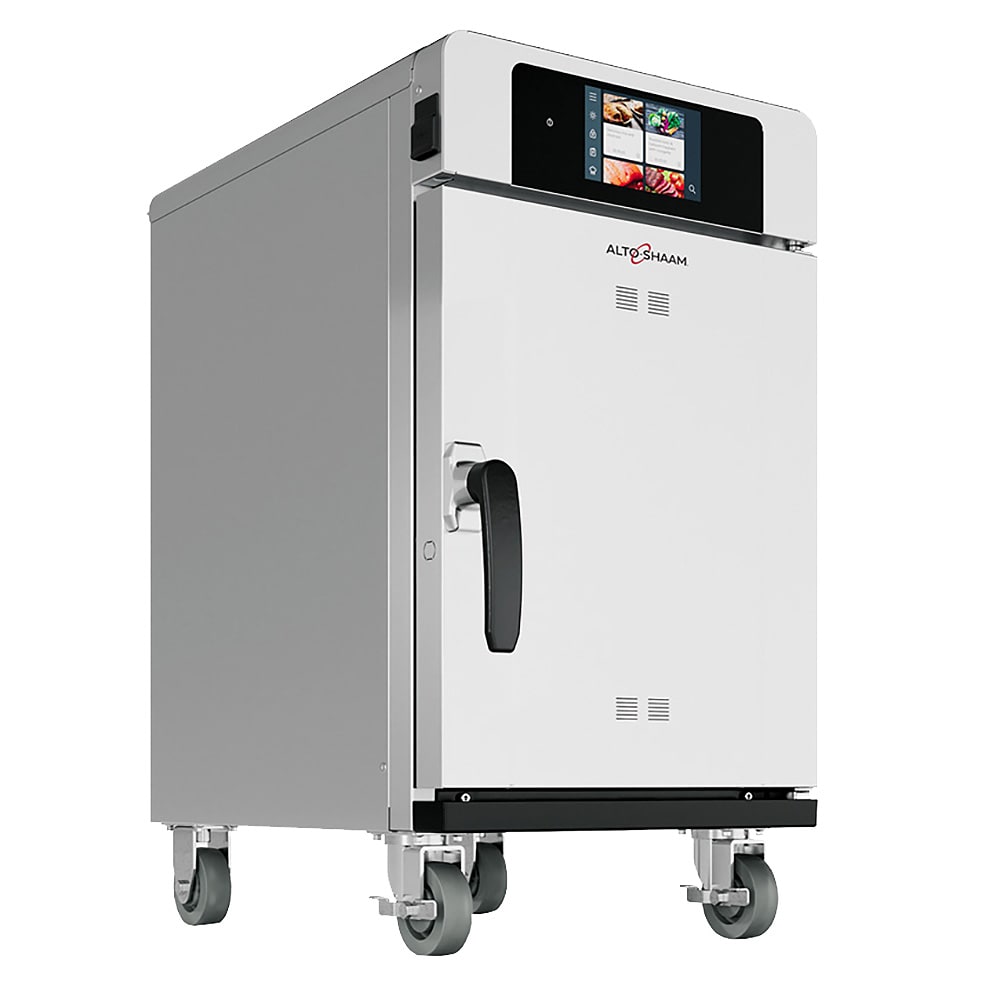

Alto-Shaam 500-TH Half Height Halo Heat® Cook and Hold Oven, 120v
Typically ships in 3 - 4 weeks
$6,860.80 /Each
Login or add to cart for more information!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Alto-Shaam 500-TH Description
This Alto-Shaam 500-TH cook-and-hold oven's interior is 143⁄8 inches wide, 211⁄2 inches deep, 201⁄16 inches high and features three wire shelves that accommodate 10 half-size pans or five full-size pans. Two stainless steel side racks offer 11 pan positions spaced on 13⁄8-inch centers. Because it doesn't require a water hookup or traditional kitchen hood, this half-height oven is simple to install. It's fitted with 31⁄2-inch casters so operators can move the unit for maintenance and cleaning, while the rust- and corrosion-resistant stainless steel exterior and door lend a lasting service life.
With its Halo Heat® system, the Alto-Shaam 500-TH cook-and-hold oven generates cooking heat from 200 to 325 degrees Fahrenheit and has a holding temperature range between 85 and 205 degrees Fahrenheit. Because this technology doesn't operate with high-heat heating elements, added humidity, or fans, it preserves food quality while extending holding times. The relatively low temperature output also lets the unit cook product overnight to reduce labor. Its single-point, straight probe can be used to gauge internal product temperature, and if the result is within its programmed parameter, the unit switches automatically from cook mode to hold mode. For streamlined operation, the simple controls feature a user-friendly interface so operators can manage temperatures and program recipes.
Product Details
- Half-height, reach-in unit
- 3 wire shelves with a capacity of (5) 20-in. x 12-in. x 21⁄2-in. pans or (10) 10-in. x 12-in. x 21⁄2-in. pans
- Maximum weight: 40 lbs.
- Maximum volume: 30 qt.
- 2 stainless steel side racks with 11 pan positions
- Cooking temperature range: 200-325 degrees F
- Holding temperature range: 85-205 degrees F
- Gentle Halo Heat technology
- Simple, user-friendly, programmable controls
- Removable, straight, single-point probe
- Durable stainless steel construction and solid door
- 31⁄2-in. casters (2 rigid and 2 swivel and brake)
- Interior drip tray and pan with drain
- Removable exterior drip tray
- Solid, right-hinged door
- 2-in. clearances required for top, left, and right
- 3-in. clearance required for rear
- 608 BTUs
Product Features
Dimensions & Utilities
- Interior: 143⁄8 in. W x 211⁄2 in. D x 201⁄16 in. H
- Overall: 181⁄16 in. W x 281⁄2 in. D x 335⁄8 in. H
- 16 A, 1.9 kW
- 120 V/60 Hz/1 ph
*Free shipping on Alto-Shaam 500-TH within the 48 contiguous states.
From The Manufacturer
Halo Heat® Cook & Hold Oven, electric, low temperature, 40 lb. capacity - (5) 12" x 20" x 2-1/2" full-size pans, SureTemp heat recovery system, simple controls, probe, programmable recipes, (2) stainless steel side racks with (11) pan positions spaced at 1-3/8" centers, (1) exterior drip tray with removable pan, right-hinged solid door, 3-1/2" casters (2 rigid, 2 swivel with brake), EcoSmart®, cULus, UL EPH Classified, CE, IPX4, TUV NORD, EAC, N11942
*Image may not depict product color, inclusions or accessories.
Alto-Shaam 500-TH Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Alto-Shaam |
| Base | Casters |
| Capacity (lbs) | 40 |
| Capacity Rating | Low (Up to 100 lbs) |
| Cavities | 1 |
| Controls | Digital |
| Depth (in) | 24.75 |
| Door Construction | Solid Only |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 27.88 |
| Hertz | 60 |
| Interior Construction | Stainless Steel |
| kW | 1.9 |
| NEMA | 5-20P |
| Pan Capacity | 5 |
| Phase | 1 |
| Product | Cook and Hold Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | Halo Heat® |
| Shelving Type | Wire |
| Size | Half Size |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor; Lifetime Heating Element |
| Width (in) | 17.81 |
| Weight | 250.00 |
Important Prop 65 information for California residents.
- Alto-Shaam 500THIII120
Other Products From This Line
Alto-Shaam 1200-UP-QS
Halo Heat® Full Height Insulated Mobile Heated Cabinet w/ (16) Pan Capacity, 120v
Compare to Similar Items
| Attributes |
Current Item: Alto-Shaam 500-TH Half Height Halo Heat® Cook and Hold Oven, 120v |

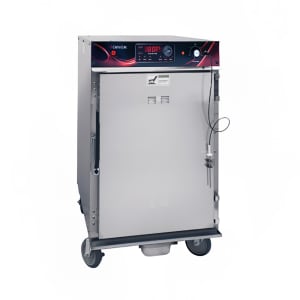

Cres Cor 500-CH-AL-DX Undercounter Cook and Hold Oven, 120v |

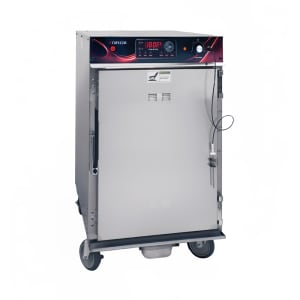

Cres Cor 500-CH-SS-DX Undercounter Cook and Hold Oven, 120v |
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $6,860.80 | $5,936.00 | $6,560.00 |
| Shipping | Ships Free | Ships Free | Ships Free |
| Lead Time | Typically ships in 3 - 4 weeks | ||
| Size | Half Size | Undercounter | Undercounter |
| Number of Ovens | Single | Single | |
| No. of Doors | 1 | 1 | |
| Rating | Best | Better | Better |
| Voltage | 120 | 120 | 120 |
| Controls | Digital | Digital | Digital |
| Interior Configuration | Slides | Slides | |
| Special Features | Probe | Probe | |
| Warranty | 1-year Parts & Labor; Lifetime Heating Element | 2-year Parts; 1-year Labor; Lifetime Heating Element Parts | 2-year Parts; 1-year Labor; Lifetime Heating Element Parts |
