Alto-Shaam 20-20W Halo Heat® Full Height Non-Insulated Stationary Heated Cabinet w/ (10) Pan Capacity, 230v/1ph
Typically ships in 3 - 4 weeks
$8,884.00 /Each
Login or add to cart for more information!
Selected Voltage: 230V, 1 Phase
230V, 1 Phase |
208V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Looking for ENERGY STAR® Heated Cabinet?
See our selection of Alto-Shaam ENERGY STAR® Heated Cabinet below
Alto-Shaam 20-20W Description

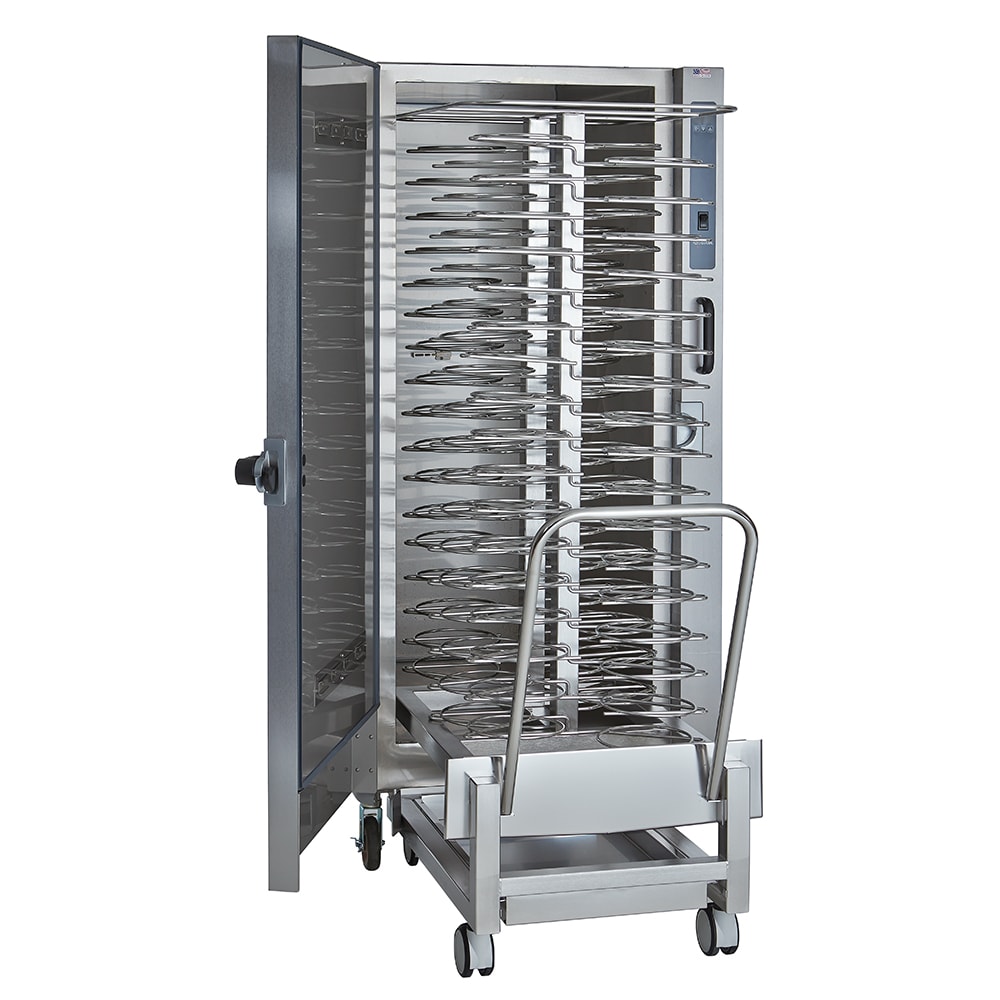

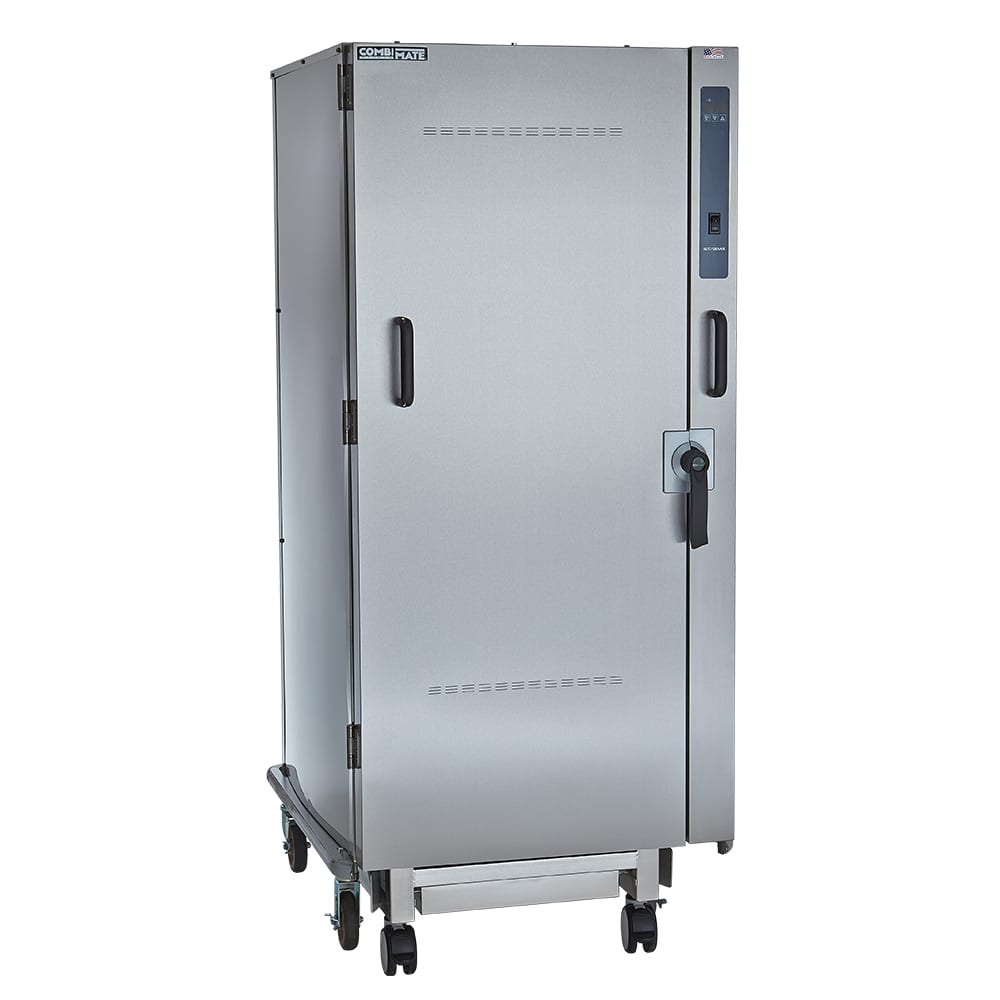

To withstand high-volume use without corroding, rusting, or denting, the Alto-Shaam 20-20W Combimate™ heated cabinet is made of long-lasting stainless steel. It's designed with one door through which operators can access an interior that accommodates (10) 18-inch by 26-inch pans or (40) 12-inch by 20-inch pans. Mounted on four heavy equipment legs, it's a stationary model that measures 3211⁄16 inches wide by 41 inches deep by 743⁄4 inches high.
The Alto-Shaam 20-20W heated holding cabinet uses a Halo Heat® system that surrounds food gently to prevent burning or cold spots and extend holding times. Its digital touch controls are simple to operate and automatically sense temperature drops to lower recovery times. This unit can operate at temperatures between 60 and 200 degrees Fahrenheit, and it's equipped with a heat indicator light and on/off switch.

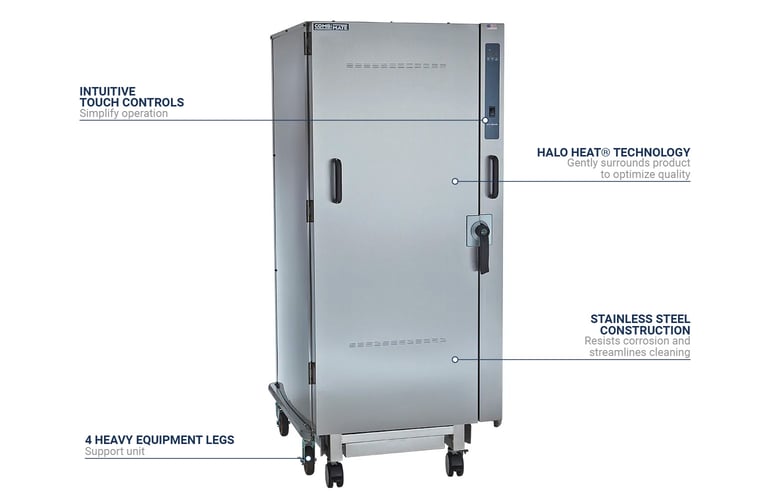

Product Details
- 1 solid, left-hinged door
- Capacity: (40) 12-in. x 20-in. pans or (10) 18-in. x 26-in. pans
- Simple-to-operate touch controls
- Heat indicator light and on/off switch
- Digital controls sense temperature drops to speed recovery
- Resilient stainless steel construction
- Halo Heat system surrounds food gently to improve quality and prevent burning
- Stationary unit mounted on 4 heavy equipment legs
- Temperature range: 60-200 degrees F
Dimensions & Utilities
- Interior: 243⁄16 in. W x 335⁄16 in. D x 591⁄4 in. H
- Overall: 3211⁄16 in. W x 41 in. D x 743⁄4 in. H
- 12 A, 2.8 kW
- 230 V/50-60 Hz/1 ph
Product Features
*Free shipping on Alto-Shaam 20-20W within the 48 contiguous states.
From The Manufacturer
Combimate™ Halo Heat® Holding Cabinet, stationary, (40) 12" x 20" pans or (10) 18" x 26" pans capacity, single left-hinged solid door, touch controls, ON/OFF power switch, heat indicator light, stainless steel construction, (4) heavy equipment legs, EcoSmart®, cULus UL EPH ANSI/NSF 4, CE, IPX4, TUV NORD, EAC
*Image may not depict product color, inclusions or accessories.

Alto-Shaam 20-20W Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Alto-Shaam |
Application | Heat Only |
Construction | Stainless Steel |
Control Location | Top |
Controls | Digital |
Depth (in) | 41 |
Door Design | Full |
Door Type | Solid |
Heat | Electric |
Height (in) | 74.75 |
Hertz | 60 |
Hinge Configuration | Left |
kW | 2.8 |
Load Type | Roll In |
NEMA | 6-15P |
No. of Doors | 1 |
Pan Capacity | 10 |
Phase | 1 |
Product | Heated Cabinets |
Product Type | Food Warming Equipment |
Sections | 1 |
Series | Combimate™ Halo Heat® |
Size | Full Height |
Slide Spacing (in) | 2.56 |
Slide Type | Lip Load |
Special Features | All Stainless Exterior |
Type | Non-Insulated |
Voltage | 230 |
Warranty | 1-year Parts & Labor |
Width (in) | 32.69 |
Weight | 538.00 |
