Beverage-Air MMF23HC-1-B-IQ 27" One Section Display Freezer w/ Swing Door - Bottom Mount Compressor, Black, 115v

Designed to promote impulse purchases and boost sales, the Beverage Air MMF23HC-1-B-IQ MarketMax™ one-section display freezer grabs customers' attention with an illuminated top panel. The hinged door on this unit has a triple-pane glass window that encourages guests to look at the product. Because the door self-closes, it retains cold air, and it has a hold-open feature that makes it convenient to stock the interior.

The temperature in this Beverage Air MMF23HC-1-B-IQ freezer display merchandiser is adjustable between -10 and 0 degrees Fahrenheit. This level can be changed with an electronic controller and can be monitored on the digital display. If the temperature moves significantly out of the set range or the power goes out, the door automatically locks, keeping it secure in unattended operations. To maintain cold temperatures, the unit uses R290 hydrocarbon refrigerant—an eco-friendly alternative to traditional options. The amount of refrigerant flow is controlled by an expansion valve and depends on the set temperature and actual cabinet level.

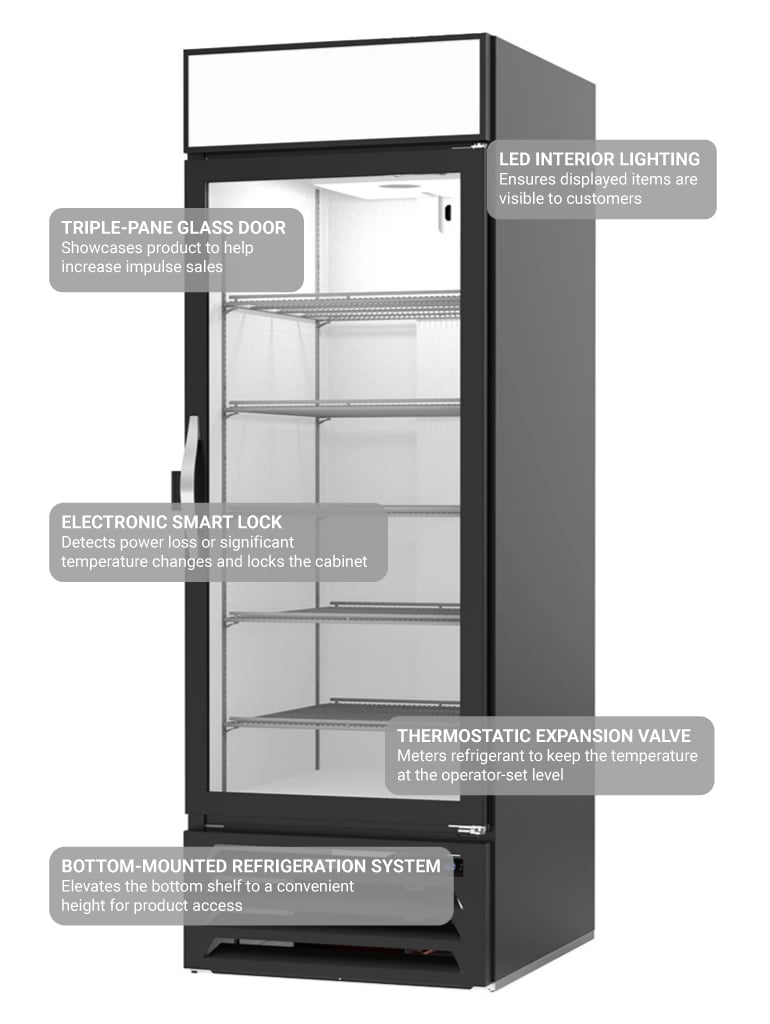

Product Details

• Part of the MarketMax series
• 22.5-cu.-ft. interior space
• 5 epoxy-coated steel shelves
• LED interior lighting improves visibility for merchandising
• Illuminated sign panel attracts guests to the cabinet
• Hinged triple-pane glass door showcases product stored in the cabinet without letting a lot of cold air out
• Door locks automatically if unit senses power outage or significant temperature fluctuation
• Self-closing door retains cold air
• Automatic hold-open door feature simplifies product stocking
• Built-in safety feature prevents accidental entrapment
• Accessible test switch for health inspectors
• Black exterior

Product Features

Refrigeration System

• Electronic control
• Digital display
• Temperature holding range: -10 to 0 degrees F
• R290 hydrocarbon refrigerant
• Expansion valve meters refrigerant to maintain set temperature level
• Components are bottom mounted for convenient service access

Dimensions & Utilities

• 27 in. W x 33.63 in. D x 78 in. H
• 7.5 A, ³⁄₄ HP
• 115 V/60 Hz/1 ph

Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.

*Free shipping on Beverage-Air MMF23HC-1-B-IQ within the 48 contiguous states.

From The Manufacturer

MarketMax™ Freezer Merchandiser, reach-in, one-section, (1) double pane hinged glass door with electronic lock, 22.5 cu. ft. capacity, electronic control, digital display, (5) epoxy coated wire shelves, LED interior lighting, lighted sign panel, self closing door with automatic hold-open feature, bottom-mounted refrigeration, black exterior, R290 Hydrocarbon refrigerant, 3/4 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

*Image may not depict product color, inclusions or accessories.

Beverage-Air MMF23HC-1-B-IQ Specifications

Spec Attribute	Spec Value
Manufacturer	Beverage-Air
Air Intake	Front
Color	Black
Compressor Location	Bottom
Cubic Feet	22.5
Depth (in)	33.63
Door Design	Swing
Height (in)	78
Hertz	60
Hinge Configuration	Right
NEMA	5-15P
Phase	1
Product	Display Freezers
Product Type	Commercial Refrigeration
Rating	Better
Refrigerant	R290 (Hydrocarbon)
Sections	1
Series	MarketMax™
Special Features	LED Lighting
Voltage	115
Warranty	7-year Limited Parts & Labor; 7-year Compressor Parts
Width (in)	27
Weight	416.00
