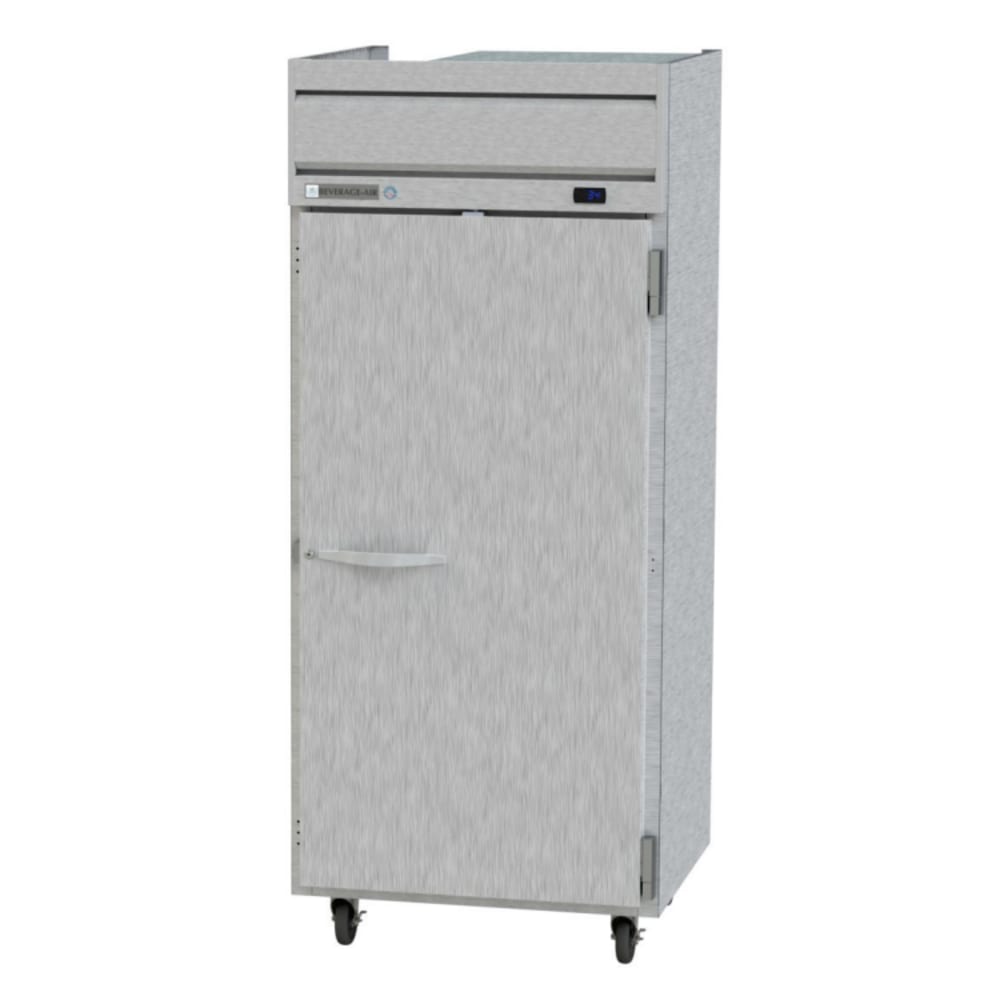

The Beverage Air HF1W1S one-section reach-in freezer uses a down draft airflow system to evenly move air throughout the cabinet. The temperature stays around -10 degrees Fahrenheit with R404A refrigerant; the flow of refrigerant is controlled by an expansion valve. The refrigeration system is mounted on top, so it is separated from floor dust and debris. To protect the evaporator coil from corrosion, it is coated in epoxy.
Three wire shelves hold products in the Beverage Air HF1W1S single-section reach-in freezer, and LED lights enhance visibility. The interior liner is made of aluminum to resist corrosion and provide durability. The field-reversible, removable door has an antimicrobial handle that reduces growth of bacteria. At 120 degrees, the door stays open, but if opened less than 120 degrees, it closes itself to retain cold air.
- 3 epoxy-coated wire shelves
- LED light in the cabinet improves visibility
- Aluminum interior liner resists corrosion
- Stainless steel exterior front with painted sides
- Field-reversible door is removable for cleaning and maintenance
- Self-closing door retains cold air
- 120-degree stay-open feature keeps the door open when loading
- Antimicrobial door handle slows bacteria growth
- Door lock prevents theft
- 2 of the 6-in. casters have brakes
- 7.8 A, 1⁄2 HP
- 115 V/60 Hz/1 ph
- Interior dimensions: 31 in. W x 26 in. D x 615⁄8 in. H
- Overall dimensions: 35 in. W x 335⁄8 in. D x 841⁄2 in. H
- cULus, UL, UL-EPH, and Ul-Sanitation listed
- Made in the U.S.
Top-mount Refrigeration System
- Maintained temperature: -10 degrees F
- Uses R404A refrigerant
- Expansion valve regulates refrigerant flow
- Down draft airflow system provides even air distribution
- Full electronic control with automatic defrost cycles
- Energy-efficient, automatic evaporation system
- Corrosion-resistant, epoxy-coated evaporator coil
We break down the features of single-section reach-in units in our one-section freezers buyers' guide.
Horizon Series Freezer, reach-in, one-wide section, 34 cu. ft., (1) right-hand solid hinged door with locks, (3) adjustable shelves, electronic control, LED interior lighting, digital display, expansion valve technology, automatic defrost, top-mounted self-contained refrigeration, stainless steel front, gray painted sides, aluminum interior, 1/2 HP, UL, cULus, UL EPH Classified, UL-Sanitation, MADE IN USA, 115v/60/1ph
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Beverage Air HF1W-1S SpecificationsPDF Spec Sheet
|Compressor Location||Top Mount|
|Warranty||3 years parts & labor/5 year compressor|
|Capacity Range||26-41 cu ft|
|Residential Warranty||Units installed in residential applications will be warranted for a period of 1 year parts & labor from the date of original installation|
|Product Type||Commercial Refrigeration|
