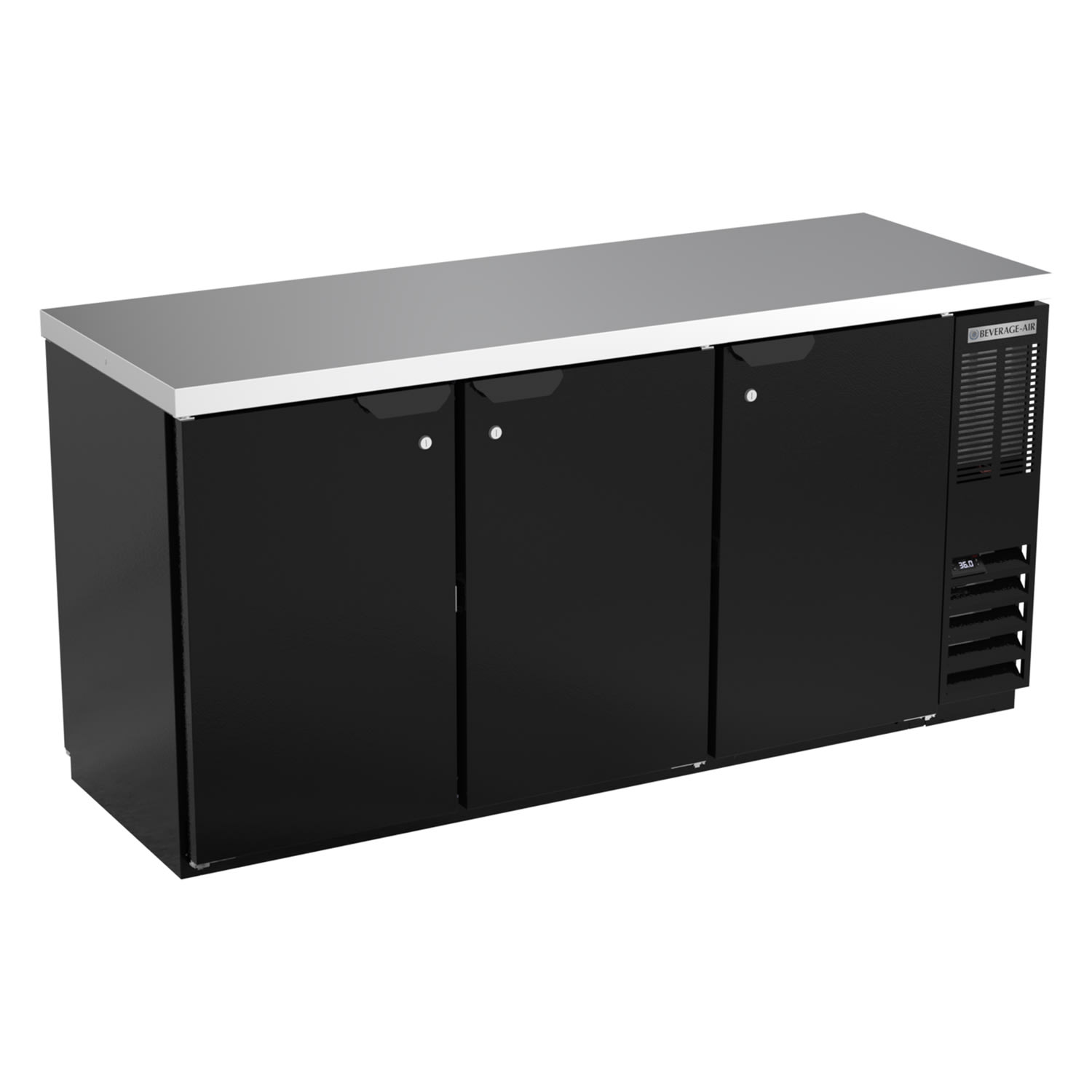

Beverage Air BB72Y-1-B-27-PT 72" (3) Section Bar Refrigerator - Swinging Solid Doors, 115v

KaTom #: 118-BB72Y1B27PT • MPN: BB72Y-1-B-27-PT

Typically ships within 9 - 13 business days

(0 reviews)Write a Review
Retail Price: $4,290.50

Beverage Air BB72Y-1-B-27-PT Description

This back bar, pass-through storage cabinet from Beverage Air has right-mounted, self-contained refrigeration and total dimensions of 72-in. W x 25-in. D x 36-in. H.

Standard Features and Benefits:

  • Pass-thru
  • 3 sections
  • 3 solid doors that are self-closing and include a stay-open feature and lock when needed. Doors are also field-reversible with a 90 degree stay-open feature
  • 6 epoxy coated steel shelves, 2 per section
  • (3) 1/2-barrel kegs capacity
  • Interior incandescent lighting
  • Stainless steel interior with radius corners to help with clean up and meets NSF Standard 7 for open food containers to allow you to store bottled beverages, packaged food, and open food items
  • Black exterior
  • Right-mounted, self-contained refrigeration that uses R134a refrigerant, which is CFC and HCFC-free
  • Condensate elimination is automatic and non-electric
  • 115 V/60 Hz/1-ph
  • 15 A
  • Condensate elimination is automatic and non-electric
  • 72-in. W x 25-in. D x 36-in. H
  • 12.1-cu. ft. capacity
  • 1/4 HP
  • 8-ft. cord with NEMA 5-15 plug included
  • UL and UL-EPH Listed
  • Made in USA

Refrigerated Back Bar Pass-Thru Storage Cabinet, three section, 72" W, 36" H, (6) solid doors, (6) epoxy coated steel shelves, (3) 1/2 barrel kegs, incandescent interior lighting with manual on/off switch, black exterior finish, 2" stainless steel top, with stainless steel floors & galvanized interior, right-mounted self-contained refrigeration, 1/4 hp, UL, cUL, UL EPH, NSF, MADE IN USA

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Beverage Air BB72Y-1-B-27-PT Specifications

PDF Spec Sheet
Manufacturer Beverage Air
Base Frame
Compressor Location Right
Door Design Swinging
Door Type Solid
Exterior Finish Black Laminate
Number of Levels 3
Sections 3
Specialty Options Pass Thru
Voltage 115/60/1
Warranty 3 year parts & labor; 5 year compressor
Width (in) 72
Weight 366.00
Beverage Air BB72Y-1-B-27-PT Certifications
  • UL
  • NSF
