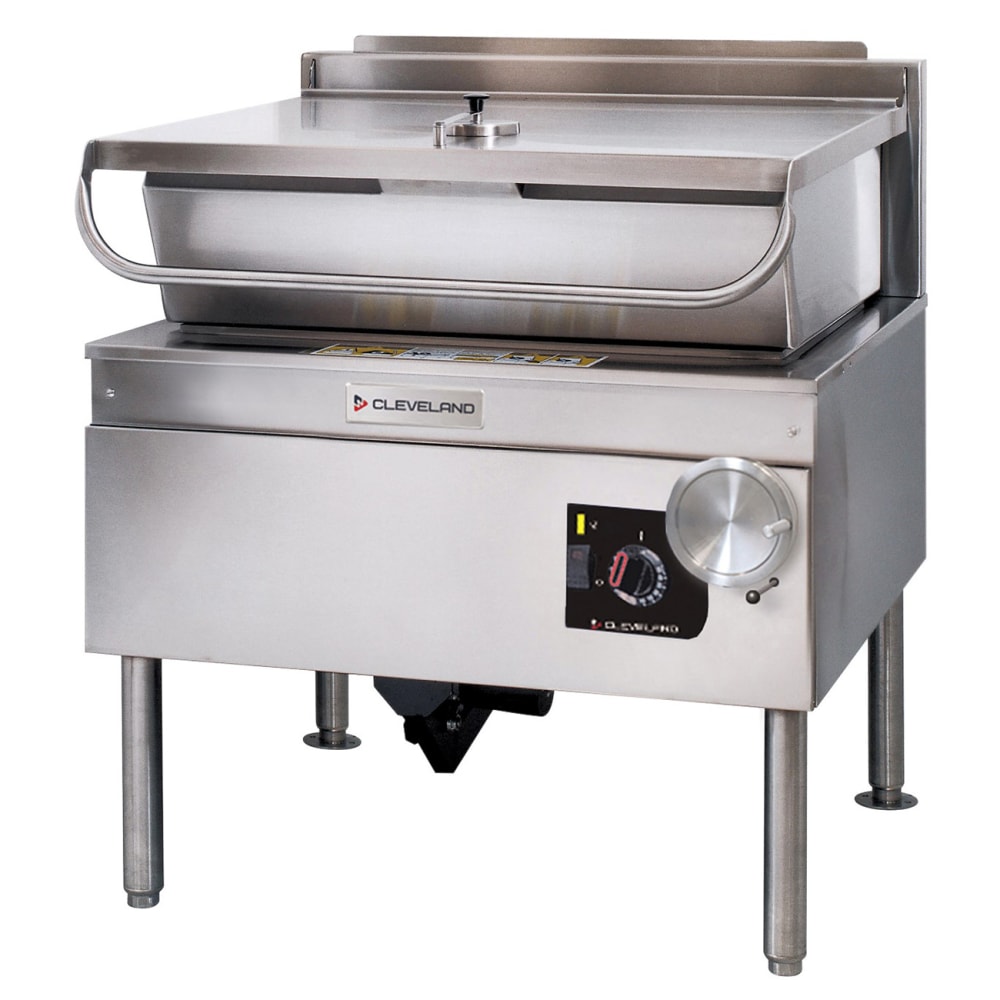

Cleveland SGL40TR 40 gal. Tilt Skillet - Open Base, Measurement Marks, Strainer, Natural Gas

The Cleveland SGL40TR DuraPan™ tilt skillet heats at temperatures from 100 to 425 degrees Fahrenheit, and its highly efficient design provides preheating in 11 minutes. Bringing a full load of food to a boil in 60 minutes, the skillet can hold 40 gallons. It is made of stainless steel, so it is heavy duty and simplifies cleaning. For convenient opening, the cover is spring assisted, and the adjustable vent releases steam when necessary.

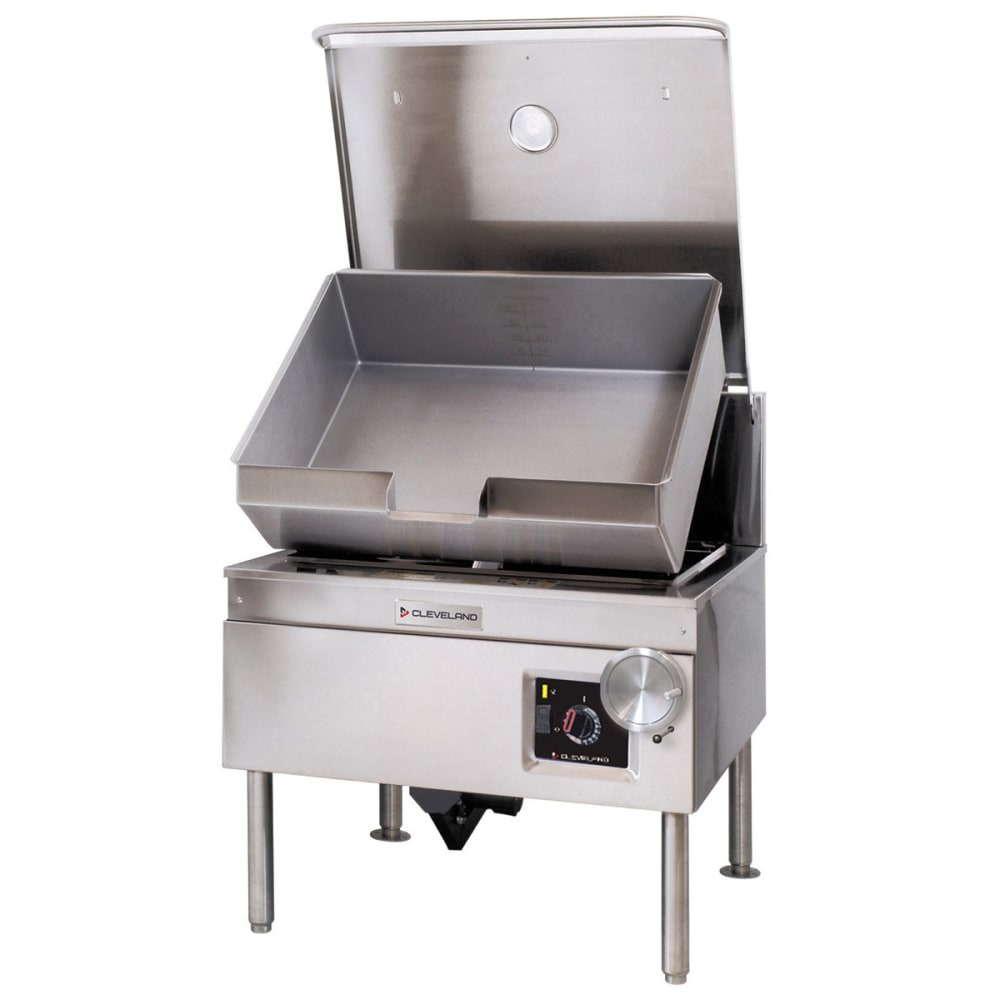

Because the pan can be tilted, it facilitates content emptying, and it operates with a hand crank, a more affordable and more difficult to use feature than power options. Its rear feet are flanged for bolting to floors, and all the feet adjust for balance on uneven surfaces. To simplify maintenance, controls can be serviced from the front, and its controls and electrical connections are shielded from liquids that can cause severe damage. The Cleveland SGL40TR tilting skillet heats with natural gas and has an automatic ignition for users to quickly begin cooking.

Product Details

• 40-gal. capacity
• Efficient heat system uniformly distributes heat from the burners across the pan surface
• 11-min. preheat
• 40 gal. can be heated from cold temperatures to boiling in 60 min.
• Pan has gallon and liter markings for measuring
• Coved corners eliminate cracks to prevent food particles from getting stuck
• Spring-assisted cover has a full-width handle
• Cover's adjustable vent expels steam
• Hydraulic hand-tilt crank raises the pan when turned clockwise
• Quick-lower tilt feature
• Splash-resistant pour spout directs food into containers and pans below
• Spout has a strainer that separates liquid from solid food
• Stainless steel construction resists rusting, denting, and bending
• Modular open base has adjustable, stainless steel feet
• Flanged rear feet
• 130,000 BTU
• Part of the DuraPan series

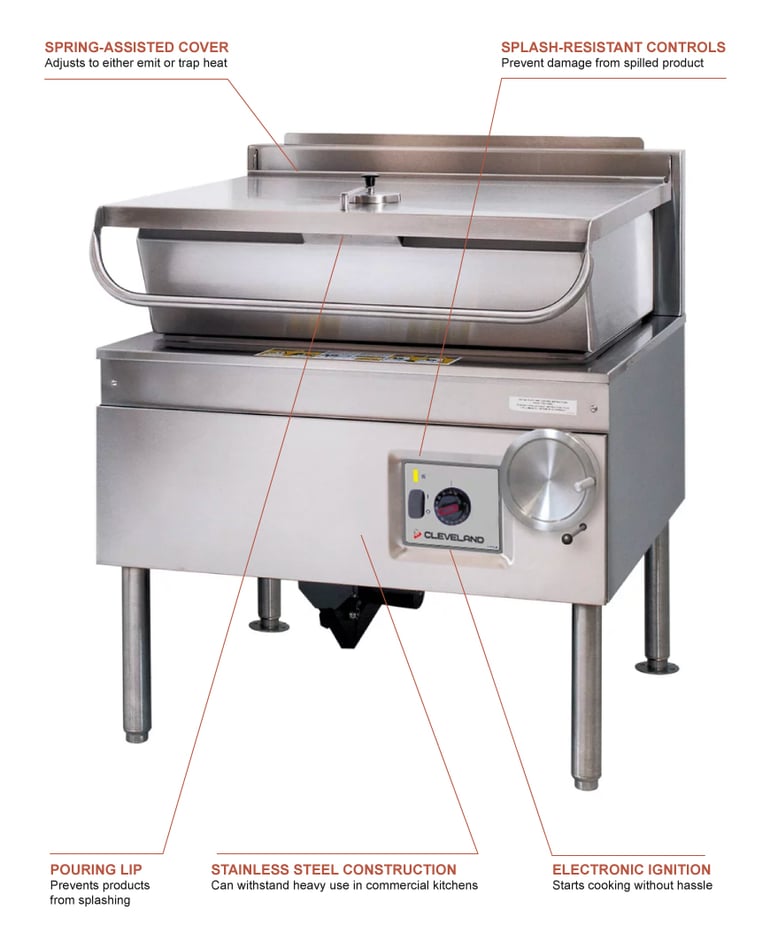

Product Features

Simple Control System

• On/off power switch
• Green power indicator light
• Amber heat indicator light
• Knob controls the adjustable, electronic thermostat that regulates temperatures
• Temperature range: 100-425 degrees F
• High-limit safety device triggers if the temperature reaches 475 degrees F
• Recessed design of the knobs and switches protects them from cart damage
• Resistant to splashing with water-tight electric connections
• Controls can be serviced from the front

Dimensions & Utilities

• 48 in. W x 37 in. D x 42 in. H (72-in. H with the cover raised)
• Powered by natural gas
• 1.8 A
• 120 V/60 Hz/1 ph, 6-ft. cord with plug

From The Manufacturer

DuraPan™ Tilting Skillet, gas, 40-gallon capacity, modular open base, standard with hydraulic hand tilt with quick lowering feature, stainless steel construction, includes spring-assisted cover, gallon markings and electronic spark ignition, food strainer, stainless steel level adjustable feet, 130,000 BTU, CE, NSF

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor
