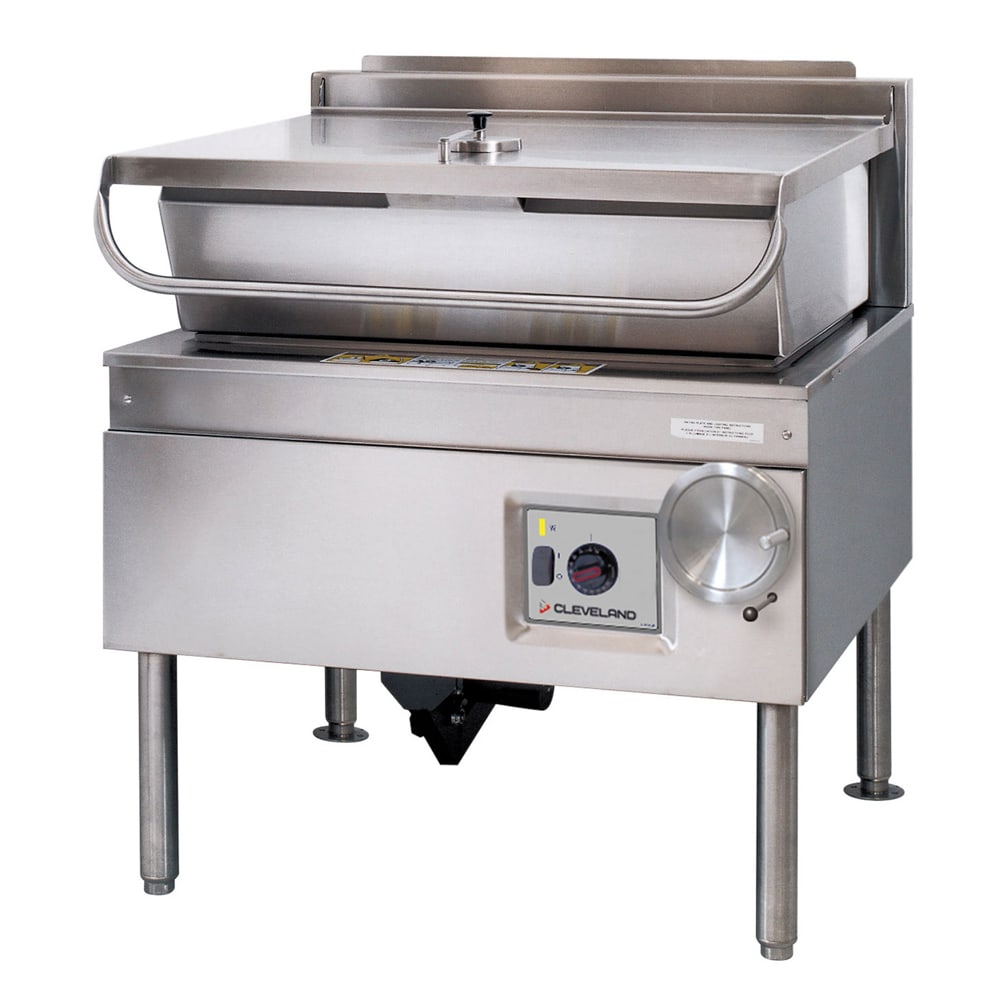

Cleveland SEL40TR 40 gal. Tilt Skillet - Open Base, Measurement Marks, Strainer, 240v/3ph

Because the Cleveland SEL40TR DuraPan™ tilt skillet has a 40-gallon capacity, it supports large batch cooking in schools, hospitals, and high-volume restaurants. This unit has a deep pan basin, griddle-like pan surface, and spring-assisted cover, so it can be used with any cooking method. Its stainless steel-clad cooking surface is durable and quick to wipe down, while coved corners in the pan prevent bacteria from growing and debris from getting stuck. To ensure recipe accuracy, the pan has liter and gallon markings that support ingredient measuring.

The adjustable thermostat on this Cleveland SEL40TR tilting braising pan can be set and adjusted between 100 and 425 degrees Fahrenheit. Its heating system operates efficiently, preheating the pan in 15 minutes, and it recovers temperatures quickly, bringing a cold, 40-gallon load to boiling in 60 minutes. When emptying the unit, a tilting mechanism enables operators to quickly and conveniently transfer cooked product to a separate container. A pour spout directs the food into a container, while the food strainer can be placed over the spout to separate liquids and solids.

Product Details

• Part of the DuraPan series
• 40-gal. capacity
• Stainless steel-clad, ⁵⁄₈-in.-thick pan surface
• Coved pan corners prevent food particles from getting trapped
• Gallon and liter measurement marks
• Electronic, variable thermostat
• Temperature range: 100-425 degrees F
• Heating system is designed for efficient preheating and recovery
• Preheats in 15 min.
• Takes 60 min. to bring a full-capacity load of cold food to boiling

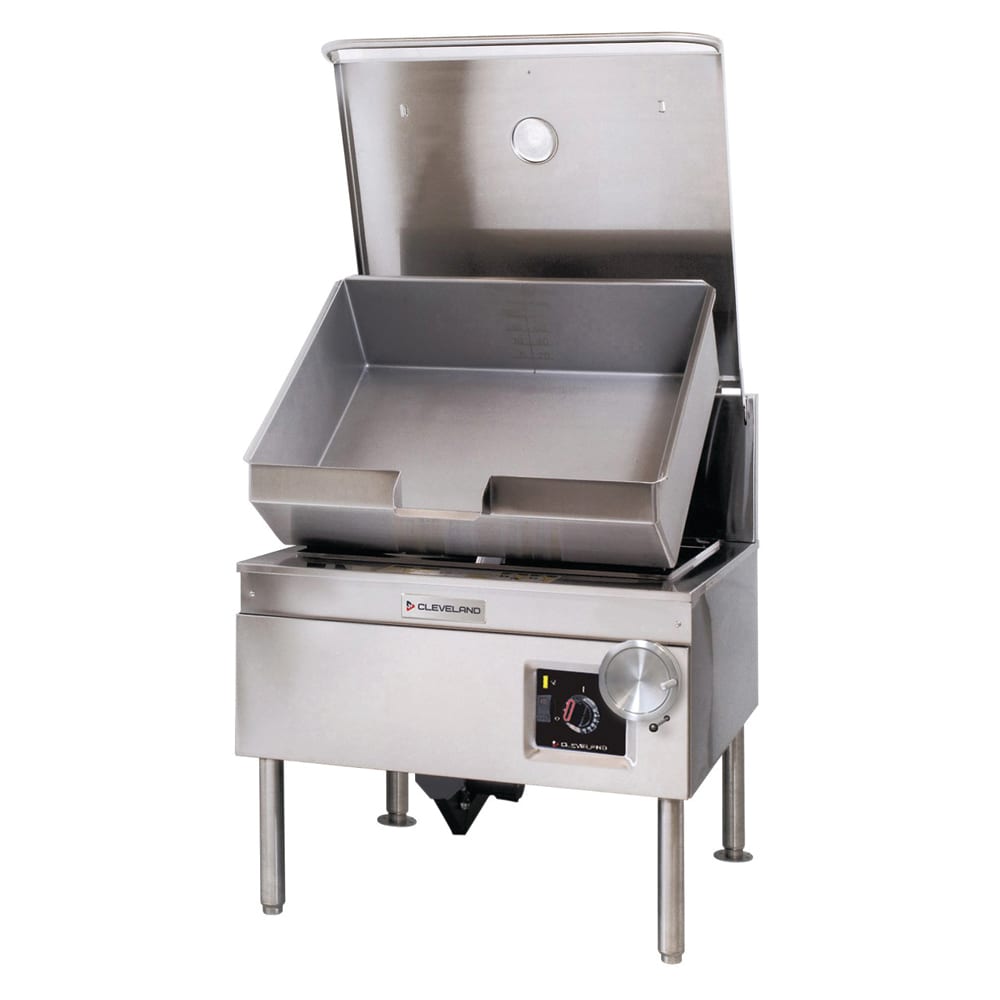

• Hydraulic tilt mechanism with quick-lower feature
• Pour lip moves food into container below without splatter
• Food strainer enables removal of broths and stocks
• Spring-assisted cover has a full-width handle that can be gripped from any angle
• Cover has a built-in, modifiable vent to control the moisture level
• Components can be serviced from the front
• Does not require side and rear clearances

Product Features

Durable Construction

• Strong, rust-resistant stainless steel
• Modular open base provides access to the floor for cleaning
• Controls are recessed, positioned out of the aisle to prevent damage
• Adjustable front feet maintain stability on uneven floors
• Flanged rear feet can be bolted to the floor

Dimensions & Utilities

• Cooking surface: 44 in. W x 23¹⁄₂ in. D
• Overall: 48 in. W x 37 in. D x 42 in. H (72-in. H with the cover raised)
• 43.4 A, 18 kW
• 240 V/60 Hz/3 ph

*Free shipping on Cleveland SEL40TR within the 48 contiguous states.

From The Manufacturer

DuraPan™ Tilting Skillet, electric, 40-gallon capacity, modular open base, standard with hydraulic hand tilt with quick lowering feature, stainless steel construction, includes spring-assisted cover and gallon markings, stainless steel level adjustable feet, UL, CE, NSF, IPX6

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor
