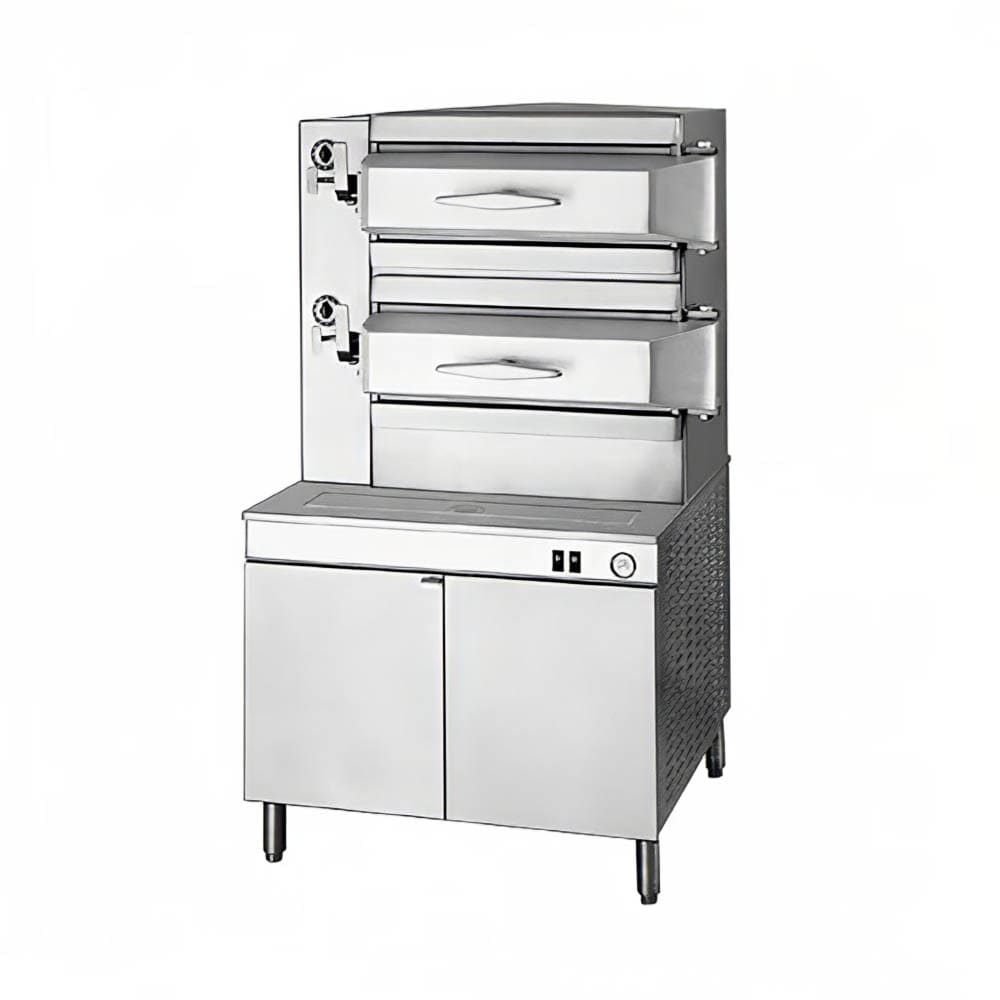

Cleveland PEM243 Electric Floor Model Steamer w/ (24) Full Size Pan Capacity, 208v/3ph
$39,932.00 /Each
Login or call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Cleveland PEM243 Description
Great for schools and institutions, the Cleveland PEM-24-3 electric steamer has three pressurized stainless steel compartments that enable steam to reach higher temperatures than normal, excellent for cooking dense dishes like potatoes. The compartment doors are durable, attached by adjustable hinge pins and self-lubricating bushings. Safety interlocks ensure the doors stay closed under pressure. Pressure in the compartments stays at 5 PSI, and if it gets to 8 PSI, a relief valve releases steam.
The Cleveland PEM-24-3 floor steamer has a steam generator built in, so no boiler connections are necessary—however, a cold water connection is required. When the steam generator is turned on, it draws in water and prepares to steam, and at the end of a cycle, the steamer can be switched off. Doing so empties the generator of water so that its blowdown feature can wash buildup down the drain. For servicing and cleaning, important components are accessible in the cabinet base.
Product Details
- 3 compartments
- Heavy-duty stainless steel body with durable aluminum doors
- Adjustable legs and flanged feet for stability
- Mechanical interlock prevents doors from swinging open
- Hinge pins are adjustable
- Hinge bushings are self-lubricating
- Removable slide racks
- 60-min. timer for each compartment
- Steam generator self-fills with water at startup
- Water controls keep enough water in the generator
- Blowdown feature helps clean minerals out of the generator
- Operating pressure: 5 PSI
- Gauge provides pressure readings
- Limit switch and relief valve keep pressure at safe levels
- Compartments vent with thermostatic traps
- New steam can flow in and old steam can flow out simultaneously
- Internal parts can be accessed through the cabinet doors
- 1⁄4-in. NPT cold water connection
- 11⁄2-in. LPS drain connection
- Required clearance: 3 in. on sides and rear
Pan Capacities
- (24) 21⁄2-in.-deep, full-size cafeteria pans
- (18) 4-in.-deep full-size cafeteria pans
- (12) 6-in.-deep full-size cafeteria pans
- (12) 18-in. x 26-in. bun pans
Dimensions & Utilities
- 3543/100 in. W x 331/2 in. D x 735/8 in. H
- 59.7 A, 21500 W
- 208 V/60 Hz/3 ph
*Free shipping on Cleveland PEM243 within the 48 contiguous states.
From The Manufacturer
Pressure Steamer, electric heated boiler, 3 compartments, (8) 12" x 20" x 2-1/2" pans per compartment, 36" cabinet base, manual mechanical timer controls, stainless steel construction, 24kW, 208v/60/3ph
*Image may not depict product color, inclusions or accessories.
Cleveland PEM243 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Cleveland |
| Application | High Volume |
| Base | Cabinet |
| Controls | Manual |
| Depth (in) | 33.5 |
| Heat | Electric |
| Height (in) | 73.63 |
| Hertz | 60 |
| kW | 24 |
| No. of Compartments | 3 |
| Pan Capacity | 24 |
| Phase | 3 |
| Product | Pressure Steamers |
| Product Type | Cooking Equipment |
| Steam Generator | Boiler-Based |
| Steamer Type | Pressure |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 5-year Pro-Rated Boiler & Steam Generator Parts |
| Water Source | Plumbed |
| Width (in) | 35.43 |
| Weight | 940.00 |
