Cleveland PEM242 (16) Pan Pressure Steamer - Cabinet, Includes Worktop, 240v/3ph
$38,631.00 /Each
Login or call for details!
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!

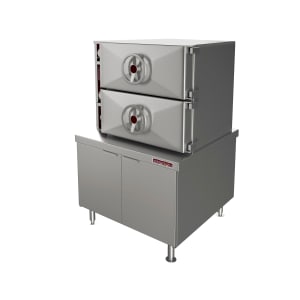

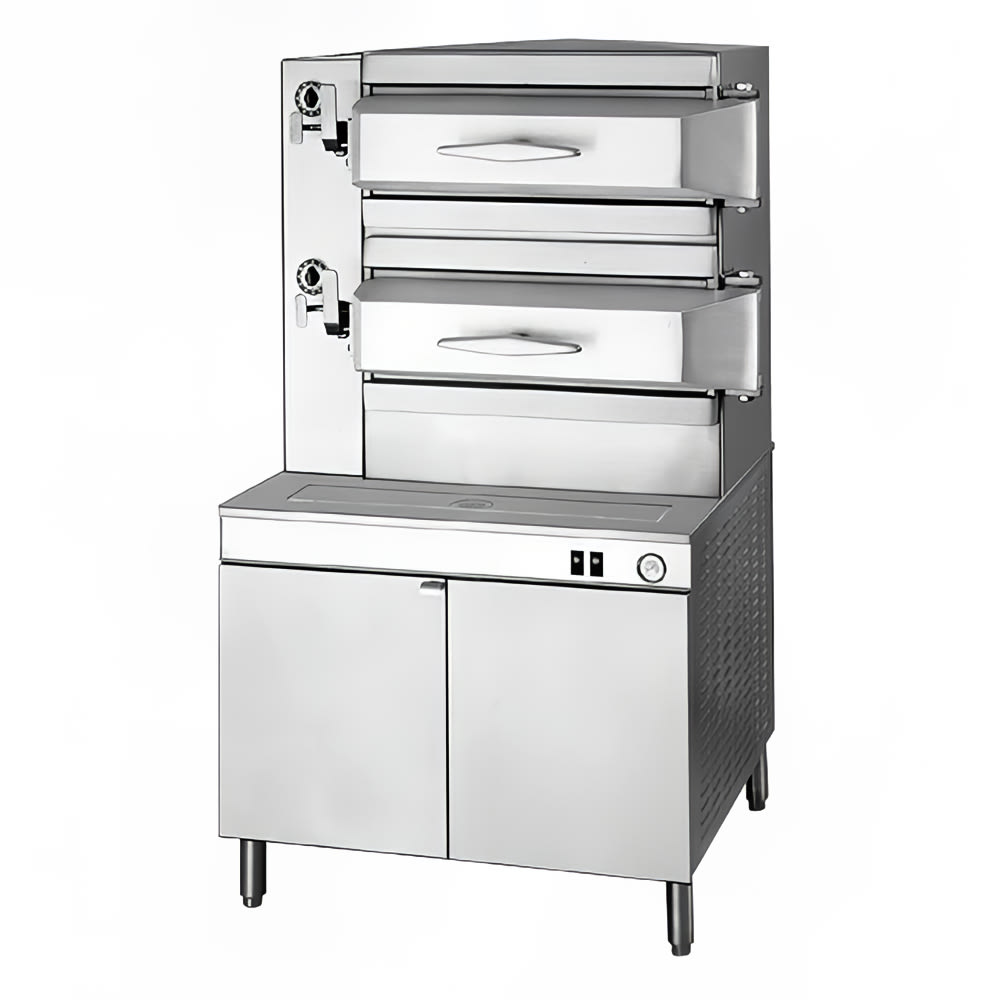

Cleveland PEM242 Description
The Cleveland PEM242 electric steamer has a built-in steam generator, so it does not need a boiler connection. When the generator is turned on, it automatically fills with water, and throughout each cook cycle, the control system maintains proper water levels. Between its two compartments, the unit holds 16 full-size, 21⁄2-inch-deep hotel pans. Operators can keep up with the cook time using the two 60-minute timers on the front, and to prevent heat damage, the system does not work unless enough water is in the generator. The compartments fill with steam and operate at a pressure of 5 PSI, so they get hotter than non-pressurized convection steamers. For user safety, a relief valve lowers the pressure if it gets too high, and a mechanical interlock keeps the doors closed tight.
This Cleveland PEM242 floor steamer is made of sturdy, rust-resistant stainless steel. Its aluminum compartment doors are strong, and their self-lubricating bushings ensure they open smoothly. Featuring adjustable hinge pins, the doors close firmly. The door gasket and slide racks are removable for cleaning, and for servicing, the internal components can be accessed through the cabinet base.
Product Details
- 2 steaming compartments
- Made of stainless steel to withstand heavy use
- Adjustable legs have flanged feet that can be bolted down
- Heavy-duty aluminum doors with safety interlock
- Hinge pins are adjustable to create a tight seal
- Door gasket and slide racks are removable for cleaning
- (2) 60-min. timers
- Automatic-fill steam generator needs a direct water supply
- Generator eliminates the need for an external boiler
- Water level controls ensure enough water is in the generator
- Blowdown helps flush minerals out of the generator
- Operating pressure: 5 PSI
- Gauge shows pressure readouts
- Limit switch opens relief valve if pressure gets too high
- Thermostatic trap for venting the compartments
- Steam inlet and exhaust valve can operate simultaneously
- Important internal components are accessible from the front
- 1⁄4-in. NPT cold water connection
- 11⁄2-in. LPS drain connection
- Required clearance: 3 in. on sides and rear
Full-size Pan Capacities
- (16) 12-in. x 20-in. x 21⁄2-in.-deep pans
- (12) 12-in. x 20-in. x 4-in.-deep pans
- (8) 12-in. x 20-in. x 6-in.-deep pans
- (8) 18-in. x 26-in. bun pans
Dimensions & Utilities
- 3543/100 in. W x 331/2 in. D x 64 in. H
- 57.8 A, 24 kW
- 240 V/60 Hz/3 ph
*Free shipping on Cleveland PEM242 within the 48 contiguous states.
From The Manufacturer
Pressure Steamer, electric heated boiler, 2 compartments, 36" cabinet base, manual controls, 60-minute mechanical timer, 6" adjustable legs with flanged feet, stainless steel construction, 24 kW
*Image may not depict product color, inclusions or accessories.
Cleveland PEM242 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Cleveland |
| Application | High Volume |
| Base | Cabinet |
| Controls | Manual |
| Depth (in) | 33.5 |
| Heat | Electric |
| Height (in) | 64 |
| Hertz | 60 |
| Includes | Worktop |
| kW | 24 |
| No. of Compartments | 2 |
| Pan Capacity | 16 |
| Phase | 3 |
| Product | Pressure Steamers |
| Product Type | Cooking Equipment |
| Steam Generator | Boiler-Based |
| Steamer Type | Pressure |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 5-year Pro-Rated Boiler & Steam Generator Parts |
| Water Source | Plumbed |
| Width (in) | 35.43 |
| Weight | 830.00 |
