Cleveland PEM242 (16) Pan Pressure Steamer - Cabinet, 208v/3ph
$38,631.00 /Each
Login or call for details!
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!

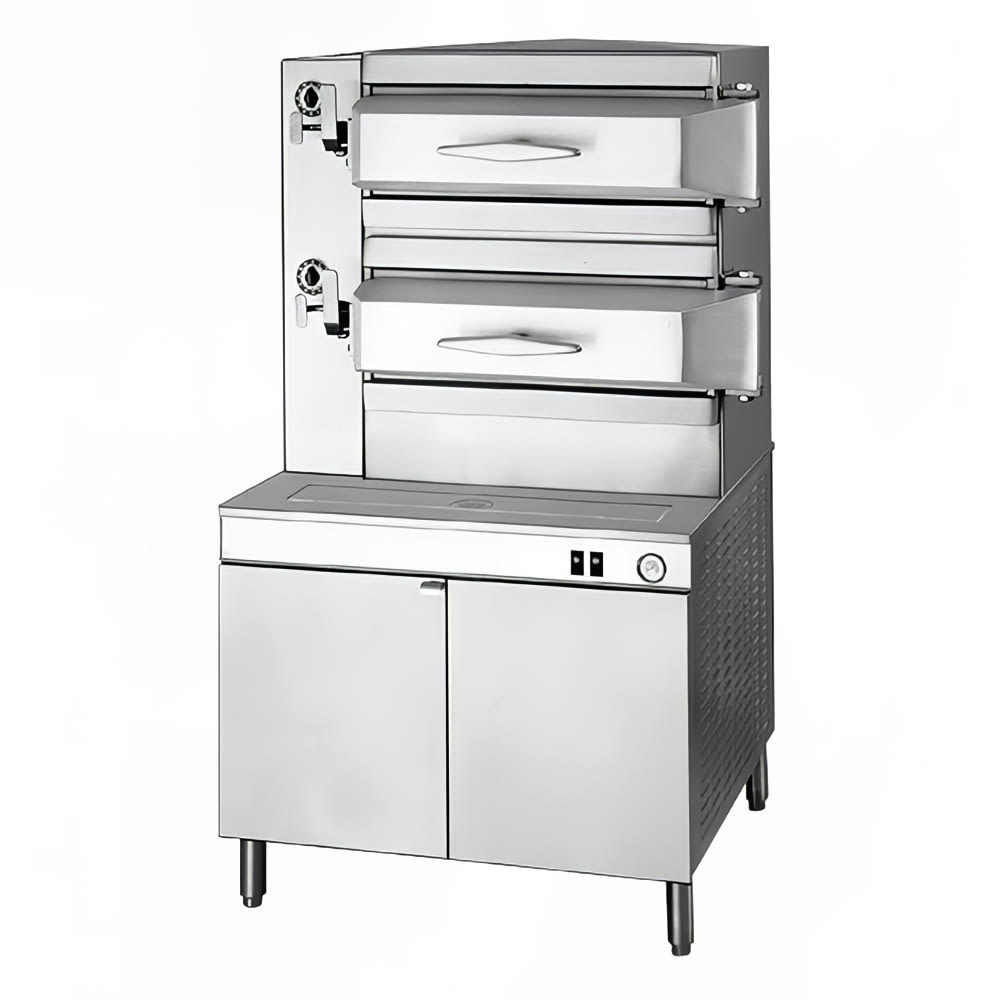

Cleveland PEM242 Description
Constructed of 430 stainless steel, the Cleveland PEM242 electric steamer resists dents, scratches, and corrosion and has two steaming compartments that operate at a pressure of 5 PSI. A gauge displays the internal pressure, and if it gets too high, a valve relieves some of the stress. Due to the internal pressure, temperatures in this steamer get higher than they do in convection steamers. This design cooks food quickly and works well with dense dishes. For user safety, a mechanical interlock keeps the compartment doors closed when steaming.
This Cleveland PEM242 floor steamer requires a direct water connection. When it is turned on, the steam generator pulls in water automatically. Keeping track of the cook time while employees prepare other dishes, both compartment timers can be set for 60 minutes or less. Once the cycle is done, the timers audibly alarm nearby users, and after hours of cooking, the steamer can be switched off to blow down the generator. This process helps flush out built up sediment and debris so that the unit works properly. Because the slide racks and door gasket can be removed without tools, cleanup is quick and painless.
Product Details
- 2 compartments
- 430 stainless steel construction is strong and rust resistant
- 6-in. adjustable legs have flanged feet that secure the unit to the floor
- Compartment doors are made of sturdy aluminum
- Self-lubricating hinge bushings reduce maintenance
- Door gasket can be replaced without tools
- Slide racks can be removed without tools
- Steam generator automatically fills with water
- Water control system watches water level and stops operation if it gets too low
- Generator blowdown reduces limescale buildup
- (2) 60-min. timers with alarms
- Operating pressure: 5 PSI
- Gauge monitors pressure levels
- High-limit switch and valve keep pressure at safe levels
- Safety interlock ensures doors stay closed despite pressure
- Service access from the front
- Thermostatic trap vents the cooking compartments
- Steam can flow in and out of compartments simultaneously
- 1⁄4-in. NPT cold water connection
- 11⁄2-in. LPS drain connection
- Required clearance: 3 in. on sides and rear
Pan Capacities
- (16) 12- in. x 20-in. x 21⁄2-in.-deep cafeteria pans
- (12) 12-in. x 20-in. x 4-in.-deep cafeteria pans
- (8) 12-in. x 20-in. x 6-in.-deep cafeteria pans
- (8) 18-in. x 26-in. bun pans
Dimensions & Utilities
- 3543/100 in. W x 331/2 in. D x 64 in. H
- 59.7 A, 21500 W
- 208 V/60 Hz/3 ph
*Free shipping on Cleveland PEM242 within the 48 contiguous states.
From The Manufacturer
Pressure Steamer, electric heated boiler, 2 compartments, 36" cabinet base, manual controls, 60-minute mechanical timer, 6" adjustable legs with flanged feet, stainless steel construction, 24 kW
*Image may not depict product color, inclusions or accessories.
Cleveland PEM242 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Cleveland |
| Application | High Volume |
| Base | Cabinet |
| Controls | Manual |
| Depth (in) | 33.5 |
| Heat | Electric |
| Height (in) | 64 |
| Hertz | 60 |
| kW | 24 |
| No. of Compartments | 2 |
| Pan Capacity | 16 |
| Phase | 3 |
| Product | Pressure Steamers |
| Product Type | Cooking Equipment |
| Steam Generator | Boiler-Based |
| Steamer Type | Pressure |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 5-year Pro-Rated Boiler & Steam Generator Parts |
| Water Source | Plumbed |
| Width (in) | 35.43 |
| Weight | 830.00 |
