Cleveland KEL40TSH 40 gal Steam Kettle - Manual Tilt, Full Jacket, 240v/3ph

Write a Review!KaTom #: 109-KEL40TSH2403 • MPN: KEL40TSH 2403
  • 109-KEL40TSH2403 Primary Thumbnail Image
  • 109-KEL40TSH2403 Multiple Thumbnail Image #1

Typically ships in 2 - 3 weeks

Free Shipping Item

$29,285.00 /Each

Login or call for details!

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Selected Voltage: 240V, 3 Phase

Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

White Glove Delivery

Contact your sales rep for availability

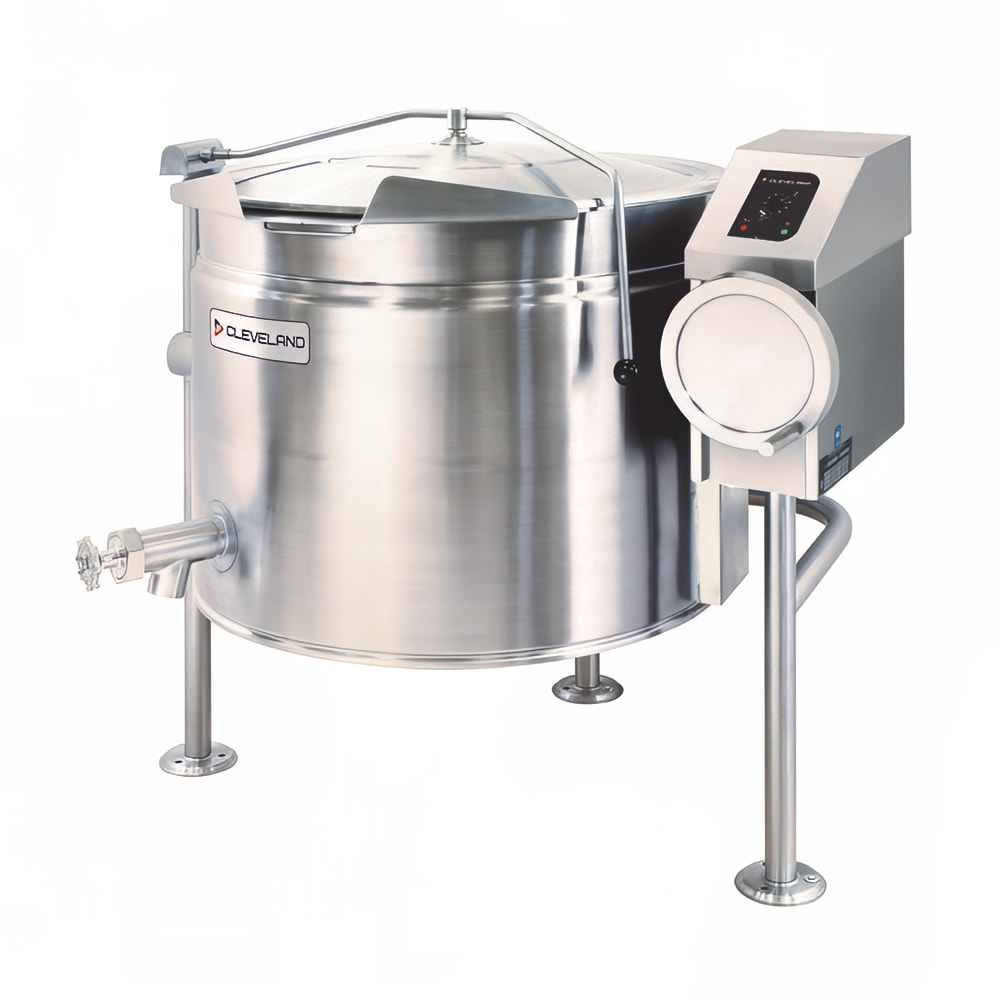

Cleveland KEL40TSH Description

The Cleveland KEL40TSH steam kettle's control panel is equipped with low-water and heat cycle LED indicators, a power switch, and a temperature dial. Operators can adjust the temperature from 145 to 260 degrees Fahrenheit. It features a full steam jacket design, and because the jacket is permanently filled with treated water, it doesn't need to be vented or refilled. This unit tilts manually and features a large pouring lip to reduce messes. Overall, it measures 45 inches wide by 37 inches deep by 35 inches high.

Durable and rust resistant, the Cleveland KEL40TSH tilting kettle is constructed of stainless steel. It's mounted on an open tri-leg base with flanged feet and features a reinforced rolled rim for strength. To prevent tampering, its pressure gauge and pressure relief valve are rear mounted. It has a 40-gallon capacity to support use in high-volume establishments that produce large batches of soup, pasta, sauce, rice, and more.

Product Details

  • Part of the Short Series™
  • 40-gal. capacity
  • Open tri-leg base with flanged feet
  • Full steam jacket
  • Temperature range: 145-260 degrees F
  • Manual tilting
  • Self-contained
  • Solid-state water level control
  • Jacket is permanently filled with treated water
  • Reinforced rolled rim improves strength
  • Large pouring lip
  • Welded-in heated elements
  • IPX6 water protection controls
  • Control panel with LED indicators for heat cycle and low water, temperature dial, and power switch
  • Made of durable stainless steel with 316 stainless steel liner
  • Rear-mounted pressure gauge and pressure relief valve prevent tampering
  • 50-PSI steam jacket rating

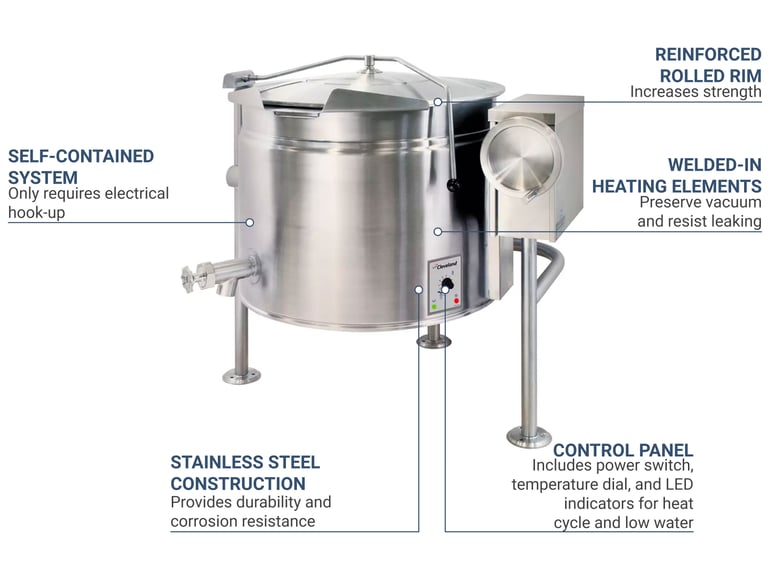

Product Features

Cleveland KEL40TSH2403 Features

Dimensions & Utilities

  • 45 in. W x 37 in. D x 35 in. H
  • 47.1 A, 19.6 kW
  • 240 V/60 Hz/3 ph

*Free shipping on Cleveland KEL40TSH within the 48 contiguous states.

From The Manufacturer

Short Seriesâ„¢ Steam Jacketed Kettle, electric, tilting, 40-gallon capacity, full steam jacket design, 35" rim height, open tri-leg base, stainless steel exterior finish, standard with flanged feet, 50 psi rating

*Image may not depict product color, inclusions or accessories.

Warranty Icon
1-year Parts & Labor

Cleveland KEL40TSH Specifications
