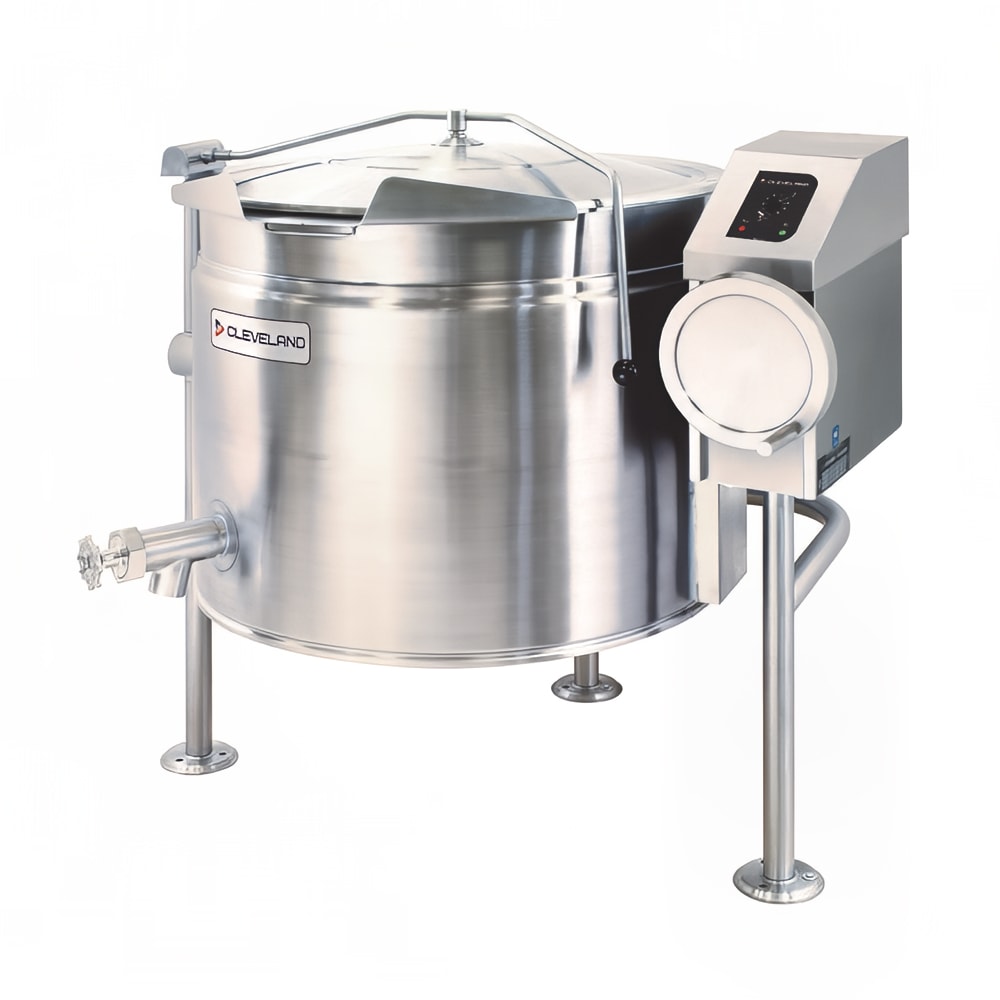

Cleveland KEL40TSH Description

To endure daily use in commercial settings, the Cleveland KEL40TSH steam kettle is made of rust- and corrosion-resistant stainless steel. It has a 40-gallon capacity, so it's ideal for operations that cook large batches of stew, pasta, rice, and sauce. It tilts manually, giving operators more control of pouring than kettles that don't tilt. Because its steam jacket is filled permanently with treated water, it never needs venting or refilling. As a self-contained system, this unit only needs to be plugged into an electrical supply for use.

The Cleveland KEL40TSH tilting kettle is mounted on an open tri-leg base with flanged feet. To prevent tampering, its pressure gauge and pressure relief valve are rear mounted, and its heating elements are welded in to prevent leakage. Its control panel has a power switch, a temperature dial, and LED indicators that monitor the heat cycle and water levels. For increased strength, it features a reinforced rolled rim. Overall, this unit measures 45 inches wide by 37 inches deep by 35 inches high.

Product Details

  • Part of the Short Series™
  • 40-gal. capacity
  • Open tri-leg base
  • Flanged feet
  • Full steam-jacketed design
  • Jacket permanently filled with treated water
  • Temperature range: 145-260 degrees F
  • Manual tilting
  • Self-contained
  • Solid-state water level control
  • Reinforced rolled rim
  • Welded-in heating elements
  • IPX6 water protection controls
  • Control panel with LED heat cycle and low-water indicators, temperature dial, and power switch
  • Stainless steel construction with 316 stainless steel liner
  • Large pouring lip
  • Pressure gauge and pressure relief valve are rear mounted to prevent tampering
  • 50-PSI steam jacket rating

Product Features

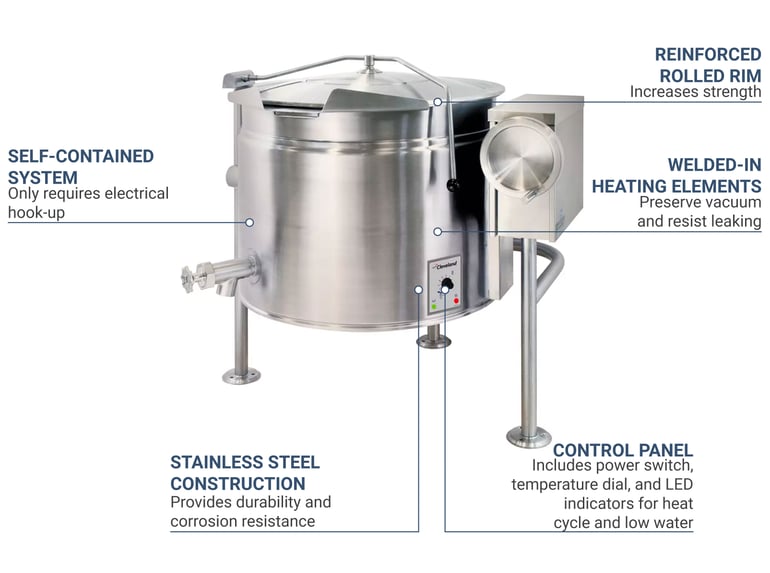

Cleveland KEL40TSH2083 Features

Dimensions & Utilities

  • 45 in. W x 37 in. D x 35 in. H
  • 40.9 A, 14.7 kW
  • 208 V/60 Hz/3 ph

*Free shipping on Cleveland KEL40TSH within the 48 contiguous states.

From The Manufacturer

Short Seriesâ„¢ Steam Jacketed Kettle, electric, tilting, 40-gallon capacity, full steam jacket design, 35" rim height, open tri-leg base, stainless steel exterior finish, standard with flanged feet, 50 psi rating

*Image may not depict product color, inclusions or accessories.

Warranty Icon
1-year Parts & Labor

Cleveland KEL40TSH Specifications

Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
