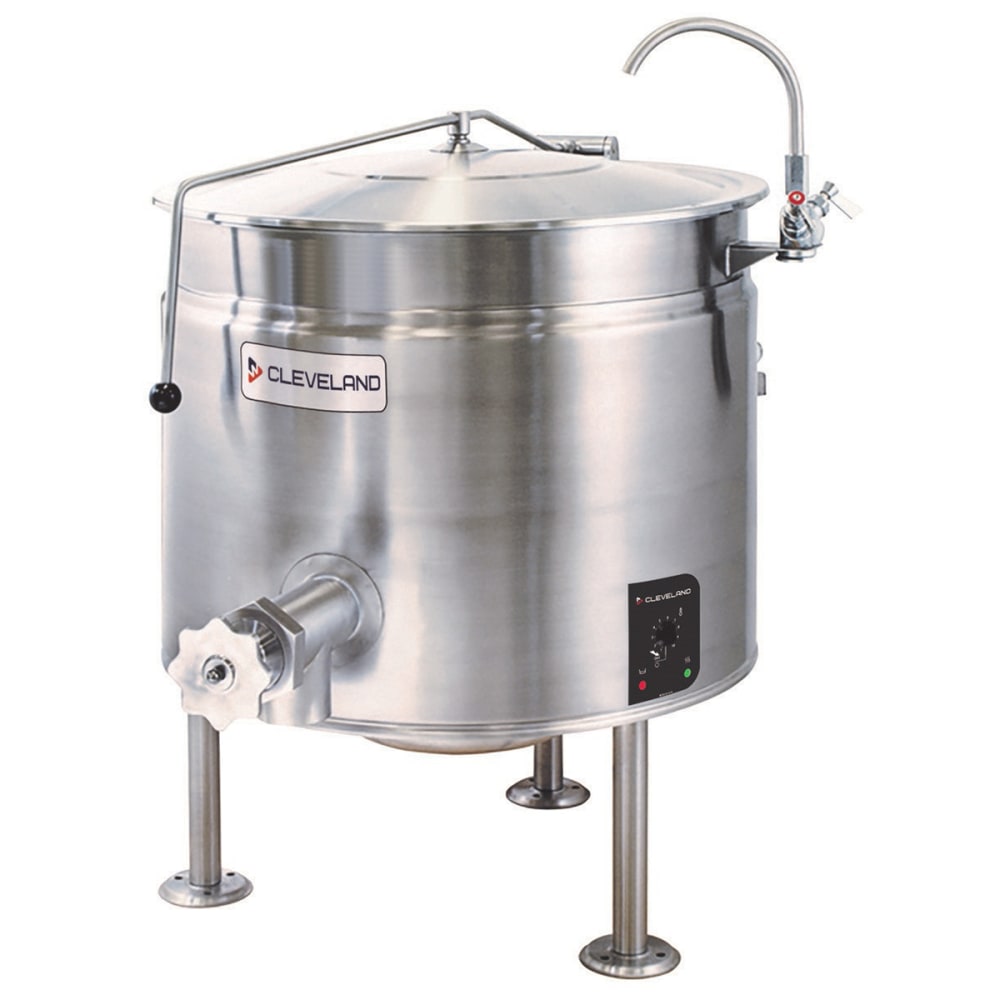

Cleveland KEL-40-SH 40 gal Steam Kettle - Stationary, Full Jacket, 240v/3ph

Write a Review!KaTom #: 109-KEL40SH2403 • MPN: KEL40SH 2403
  • 109-KEL40SH2403 Primary Thumbnail Image
  • 109-KEL40SH2403 Multiple Thumbnail Image #1
Free Shipping Item

$24,227.00 /Each

Login or call for details!

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Selected Voltage: 240V, 3 Phase

Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

White Glove Delivery

Contact your sales rep for availability

Cleveland KEL-40-SH Description

Shorter than Cleveland’s other floor-model steam kettles, this Cleveland KEL-40-SH electric kettle is part of the Short Series™ and measures 3412 inches wide by 44 inches deep by 3578 inches high. This stationary unit features an open tri-leg base with flanged leveling feet that can be bolted into the floor to secure the kettle in place throughout use. The kettle and exterior surfaces are made of durable, corrosion-resistant type 304 stainless steel and feature a No. 4 finish that can be wiped clean. Throughout cooking, the spring-assisted cover can shield product from contaminants and preserve temperatures. So the kettle's rolled rim isn't damaged when the cover is closed repeatedly, it features a reinforced design.

To heat its steam jacket, the Cleveland KEL-40-SH kettle requires attachment to an electrical hook-up. This kettle is self-contained, meaning its jacket is permanently filled with treated water, and it doesn't need to be refilled or vented, which helps eliminate hands-on maintenance tasks. The jacket surrounds the full kettle for an even heat distribution and is rated at 50 PSI to withstand high cooking temperatures. Designed to cook soup, stew, pasta, rice, and sauce, the unit has a 40-gallon capacity, and users can adjust temperatures from 145 to 260 degrees Fahrenheit with the solid-state temperature controls. Because it's a stationary system, thick, chunky product must be scooped out, while liquids can be removed from the 2-inch tangent draw-off valve, which includes a strainer to prevent expulsion of solid foods.

Product Details

  • Part of Splash Proof series
  • 40-gal. capacity
  • Stationary floor model
  • Self-contained system with full steam jacket
  • Steam jacket filled with treated water (doesn't require venting or refilling)
  • Welded-in heating elements
  • Splash-proof solid-state temperature controls
  • Control panel: LED indicator lights for heat cycle and low water levels, power on/off switch, and adjustable temperature adjustment dial
  • Solid-state water level control
  • Operating temperature range: 145-260 degrees F
  • Type 304 stainless steel exterior with No. 4 finish
  • 316 stainless steel interior
  • Spring-assisted cover
  • Strong, reinforced rolled rim
  • 2-in. tangent draw-off valve with strainer
  • Faucet mounting bracket
  • Open tri-leg base with flanged, adjustable leveling feet
  • Steam jacket rating: 50 PSI
  • 50-PSI safety valve
  • Right-side clearance: 12 in.

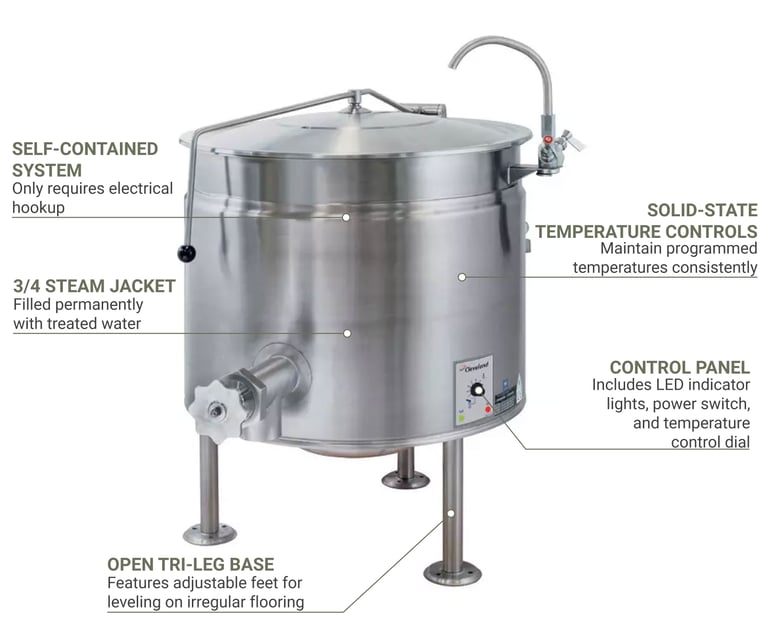

Product Features

Cleveland KEL40SH2403 Features

Dimensions & Utilities

  • 3412 in. W x 44 in. D x 3578 in. H
  • 47.1 A, 19.6 kW
  • 240 V/60 Hz/3 ph

*Free shipping on Cleveland KEL-40-SH within the 48 contiguous states.

From The Manufacturer

Short Seriesâ„¢ Steam Jacketed Kettle, electric, 40-gallon capacity, full steam jacket design, 34.8" rim height, open tri-leg base, stainless steel construction, solid-state temperature controls, power on/off switch, drain strainer, faucet mounting bracket, spring assisted cover, 2" tangent draw-off, 50 psi rating

*Image may not depict product color, inclusions or accessories.

Warranty Icon
1-year Parts & Labor
