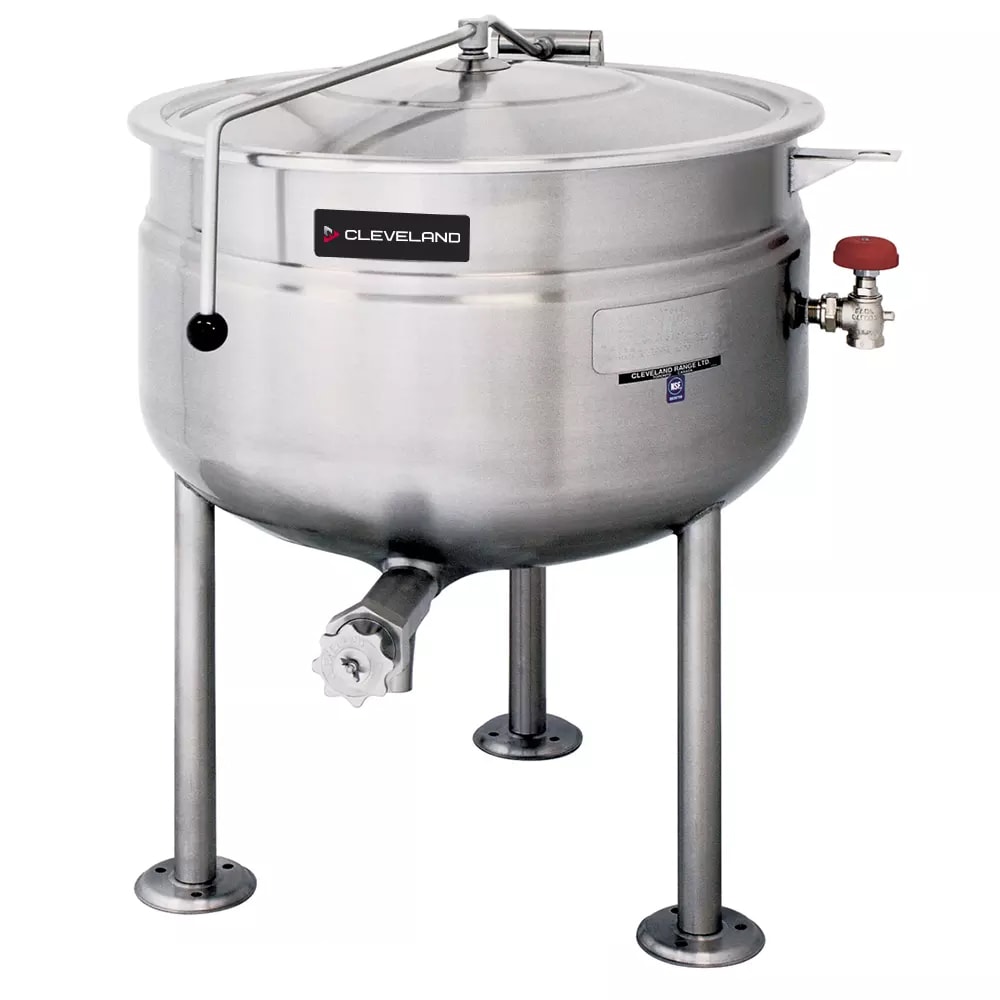

Cleveland KDL100 100 gal Steam Kettle - Stationary, 2/3 Jacket, Direct Steam
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Cleveland KDL100 Description

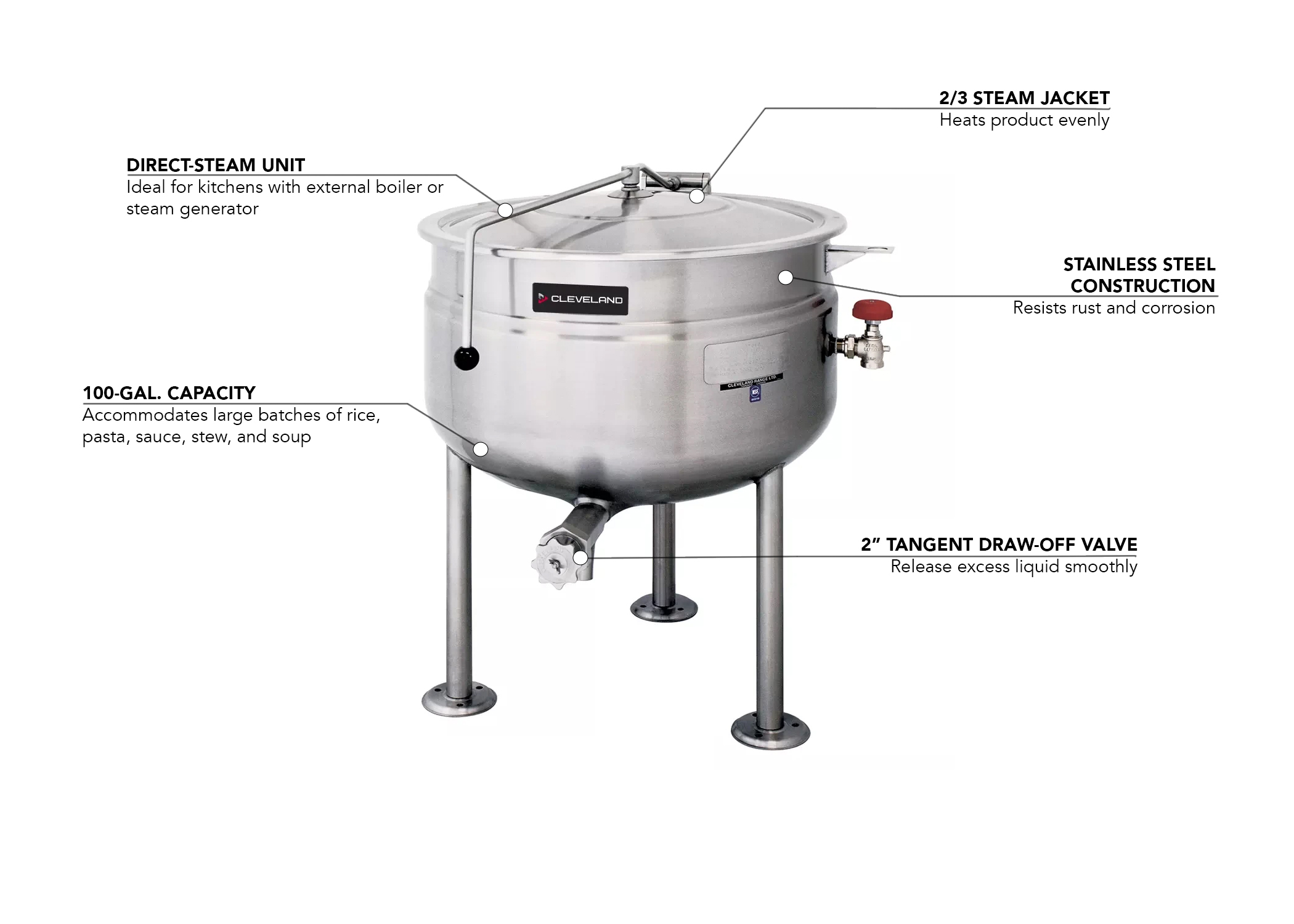

Because the Cleveland KDL100 steam kettle is a direct-steam unit, it requires an external source to fill the jacket with steam, so it should be used in kitchens with external boilers or steam generators. A two-thirds steam jacket lines the interior of the kettle so it can heat product uniformly. Its 100-gallon capacity is ideal for warming large batches of rice, stew, pasta, and soup. A domed, hinged, spring-assisted cover helps protect product from contaminants while preserving heat.
The Cleveland KDL100 steam kettle's stationary design enables excess liquid to be released from the 2-inch-diameter draw-off valve. Its reinforced, rolled rim provides strength, while its open, tri-leg base stabilizes the kettle; flanged feet can be bolted to the floor for additional security. The interior and exterior are stainless steel to preserve durability throughout use and simplify cleaning. This floor model measures 405⁄8 inches wide by 431⁄8 inches deep by 43 inches high, or 793⁄8 inches high when the cover is open.
Product Details
- 100-gal. capacity
- Two-thirds steam jacket
- Steam jacket rating: 50 PSI
- Direct-steam unit
- 316 stainless steel interior
- Spring-assisted cover is domed, hinged, and can be rotated
- 2-in.-diameter, tangent draw-off valve with drain strainer
- Condensate drain valve with insulated handle
- 50-PSI chrome-plated safety valve
- Open base with 3 legs
- Type 304 stainless steel tubular construction
- Adjustable, flanged feet for floor bolting
- Faucet mounting bracket
- Steam control inlet valve
- Incoming steam operating pressure: 5-45 PSI
- Rear clearance: 4 in.
Dimensions & Utilities
- 405⁄8 in. W x 431⁄8 in. D x 43 in. H (793⁄8 in. H when cover is open)
- 3⁄4-in. IPS steam supply line
- 1⁄2-in. NPT for drainage
- 1⁄2-in. NPT hot water inlet
- 1⁄2-in. NPT cold water inlet
Product Features
*Free shipping on Cleveland KDL100 within the 48 contiguous states.
From The Manufacturer
Kettle, direct steam, 100-gallon capacity, 2/3 steam jacket design, open tri-leg base, stainless steel exterior finish with 316 series stainless steel liner, standard with flanged feet, steam control valve, 2" tangent draw-off, spring assist cover, 50 psi rating
*Model KDL-40 Shown
Cleveland KDL100 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Cleveland |
| Base | Tri Leg |
| Capacity (gallons) | 100 |
| Design | 2/3 Jacket |
| Heat | Direct Steam |
| No. of Kettles | 1 |
| Tilt Mechanism | Stationary |
| Type | Floor Model |
| Warranty | 1-year Parts & Labor |
| Weight | 360.00 |
