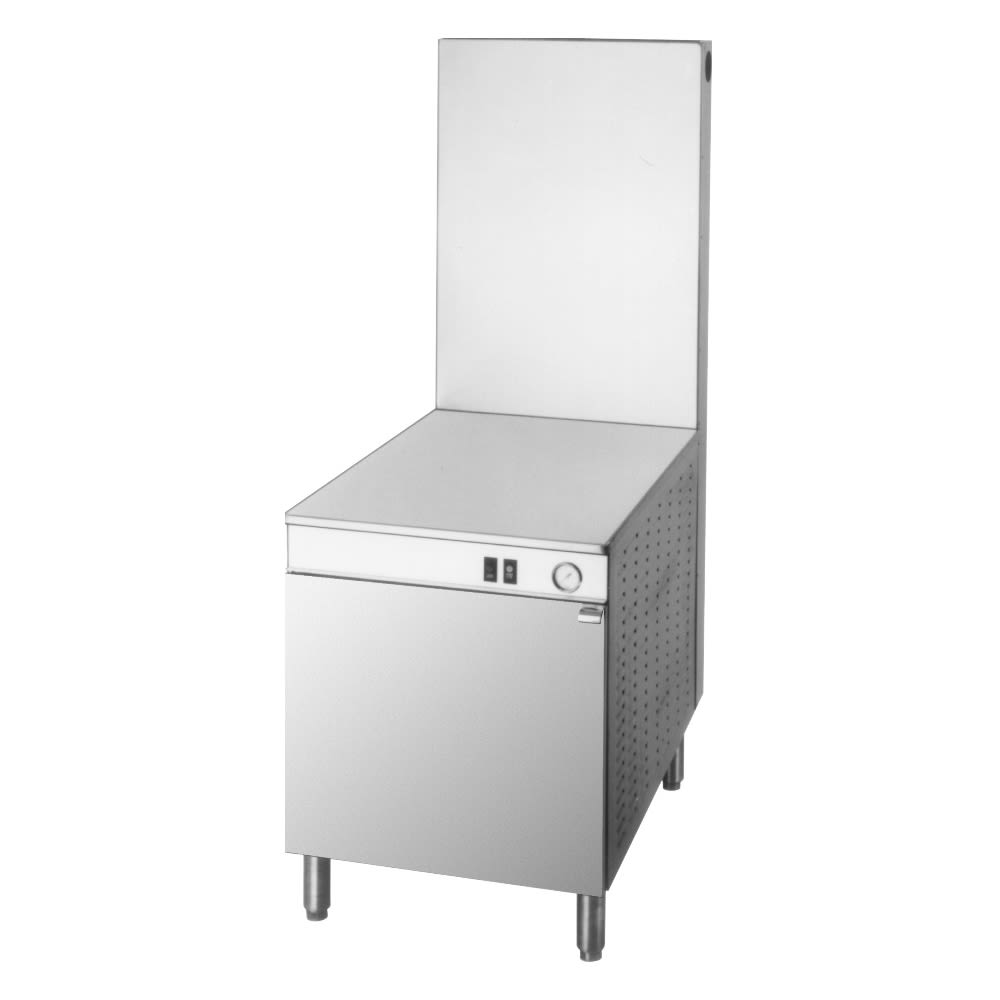

Cleveland 36GM300 36" Gas Steam Generator w/ 300,000 BTU Output, Liquid Propane

The Cleveland 36GM300 gas steam generator creates steam to operate warmers, steamers, and kettles. This units helps other equipment cook product efficiently and consistently, and with its modular configuration, it easily fits in with existing kitchen equipment. The steam generator can be set up to operate without contributing to ambient kitchen heat and makes a cost-effective alternative to a kitchen boiler. Unlike boilers, this unit generates steam at atmospheric pressure rather than producing heated steam at an elevated pressure. The NickelGuard™ steam generator automatically empties under pressure at each shut-down and refills with water upon start-up.

Because it runs on liquified petroleum, the Cleveland 36GM300 steam generator provides maximum efficiency and doesn't require gas lines. For optimal durability, this unit's exterior enclosure, backsplash, and table top are made of stainless steel. Operators can adjust the 6-inch stainless steel legs to level the steam generator on uneven floors; to enhance user safety, the unit automatically stops when it detects low water. For energy conservation, the steam generator is equipped with a solid-state electronic spark ignition, and to facilitate maintenance, all major components can be serviced from the front.

Product Details

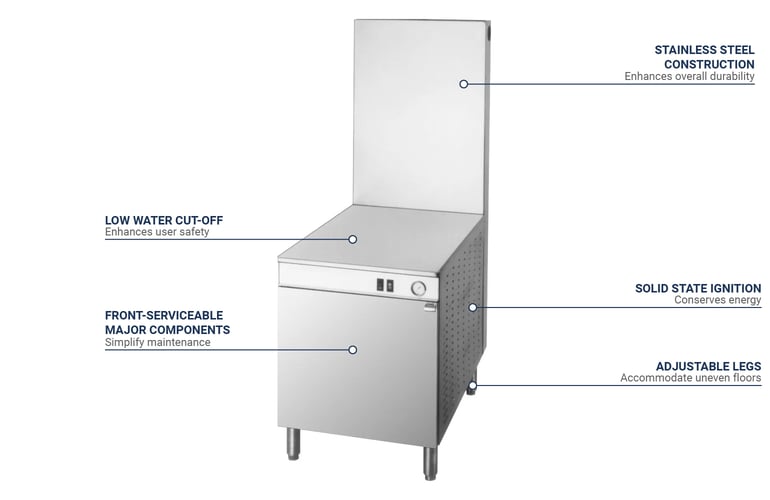

• Modular configuration
• Comes with power take-off kit
• Constructed of strong stainless steel
• Hinged cabinet door
• Adjustable, 6-in. stainless steel legs with flanged feet
• Solid-state steam generator with water level controls
• Low-water cut-off enhances user safety
• Pressure limit controls
• 15-PSI safety valve
• Solid-state electronic spark ignition conserves energy
• Major components serviceable from front
• NickelGuard unit automatically empties under presser at shut-down and refills water at start-up
• Separate start and reset illuminated switch controls
• Pressure gauge
• Steam generator drain incorporates jet rinsing and water cooling
• Insulated generator reduces work area heat loss
• Gas pressure regulator
• Comes with access hole, cover plate, and sight glass gauge
• Doesn't require hot water connection
• 35-80 PSI
• 300,000-BTU output
• Maximum temperature: 140 degrees F

Dimensions & Utilities

• 35⁴³/₁₀₀ in. W x 37 in. D x 62 in. H
• LP gas

Product Features

*Free shipping on Cleveland 36GM300 within the 48 contiguous states.

From The Manufacturer

Steam Generator, gas, 36" wide cabinet base, modular design, includes power take-off kit, stainless steel construction, 300,000 BTU gas-fired steam generator

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Pro-Rated Boiler & Steam Generator Parts
