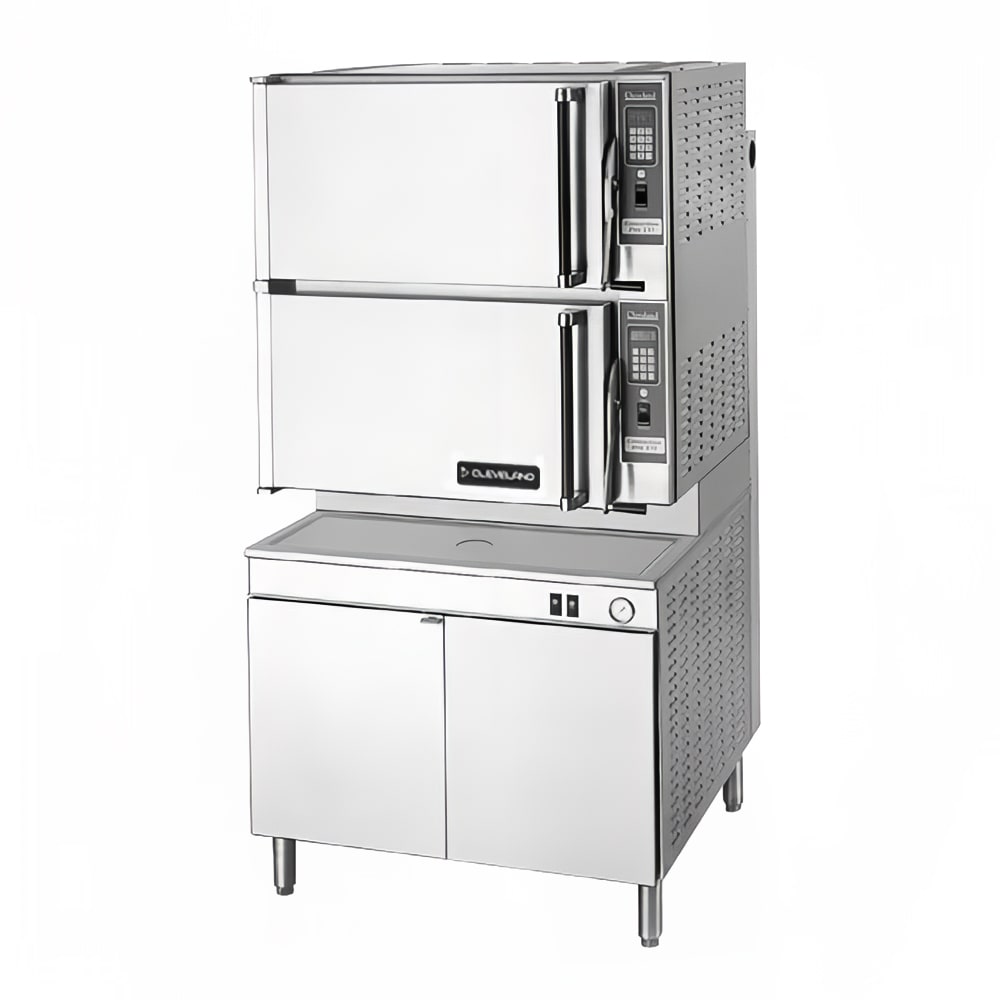

Cleveland 36CGM16300 (16) Pan Convection Steamer - Cabinet, Natural Gas

The Cleveland 36CGM163000 ConvectionPro® steamer accommodates eight full-size pans in each of its two compartments, both of which are fully insulated to ensure heat stays inside. Coved corners facilitate cleanup and evenly distribute steam, which is produced at a high velocity by convection jets, throughout the compartment. A steam generator automatically fills up with water when the unit is turned on and drains the water when turned off while the cold water condenser keeps steam dry. Its instant steam standby feature keeps the cabinet at steam temperatures when not in use to reduce wait time.

The Cleveland 36CGM163000 steamer is constructed of stainless steel to resist dents, scratches, and rust, and since the unit operates without using pressure, the doors can be opened while it is running. Its door has a switch to automatically turn off steam when opened to prevent burns while the cut-off circuit prevents burnouts by shutting the unit off when water runs low. Each of the compartments has a 60-minute timer for keeping track of cook times, and additional storage is offered by a cabinet in the base.

Product Details

• Heated by natural gas
• Tough, rust-resistant stainless steel construction
• Heavy-duty doors have replaceable gaskets
• Pressureless operation enables doors to be opened during operation
• Door switch stops steam when the door is open
• Both compartments have 60-min. timers
• Modular cabinet base for convenient storage
• 6-in. stainless steel legs have adjustable feet to stabilize on uneven floors
• Solid state water level and safety controls
• Low-water cut-off circuit shuts the unit down when water levels are insufficient to prevent burnouts
• Includes a secondary low-water cut-off for additional protection
• Controls are front accessible for maintenance
• Water jet rinse cycle cleans the drain
• Generates heat using natural gas
• Includes high-limit pressure safety switch, safety valve, and steam generator pressure gauge
• Comes with a gas pressure regulator and control valve
• On/off power switch
• 300,000 BTU

Steam System

• Convection jets produce steam at a high velocity
• Cold water condenser maintains dry steam
• Instant steam standby feature holds steaming temperature to drastically reduce wait times
• Bypass switch operates continuously
• Nickelguard™ electronic spark system ignites the generator
• Gas steam generator automatically fills with water when powered on and automatically empties when turned off

Cooking Compartments

• 2 compartments hold 8 full-size pans each
• Compartments are insulated to retain heat
• Coved compartment corners simplify cleanup and evenly distribute steam
• Slide racks are removable for cleaning
• Creased bottom facilitates draining

Dimensions & Utilities

• Overall dimensions: 35.43 in. W x 37 in. D x 68.92 in. H
• 115 V/60 Hz/1 ph

From The Manufacturer

ConvectionPro® XVII Steamer, gas, 2 compartments, 36" cabinet base, (8) 12 x 20 x 2-1/2" pans/compartment, solid state controls, 60-minute mechanical timer & manual (continuous steaming) bypass switch, stainless steel exterior finish, 300,000 BTU gas-fired steam generator with electric steam control

*Image may not depict product color, inclusions or accessories.

Cleveland 36CGM16300 Specifications

Spec Attribute	Spec Value
Manufacturer	Cleveland
Application	High Volume
Base	Cabinet
Total BTU	300000
Controls	Manual
Depth (in)	37
Gas Type	NG
Heat	Gas
Height (in)	69
Hertz	60
Pan Capacity	10 or More Pans
Steam Generator	External Source
Warranty	1-year Parts & Labor; 5-year Pro-Rated Parts Boiler & Steam Generator
Width (in)	36
Series	ConvectionPro®
Product	Steamers
Product Type	Cooking Equipment
No. of Compartments	2
Water Source	Plumbed
Steamer Type	Convection
Weight	1080.00
