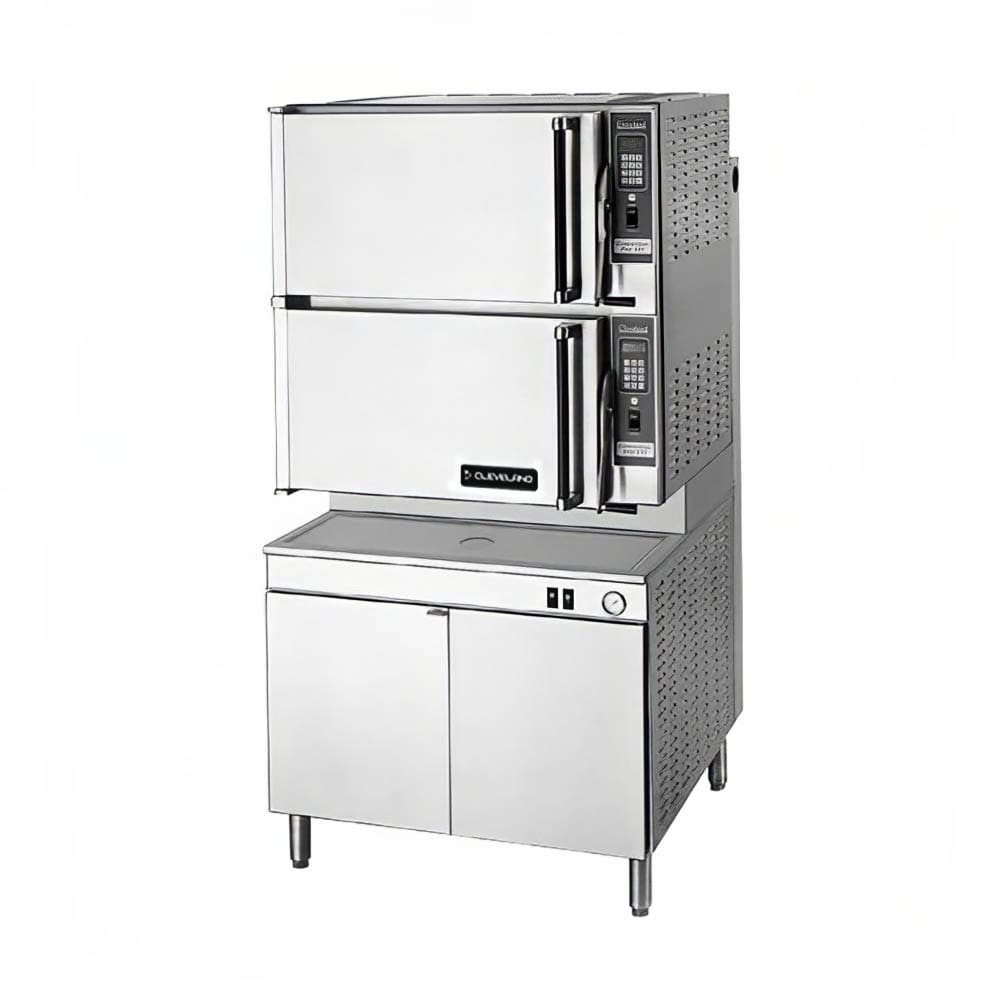

Cleveland 36CEM1648 (16) Pan Convection Steamer - Cabinet, 240v/3ph

Made of 10-gauge stainless steel, the Cleveland 36-CEM-16-48 convection steamer’s compartment doors and cooking cavities withstand high-volume, heavy-duty use. Featuring a three-compartment layout, the cooking sections and the bottom cabinet base are equipped with left-hinged doors and sturdy handles. Inside the insulated cooking sections, coved corners help evenly circulate airflow and ease cleaning. Sliding racks inside the compartments can be removed and cleaned to maintain a clean cooking area. Beneath both of the compartments, a 36-inch cabinet base can store additional pans. Stabilized with stainless steel legs, the unit measures 35⁴³/₁₀₀ in. W x 33¹/₂ in. D x 68²³/₂₅ in. D.

For even heating, the Cleveland 36-CEM-16-48 steamer uses convection jets to distribute high-velocity steam throughout the compartments. The steam has a dry composition because of the cold water condenser, eliminating humidity that could create soggy foods. Each compartment has a correlating stainless steel generator that can be controlled to maintain a high temperature for instant steam production. Users can manage water levels and time for more consistent results, and to prevent obstructions in the automatic generator drain, a rinse cleaning cycle is implemented for streamlined drainage.

Product Details

• Steam circulated by brass jets
• 2 cooking compartments
• Compartment capacity: 8 full-size cafeteria pans
• Stainless steel external enclosure, table top, and cooking compartments
• 2 left-hinged doors with replaceable gaskets (2 per compartment and 1 for the bottom cabinet)
• 60-minute mechanical timer with touch controls and audible/visual signals for cooking completion
• Steam shut-off switch
• 6-in. stainless steel adjustable legs with flanged feet
• 36-in. cabinet base
• Left, right, and rear clearances: 3 in.
• Ideal incoming water pressure: 35-60 PSI

Dimensions & Utilities

• 35⁴³/₁₀₀ in. W x 33¹/₂ in. D x 68²³/₂₅ in. D
• 115.6 A, 48 kW
• 240 V/60 Hz/3 ph
• ¹⁄₄-in. NPT cold water inlet

*Free shipping on Cleveland 36CEM1648 within the 48 contiguous states.

From The Manufacturer

ConvectionPro® XVI Steamer, electric, 2 compartments, 36" cabinet base, (8) 12 x 20 x 2-1/2" pans/compartment, solid state controls, 60-minute mechanical timer & manual (continuous steaming) bypass switch, stainless steel exterior finish, 48 kW steam generator with electric steam boiler

*Image may not depict product color, inclusions or accessories.

Cleveland 36CEM1648 Specifications

Spec Attribute	Spec Value
Manufacturer	Cleveland
Application	High Volume
Base	Cabinet
Controls	Manual
Depth (in)	33.5
Heat	Electric
Height (in)	69
Hertz	60
kW	48
No. of Compartments	2
Pan Capacity	10 or More Pans
Phase	3
Product	Steamers
Product Type	Cooking Equipment
Series	ConvectionPro®
Steam Generator	Boiler-Based
Steamer Type	Convection
Voltage	240
Warranty	1-year Parts & Labor; 5-year Pro-Rated Boiler & Steam Generator Parts
Water Source	Plumbed
Width (in)	35.43
Weight	1035.00
