Cleveland 36CEM1648 (16) Pan Convection Steamer - Cabinet, 208v/3ph
$40,299.00 /Each
Login or call for details!
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Similar Products in Stock Now
Cleveland 36CEM1648 Description

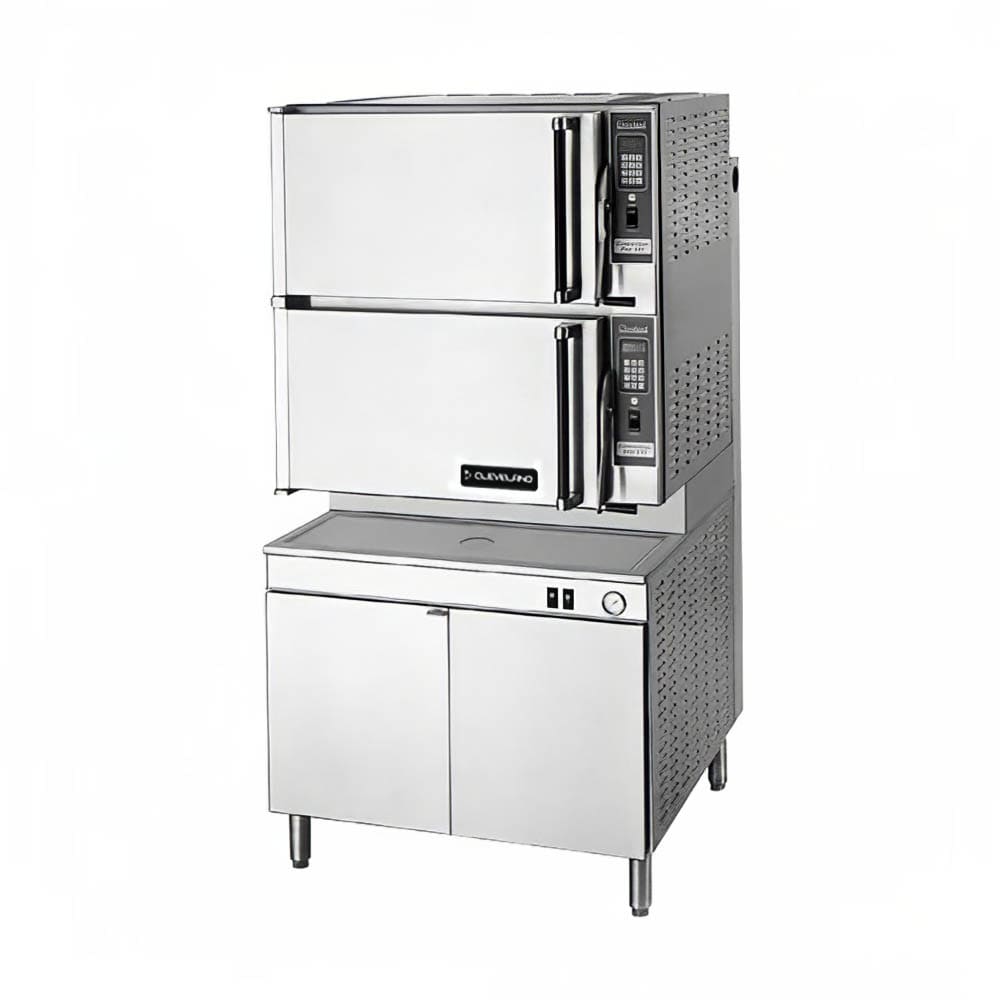

Each compartment of the Cleveland 36-CEM-16-48 ConvectionPro XVI® holds as many as eight full-size cafeteria pans or four 12-inch by 18-inch bun pans. Convection jets circulate steam separately in each compartment to enable unique cooking methods. When a door is opened, the steaming will automatically turn off for user safety and energy conservation. Designed to withstand spontaneous use, its instant steam standby mode holds the generators at a hot temperature to prepare it to steam when needed. The cold water condenser creates dry steam for desirable results, and water level controls and a 60-minute timer are available in each section to accommodate certain foods.
Supported by 6-inch stainless steel legs with adjustable flanged feet, the Cleveland 36-CEM-16-48 steamer measures 3543/100 in. W x 331/2 in. D x 6823/25 in. D. Its stainless steel body endures chips and scratches from bustling kitchens and won’t corrode in humid environments. Each of the fully insulated compartments have easy-to-clean coved corners and a creased bottom for streamlined drainage. Ensuring sanitation, all the slide racks can be removed and cleaned. A door on each section hinges on the left side, and the gaskets are replaceable to increase the lifespan.
Product Details
- Brass jets circulate steam
- Stacked cooking compartments
- Compartment capacity: 8 full-size cafeteria pans
- 14-ga. stainless steel compartment doors, cooking compartments, and steam generators
- 2 left-hinged doors with replaceable gaskets
- 60-minute mechanical timer with touch controls
- Audible/visual signals for cooking completion
- Steam shut-off switch activates when door opens
- 6-in. stainless steel adjustable legs with flanged feet
- 36-in. cabinet base
- Left, right, and rear clearances: 3 in.
- Ideal incoming water pressure: 35-60 PSI
Dimensions & Utilities
- 3543/100 in. W x 331/2 in. D x 6823/25 in. D
- 119.2 A, 48 kW
- 208 V/60 Hz/3 ph
- 1⁄4-in. NPT cold water inlet
*Free shipping on Cleveland 36CEM1648 within the 48 contiguous states.
From The Manufacturer
ConvectionPro® XVI Steamer, electric, 2 compartments, 36" cabinet base, (8) 12 x 20 x 2-1/2" pans/compartment, solid state controls, 60-minute mechanical timer & manual (continuous steaming) bypass switch, stainless steel exterior finish, 48 kW steam generator with electric steam boiler
*Image may not depict product color, inclusions or accessories.
Cleveland 36CEM1648 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Cleveland |
| Application | High Volume |
| Base | Cabinet |
| Controls | Manual |
| Depth (in) | 33.5 |
| Heat | Electric |
| Height (in) | 69 |
| Hertz | 60 |
| kW | 48 |
| No. of Compartments | 2 |
| Pan Capacity | 10 or More Pans |
| Phase | 3 |
| Product | Steamers |
| Product Type | Cooking Equipment |
| Series | ConvectionPro® |
| Steam Generator | Boiler-Based |
| Steamer Type | Convection |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 5-year Pro-Rated Boiler & Steam Generator Parts |
| Water Source | Plumbed |
| Width (in) | 35.43 |
| Weight | 1035.00 |
