Axis AX-CL06M Full-Size Combi Oven, Boilerless, 208 240v/60/3ph
Typically ships in 4 - 8 Business Days
$7,148.25 /Each
Login or call us for more info!
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now

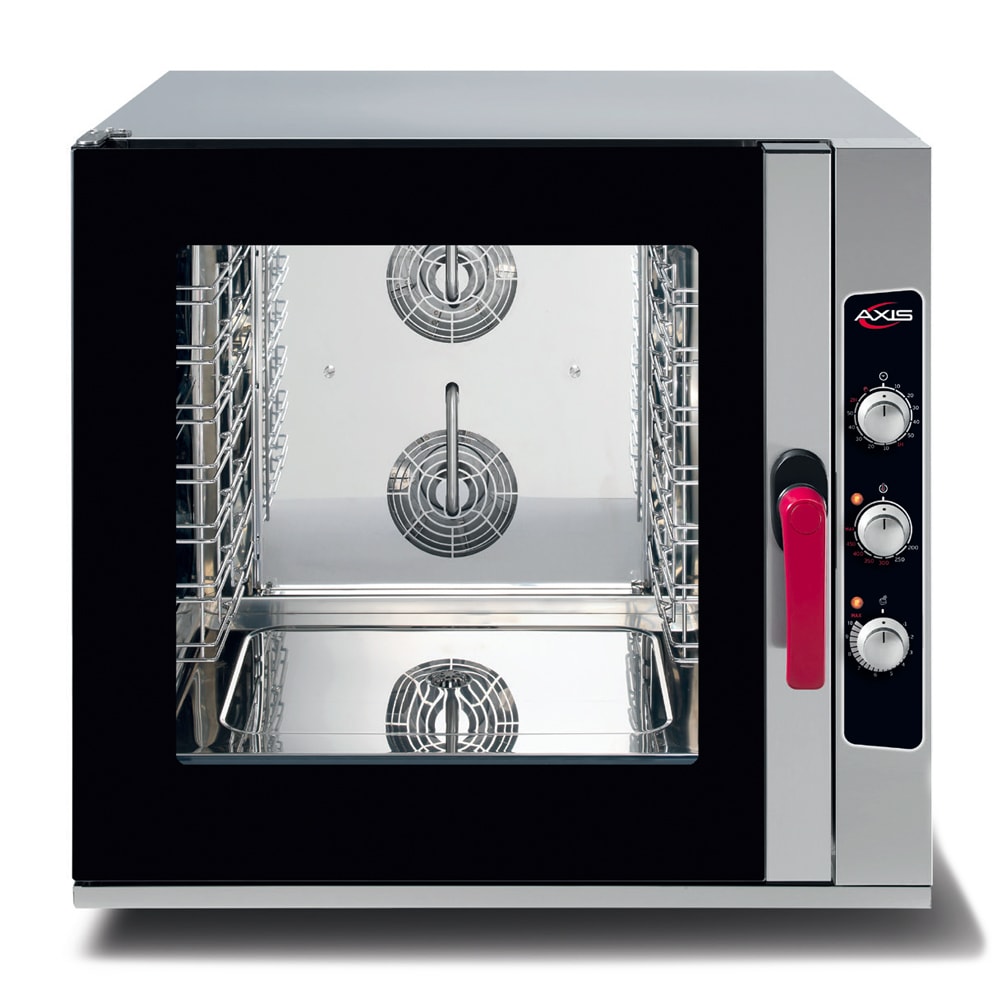

Axis AX-CL06M Description
The Axis AX-CL06M full-size combi oven accommodates six full-size sheet pans and includes three stainless steel wire shelves to support high-volume cooking. Its manual control system enables users to set the temperature between 86 and 545 degrees Fahrenheit, with a 120-minute timer or continuous on function. Interior halogen lighting enhances visibility, while a hinged double-pane glass door with a micro safety switch improves operator safety. A hand spray nozzle is included for convenient cleaning.
To promote even heat distribution, the Axis AX-CL06M combi oven features two automatic high-speed reversing fans operating at 3,200 RPM. Steam levels can be adjusted between 0 and 100 percent, and the integrated electro valve ensures a direct water connection. Its stainless steel construction and ultra-high-temperature fiberglass insulation help maintain consistent heating. For increased capacity, the unit is stackable with an additional oven using a separate stacking kit.
Product Details
- 6 full-size sheet pans
- Stainless steel
- Ultra-high-temperature fiberglass insulation
- 3 stainless steel wire shelves
- 1 double-pane glass door with internal safety switch
- Interior halogen light
- Stackable design (kit required)
- Manual control panel
- 120-minute timer with continuous on option
- Temperature range: 86-545 degrees F
- 2 high-speed reversing fans (3,200 RPM)
- Adjustable steam percentage: 0-100 percent
- Electro valve for direct water connection
- Hand spray nozzle for cleaning
Dimensions & Utilities
- Interior: 281⁄3 in. W x 221⁄5 in. D x 241⁄10 in. H
- Overall: 383⁄5 in. W x 333⁄5 in. D x 361⁄3 in. H
- 32 A, 10,500 kW
- 208 V/60 Hz/3 ph (plug not included)
Product Features
*Free shipping on Axis AX-CL06M within the 48 contiguous states.
From The Manufacturer
Axis Full Size Combi Oven, accommodates (6) full size sheet pans, (3) stainless steel wire shelves, manual controls, temperature range 86°F-545°F, 120 minute timer or continuous ON, interior lighting, (2) automatic high speed reversing fans (3200 rpm), steam: 0-100%, electro valve for direct water connection, hinged double pane glass door, with safety switch, stainless steel construction, hand spray nozzle for cleaning, 10500 watts, 32 amps, 208v/60/3ph, cETLus, ETL-Sanitation
*Image may not depict product color, inclusions or accessories.
Axis AX-CL06M Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Axis |
| Controls | Manual |
| Depth (in) | 33.64 |
| Heat | Electric |
| Height (in) | 37.08 |
| Hertz | 60 |
| kW | 10.5 |
| No. of Compartments | Single |
| Pan Type | Full Size Sheet Pans |
| Pan Type | Full Size Steam Pans |
| Pan Type | Half Size Sheet Pans |
| Pan Type | Half Size Steam Pans |
| Phase | 3 |
| Product | Combi Ovens |
| Product Type | Cooking Equipment |
| Rating | Good |
| Sheet Pan Capacity | 6 Full |
| Size | Full Size |
| Steam Generator | Boilerless |
| Steam Pan Capacity | 6 Full |
| Steam Source | Water Reservoir |
| Voltage | 208/240 |
| Warranty | 2-year Parts; 1-year Labor; 60-day Glass, Gasket, & Lights |
| Width (in) | 38.7 |
| Weight | 230.00 |
Important Prop 65 information for California residents.
