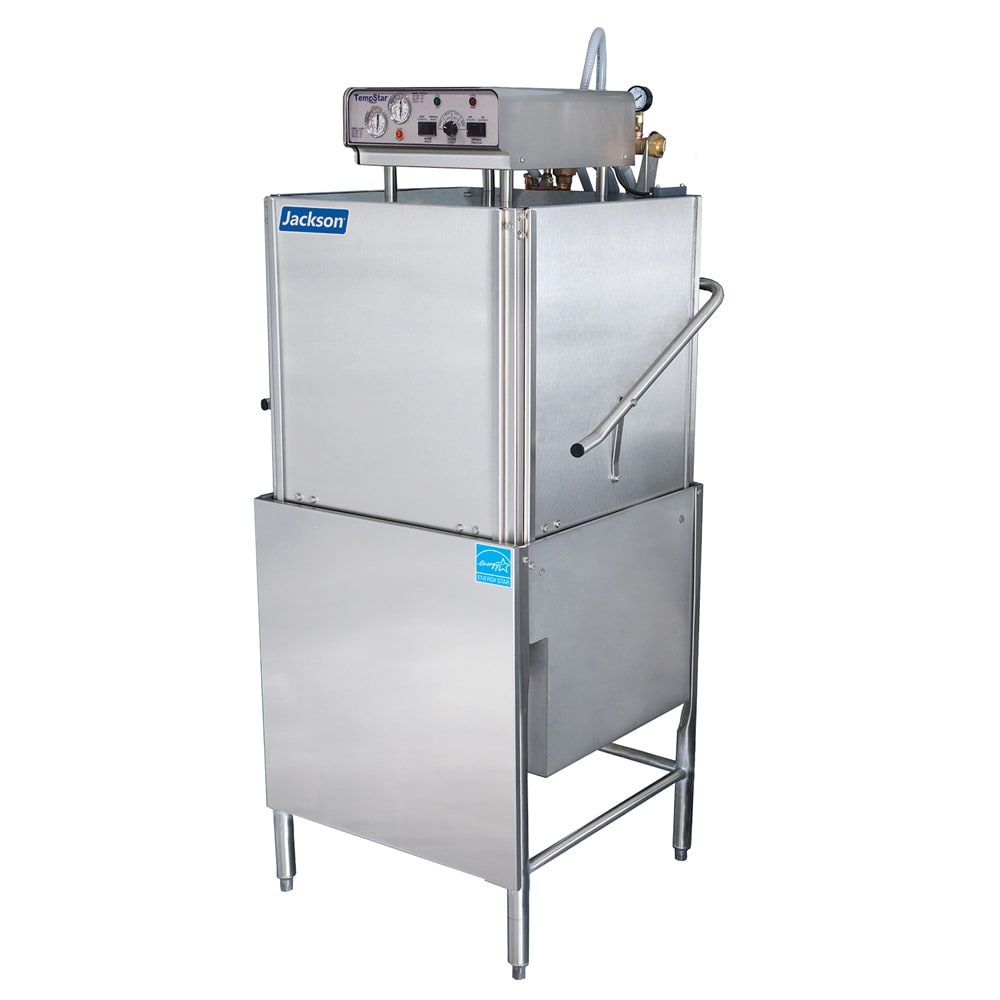

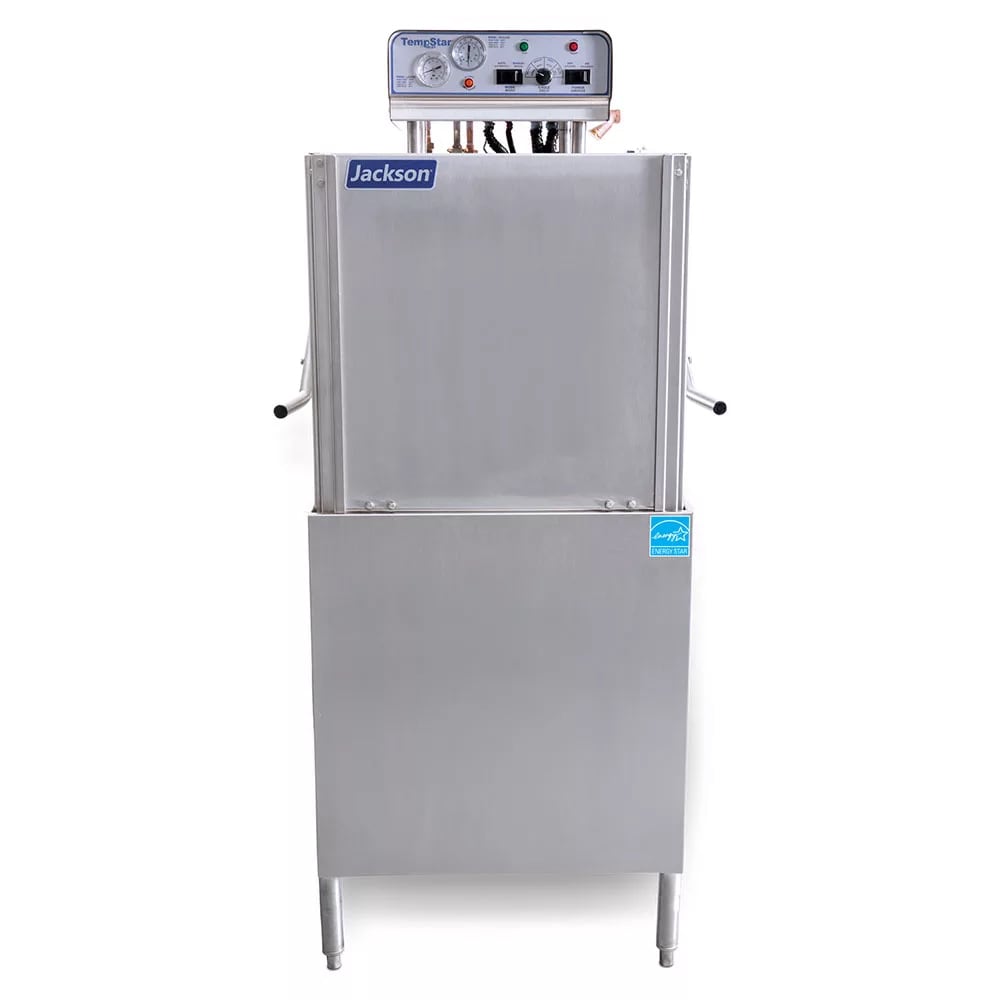

Jackson TEMPSTAR W/O TempStar® High Temp Door Type Dishwasher w/ 58 Rack/hr Capacity, 230v/3ph

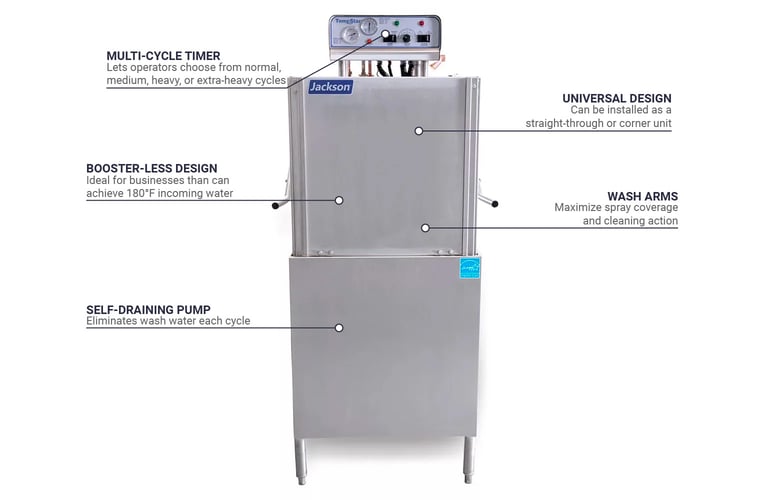

To ensure various soil levels can be thoroughly cleaned, the Jackson TEMPSTAR W/O TempStar® door-type dishwasher includes a multi-setting timer with an extra-heavy (297 seconds), heavy (177 seconds), medium (117 seconds), and normal (57 seconds) cycle. This unit features a door-actuated start, an automatic tank fill, and a self-draining stainless steel pump that minimize hands-on tasks, while its specially designed stainless steel nozzles and interchangeable rinse/wash arms ensure consistent results. Its high-limit thermostat and low-water protection system gauge water temperatures and levels to prevent unexpected dropping or rising. Because this unit doesn't include a booster, it's ideal for businesses with access to 180-degree-Fahrenheit incoming water.

A universal-style unit, the Jackson TEMPSTAR W/O high-temp dishmachine can be installed as a straight-through or corner kit when a field conversion kit is purchased. Intended for use in compact kitchens, it measures 32 inches wide by 29 inches deep by 64³⁄₈ inches high. It's fitted with adjustable bullet feet that can be raised or lowered to stabilize on uneven flooring, preventing wobbling as dishes are loaded or removed. To withstand heavy-duty use, its stainless steel construction resists rust, corrosion, and wear, and its front dress panel conceals internal pieces from damage.

Product Details

• High-temp sanitization
• Booster-less design
• Washes 63 racks per hour (58 racks with suggested NSF load time)
• Uses 0.89 gal. of water per rack (56.07 gal. of water per hour)
• 8-gal. wash tank
• Top-mounted controls
• Timer with extra-heavy, heavy, medium, and normal cycles
• Automatic tank fill
• Door-actuated start
• High-limit thermostat
• Low-water protection
• Interchangeable rinse/wash arms detach for cleaning
• Self-draining stainless steel pump
• Vent fan control
• Delime cycle
• Manual-wash switch
• Door switch
• 1-HP wash pump motor
• Detergent-/rinse-additive signal connection fuse box
• Large scrap basket collects debris

Construction

• 17¹⁄₄-in. vertical opening
• Exceptionally durable stainless steel construction
• Front dress panel covers internal components
• Adjustable bullet feet
• Single-point connection
• Field convertible from straight-through to corner unit with kit (sold separately)

Water & Installation Requirements

• Incoming water temperature: 180 degrees F
• Flow pressure: 8-12 PSI
• 4-in. wall clearance

Dimensions & Utilities

• 32 in. W x 29 in. D x 64³⁄₈ in. H
• 17.6 A, 5 kW, 1 HP
• 230 V/60 Hz/3 ph
• Minimum drainline size: 1¹⁄₂-in. IPS
• Minimum waterline size: ¹⁄₂-in. IPS

Product Features

*Free shipping on Jackson TEMPSTAR W/O within the 48 contiguous states.

From The Manufacturer

TempStar® Dishwasher, Door Type, high temperature, no booster, universal (straight-thru/corner) type, approximately (58) racks/hour capacity (0.90 gallons per rack), electro-mech controls, stainless steel finish, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
