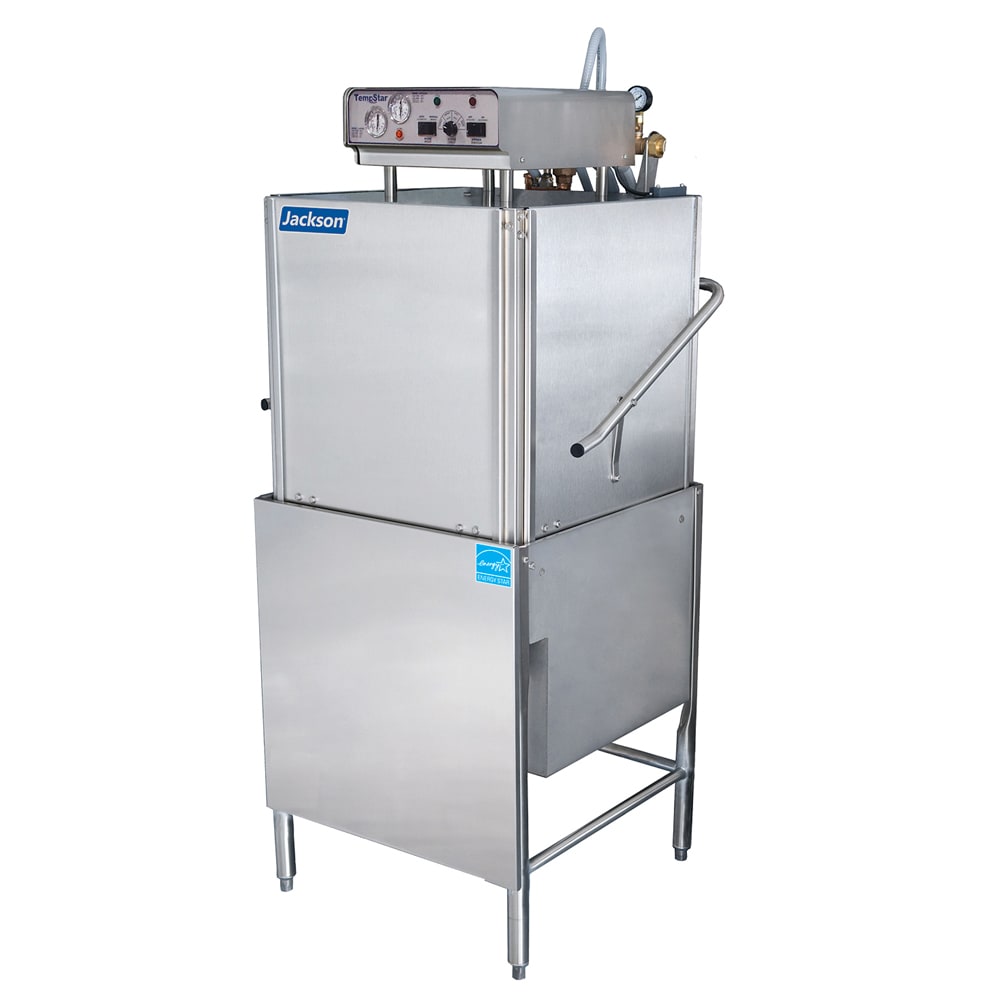

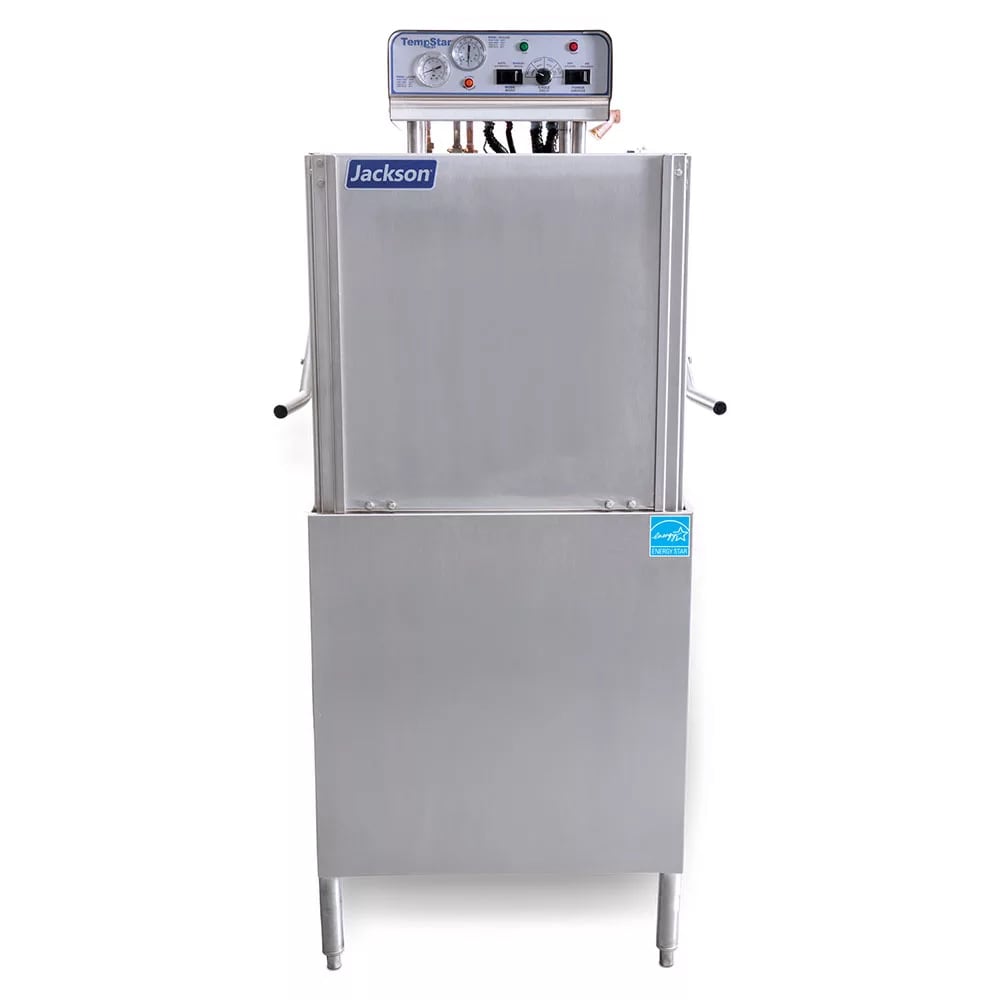

Jackson TEMPSTAR W/O High Temp Door Type Dishwasher w/ No Booster Heater, 230v/1ph

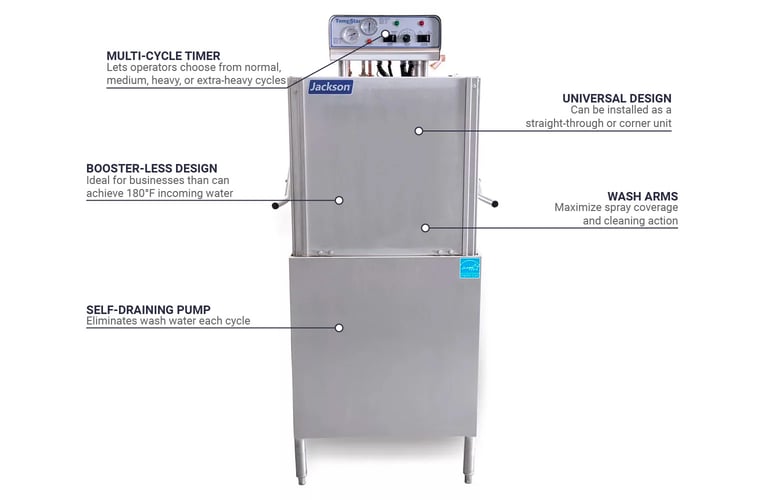

Operators can use the Jackson TEMPSTAR W/O TempStar® door-type dishwasher's top-mounted timer to select a normal, medium, heavy, or extra-heavy cycle. Because this system doesn't include a booster, incoming water must be 180 degrees Fahrenheit for proper sanitization. At the proper temperature and flow pressure of 8 to 12 PSI, its 57-second normal cycle can wash 63 racks per hour with 56.07 gallons of water—0.89 gallons of water per rack. To reduce manual tasks, this unit's tank fills automatically, its pump self-drains wash water each cycle, and its large scrap basket traps food waste. Its high-limit thermostat and low-water protection mechanism monitor temperatures and water levels to reduce damage risks.

For thorough cleaning, the Jackson TEMPSTAR W/O door-type dishwasher includes specially designed stainless steel nozzles that enhance cleaning action. Its wash and rinse arms can be interchanged for flexibility and can be detached for cleaning as needed. This unit's universal style enables installation as a straight-through or corner unit with a field conversion kit (sold separately). Its 32-inch-wide by 29-inch-deep by 64³⁄₈-inch-tall design suits compact kitchens, while its stainless steel construction resists dents, warps, rust, and corrosion to prolong its service life. A front dress panel covers internal components for additional protection, and to eliminate rocking during operation, its bullet feet can be adjusted to stabilize on uneven flooring.

Product Details

• High-temp sanitization
• Does not include booster
• Washes 63 racks per hour (58 racks with suggested NSF load time)
• Uses 0.89 gal. of water per rack (56.07 gal. of water per hour)
• 8-gal. wash tank
• Top-mounted controls
• Multi-cycle timer with extra-heavy, heavy, medium, and normal settings
• Automatic tank fill
• Door-actuated start
• High-limit thermostat
• Low-water protection
• Interchangeable rinse/wash arms are removable for cleaning
• Self-draining stainless steel pump
• Vent fan control
• Delime cycle eliminates limescale
• Manual-wash and door switch
• 1-HP wash pump motor
• Detergent-/rinse-additive signal connection fuse box
• Large scrap basket collects waste

Construction

• 17¹⁄₄-in. vertical chamber clearance
• Exceptionally durable stainless steel construction
• Front dress panel covers internal components
• Adjustable bullet feet
• Single-point connection
• Can be field converted from straight-through to corner unit with kit (sold separately)

Water & Installation Requirements

• Incoming water temperature: 180 degrees F
• Flow pressure: 8-12 PSI
• 4-in. wall clearance

Dimensions & Utilities

• 32 in. W x 29 in. D x 64³⁄₈ in. H
• 26.8 A, 5 kW, 1 HP
• 230 V/60 Hz/1 ph
• Minimum drainline size: 1¹⁄₂-in. IPS
• Minimum waterline size: ¹⁄₂-in. IPS

Product Features

From The Manufacturer

TempStar® Dishwasher, Door Type, high temperature, no booster, universal (straight-thru/corner) type, approximately (58) racks/hour capacity (0.90 gallons per rack), electro-mech controls, stainless steel finish, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
